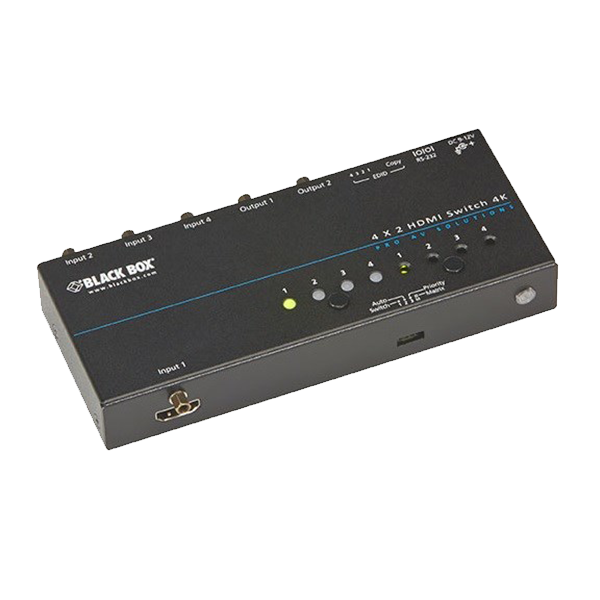

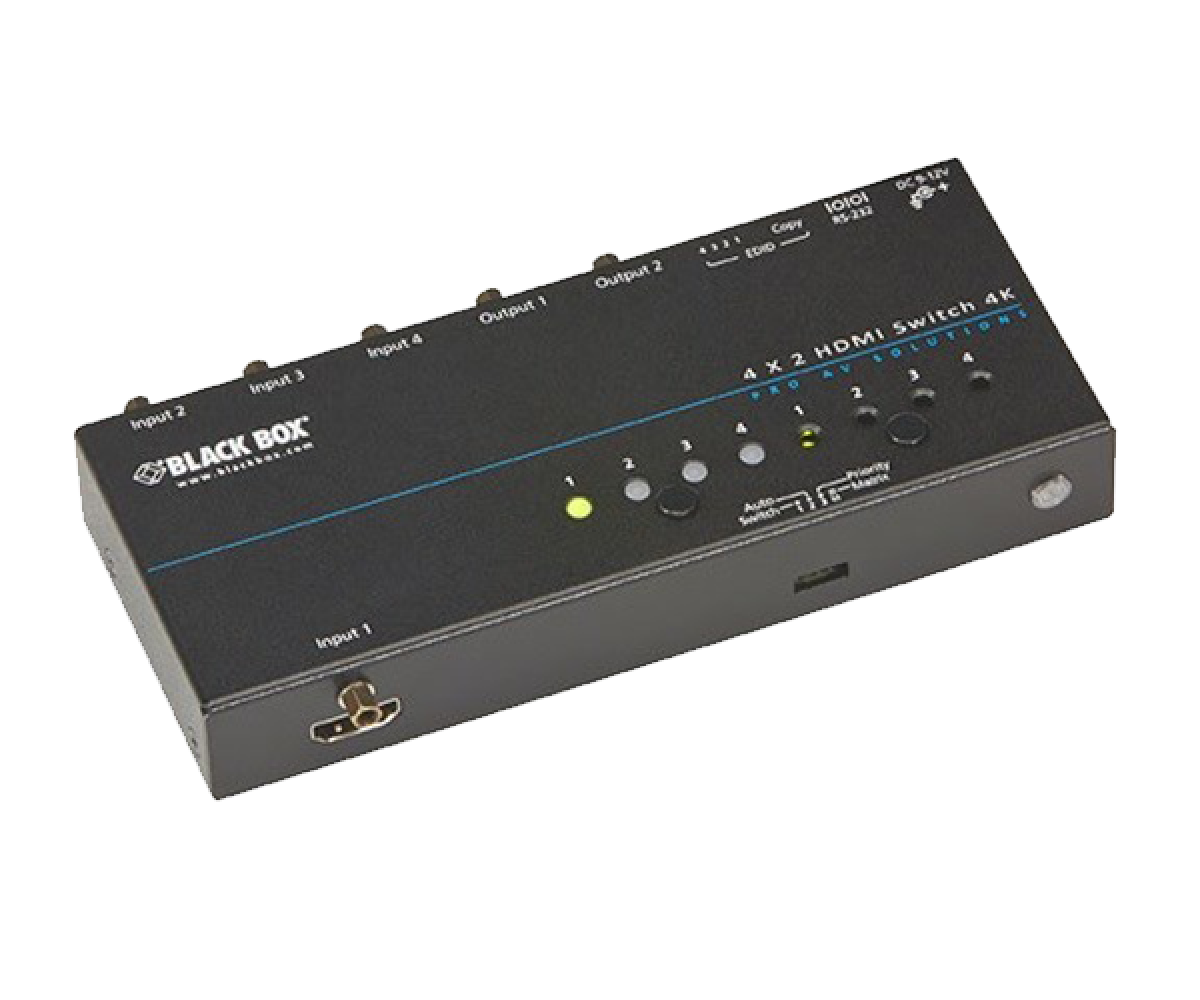

4K HDMI Matrix Switch 4X2

Approvals — FCC, CE, RoHS2, UL

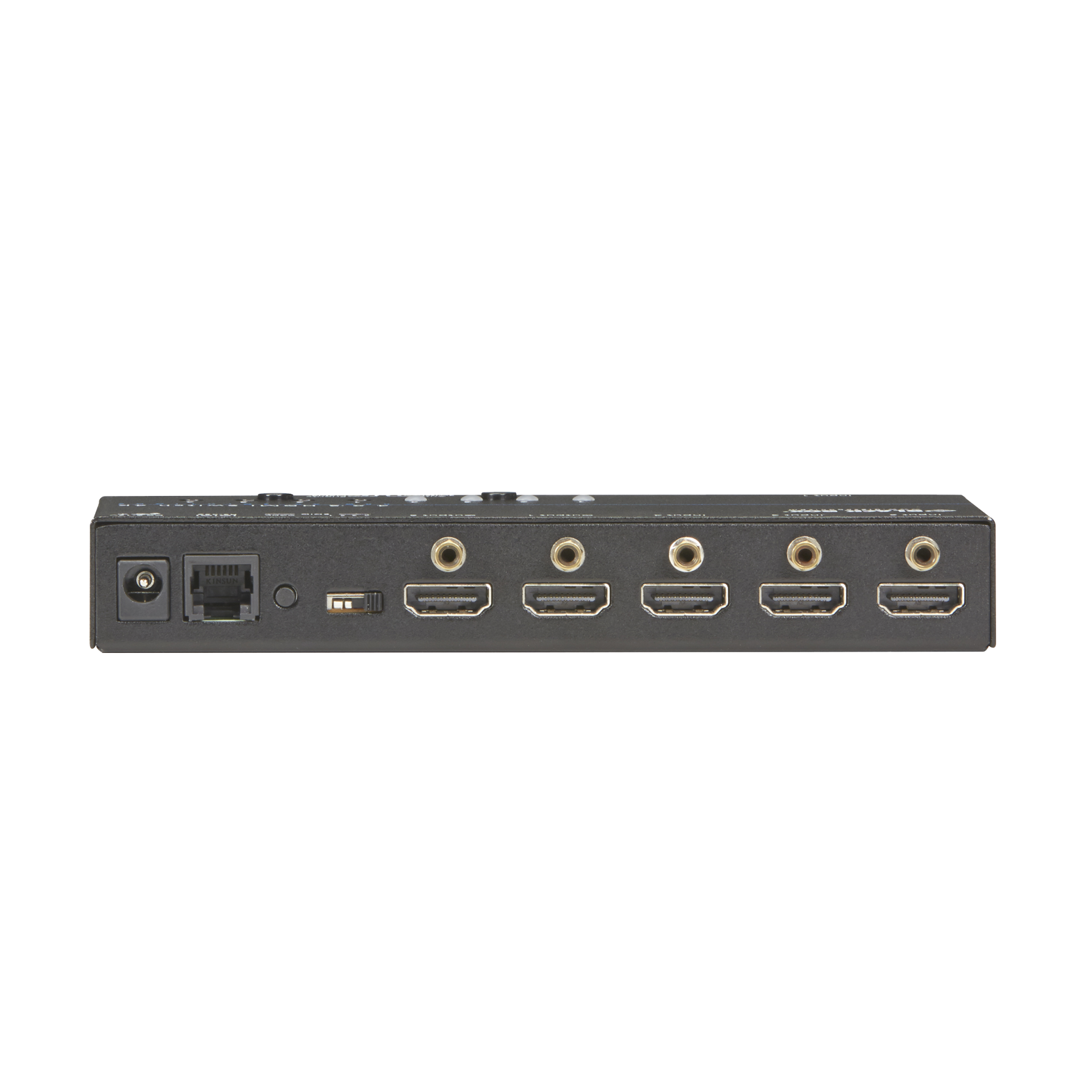

Connectors —
Input: (2) or (4) HDMI
Output: (2) HDMI
Control Port: (1) DB9
Environmental —
Operating Temperature: 34 to 104°C (0 to 40°F)
Storage Temperature: -4 to 140°C (-20 to 60°F)
Altitude: 3.300m ( 10,000 ft.)
Humidity: 80%
Indicators — (2)or (4) LEDs for input status
Power — 9V 1.5A
Resolution — 4K, 1080p, 720p
User Controls — Push button, Serial, IR Remote
Dimension — 20 x 156 x 65 mm (0.79" x 6.14" x 2.56")
Weight — Unit: 0.7 kg (1.55 lb.); Shipping: 0.9 kg (2 lb.)

• Supports 4K video.
• Switch high-resolution video plus audio from two or four sources to two displays in any combination.
• Control from the front panel, with the included IR remote controller or RS-232.
• Send digital signals to any or all outputs simultaneously.
• Warranty: 3 Year Double Diamond™ Warranty (Standard)
