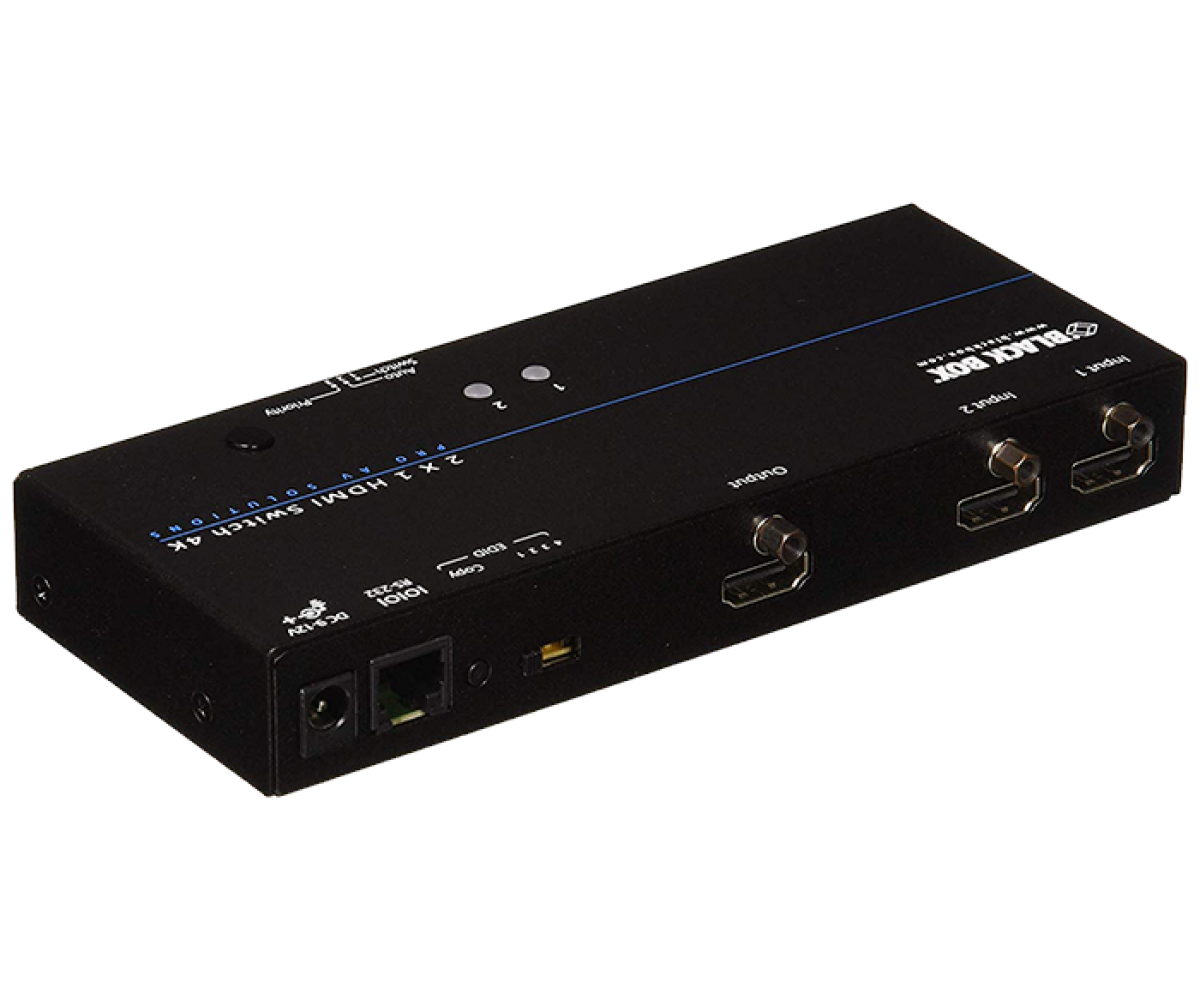

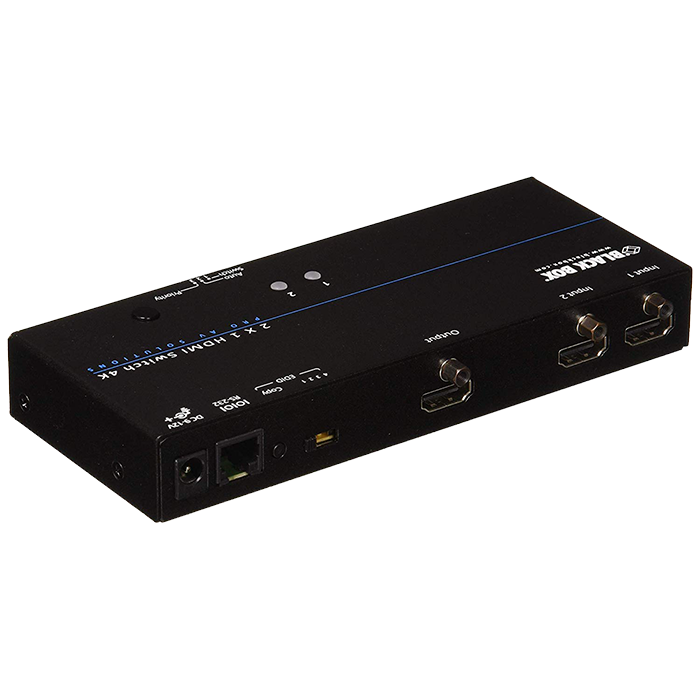

4K HDMI Switch - 2x1

Product Name 4K HDMI Switch - 2x1
Product Code VSW-HDMI2X1-4K
+ -

Audio and video switching between HDMI sources.

  • CE, RoHS2, FCC, CSA, TUV, UL approved
  • Steel Chassis
  • 4K Resolution (3840x2160)
  • 9 VDC, 1.5A Power Input
  • W:156mm x D:65mm x H:20mm


  • 2x HDMI F Input
  • 1x HDMI F Output
  • 1x RS-232
  • Supports up to 4K (UHD) resolution.
  • 3D-video, HDCP compliant, and Blu-ray ready.
  • Smart auto switching function that enables device to automatically switch to a source when it becomes active.
  • Switch between two different HDMI sources to a single display.
  • Control via front panel push buttons, IR remote control, serial connection.
  • 1x 2 x 1 HDMI Switch
  • 1x remote control
  • 1x universal power supply
  • 1x U.S. power cord
  • 1x User manual
Document Name Date İndirme Boyut View
BlackBox - 4K HDMI Switch 07/08/2019 08:44:13 1174 118,84 KB View
