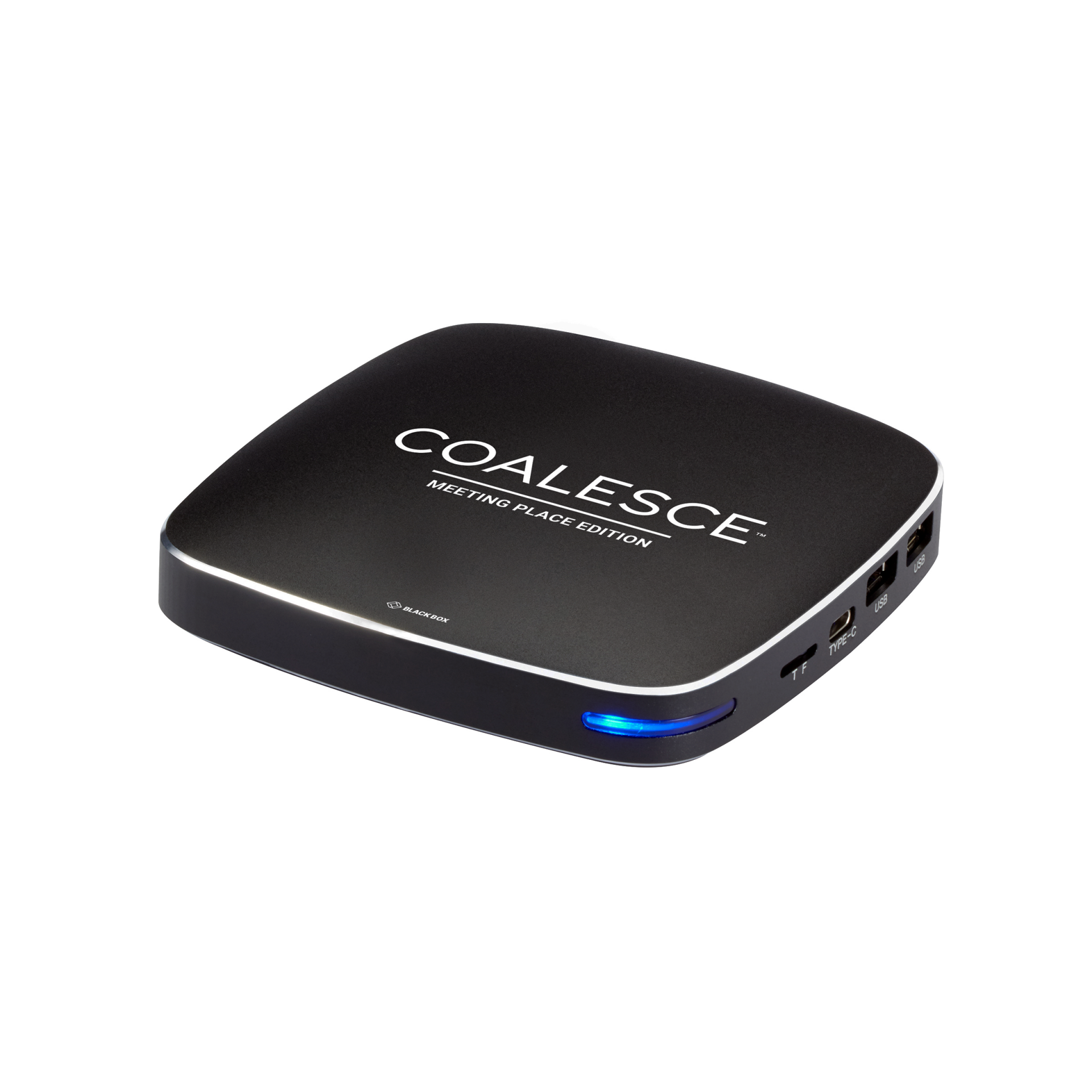

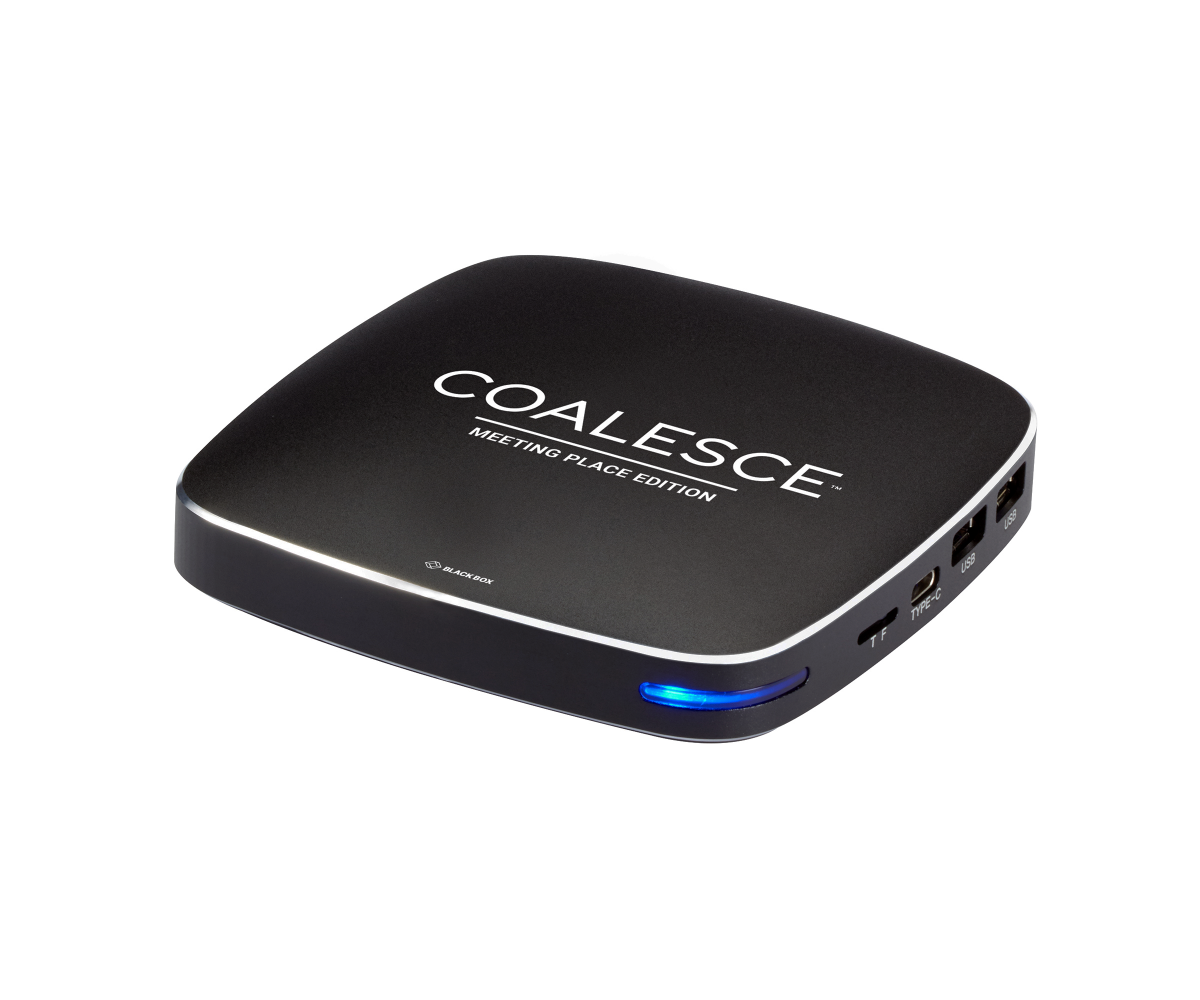

Coalesce Meeting Place Edition

Coalesce Hardware

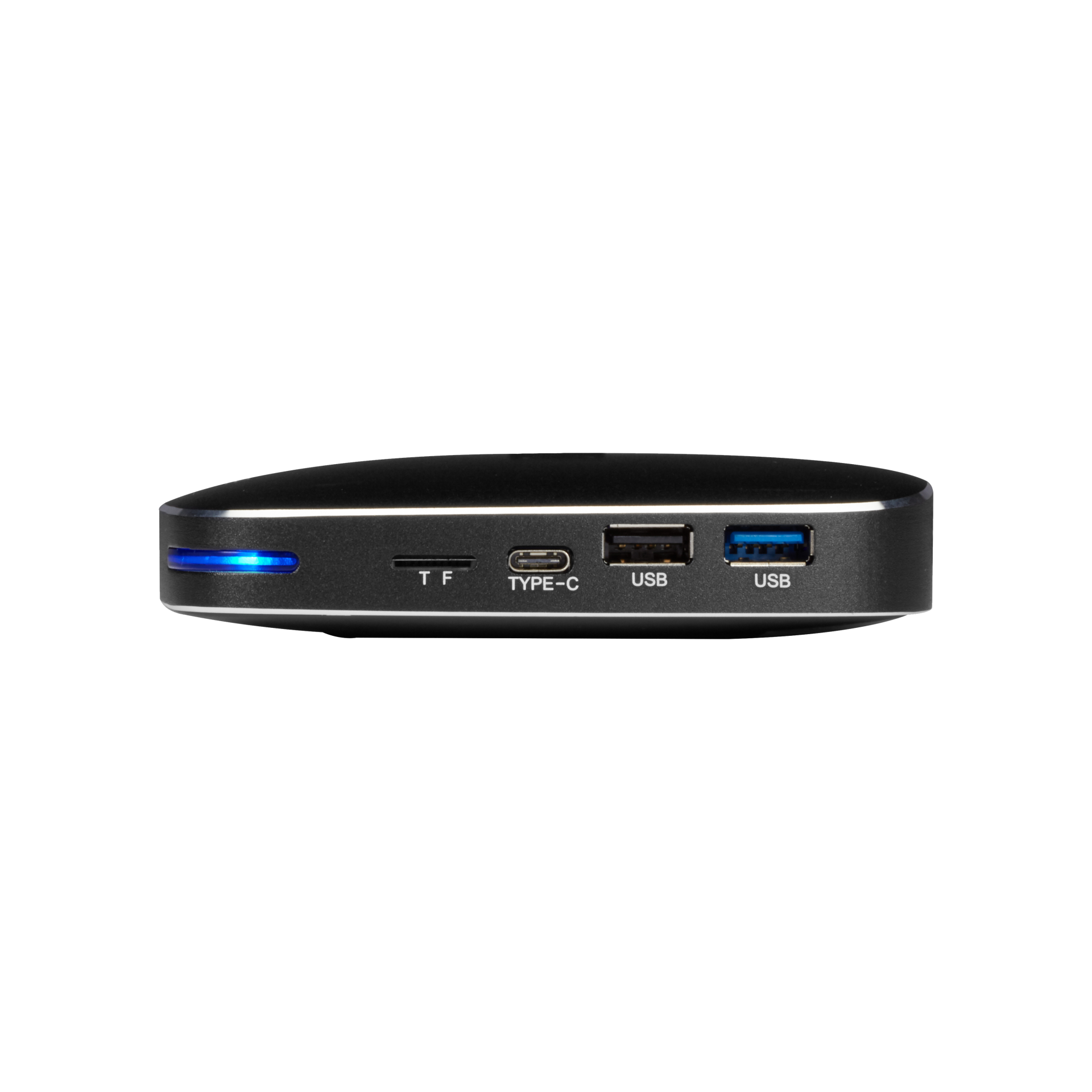

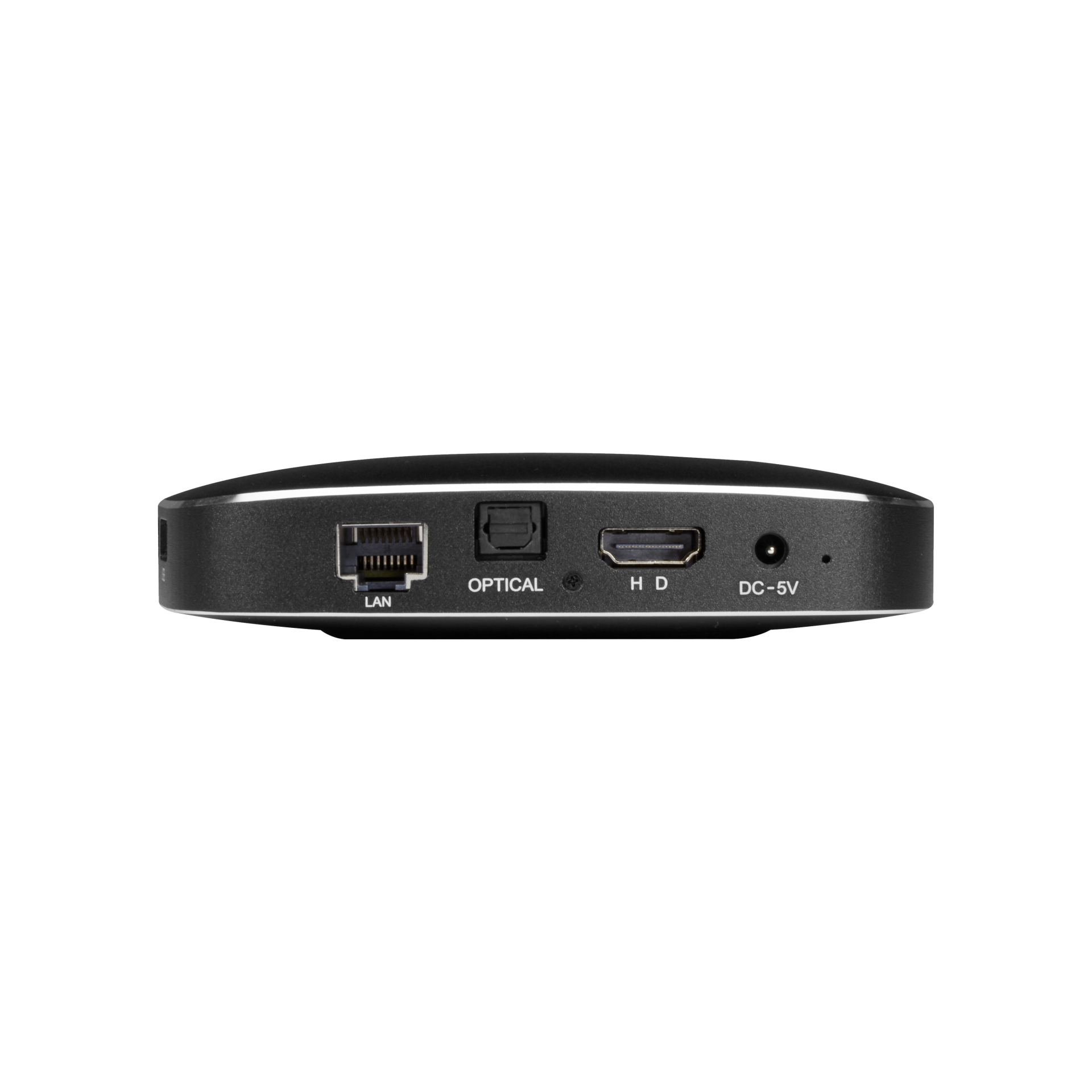

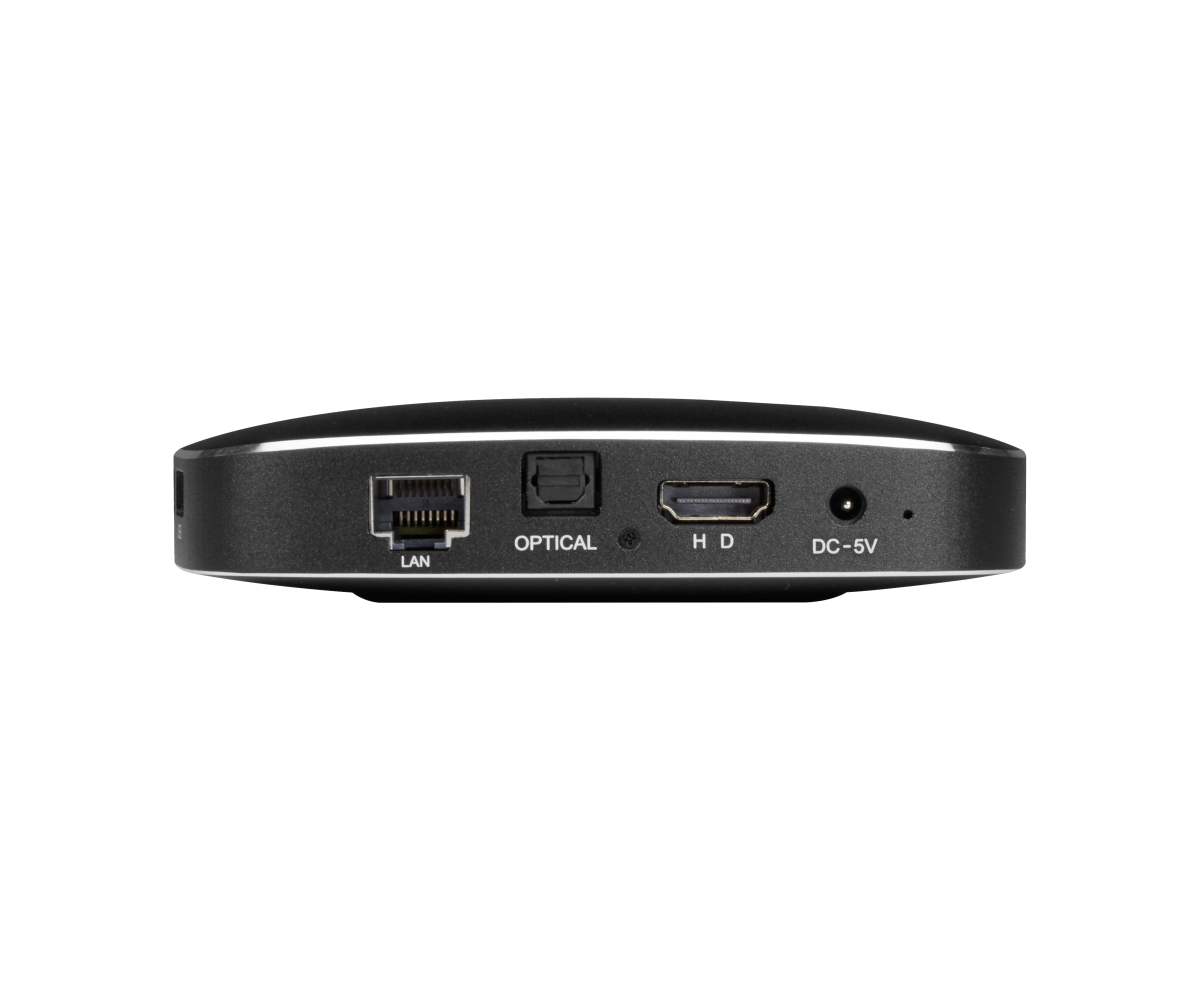

Connectors —
(1) HDMI
(1) Optical audio
(1) RJ-45 Ethernet (10/100/1000)
(1) USB 2.0 Type A
(1) USB 3.0
(1) USB-C,
(1) Micro SD
(1) 5-VDC power
Power — Input 5 VDC, 3A
Dimensions — 1.8H x 12W x 12D cm
Weight — 0.18 kg
Mounting Type — Console tabletop

Security Specifications
Encryption — 2048-bit length encryption key, TLS/DTLS, HTTPS
Network Interface Cards—
(1) Ethernet NIC
(1) wireless NIC
Network Modes — Wireless Access Point, Ethernet Network Deployment, Dual-Network, Wireless Client
Network Settings — Accessed via Coalesce configuration panel and an (optional) admin pin; Settings include DHCP or fixed address, DNS server, SSID Name (for wireless)
Software Security and Access Options — Disable/enable local configuration, open access, pinlock, screen key

System
Coalesce Software Pre-Installed — Includes Android version of Coalesce server software built for wireless sharing
Graphics Processor — Mali-T864
Internal Storage — 2 GB DDR3 RAM, 16 GB Flash Storage
I/O — (1) USB 2.0, (1) USB 3.0 , (1) USB-C, (1) Micro SD, IR
Operating System — Android 6.0 Marshmallow
PC: Windows® 10, 8, 7; Chrome®
Web Client: Google Chrome v 55+; Windows; Mac®, Ubuntu®, Fedora®, ChromeOS®; Airplay®: iOS 9, 10;
MacOS 10.10, 10.11, 10.12;
Android: 5 and above
Processor — Rockchip® RK399-6 Cores 64-bit (Dual Core A72 + Quad Core A53)
Streaming Video Support — HD (1920 x 1080), HD SD (1280 x 720)
Video Output — HDMI output with Audio
Wireless — Dual Band 802.11 a/b/g/n AC 2.0

• Multi-person sharing: users can connect, share and control content from anywhere in the world.
• Dongle-free: Share your display with devices using Windows, Apple iOS, Android, or the Google Chrome browser extension.
• Connect and Go installation-free setup.
• Compatible with virtually any displays via HDMI connection for video and audio.
• All-in-one: Combines wireless display, video conferencing (PRO version) and screen mirroring technologies.
• Control your Windows PC directly from your touch screen display using reach through.
• White boarding, real-time document editing without losing version control.
• Moderator functionality for meeting control from any device.
• Off-line mode enables users to connect without internet access.
• Protect sensitive information via optional encryption for network traffic between Coalesce and user devices or use Pin for access security.
• Compact form factor is easy to deploy behind flat panels and above projectors.
• Central deployment/management (PRO version).
• Can be used with a camera.
• Warranty: 1 Year Double Diamond™ Warranty (Standard)
