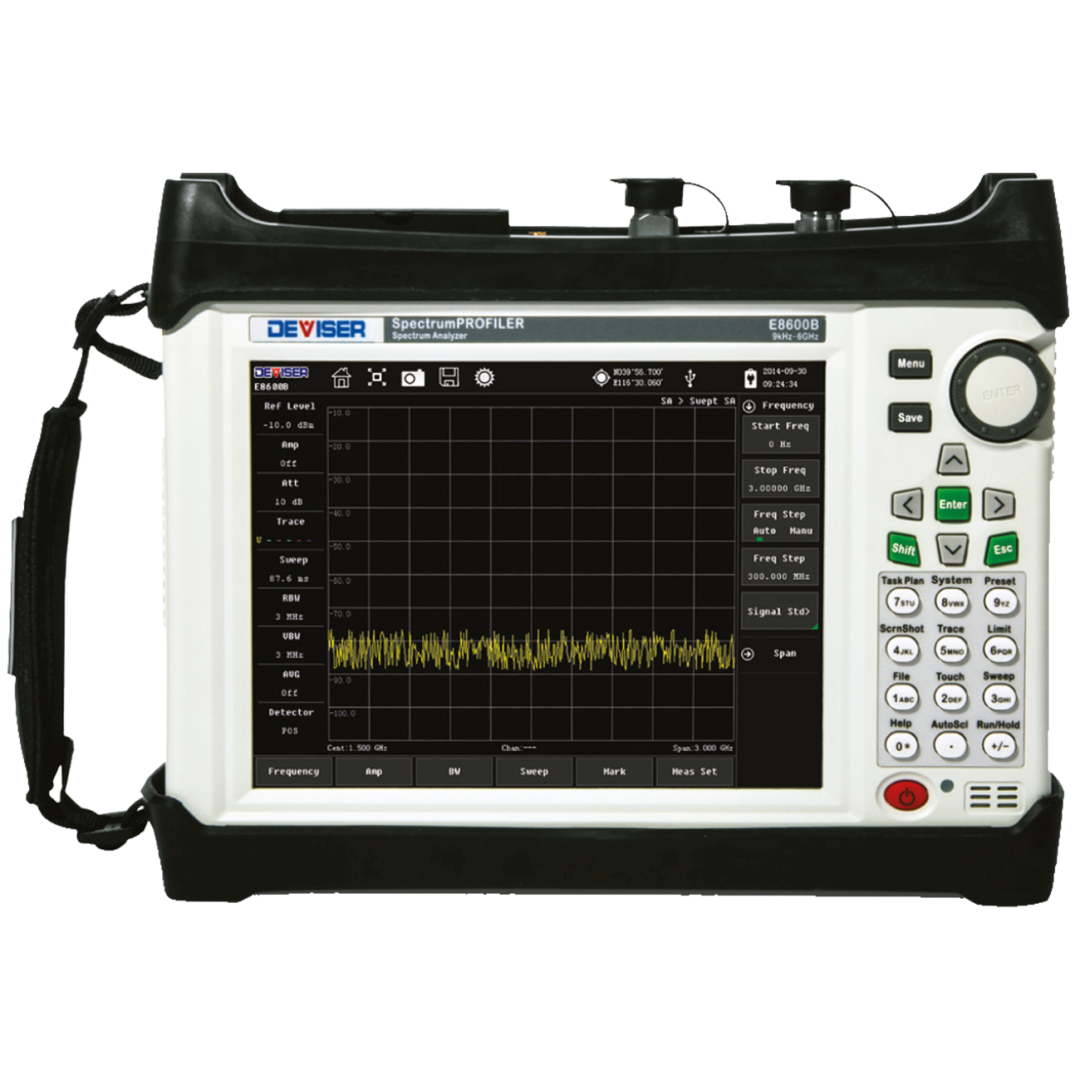

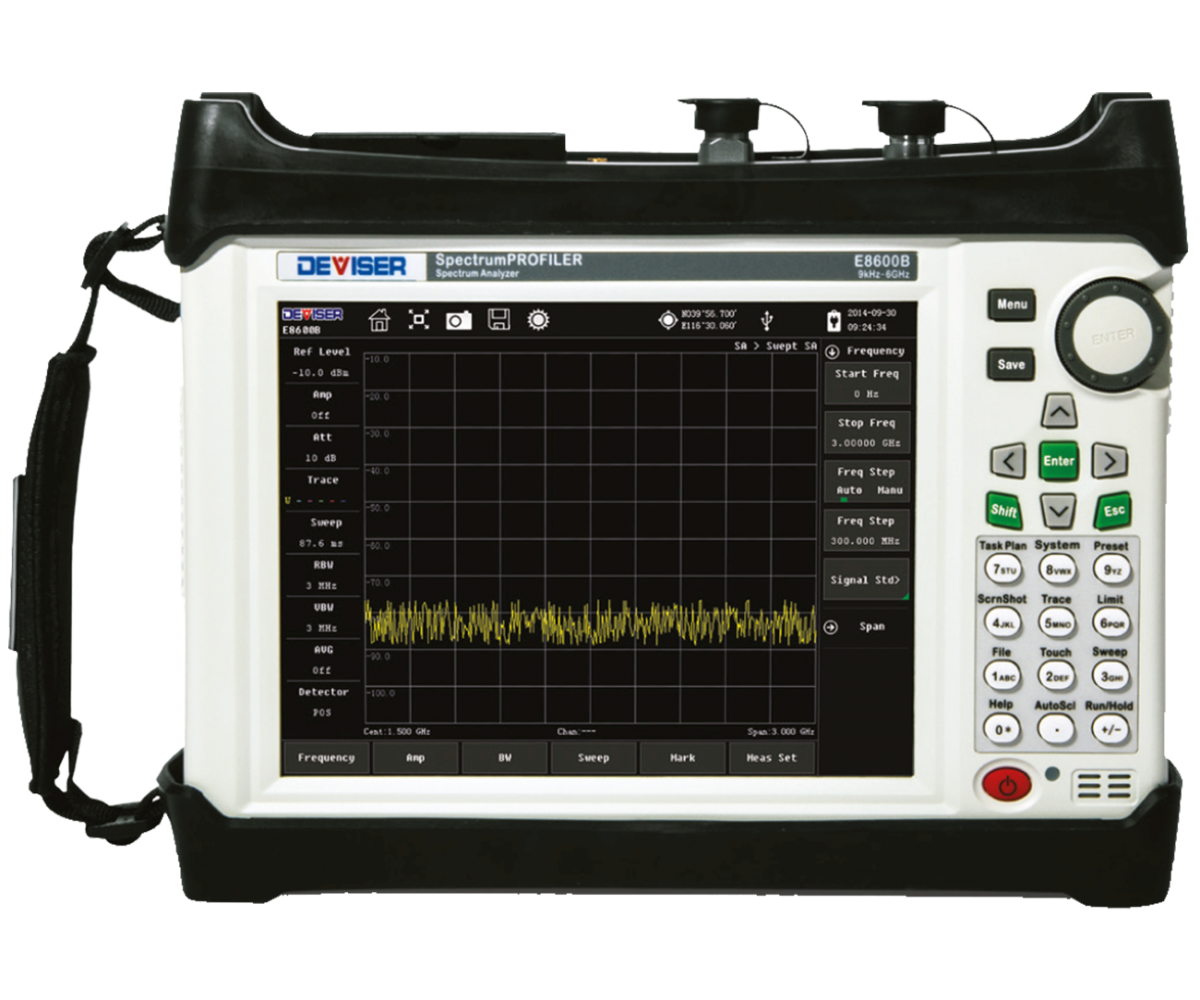

Deviser E8600B RF Spectrum Analyzer

Product Name Deviser E8600B RF Spectrum Analyzer
Product Code E8600B
+ -
Pcs

The E8600B Spectrum Analyzer provides all necessary measurement functions and performance to accurately characterize the signal environment in addition to clearing, detecting, identifying and locating signal interference in a lightweight, handheld instrument.  The E8600B enables testing of higher frequency communications sites and signals, such as the 5.8 GHz ISM band or point-to-point and mesh radio systems operating from 4.0 to 6.0 GHz.

Frequency Range: 9 kHz – 6.0 GHz
Resolution: 1 Hz
Frequency Span: 1 kHz to 6 GHz in 1-2-5 sequence (automode), and 0 Hz (zero span)
Resolution Bandwidth (RBW): 1 Hz to 3 MHz in 1-3 sequence (auto or manually selectable)
Video Bandwidth (VBW): 1 Hz to 3 MHz in 1-3 sequence (auto or manually selectable)
Dynamic Range: >100 dB
Measurement Range: DANL to maximum safe input level
Maximum Safe Input: +30dBm (peak power, input attenuation > 15dB), 50VDC
Amplitude Accuracy: ≤ ± 1.0 dB
Attenuator Range: 0 dB to 55 dB in 1 dB steps

Data Storage-
Internal: 1 GB, > 2000 saved measurement files
External: Limited by size of USB flash drive

Battery-
Type: Li-Ion, 11.1V, 5.2AH
Operation: > 4 hours, continuous; 8 hrs, idle

Connectors-
RF In: Type N, female, 50Ω
RF In Damage: +30dBm, ± 50 VDC
USB host: Type A, 1-Port (connect flash drive for data transfer)
USB client: 5-pin mini-B (connect to PC for data transfer)
LAN: 10M/100M LAN

  • Handheld, lightweight, rugged design that withstands harsh environments and lighting conditions
  • Intuitive menu structure enables ease of use and quick measurements
  • Quickly identifies, locates and maps signal interference
  • Performs comprehensive signal analysis for complete site profile and monitoring of signal environment
  • Occupied Bandwidth, Channel Power and ACPR
  • Dual spectrum and spectrogram measurements
  • Verify RF transmission
Document Name Date İndirme Boyut View
Deviser - Wireless Brochure 24/09/2019 13:11:29 42 5,46 MB View
