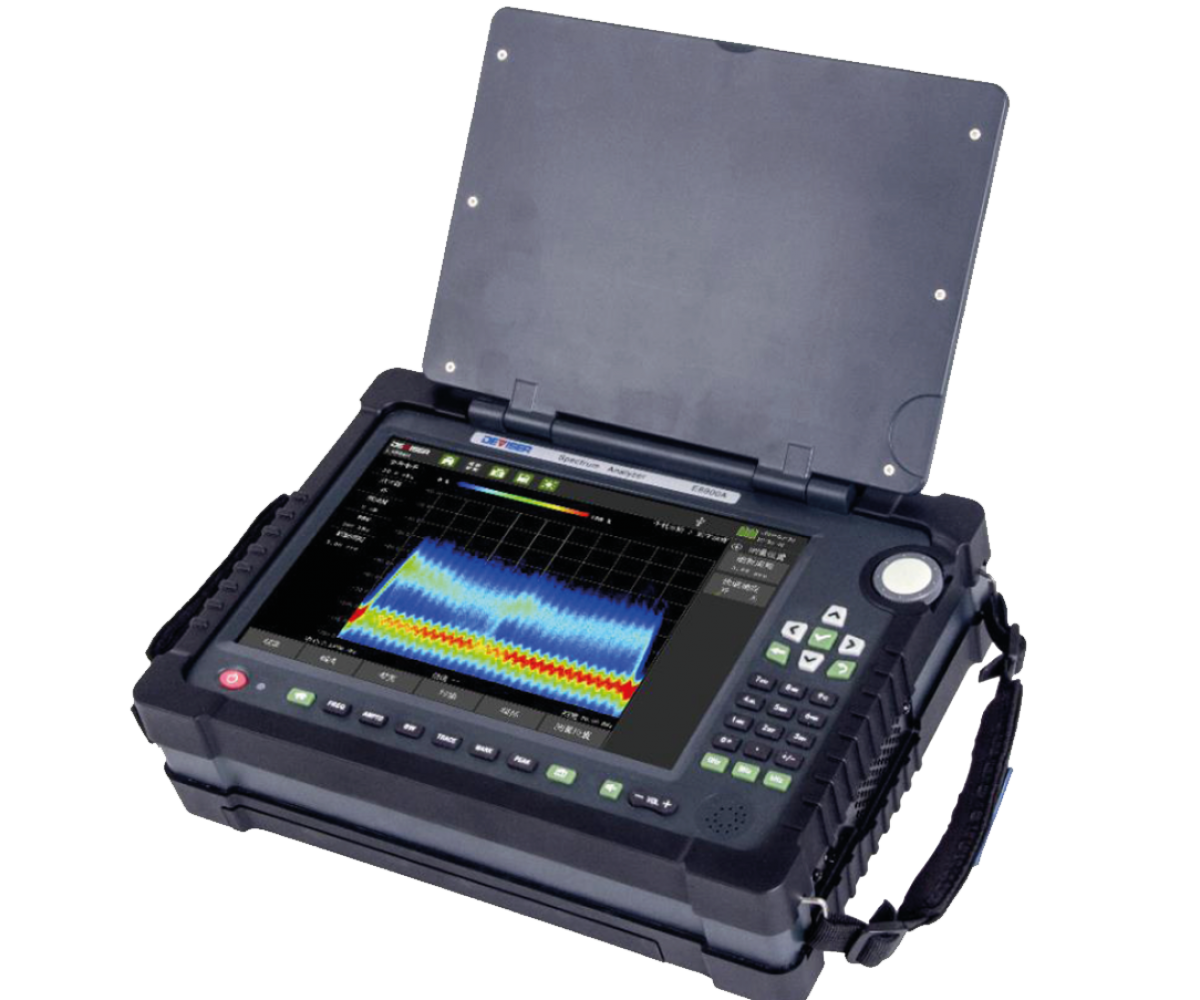

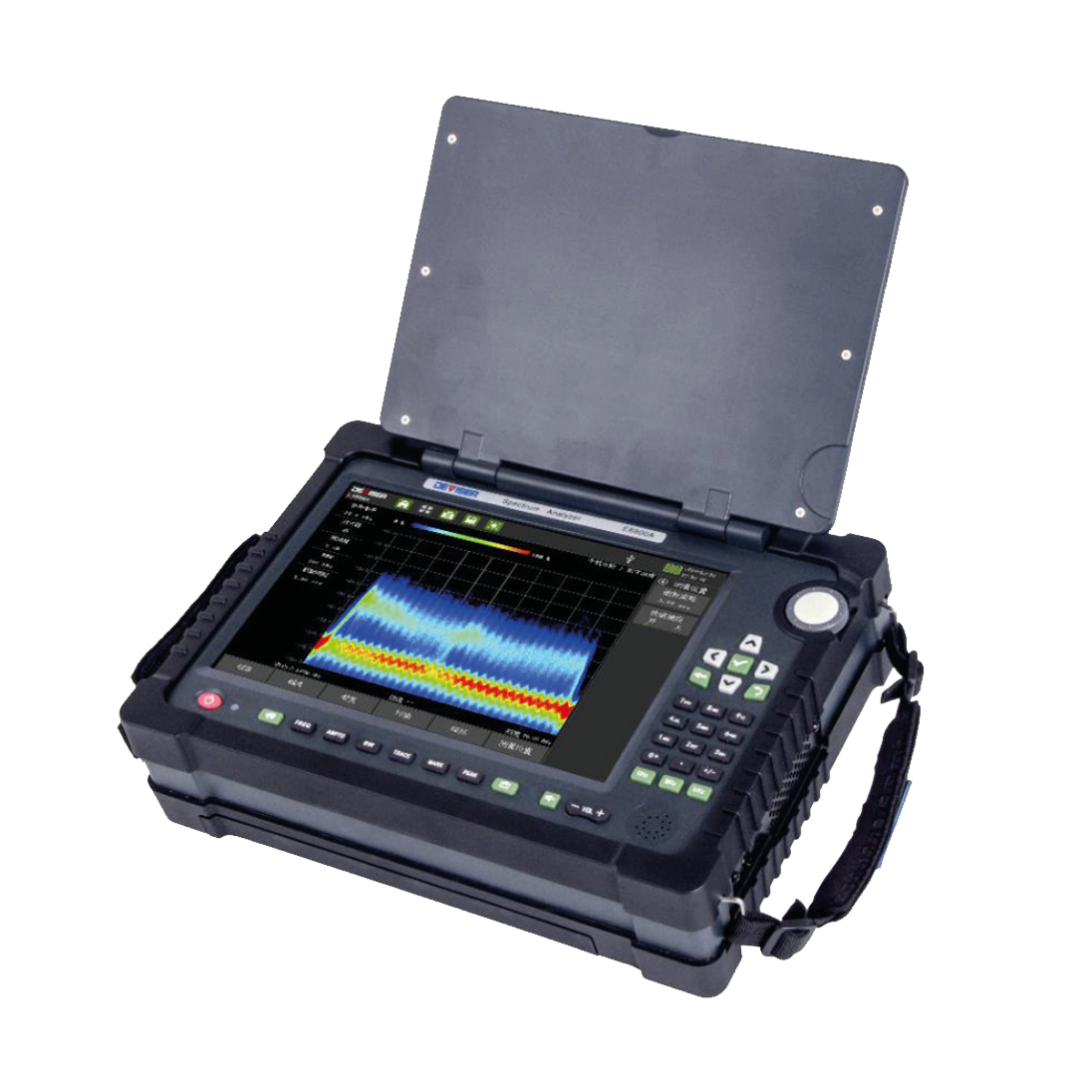

Deviser | E8900A 5G Spectrum Analyzer

Product Name Deviser E8900A 5G Spectrum Analyzer
Product Code E8900A
+ -
Pcs

The E8900A 5G Spectrum Analyzer offers new wireless communication technology with all-new levels of flexibility and efficiency for construction and maintenance of 5G systems. Correlative interference analysis with DF antenna and GPS mapping can locate hard-to-isolate 5G signals in max accuracy.

Spectrum Analyzer-
Frequency range: 9 kHz ~ 9 GHz
Resolution bandwidth: 1 Hz ~ 3 MHz
Dynamic range: >100 dB @ 1 GHz

5G Analyzer-
Frequency Range: FR1 Band (10 MHz - 6 GHz)
IF Bandwidth: Up to 100 MHz

Measurements-

  • Physical cell ID (PCI)
  • Beam ID
  • Time offset
  • 5G Interference detection
  • Beam stat analyzer
  • Power vs. time

Connectors-

  • 3x USB 2.0 ports
  • 1x USB 3.0 port
  • 1x Ethernet LAN port
  • External GPS antenna connection
  • External reference input
  • IF output
  • High-performance handheld analyzer for construction & maintenance of 5G NR systems
  • Frequency range 9 kHz ~ 9 GHz
  • High-speed analysis, measuring 30 GHz/s @ 7.8 kHz RBW
  • Test and demodulate 5G NR (FR1); TDD-LTE; FDD-LTE signals
  • IQ data acquisition
  • Internal and external antenna for max accuracy
  • Additional modes include spectrogram; DPS; gated sweep; GPS data for locating interference
  • Can support correlative interferometer DF antenna
  • 10.1" capacitive touchscreen for easy control & visibility
  • Numerous data transfer options: LAN, USB, & more
Document Name Date İndirme Boyut View
Deviser - E8900A 5G NR Handheld Spectrum Analyzer 06/03/2020 16:27:31 99 4,62 MB View
