Deviser | EM860 Broadband Electromagnetic Field Meter & Spectrum Analyzer

NEW
Product Name Deviser EM860 Broadband Electromagnetic Field Meter & Spectrum Analyzer
Product Code EM860
+ -
Pcs

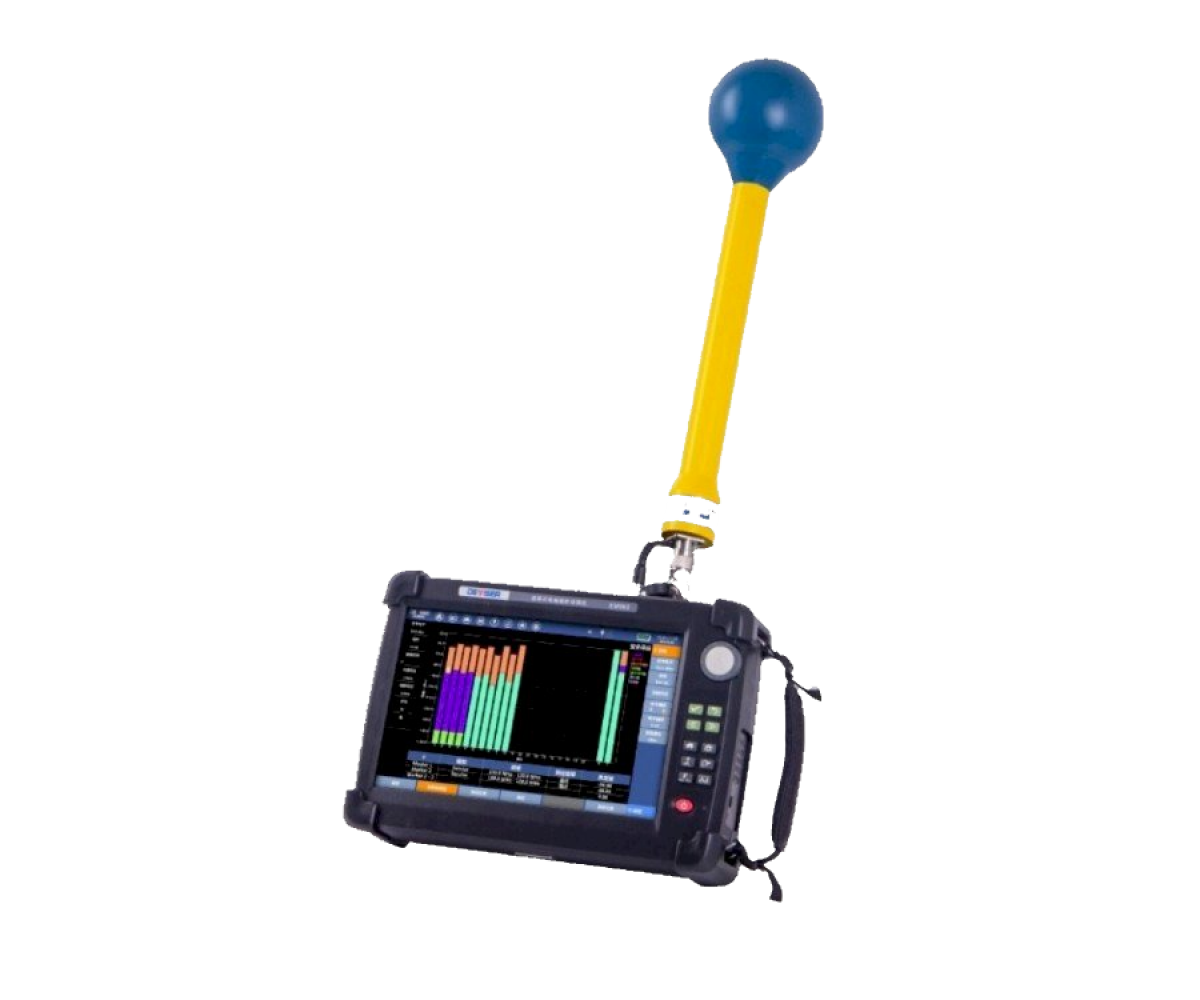

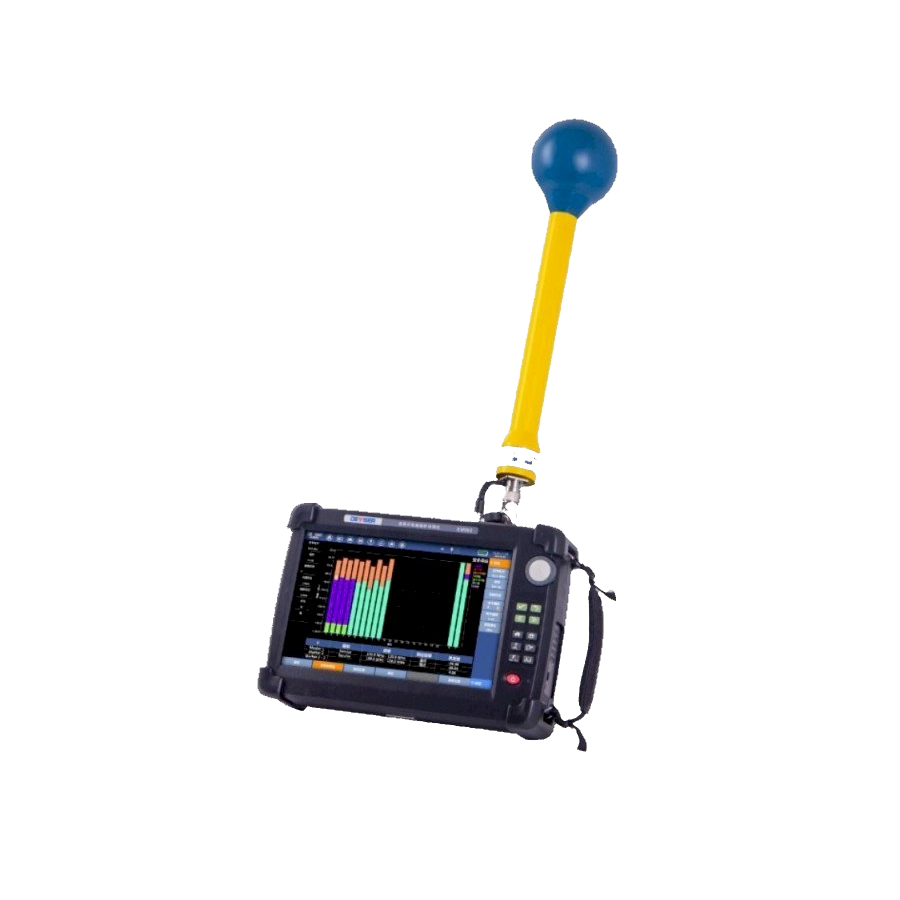

The EM860 is a portable EMF meter for the detection of electromagnetic fields and their sources in the frequency range 9 kHz to 6 GHz. The EM860 is primarily used for the safety assessment of areas and rooms at mobile radio base stations or in industry for the analysis of electromagnetic field strength.

Operating modes

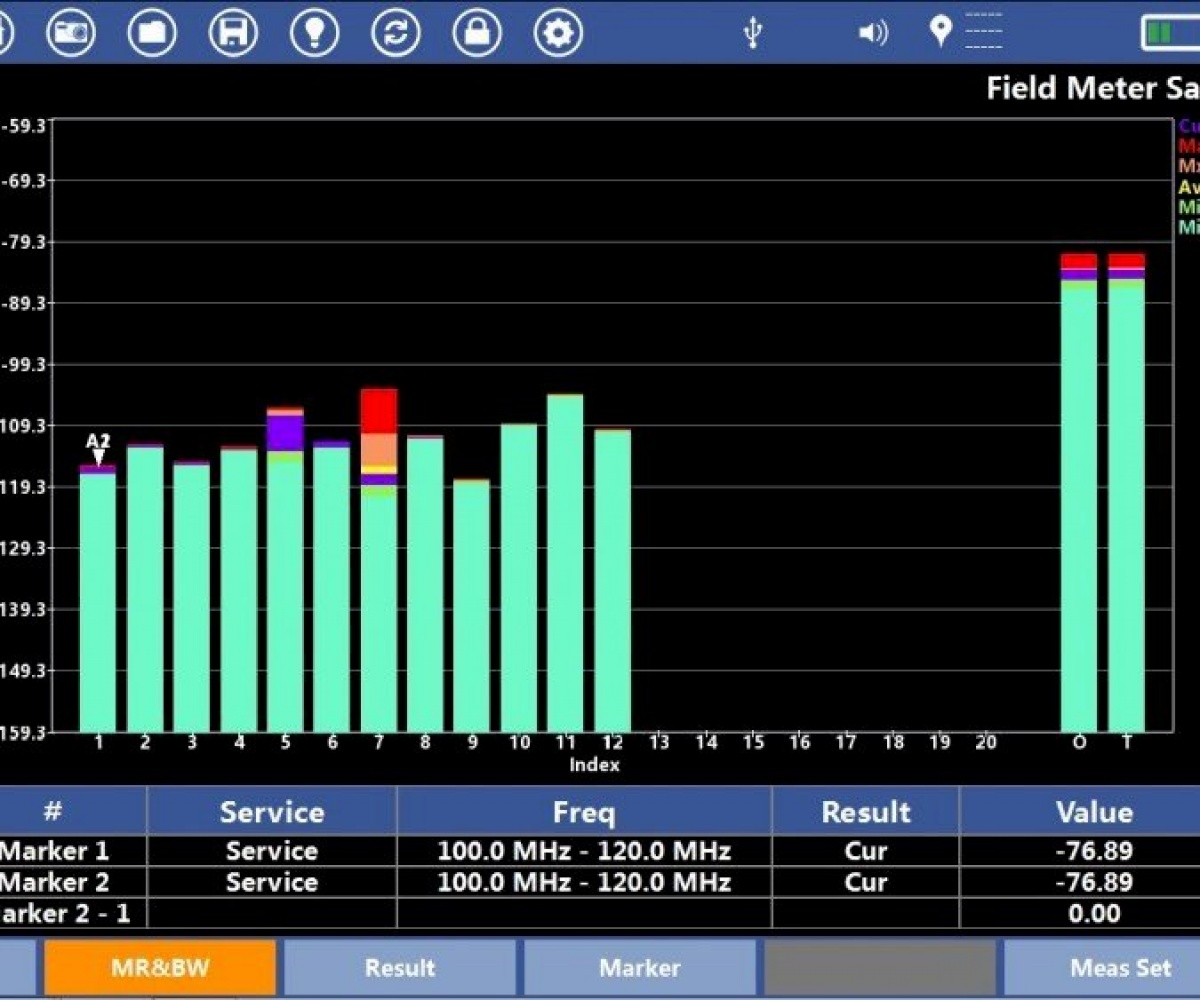

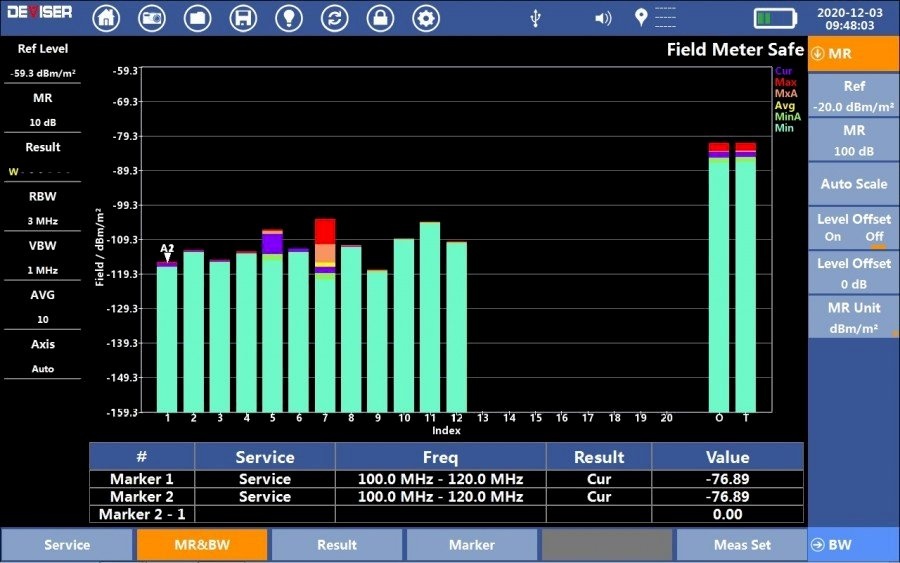

Measurements vs. frequency: ● Spectrum Analysis ● Safety Evaluation

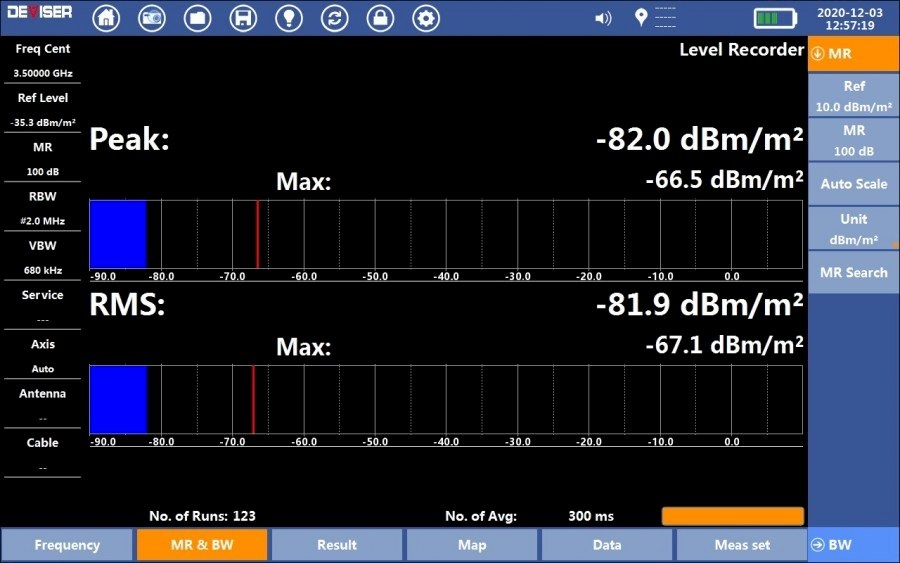

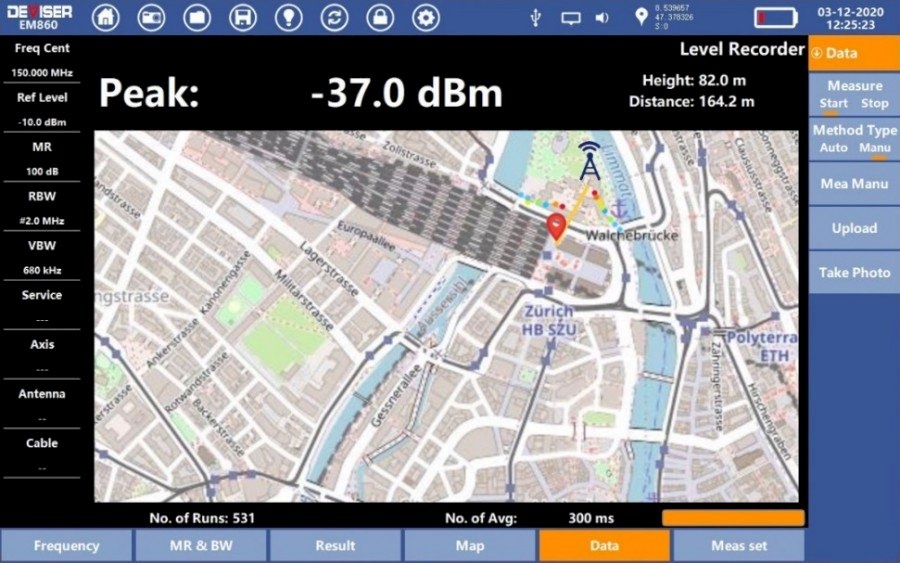

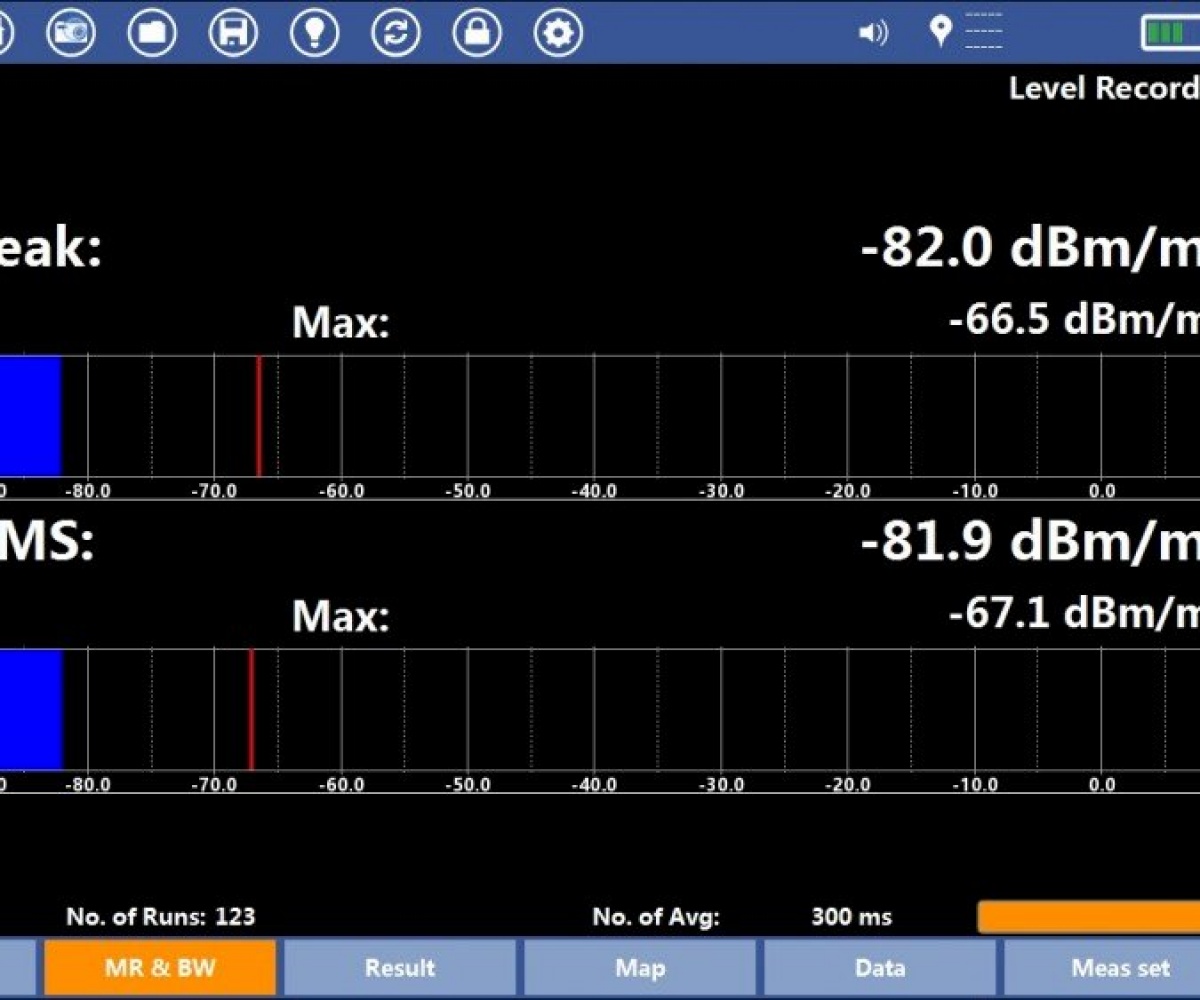

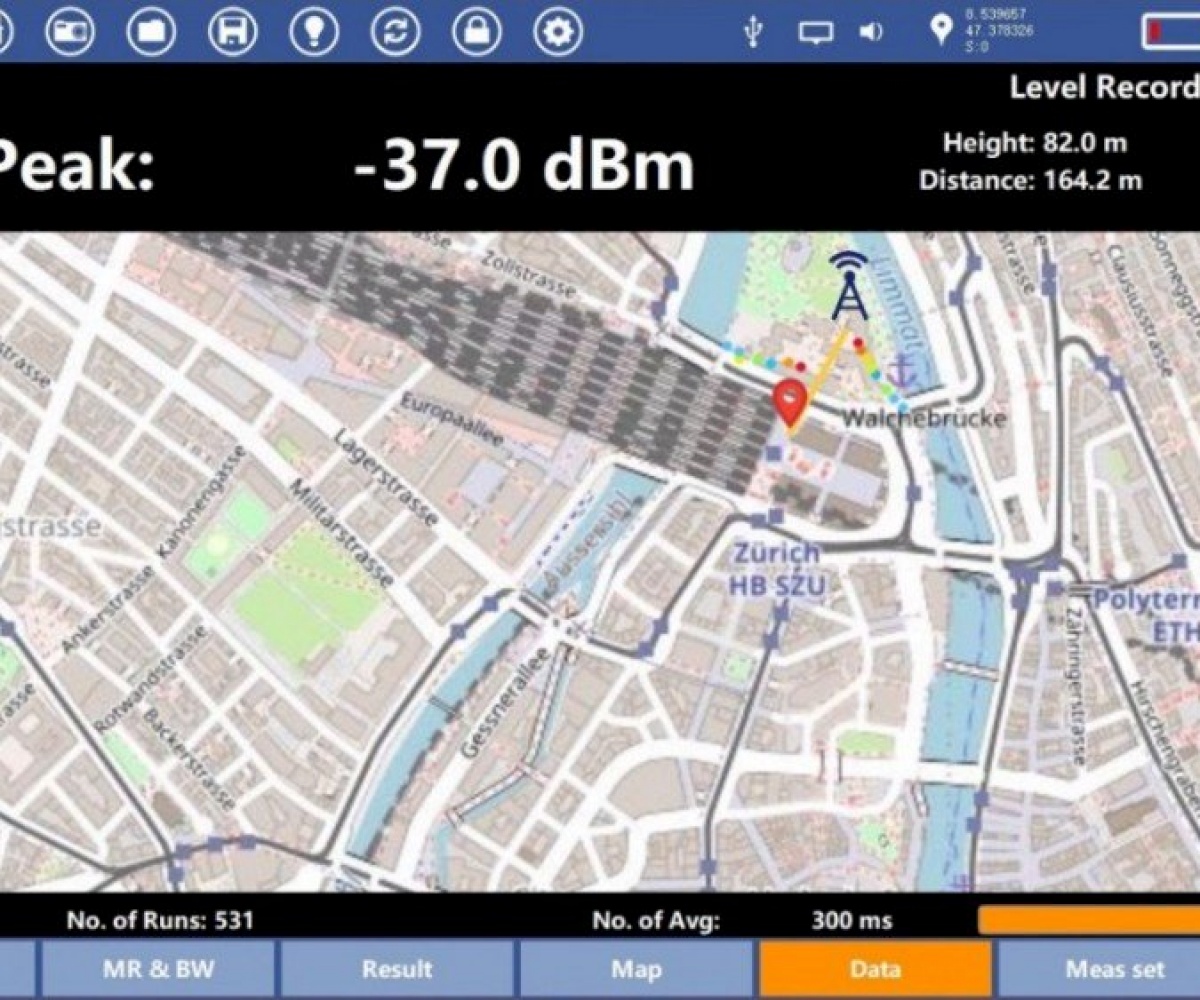

Measurements vs. time: ● Level Recorder

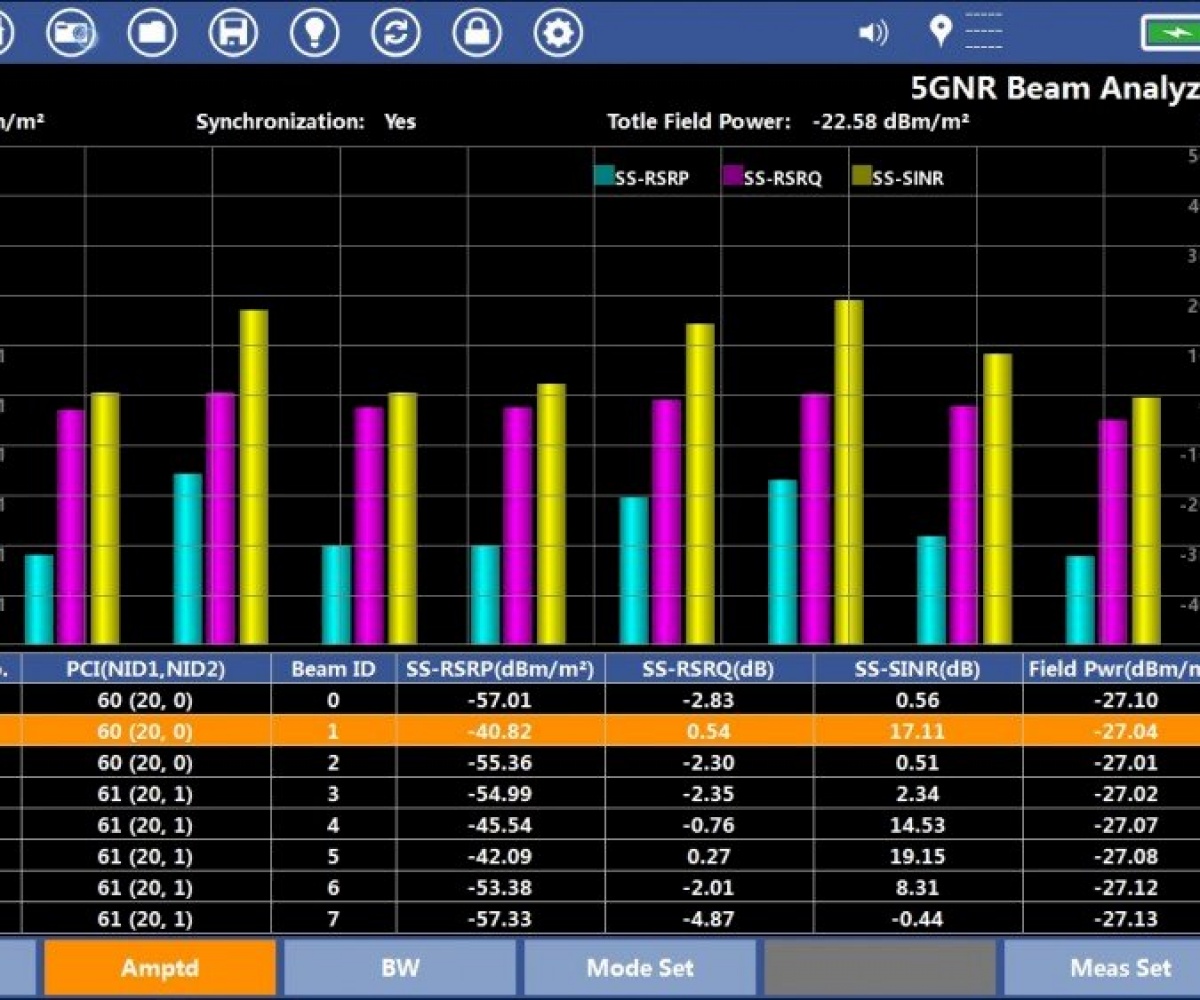

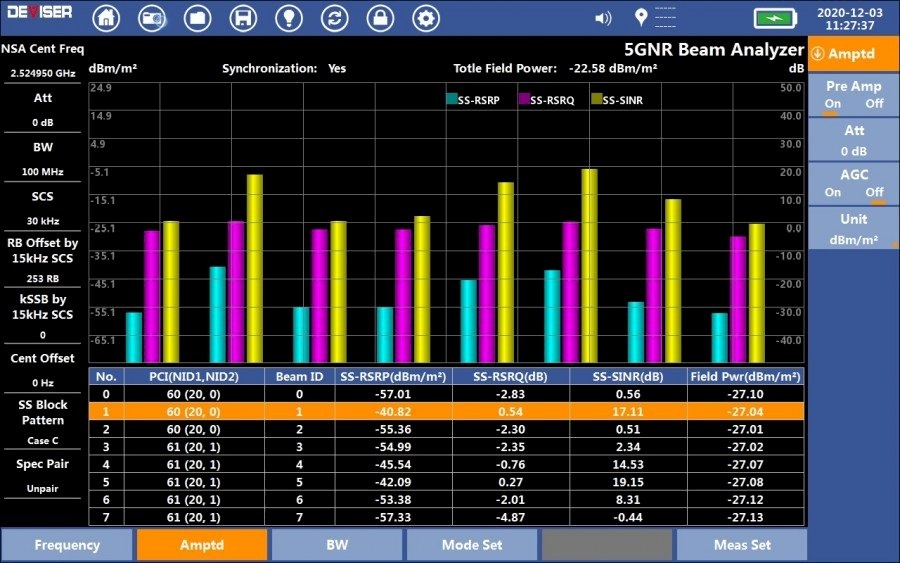

Measurements on mobile networks: ● 5G NR Demodulation

RF Data
Frequency range: 9 kHz to 6 GHz
RBW: See specifications for each mode
Phase Noise: Typical<-105 dBc/Hz@ 100kHz offset from 1GHz
Frequency accuracy: < ±1 ppm
Displayed Average Noise Level (DANL):
Amplifier OFF:
≤-135dBm, 10MHz~3GHz
≤-130dBm, 3GHz~6GHz
≤-125dBm, 6GHz~9GHz
Amplifier ON:
≤-155dBm, 10MHz~3GHz
≤-150dBm, 3GHz~6GHz
≤-145dBm, 6GHz~9GHz
Level accuracy: ±1.5 dB (+20℃ - +30℃)
RF input: N type/50Ω
Maximum RF power level: +25dBm(peak power/entrance attenuation>15dB); ±50VDC

Three-axis antenna (E-field)
Frequency range: 420 MHz to 6 GHz
Antenna type: E-field
RF connector: N-Connector, 50Ω

● Safety evaluation of areas and rooms
● Spectral analysis
● Level recorder
● Electromagnetic field strength analysis
● LTE and 5G NR demodulation
● Powerful background data management system
● Measuring antenna: 420 MHz to 6 GHz
● 100 MHz real time analysis

Document Name Date İndirme Boyut View
Deviser EM860 Broadband Electromagnetic Field Meter & Spectrum Analyzer 23/03/2022 00:02:48 57 1,63 MB View
