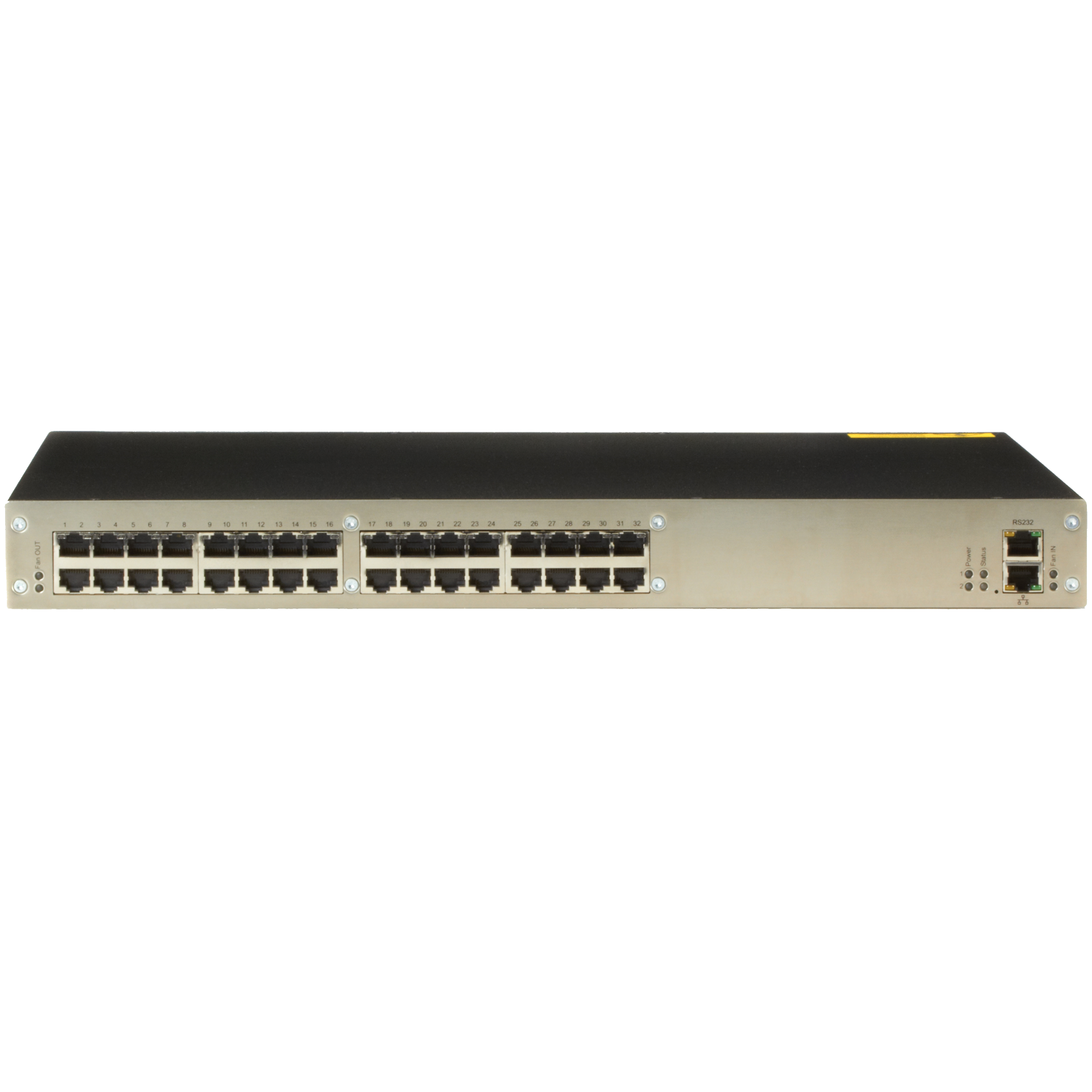

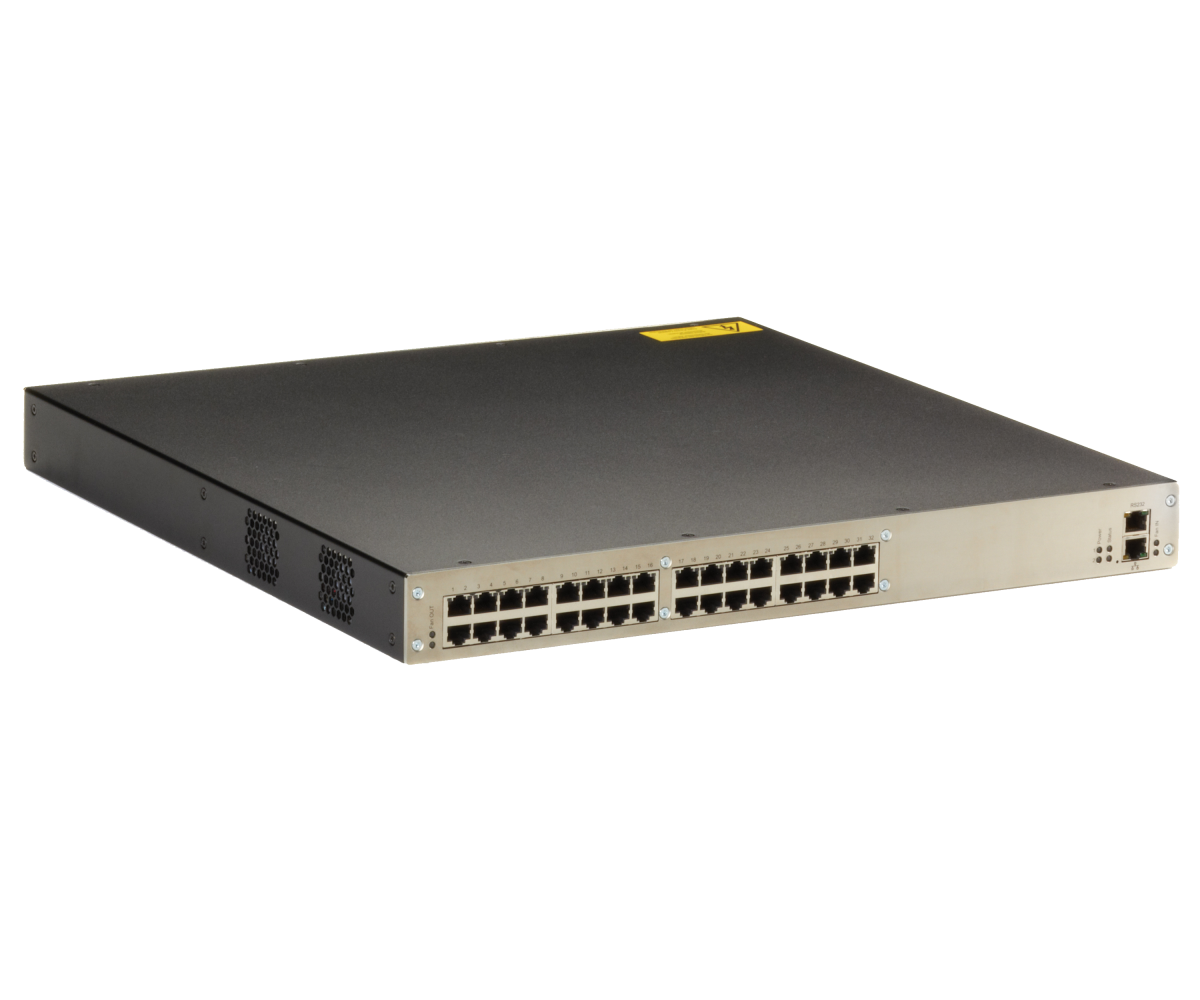

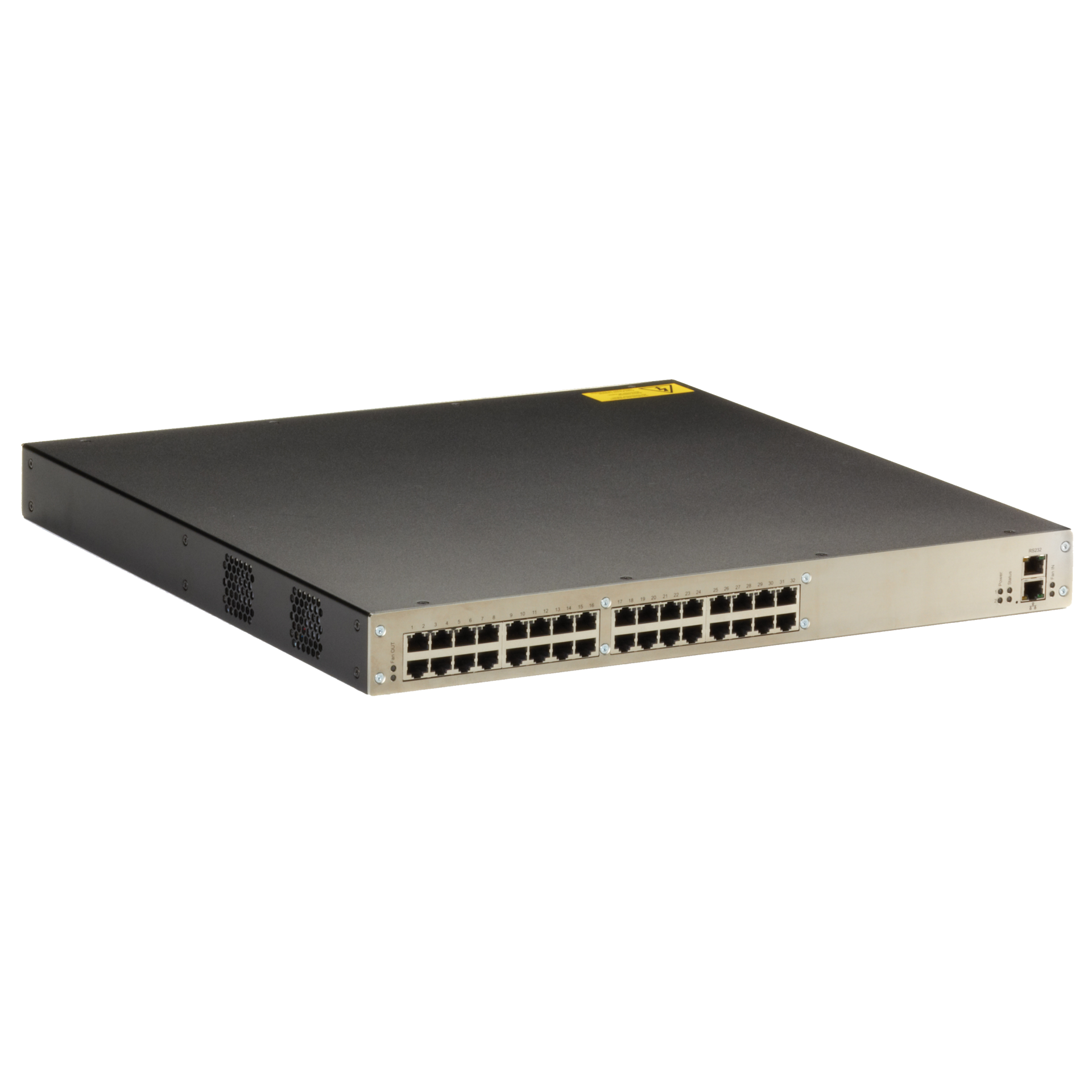

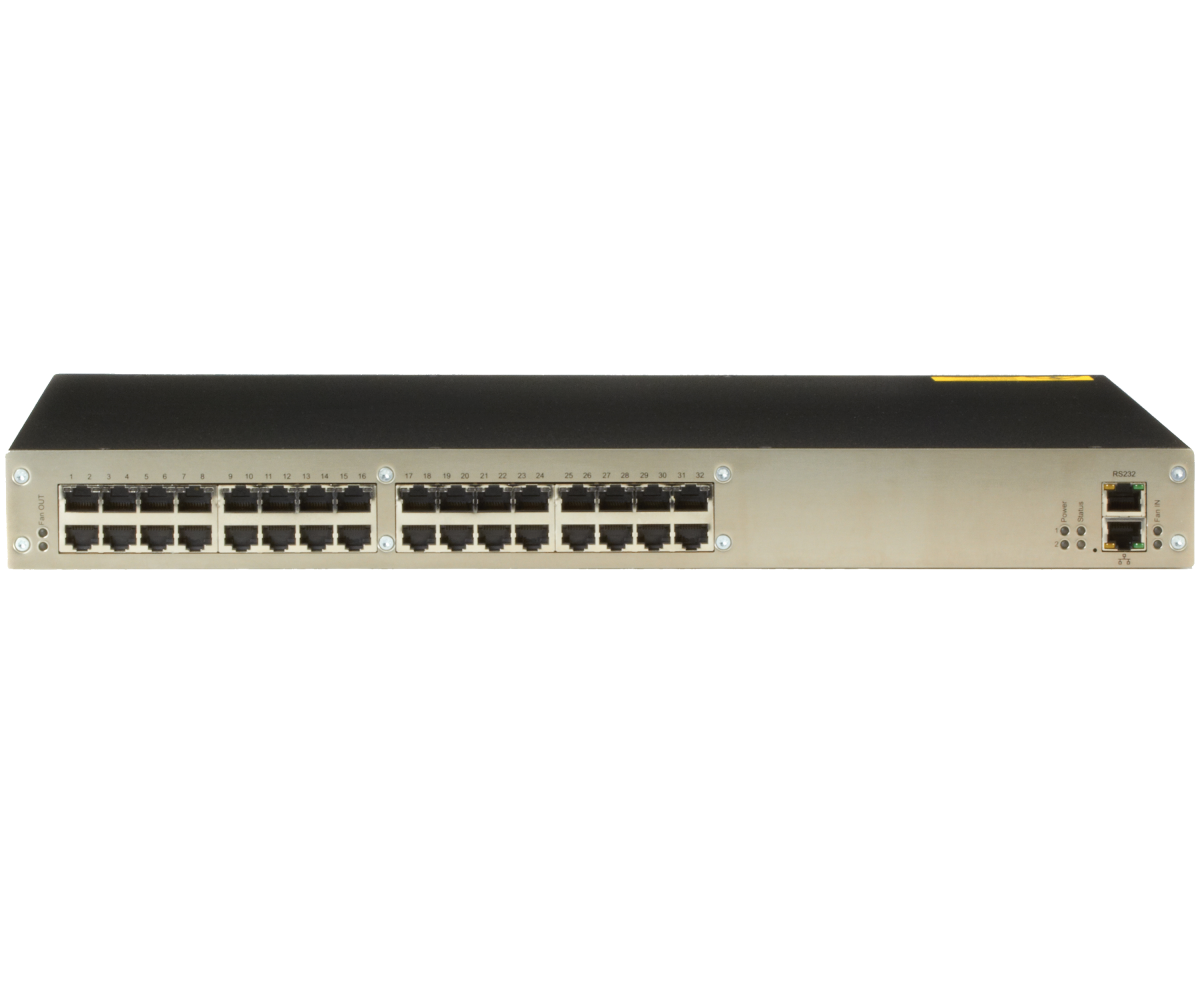

DKM FXC KVM Matrix Switch

Product Name DKM FXC KVM Matrix Switch
Product Code ACXC32
+ -
Pcs

High end KVM switching in a compact 1U/2U design.

Resolution —
DVI-D up to 2048 x 1152 at 60Hz, up to 1280 x 1024 at 75Hz, 1080p, 24-bit color depth,
Dual Link DVI-D up to 2560 x 2048 at 60 Hz
HDMI up to 1920 x 1200 @ 60 Hz, Full HD (1080 p) or 2 K HD (up to 2048 x 1152)
DisPlayPort up to 4K with 60 fps
VGA scalable up to 1920 x 1200
SDI: up to 1080p
Distances —
CATx: up to 140m, STP CAT5e solid cable is recommended,
Multimode: up to 1.000m
Single-mode: up to 10.000m
USB 3.0: up to 100m over multi-mode fibre
SDI: up to 100m over coax
Connectors —
Control: (1) RJ-45 10/100Mbps, (1) RJ-45 for RS232

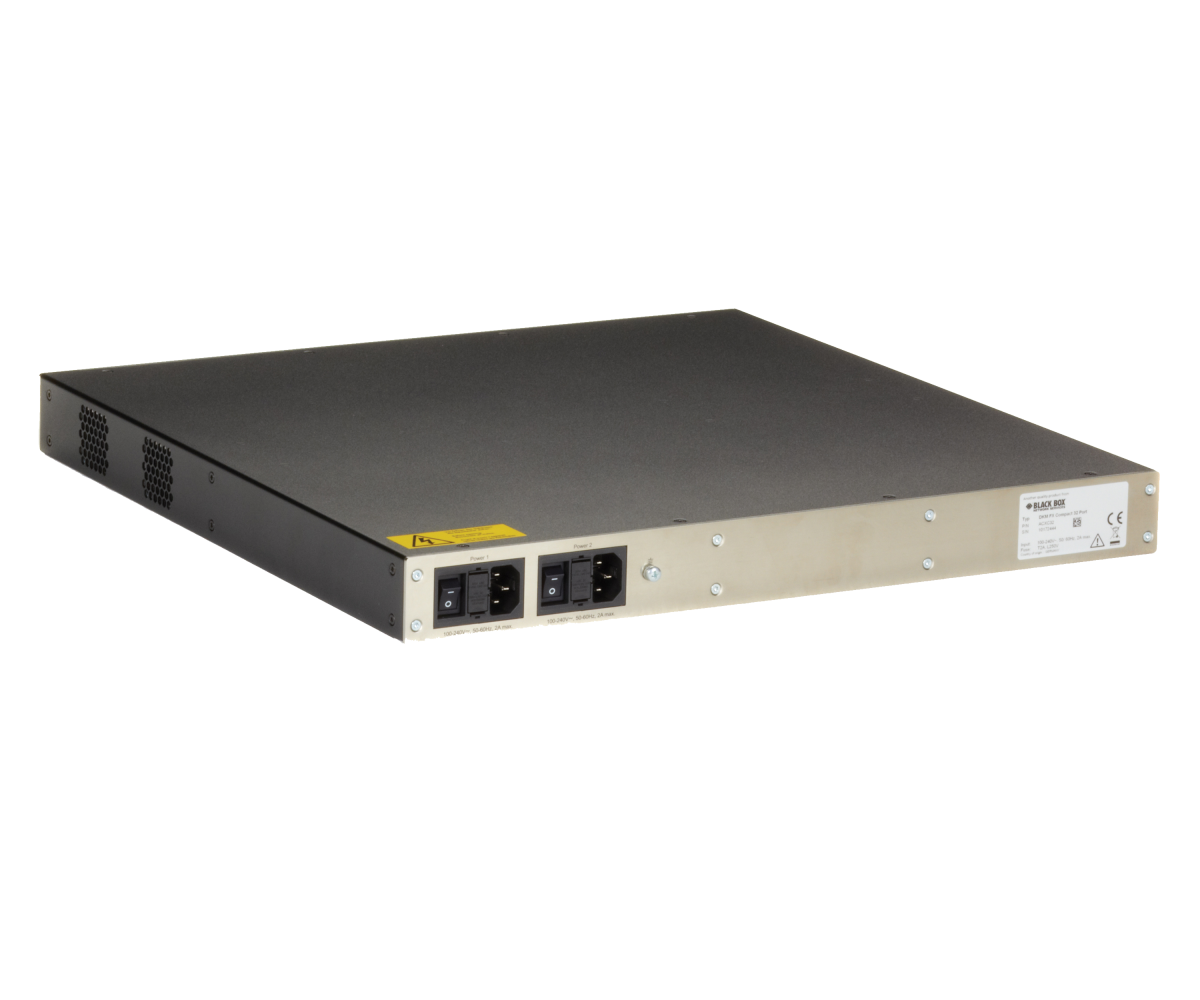

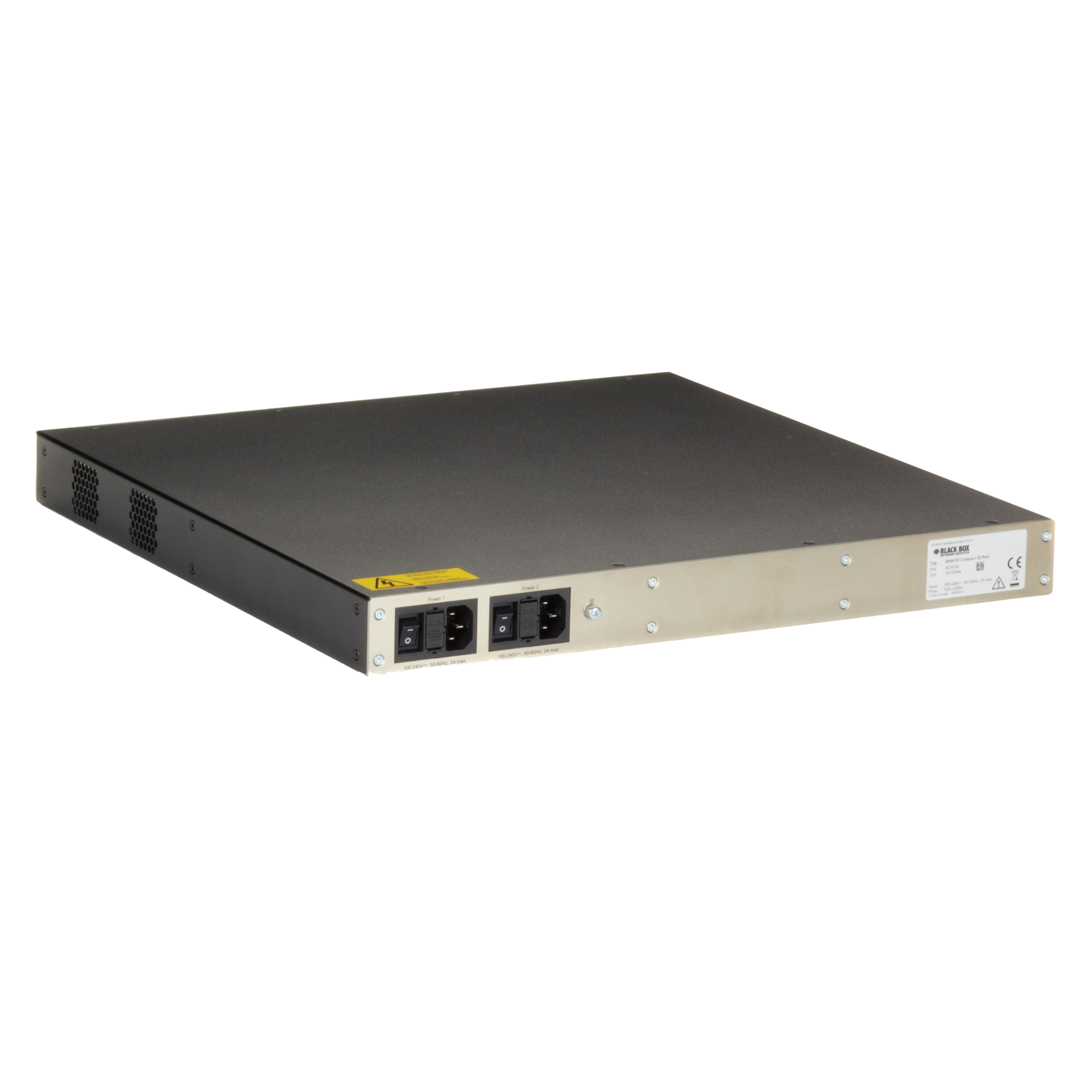

Power: (2) IEC 320 C14 inputs, ACXC8 (1)
(1) Grounding Screw;
CATx models (ACXC8 to ACXC80):
To CPU/users (8), (16), (32), (48), (64), or (80) RJ-45,
Fibre Models (ACXC8F(HS) to ACXC80F(HS)):
To CPU/users (8), (16), (32), (48), (64), or (80) LC Fiber SFPs, suitable for multimode and single mode connections
Mixed CATx/Fibre Models
ACXC32U: (32) empty SFP Slots
Note: CPU/user interfaces are provides through the DKM extenders
Operating System Supported — All Windows, MAC, Sun, Linux/Unix
PC Selection — OSD, Java Tool or Serial Interface
Management — OSD, options for external serial control, API Java tool, Syslog, and SNMP
Power — (2) internal power supply, 90 to 240 VAC, 50-60 Hz, 4-2A; ACXC8: (1)
Size —
8-Port: 42H x 220W x 146D mm
16- to 48-port: (1U) 44H x 429W x 440D mm
64- and 80 port: (2U) 89H x 429W x 435Dmm
Approvals — CE, RoHS, WEEE, FCC, TUV, UL
Environmental —
Operating Temperature: 5° to 45°C;
Storage Temperature: –25° to 60°C;
Operating Humidity: 80% non-condensing, maximum

  • KVM cross point switch available with 8, 16-, 32- or 48-, 64- or 80-ports.
  • Space saving compact chassis with up to 48 ports in 1U or 64/80 ports in 2U.
  • High performance instant switching.
  • Supports high-quality, full-frame digital video.
  • Wide range of peripheral interfaces like USB HID, USB 2.0, analog and digital audio plus serial.
  • Each port can be either input or output, regardless of position in rack and even on each board.
  • Rectangular switching system from 1 user to 79 CPUs up to 79 users to 1 CPU.
  • High availability with redundant power supply (except 8-Port versions).
  • Uses fixed configuration for CATx cabling only, fiber cabling only, or 48 CATx ports with 16 or 32 Fiber ports.
  • Connect user and CPUs via the latest DKM Extenders over distances end-to-end up to 280m over CATx, 2000m over multimode or 20 km over single mode fiber.
  • Switches are available in CATx, fiber (1-Gbps), high-speed fiber (3-Gbps) or combinations. Or choose the 6G universal switches for USB 3.0 and SDI signals.
  • Integrates into Modular DKM FX systems seamlessly via cascade option.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)
Document Name Date İndirme Boyut View
BlackBox - DKM KVM Switch 26/09/2019 10:49:15 149 211,75 KB View
