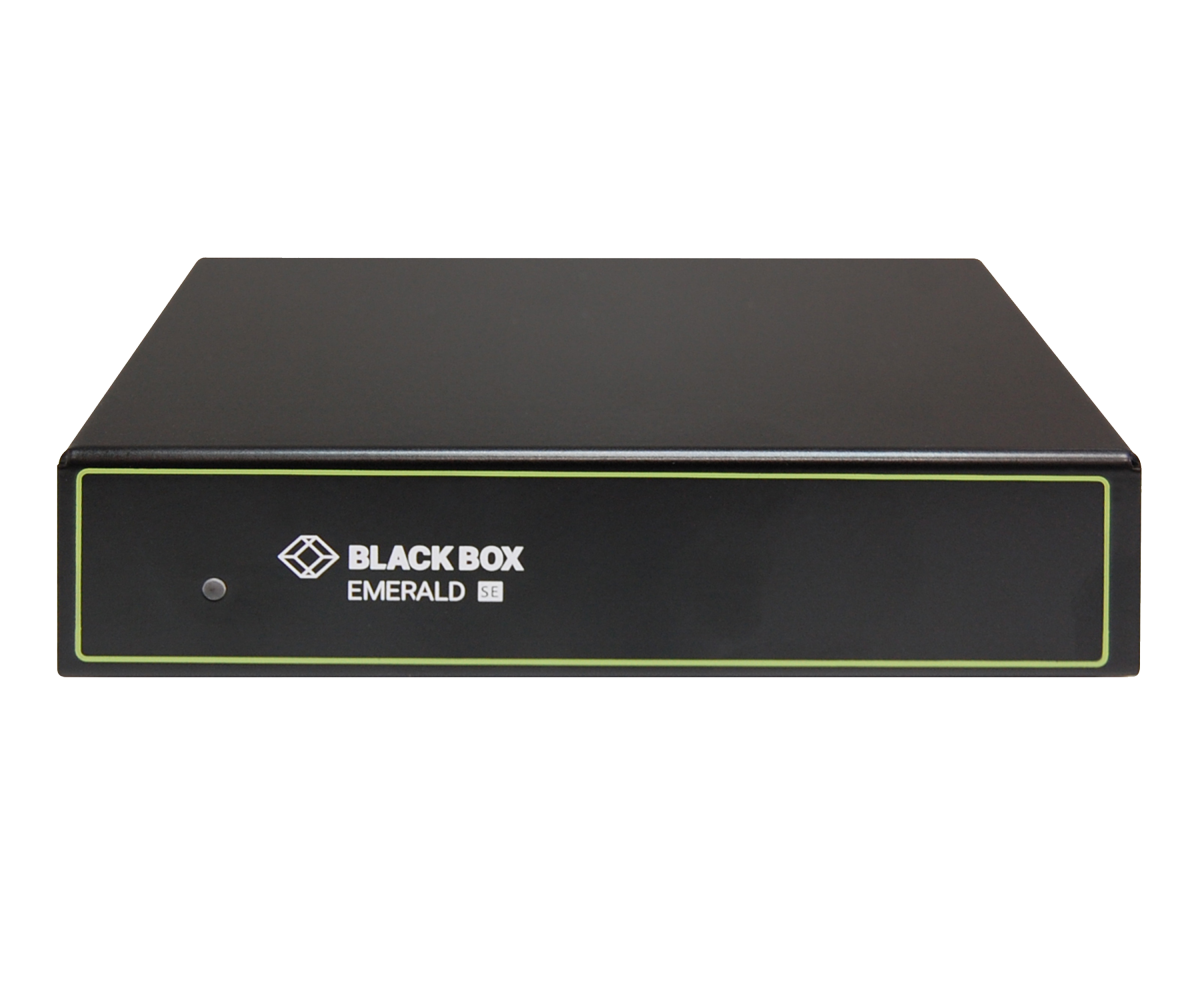

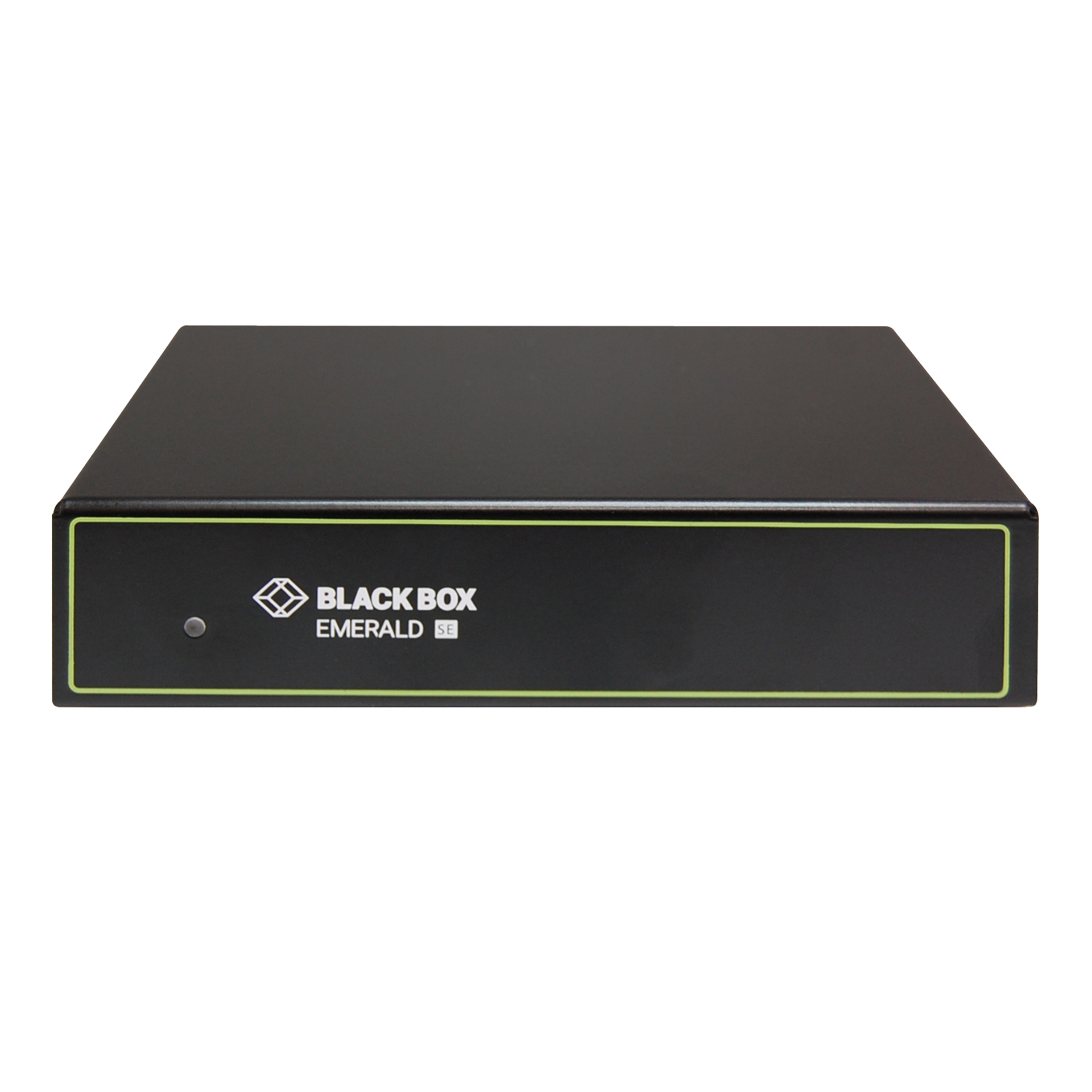

Emerald™ SE DVI KVM-over-IP Extender Transmitter - Dual Head

Product Name Emerald™ SE DVI KVM-over-IP Extender Transmitter - Dual Head
Product Code EMD2002SE-T
+ -

Full HD KVM Extension and Switching for physical and virtual machines featuring KVM over IP CATx connections.

Approvals —
Units: FCC, CE, RoHS, WEEE;
Power supply: TÜV, UL
Indicators —
(1) RJ-45 Link-Speed Indicator LED; (1) Activity LED; (1) Power LED button (deactivated: unit automatically powers on when plugged in; must be powered off at the power source.)
Distance from CPU to Transmitter (max.) — 5 m (16 ft.) due to DVI-D and USB limitations
Distance from Transmitter to Receiver (max.) —
Direct connection between transmitter and receiver: 100m (328 ft.), use a network switch to get farther distances;
Between unit and switch: 100m (328 ft.),
Transportation Media — CAT6/6A/7 UTO or STP twisted pair cable
Operating Systems supported — Microsoft Windows® Vista, XP, Windows 7, Windows 8, Windows 10, Server 2003, Server 2008, Server 2012, Linux®, Mac OS
Virtual Machines support — Microsoft Hyper-V Server 2008 R2 SPJ, Windows Server 2008 R2 or Server 2012 OS needs to be able to support USB HID drivers
Encryption — Secure Sockets Layer (SSL) over TCP/IP, 128-bit between TX and RX, user set between RX and Hyper-V
Video — DVI-D up to 1920 x 1200
DDC support — built-in/clone of remote

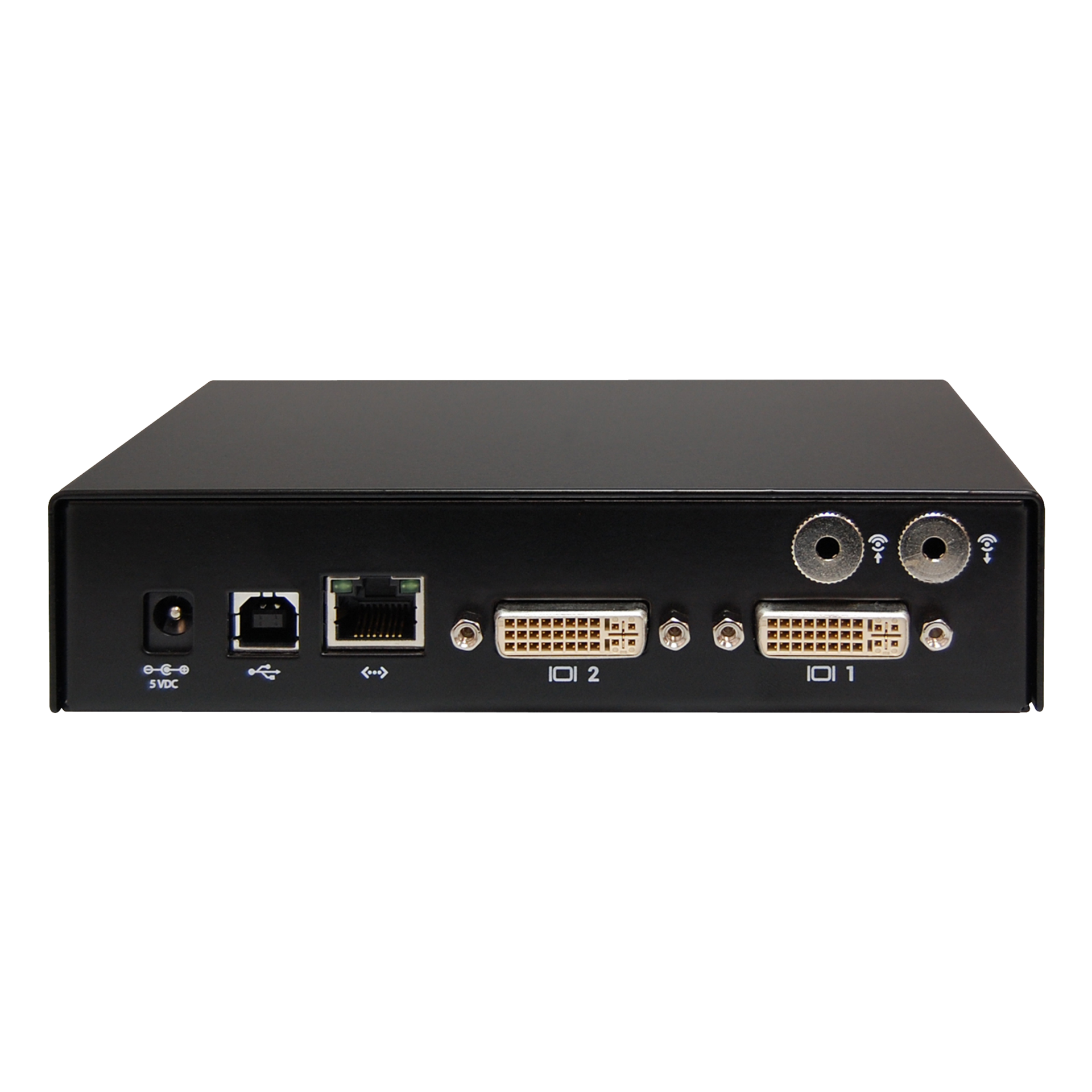

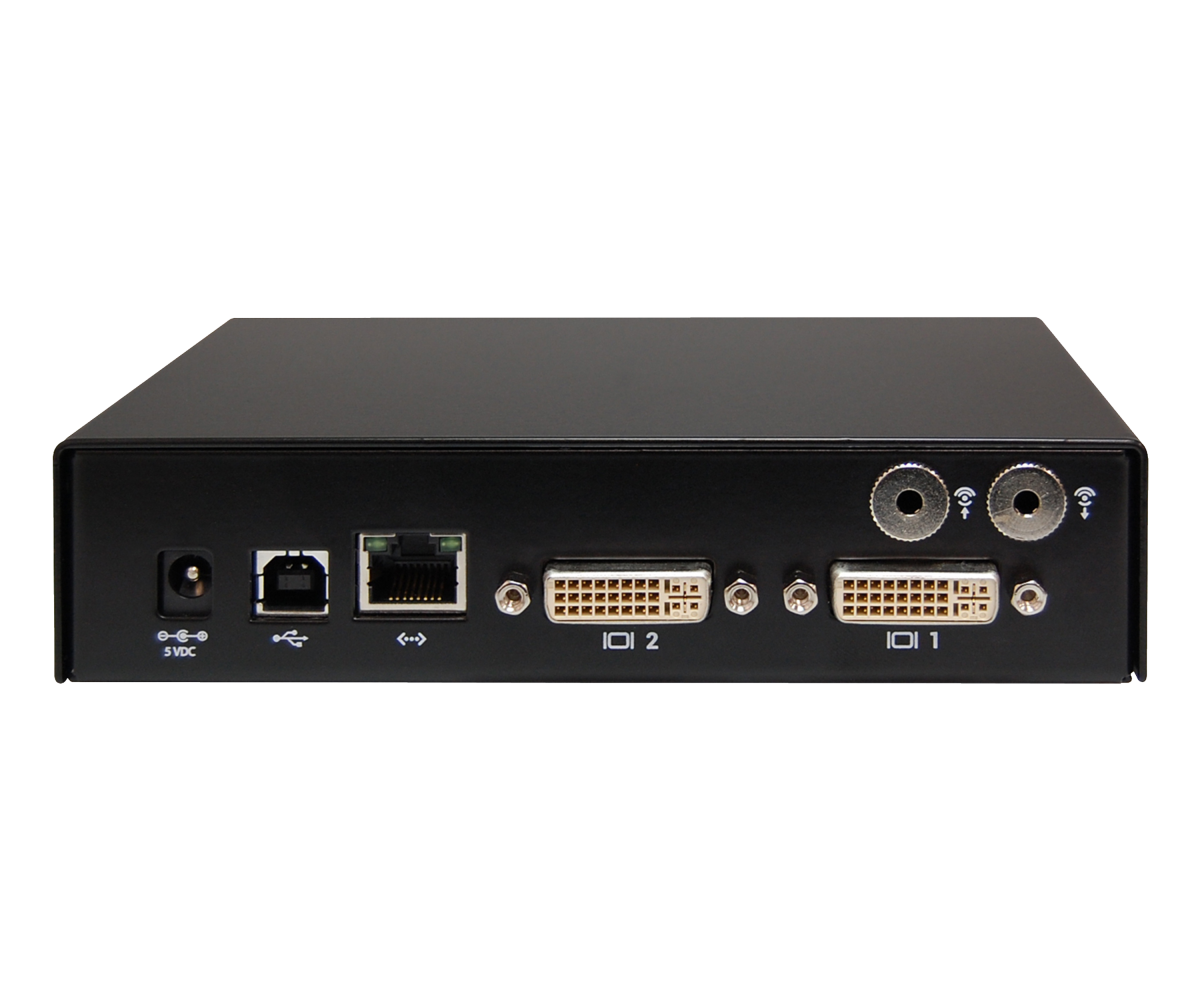

Connectors —
(2) DVI output,
(1) USB Type B female,
(1) RJ-45 network,
(2) 3.5 mm audio,
(1) 2.5 mm barrel for power;
Power —
External in-line power supply; input: 100–240 VAC, 50/60 Hz, 0.9A max. with 2.5-mm barrel output and IEC320 C8 input connector;
Power consumption: 6.5 watts for unit with keyboard and mouse attached; power supply is 20W to support USB based powered devices;
Heat Dissipation (5 VDC x 4 amps) x 3.41 = 68.2 BTU/hour maximum (18.32 watts)
Dimensions — each unit 2.92H x 15.75W x 10.67D cm (1.15”H x 6.2” W, 4.2”D
Weight — each unit 0.54 kg (1.18 lbs)
Environmental —
Operating Temperature: 0° to 40° C (32 to 104° F)
Storage Temperature: -20° to 60° C (-4 to 140° F)
Relative Humidity: 5 to 95% non-condensing

  • Next generation KVM extension and matrix switching solution simplifies access to both physical and virtual servers.
  • Visually lossless full HD DVI video up to 1920x1200.
  • Extreme low IP bandwidth requirements with less than 40-Mbps for 1080p motion picture.
  • Support USB HID, transparent USB (2.0), and audio.
  • Transparent USB re-direction for both virtual and physical desktop connections.
  • Also available with 4K DisplayPort video.
  • Use the Emerald SE extender kits for a point-to-point extension over CATx up to 130m or connect multiple Emerald units through an Emerald IP switch to establish a powerful KVM matrix switching system.
  • A allows multiple receivers/users to simultaneously share one source.
  • Enterprise management with simple configuration, central system overview and enhanced access security.
  • Connect multiple users and servers through IP connections.
  • Compatible with existing KVM solution like DKM™, Boxilla®, Emerald® 4K and ControlBridge.
  • High reliability and highly secure with easy deployment.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)
