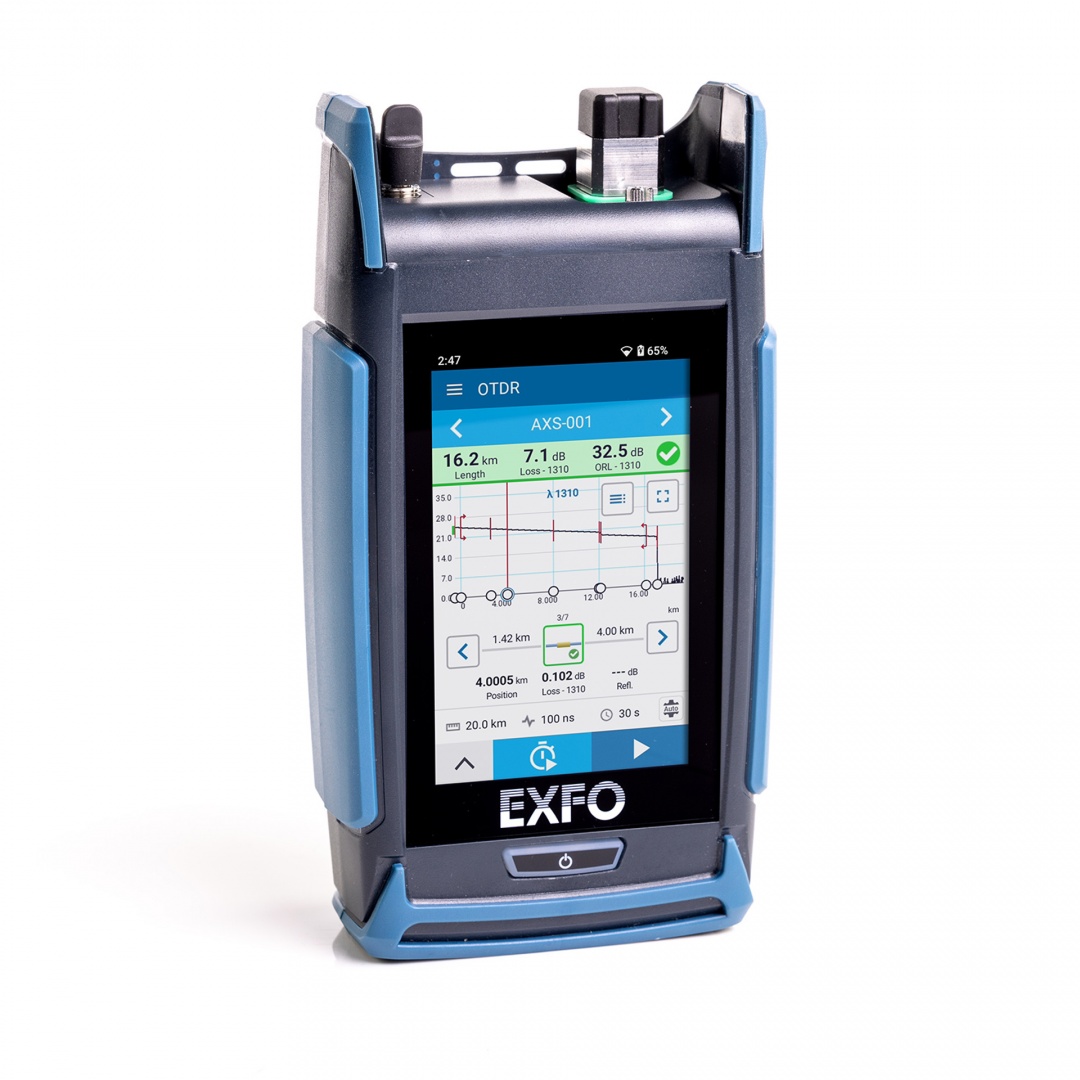

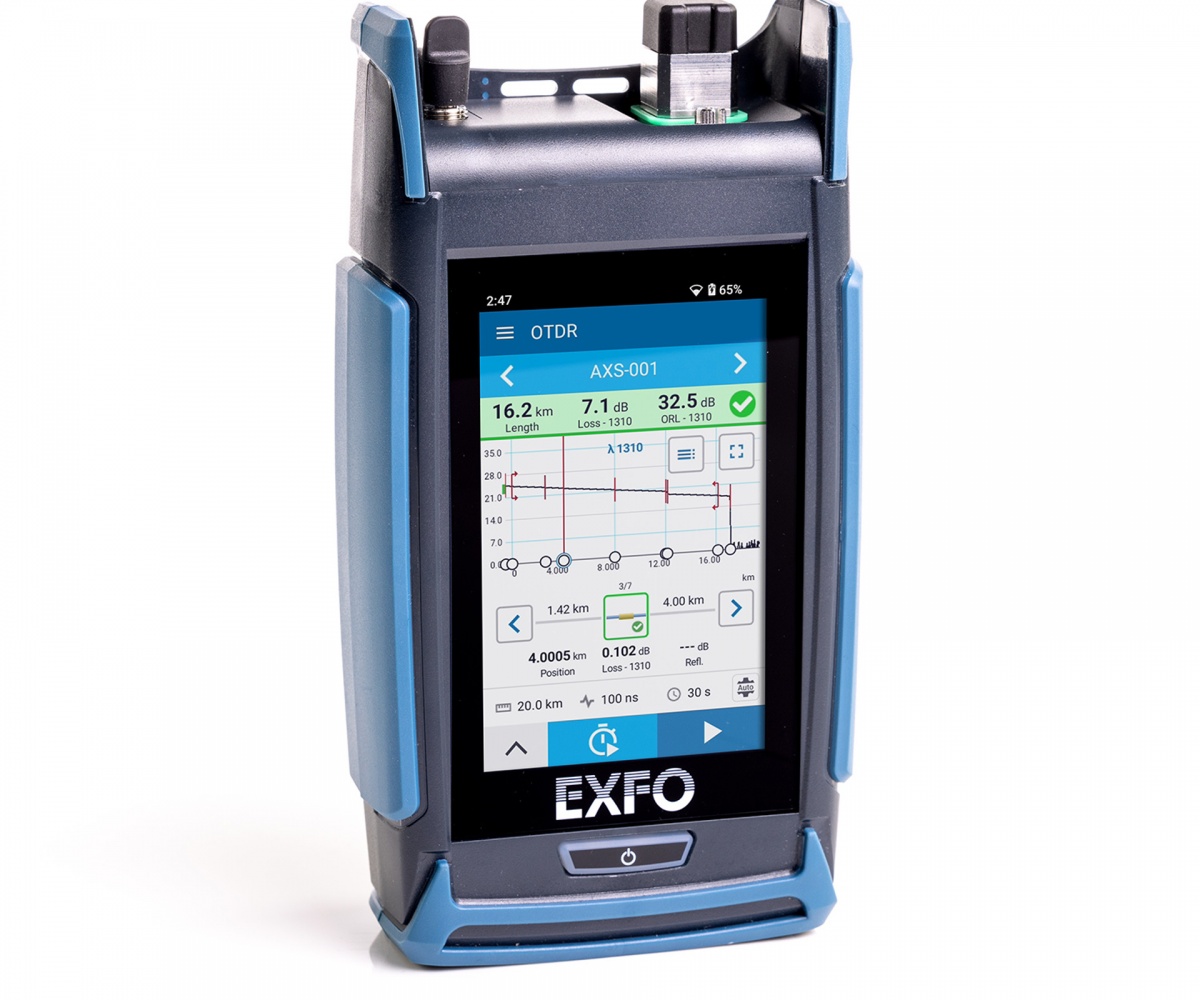

In EXFO AXS-120, Single Mode (SM) OTDR Tester, fiber optic cables and networks graphically characterize its results by graphically characterizing its high resolution and ORL value of connector or connector loss, connection or specific fiber cable attenuation and total fiber cable attenuation. indicates with numerical values in the event table, it indicates whether the fiber optic cable test is in desired standards with Pass / Fail information.
EXFO AXS-120, Single Mode OTDR carries traditional OTDR tests beyond innovative and advanced technology, visually offers line analysis, splitter detection, attachment and connector losses without requiring user experience with iOLM Smart Link Mapping software installed on it, without the need for user comments. performs the test of the optical line with High Accuracy with Pass / Fail information.
Fiber optic cable shortens test time and provides speed and efficiency with accurate test result and reporting.
Dual wavelengths: 1310 nm and 1550 nm
Dynamic range up to 35/33 dB
Event dead zone (EDZ) of 0.8 m and attenuation dead zone (ADZ) of 3.5 m
Pulse width from 3 to 20,000 ns
Distance range from 0.65 km to 200 km
Storage capacity of 10,000 OTDR traces, typical
Integrated Visual Fault Locator (VFL), in-line light source, and in-line power checker
4-inch (800x480 pixels) outdoor touchscreen, portrait and landscape view
Bluetooth, Wi-Fi, and USB-C connectivity ports
Battery autonomy > 10 hours of operation as per Telcordia standards
EXFO AXS-120 is designed for field technicians, featuring an ultra-portable, rugged, and lightweight (0.5 kg) build.

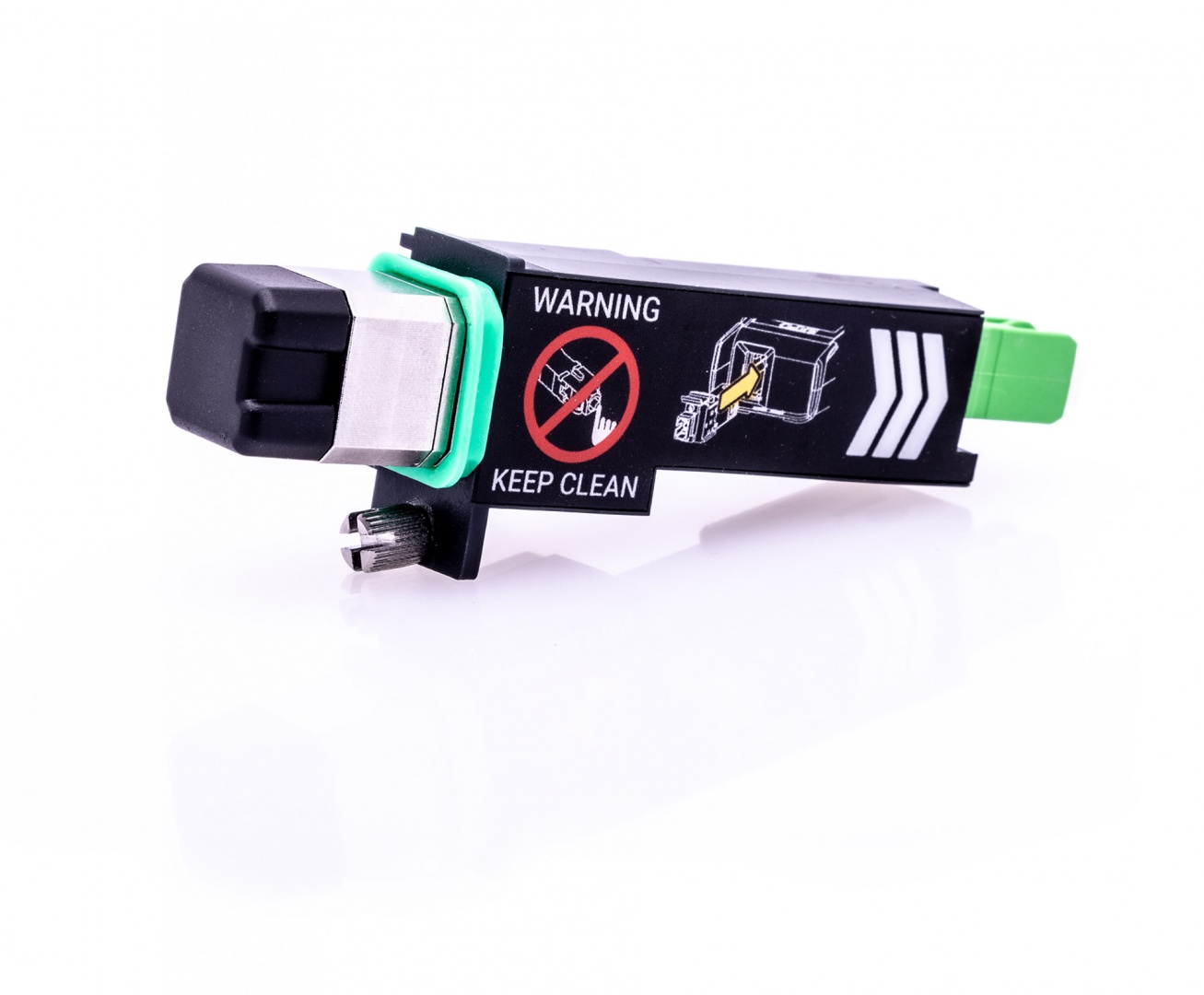

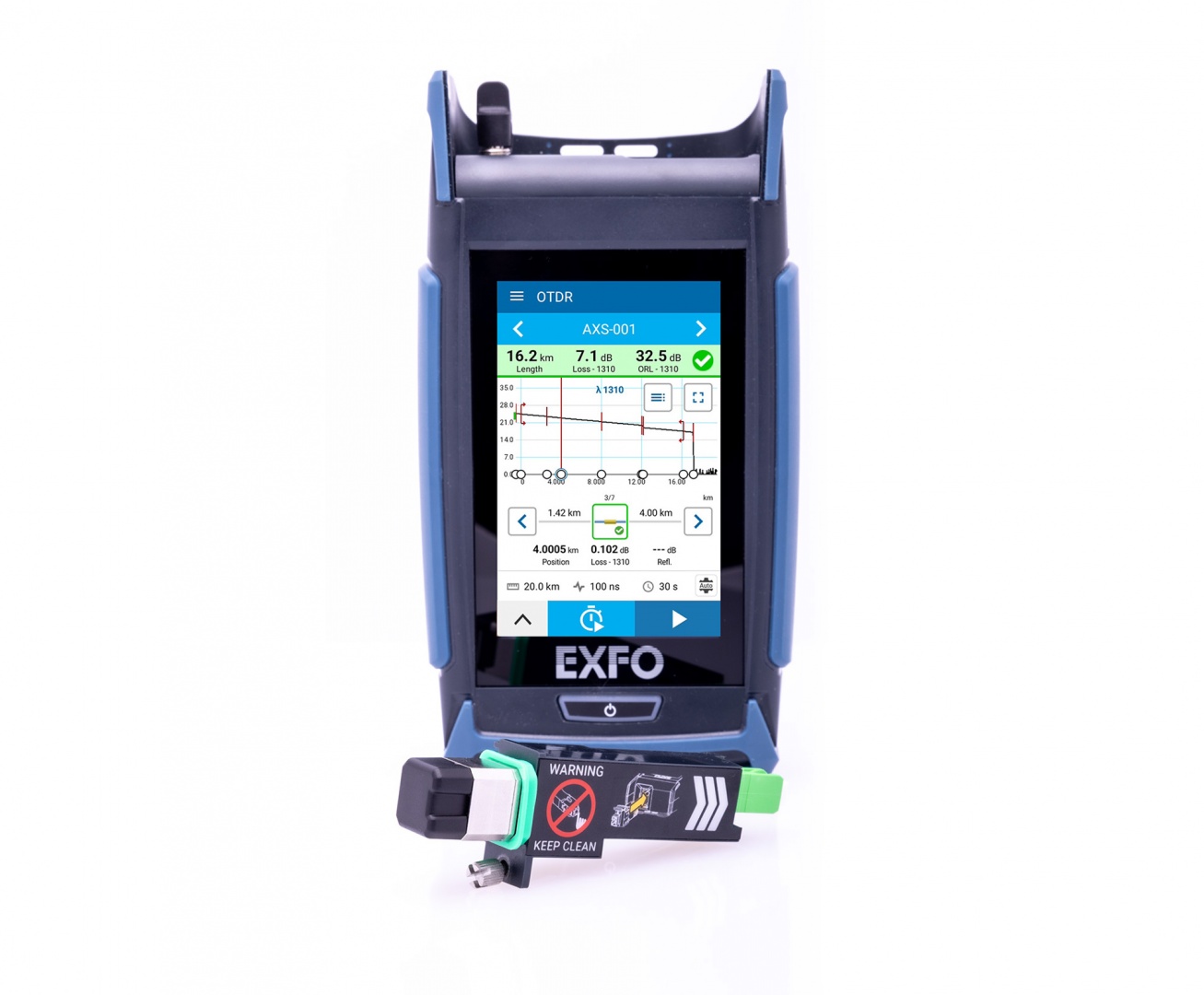

Patented, field-replaceable Swap-Out connector eliminates hidden costs of ownership, calibration downtime, and service fees by allowing users to replace worn connectors on the go.
OLM (Optical Link Mapper): Simplifies OTDR trace interpretation by automatically analyzing and presenting link elements in a clear, icon-based view.
Ideal for FTTx, point-to-point (P2P) access networks, passive optical LAN (POL), CATV/HFC, and FTTA/DAS installations.
Seamless data management and collaboration through onboard PDF reporting, FastReporter 3, and cloud-hosted EXFO Exchange integration.
Automated macrobend detection and multi-wavelength analysis for rapid issue identification.
1 x EXFO AXS-120 Compact OTDR (SM1: 1310/1550 nm, with Wi-Fi and Bluetooth)

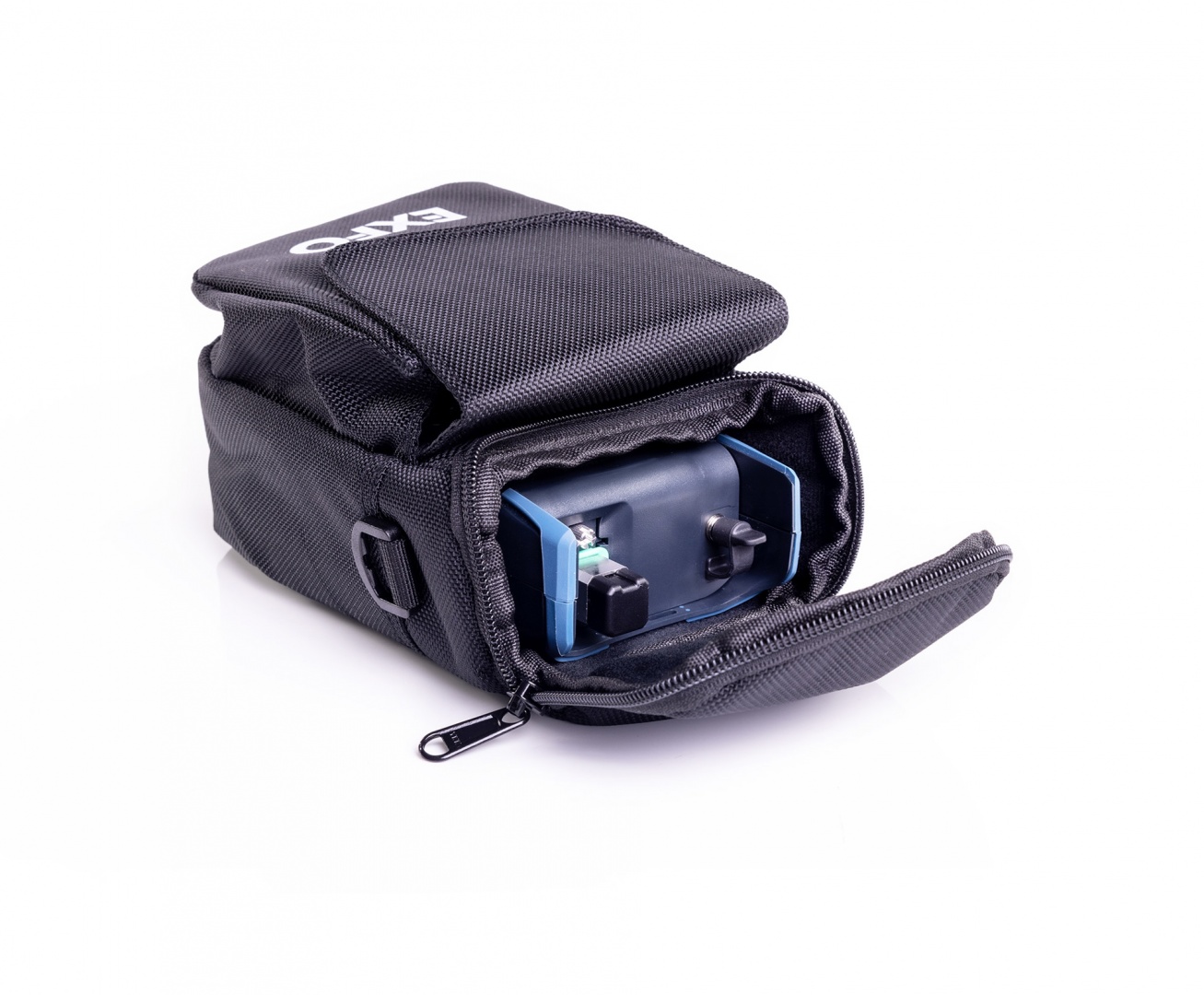

1 x GP-3151 AXS OTDR soft pouch
1 x GP-3199 USB-C AC adapter (with international plug adapters)
1 x GP-2307 USB-C to USB-C cable
1 x GP-3157 Wrist strap
Changeable optical connector adapters (with optional choices such as SC, FC, LC, etc.)
| Document Name | Date | İndirme | Boyut | View |
|---|---|---|---|---|
| EXFO AXS-120 SM1 | 23/10/2026 16:33:50 | 3 | 2,06 MB | View |
