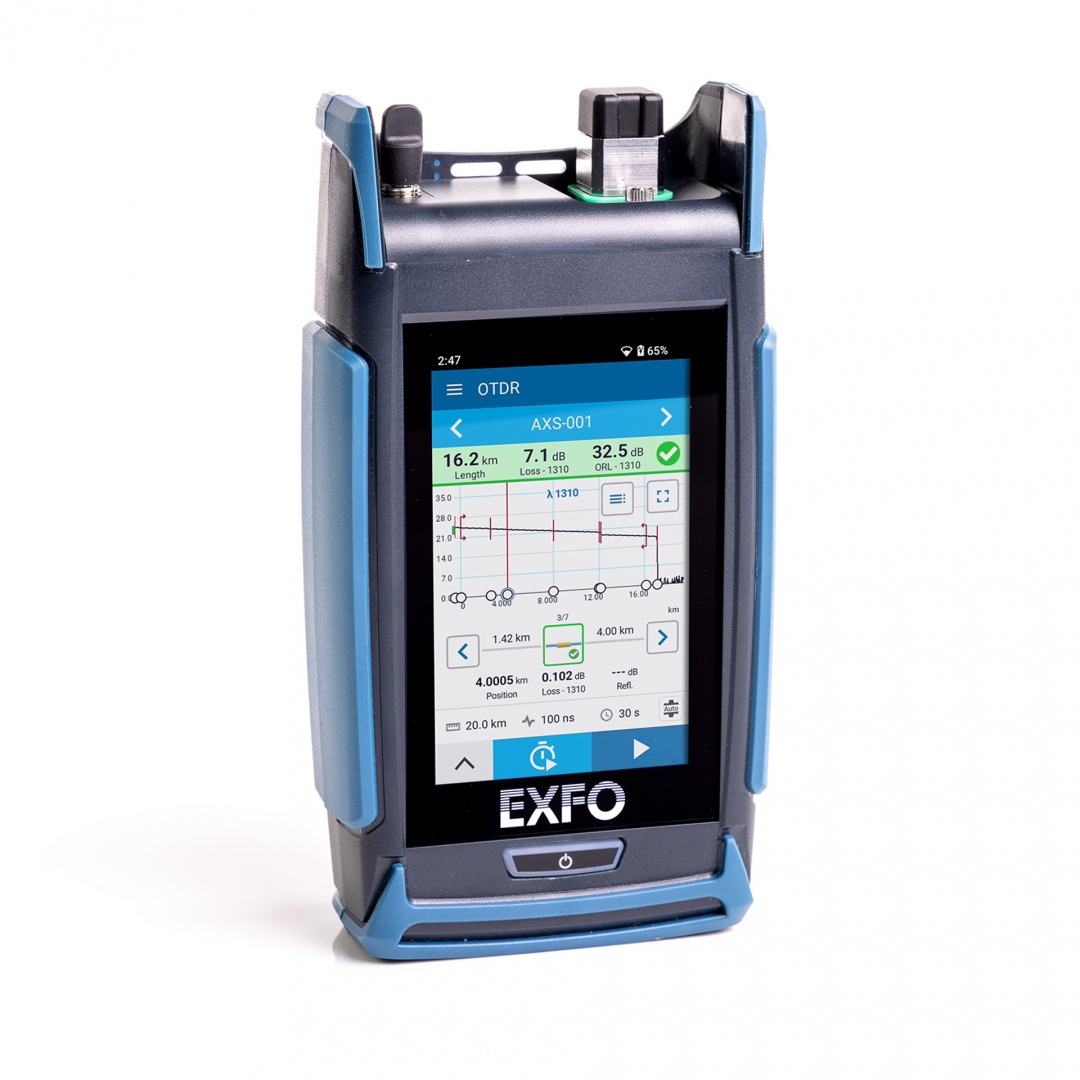

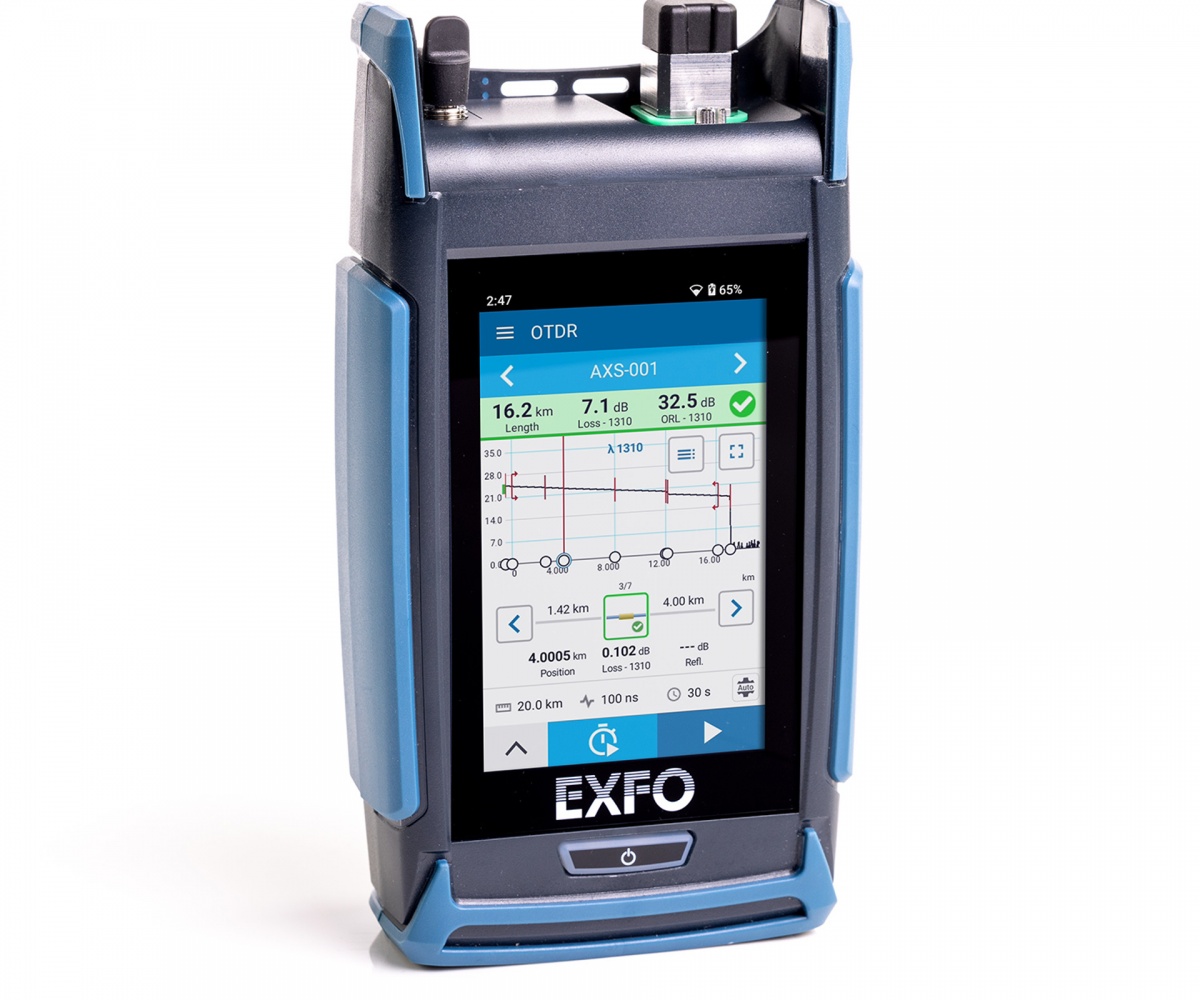

In EXFO AXS-130, Single Mode (SM) OTDR Tester, fiber optic cables and networks graphically characterize its results by graphically characterizing its high resolution and ORL value of connector or connector loss, connection or specific fiber cable attenuation and total fiber cable attenuation. indicates with numerical values in the event table, it indicates whether the fiber optic cable test is in desired standards with Pass / Fail information.
EXFO AXS-130, Single Mode OTDR carries traditional OTDR tests beyond innovative and advanced technology, visually offers line analysis, splitter detection, attachment and connector losses without requiring user experience with iOLM Smart Link Mapping software installed on it, without the need for user comments. performs the test of the optical line with High Accuracy with Pass / Fail information.
Fiber optic cable shortens test time and provides speed and efficiency with accurate test result and reporting.
Triple wavelengths: 1310 nm, 1550 nm, and 1650 nm
Dynamic range up to 42 / 40 / 39 dB
Event dead zone (EDZ) of 0.5 m, attenuation dead zone (ADZ) of 2.5 m, and PON dead zone of 30 m
Pulse width from 3 to 20,000 ns
Distance range from 0.65 km to 200 km
Storage capacity of 10,000 OTDR traces, typical
Integrated Visual Fault Locator (VFL), in-line light source, and in-line power checker / PON power meter
4-inch (800x480 pixels) outdoor touchscreen, portrait and landscape view
Bluetooth, Wi-Fi, and USB-C connectivity ports
Battery autonomy > 10 hours of operation as per Telcordia standards
EXFO AXS-130 is designed for field technicians, featuring an ultra-portable, rugged, and lightweight (0.5 kg) build.

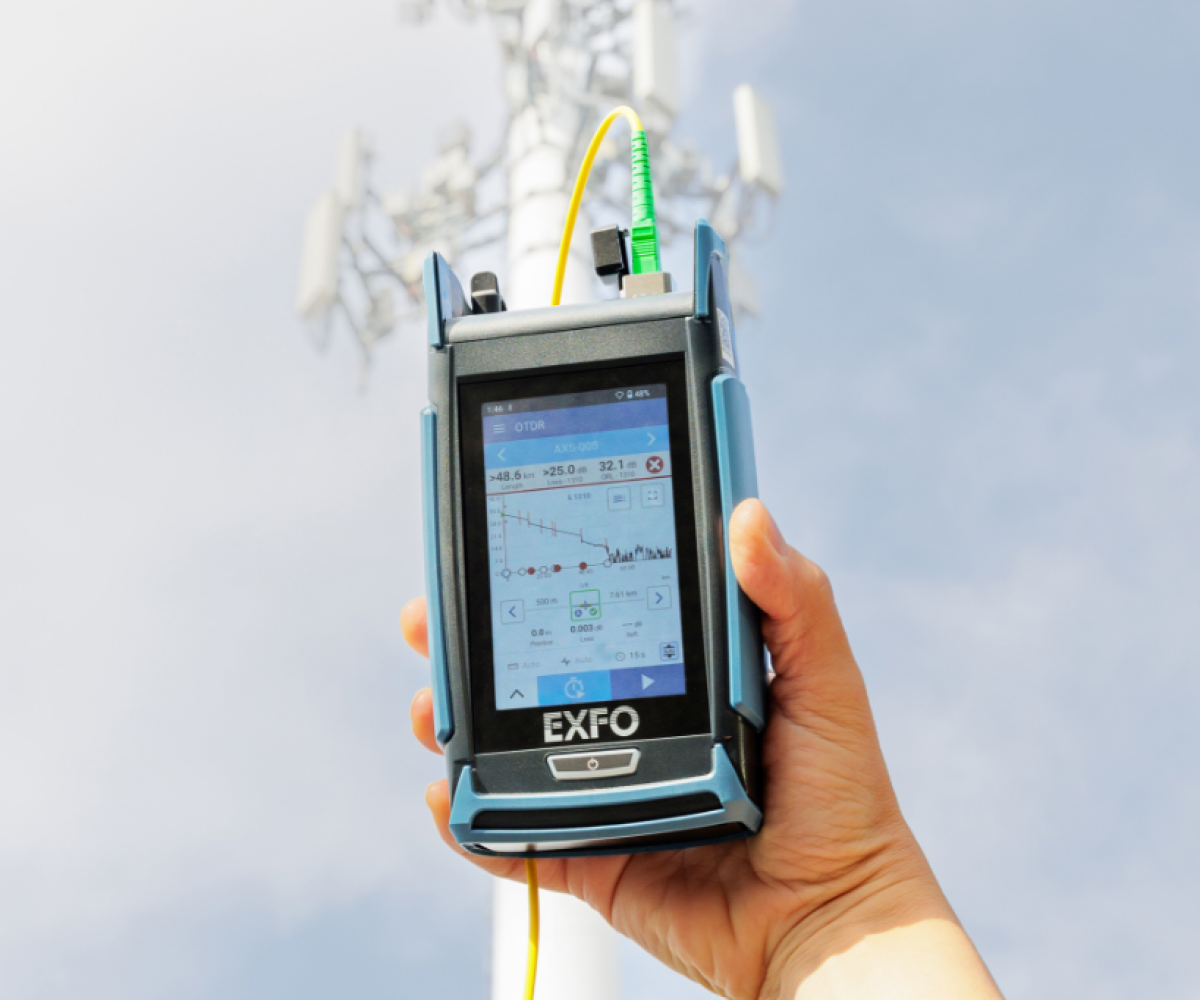

Live and Dark Fiber Capability: Features a 1650 nm wavelength to test and troubleshoot live fiber networks without service disruption.

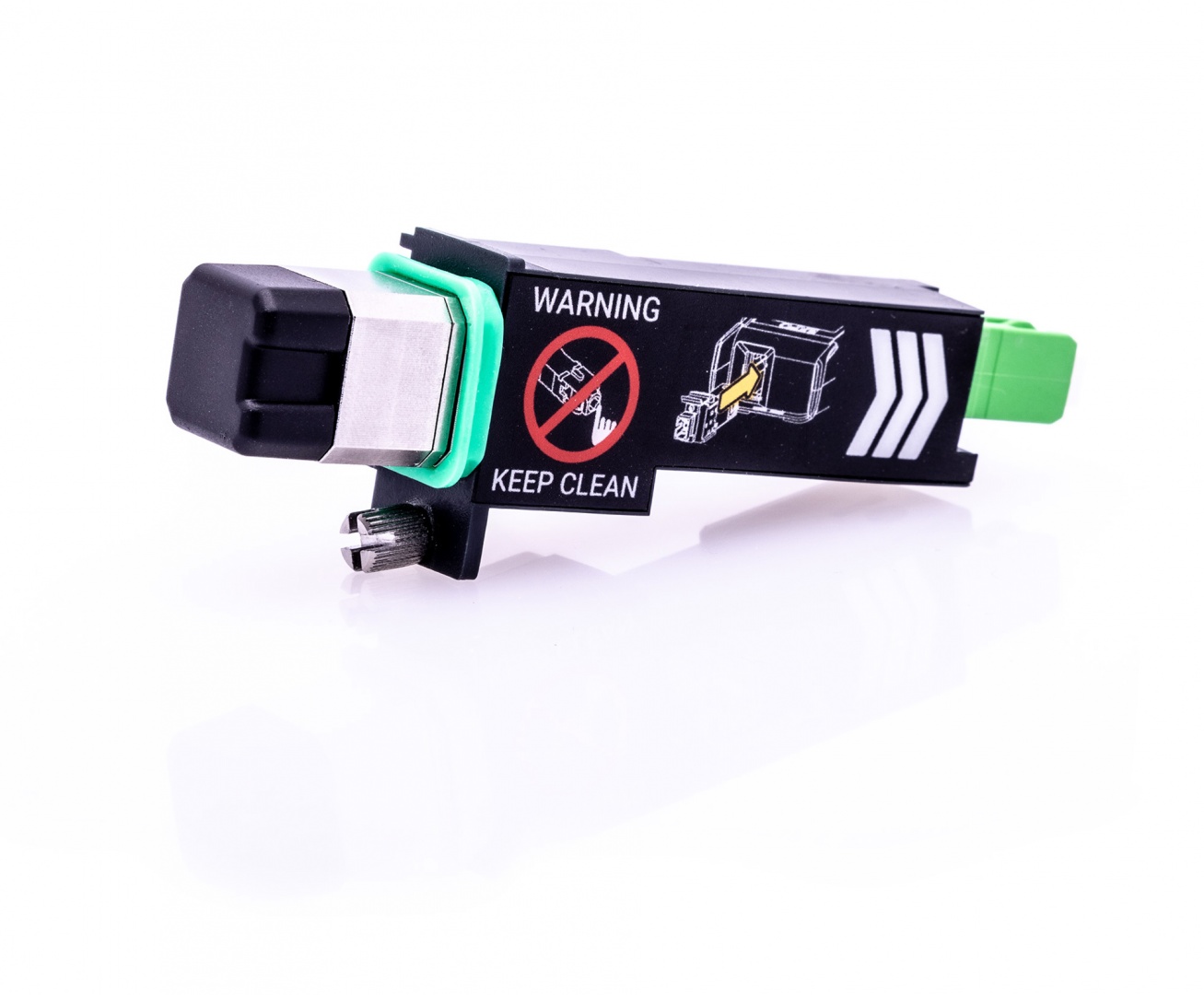

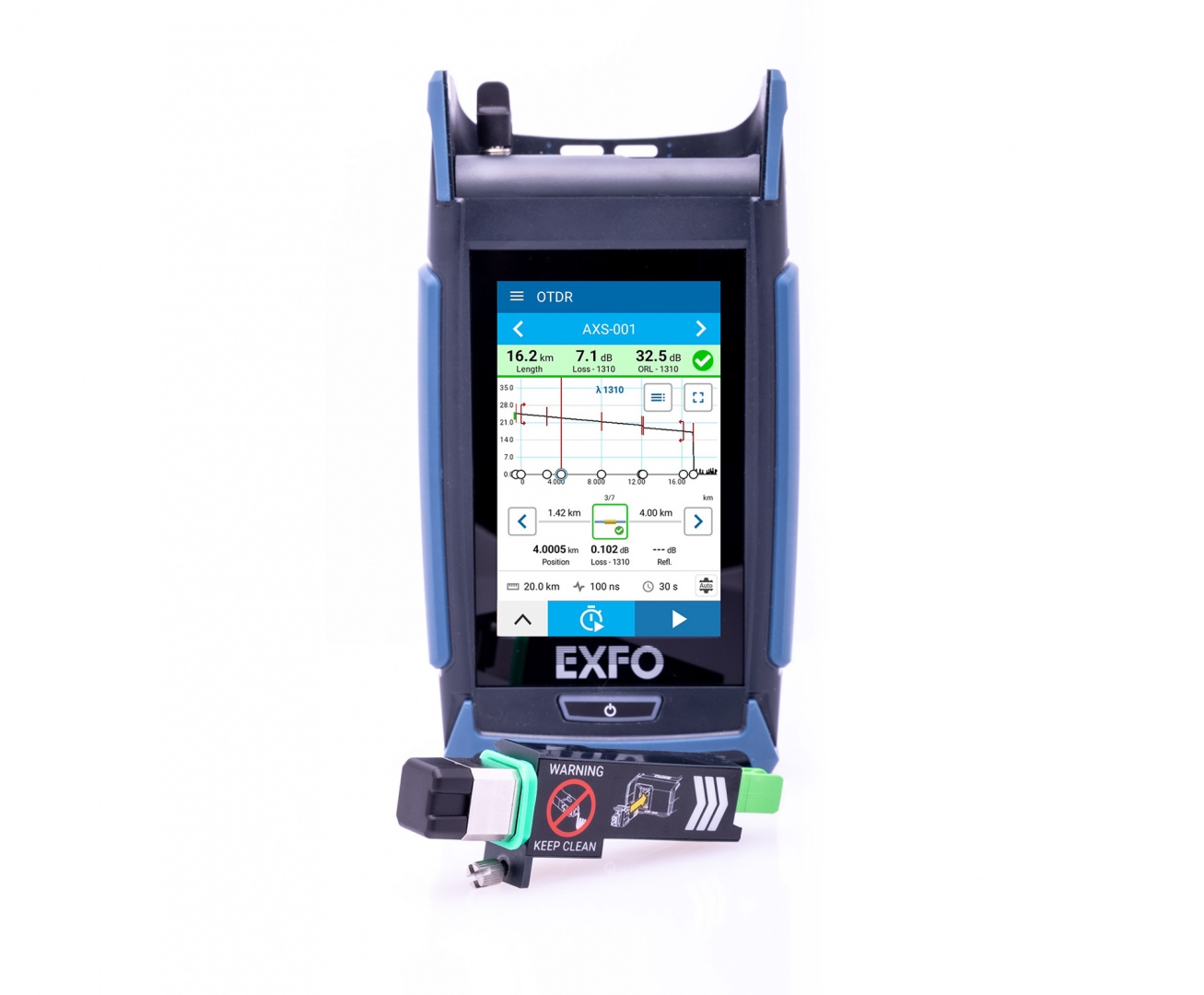

Patented Field-Replaceable Swap-Out Connector: Eliminates downtime and factory service fees by allowing users to replace worn connectors on the go while keeping the calibration date valid.
FTTH-iOLM Optimization: Delivers advanced automated multipulse acquisitions optimized for complex PON networks (up to 1x128 splitters) and full link analysis.
Seamless data management and collaboration through onboard PDF reporting and cloud-hosted EXFO Exchange integration.
Automated macrobend detection and advanced safety features such as SFP Safe Mode.
1 x EXFO AXS-130 Compact OTDR (SM8: 1310/1550/1650 nm single port, with Wi-Fi and Bluetooth)
1 x GP-3151 AXS OTDR soft pouch
1 x GP-3199 USB-C AC adapter (with international plug adapters)
1 x GP-2307 USB-C to USB-C cable
1 x GP-3157 Wrist strap
Changeable optical connector adapters (with optional choices such as SC, FC, LC, etc.)
