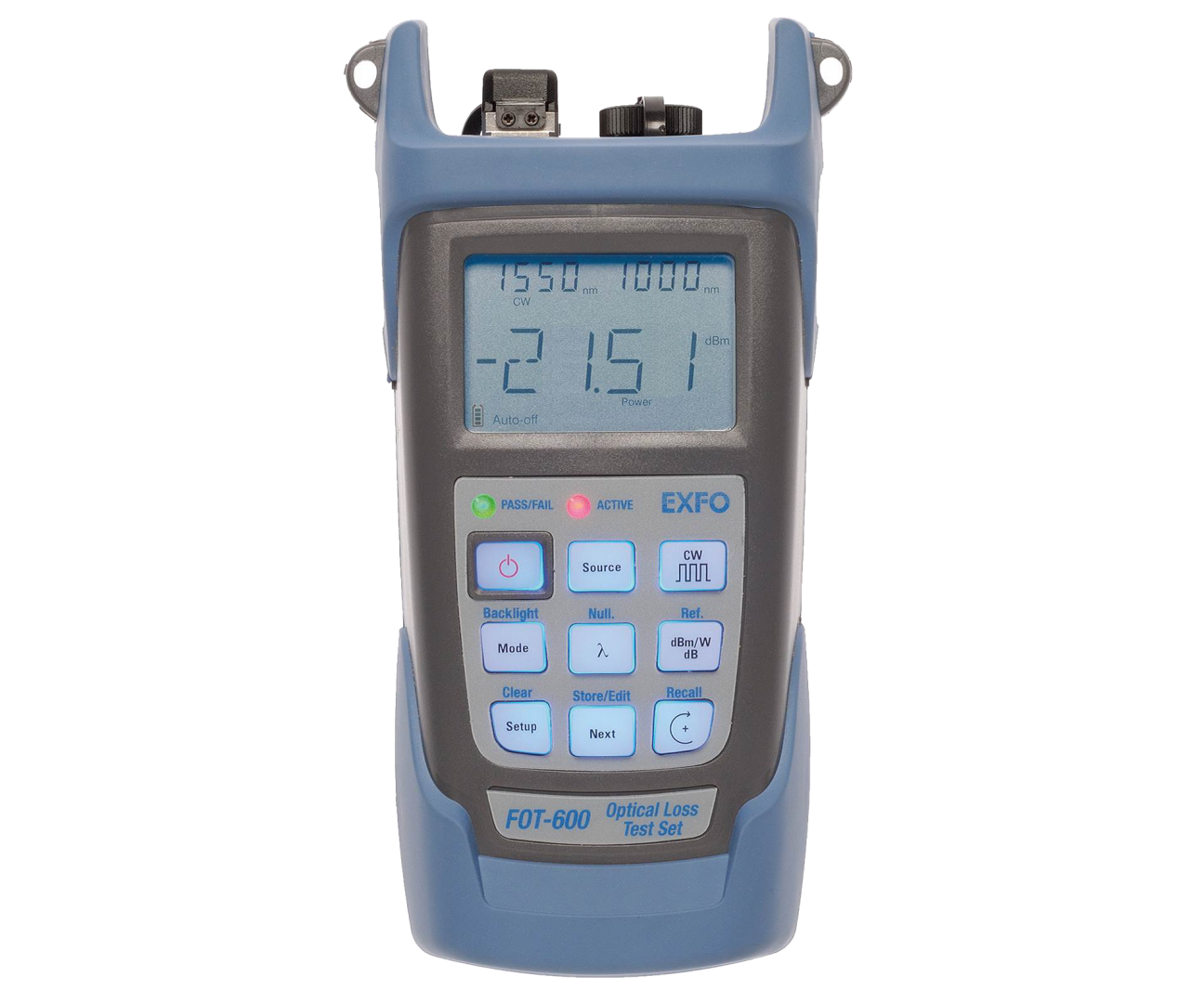

EXFO FOT-600 Single Mode (SM) Fiber Optic Laser Light Source and Power Meter

Product Name EXFO FOT-600 Optical Loss Test Set
Product Code FOT-602X
+ -
Pcs

The FOT-600 has a source output and a power meter on it. It reduces the likelihood of errors by making measurements at 5 different wavelengths from a single port.

EXFO FOT-600 allows testing of passive optical networks (PON) at 1310 nm, 1490 nm and 1550 nm, which are three wavelengths recommended by ITU-T (G.983.3) for PONs.

In addition to the network quality features, the highly sensitive FOT-600 provides over 40 calibrated wavelengths, including all CWDM wavelengths. What's more, it allows you to measure power fluctuations with the Min / Max Hold Power function.

With the new software tool FOT-600 allows you to create professional looking reports from extensive tests.

  • Detector: GeX
  • Power Range: 26 to -55 dBm
  • Wavelength Range: 800 to 1650 nm
  • Display Units: dB, dBm, W
  • Tone Detection: 270 Hz, 1 kHz, 2 kHz
  • Calibrated Wavelengths: 800, 820, 830, 840, 850, 860, 870, 880, 910, 980, 1270, 1280, 1290, 1300, 1310, 1320, 1330, 1340, 1350, 1370, 1390, 1410, 1430, 1450, 1460, 1470, 1480, 1490, 1500, 1510, 1520, 1530, 1540, 1550, 1560, 1570, 1580, 1590, 1600, 1610, 1620, 1630, 1640, 1650, 1060 nm
  • Combines a power meter and a light source and comes with your choice of wavelengths
  • Memory capacity of 1000 data items; enables data transfer to a PC via USB connection
  • Ideal for network-link qualifi cation: pass/fail LED indicator and thresholds
  • Error-free testing: automatic wavelength switching, and no offset nulling required
  • Visual fault locator (VFL) option for quick and easy troubleshooting
  • Low cost of ownership: three-year warranty and recommended calibration interval
  • Complete reporting software
Document Name Date İndirme Boyut View
EXFO - FOT600 18/10/2019 14:58:02 141 1,18 MB View
