EXFO | FTB/IQS-88100NGE/88100G Power Blazer

EXFO FTB/IQS-88100NGE/88100G Power Blazer
EXFO FTB/IQS-88100NGE/88100G Power Blazer

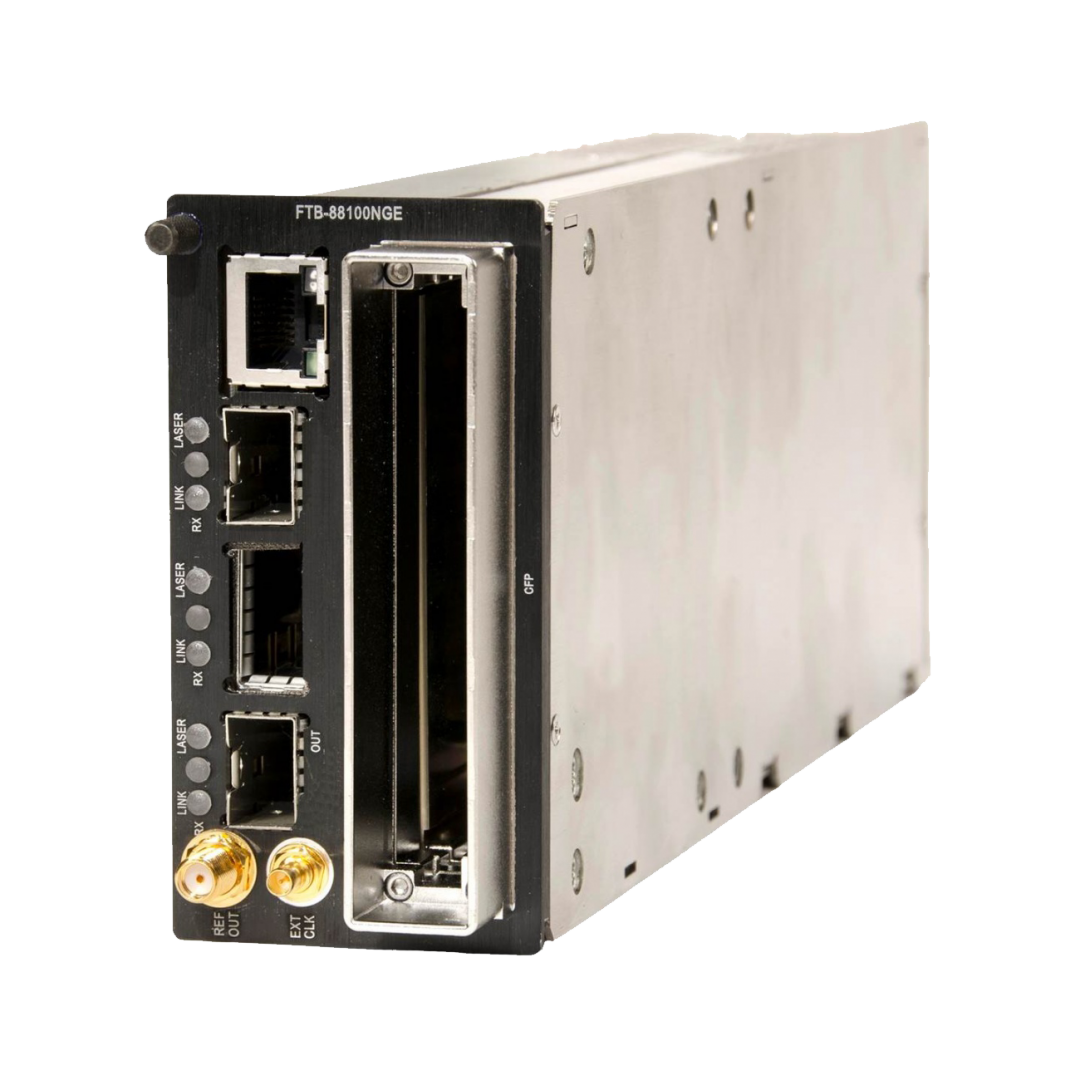

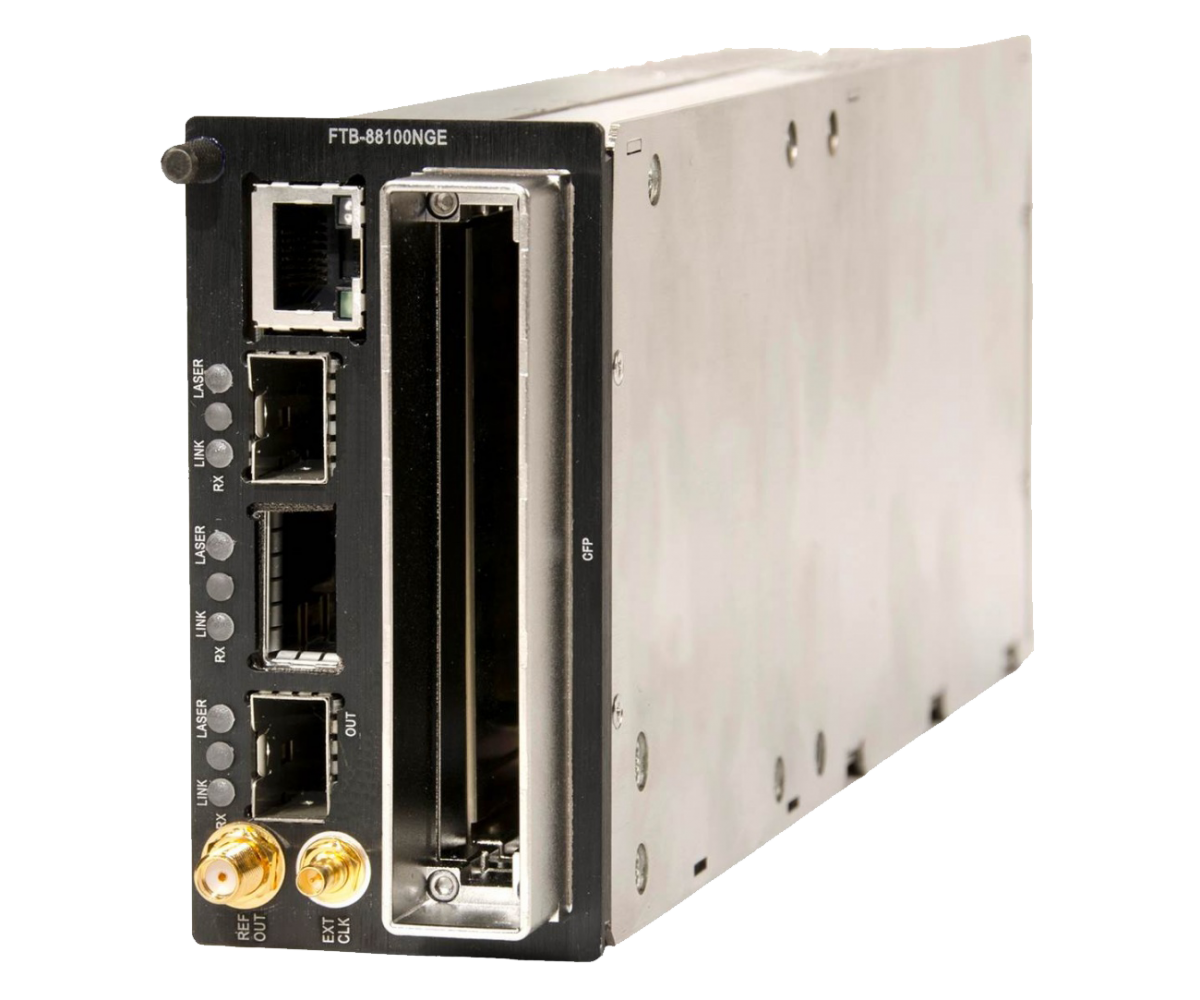

Product Name EXFO FTB/IQS-88100NGE/88100G Power Blazer
Product Code FTB-8810NGE
+ -
Pcs

Powerful New Generation Test System

Offering flexibility to cover today's multi-service testing challenges and future unforeseen testing technologies, EXFO's IQS-88100NGE (10M - 100G) and IQS-88100G (40G / 100G) Power Blazer test modules are specifically designed for high-speed testing.


IQS-88100NGE Power Blazer,

It supports a wide variety of technologies, including legacy TDM and new package-based services, as well as all possible speeds up to 100G.
10M-100G Ethernet, OTU1 - OTU4 (including standard and overclocked speeds), OC-3 / STM-1 - OC-768 / STM-256 - all in a small, powerful module. Eliminating the need for multiple testers, the IQS-88100NGE offers advanced multi-service testing, designed for lab and production-based environments.


IQS-88100G

Designed to meet 40G / 100G special test requirements, including OC-768 / STM-256, 40G / 100G Ethernet and OTU3- / OTU4 based networks, this module is embedded in EXFO's IQS-600 Platforms. If required, this module can be seamlessly combined with EXFO's 10G multi-service module for simultaneous multi-port testing.

  • 10M - 100G multi-service test solution
  • Test and performance evaluation of 40G / 100G systems
  • OTN, Ethernet and SONET / SDH Test Solutions
  • Flexible and new generation supported module from 10M to 100G
  • Support for CFP and CFP2
  • Activating and troubleshooting packet synchronization (SyncE / 1588 PTP)
  • True cable speed test based on RFC 6349.
  • CPRI test (CPRI SDTs) included
  • Fiber Channel networks test.
  • OTN, SONET / SDH and Ethernet real time bit error rate test (BERT)
  • EtherSAM (ITU-T Y.1564) service configuration and performance tests
  • FTB Eco system and EXFO Connect compatible
  • 10M - 100G multi-service testing solution that meets the testing and performance evaluation requirements of 40G / 100G systems
  • Comprehensive and fully integrated test solutions covering OTN, Ethernet and SONET / SDH technologies
  • Flexible and future-ready module from 10M to 100G - no hardware upgrade required, support for CFP and CFP2.
  • Activating and troubleshooting packet synchronization (SyncE / 1588 PTP)
  • Actual cable speed based on RFC 6349
  • Including FTTA framed and frameless CPRI testing (CPRI SDTs)
  • Best-in-class evaluates Fiber Channel networks efficiently through 1x, 2x, 4x, 8x and 10x interfaces.
  • With OTN, SONET / SDH and Ethernet bit error rate testing (BERT), it provides real-time pass / fail status, quick action buttons, precise results and various notifications.
  • EtherSAM (ITU-T Y.1564) service configuration and performance tests, 100% line speed testing up to 100G IP traffic and faster Ethernet service activation, remote discovery, Smart Loopback and Dual Test Set features.
Document Name Date İndirme Boyut View
EXFO - FTB/IQS-88100NGE/88100G Power Blazer Series 21/04/2020 15:22:48 1132 1,73 MB View
