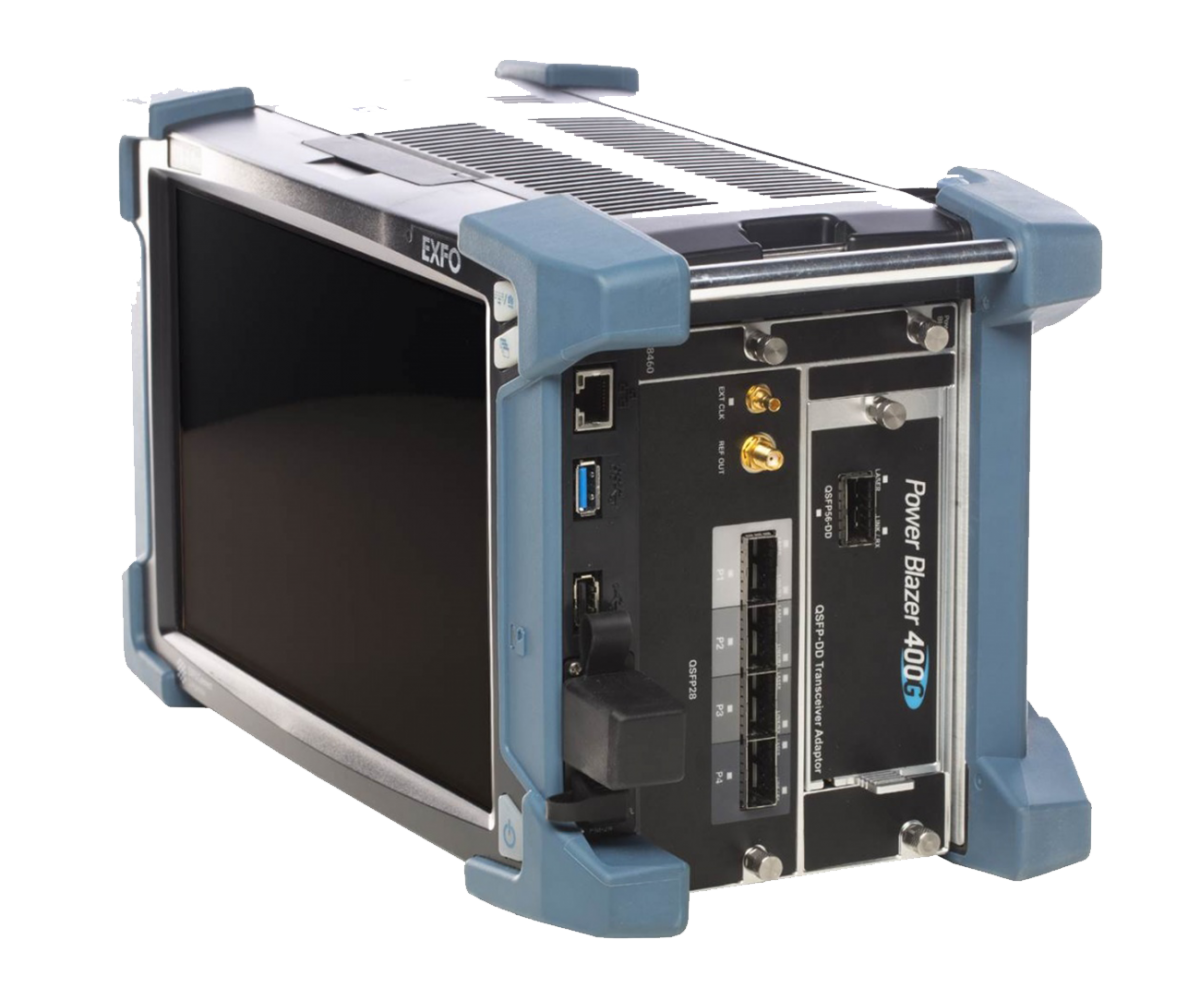

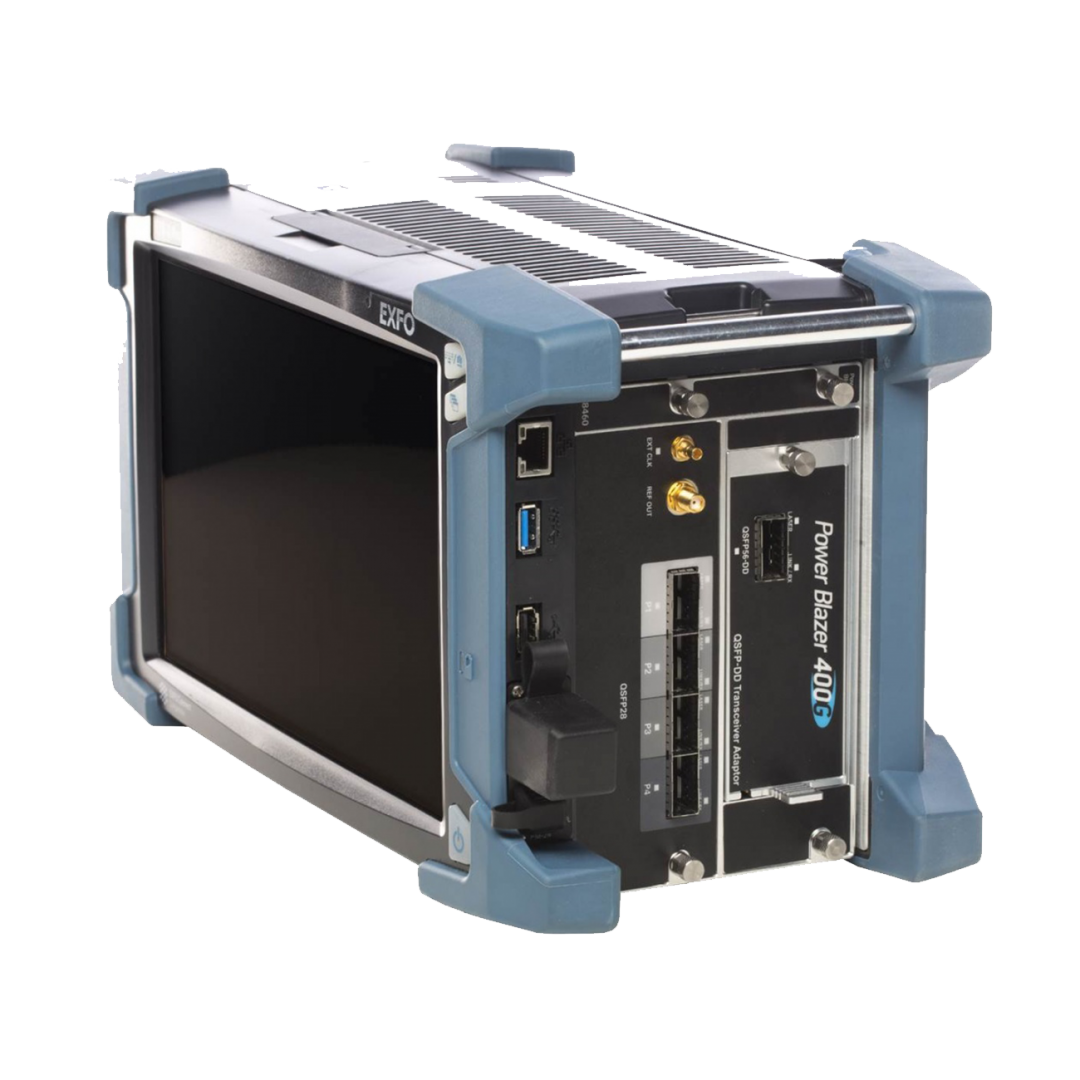

EXFO | FTBx-88460 - 400G Multi-Service Test Module

Product Name EXFO FTBx-88460 - 400G Multi-Service Test Module
Product Code FTBx-88460
+ -

The most compact multi-service 400G test solution on the market for field applications.

With the advancing technology, network operators increase the capacity and number of data center facilities with solutions to support higher transmission speeds to keep up with increasing bandwidth demands. The main body of industry standards: IoT is forced to develop faster Ethernet technologies like 400GE to support technologies such as cloud, big data and 5G.

  • 400G Ethernet test capability (IEEE 802.3bs standards)
  • 400G Ethernet MAC PCS / PMA / PMD layer test.
  • FEC KP4 RS (544, 514) decoding and error correction
  • Displaying a test pattern (pattern).
  • MDIO read / write
  • Creating and monitoring alarms / errors
  • FEC test
  • BER monitoring
  • FlexE (Flex Ethernet) testing capability with low-to-high speed Ethernet clients.
  • Support QSFP-DD (TA4), CFP8 (TA4), QSFP28
Document Name Date İndirme Boyut View
EXFO - 400G Power Blazer Series 21/04/2020 15:20:15 1224 5,66 MB View
