EXFO MAX-715B Single Mode (SM) OTDR Fiber Optical Cable Tester

EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
EXFO MAX-715B Single Mode Fiber Optic Tester
Product Name EXFO MAX-715B Single Mode Fiber Optic Tester
Product Code MAX-715B-M3-EA
+ -
Pcs
COMPATIBLE ACCESSORIES
FIP-430B Fiber Inspection Probe
FIP-430B Fiber Inspection Probe

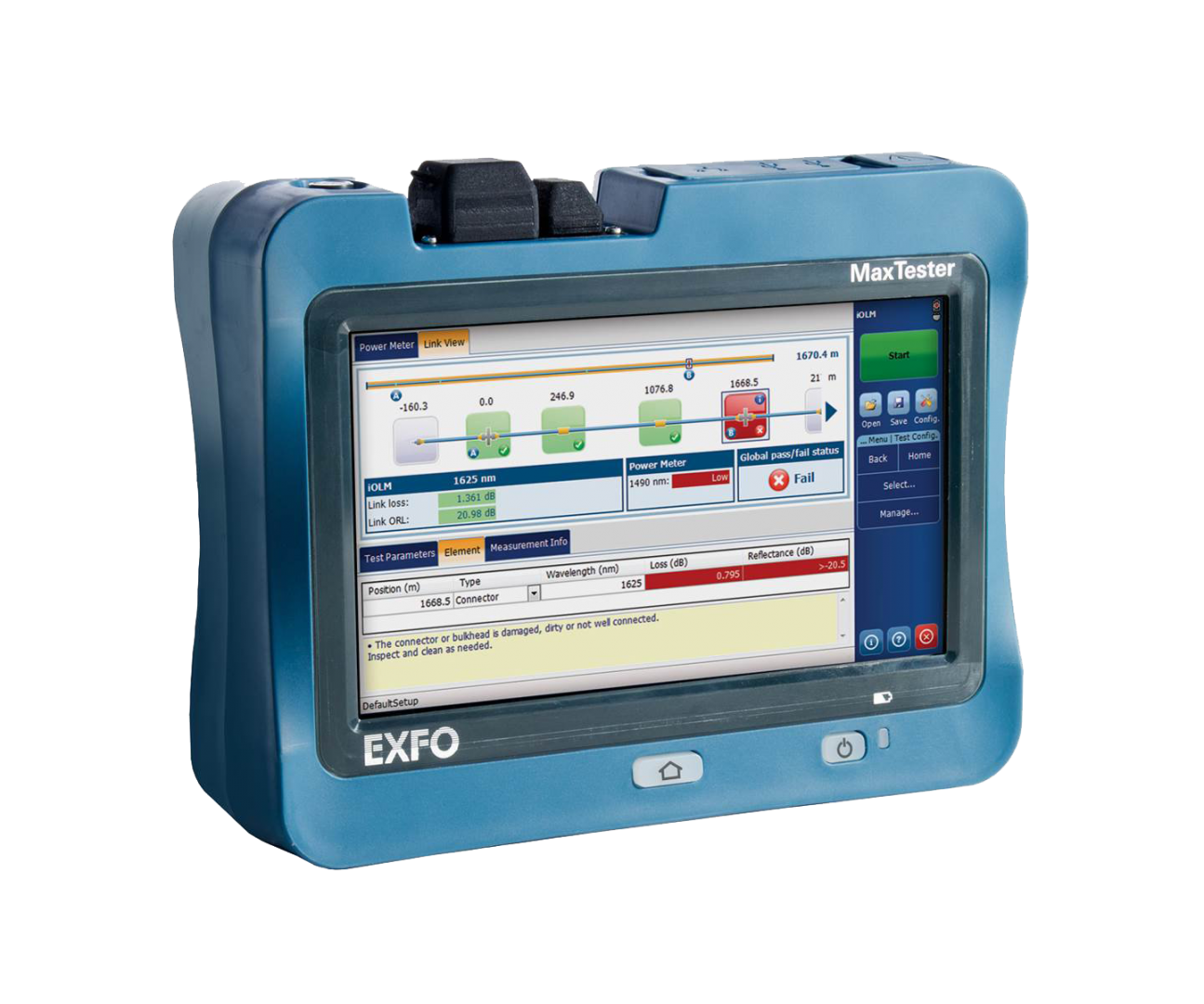

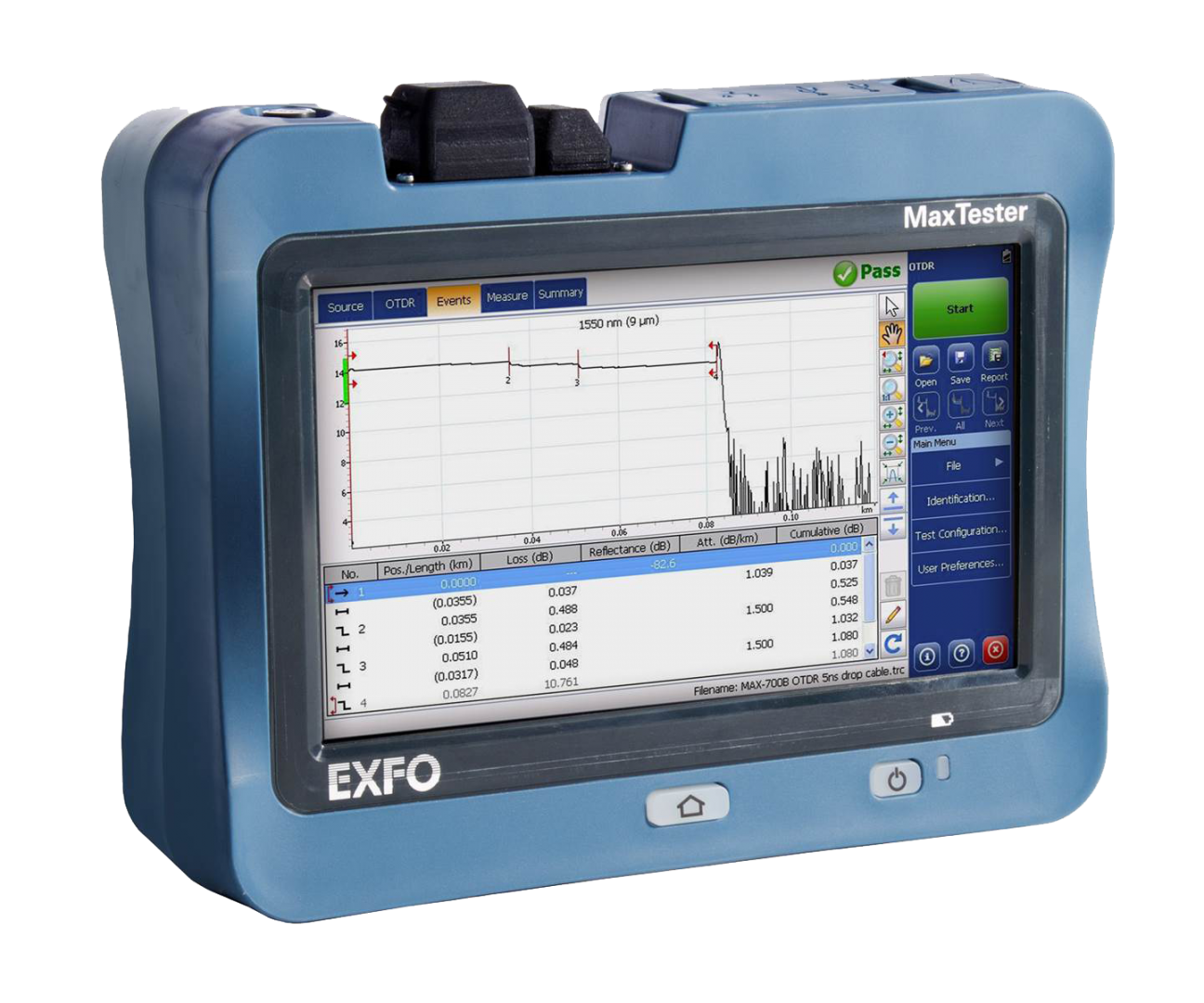

The MaxTester 715B Series is the first OTDR series inspired by the tablet, which is handy, lightweight and robust for any test environment. With an enhanced 7-inch touchscreen, it delivers an unprecedented user experience.

  • EXFO MAX-715B for Single Mode (SM) and Live (Live) OTDR fiber optic cables,
  • 80 km measuring range with dynamic range of 30 dB,
  • With touch screen width suitable for 7 inch outdoor working
  • In private / corporate networks, data centers and FTTx / DAS networks, it provides accurate OTDR fiber characterization in the first test with its effective dynamic range.

For Single Mode and Live Fiber Optic Cables;

  • 80 km measuring range with dynamic range of 30 dB,
  • 1310/1550/1625 wavelength (nm),
  • 30/28/28 Dynamic Range (dB),
  • 0.1 - 160 measurement distance (km),
  • Pulse width from 5 to 20,000 (ns),
  • 2 GB storage
  • Touch screen width suitable for 7 inch outdoor environment,
  • Turkish and English language (and other languages) support,
  • Optional Power meter and Visual Fault Finder can be installed,
  • 1.2 kg weight
  • 1 x EXFO MAX-715B
  • 1 x Original Carry Bag
  • 1 x Original Kit
Document Name Date İndirme Boyut View
Exfo - MaxTester 715B Last-Mile OTDR 25/03/2019 17:05:23 1134 1,41 MB View
