Product Name EXFO MAX-730C Single Mode OTDR and Live Fiber Tester
Product Code MAX-730C-SM2-LIVE-EA-EUI-91
+ -
Pcs
COMPATIBLE ACCESSORIES
FIP-430B Fiber Inspection Probe
FIP-430B Fiber Inspection Probe

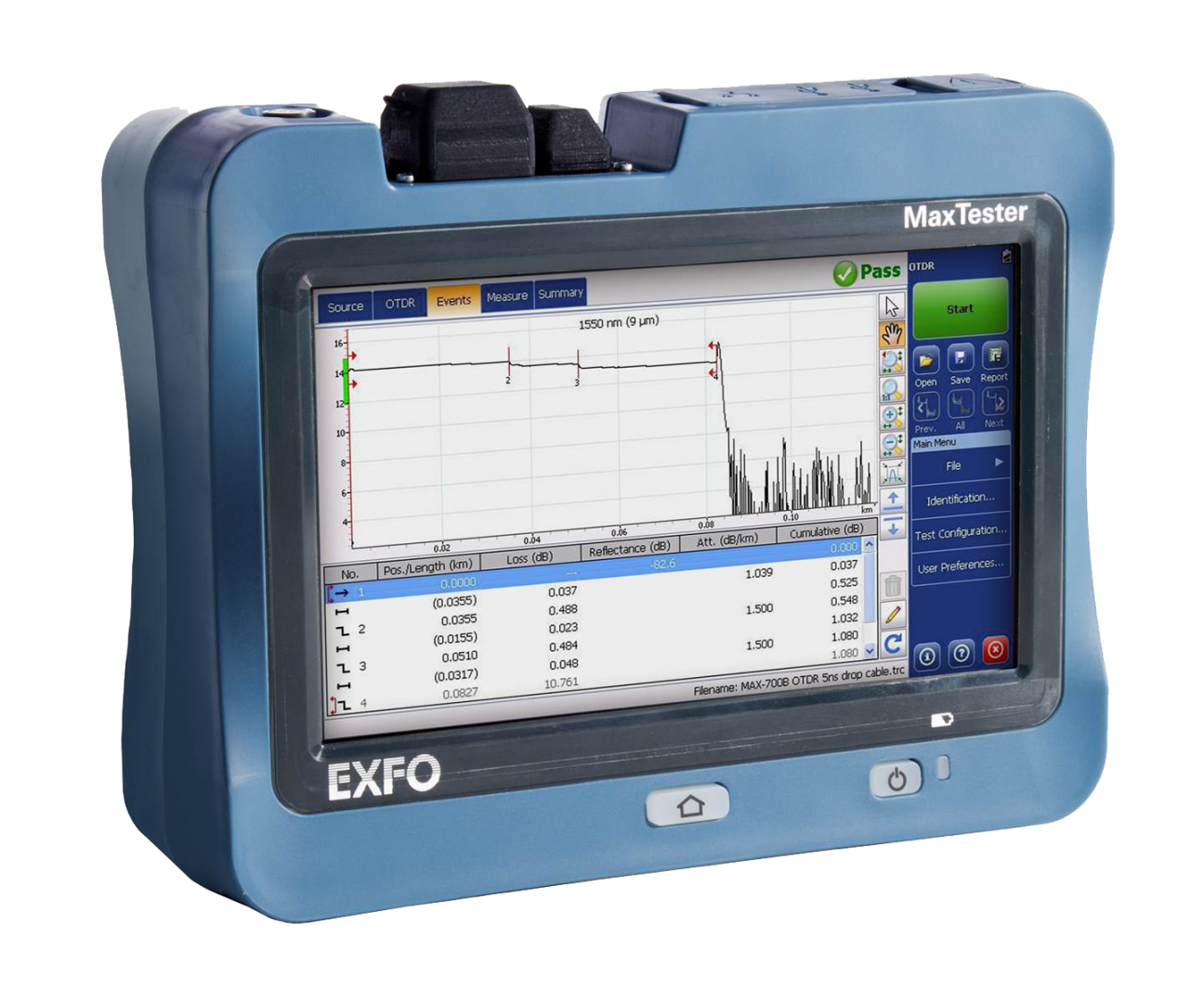

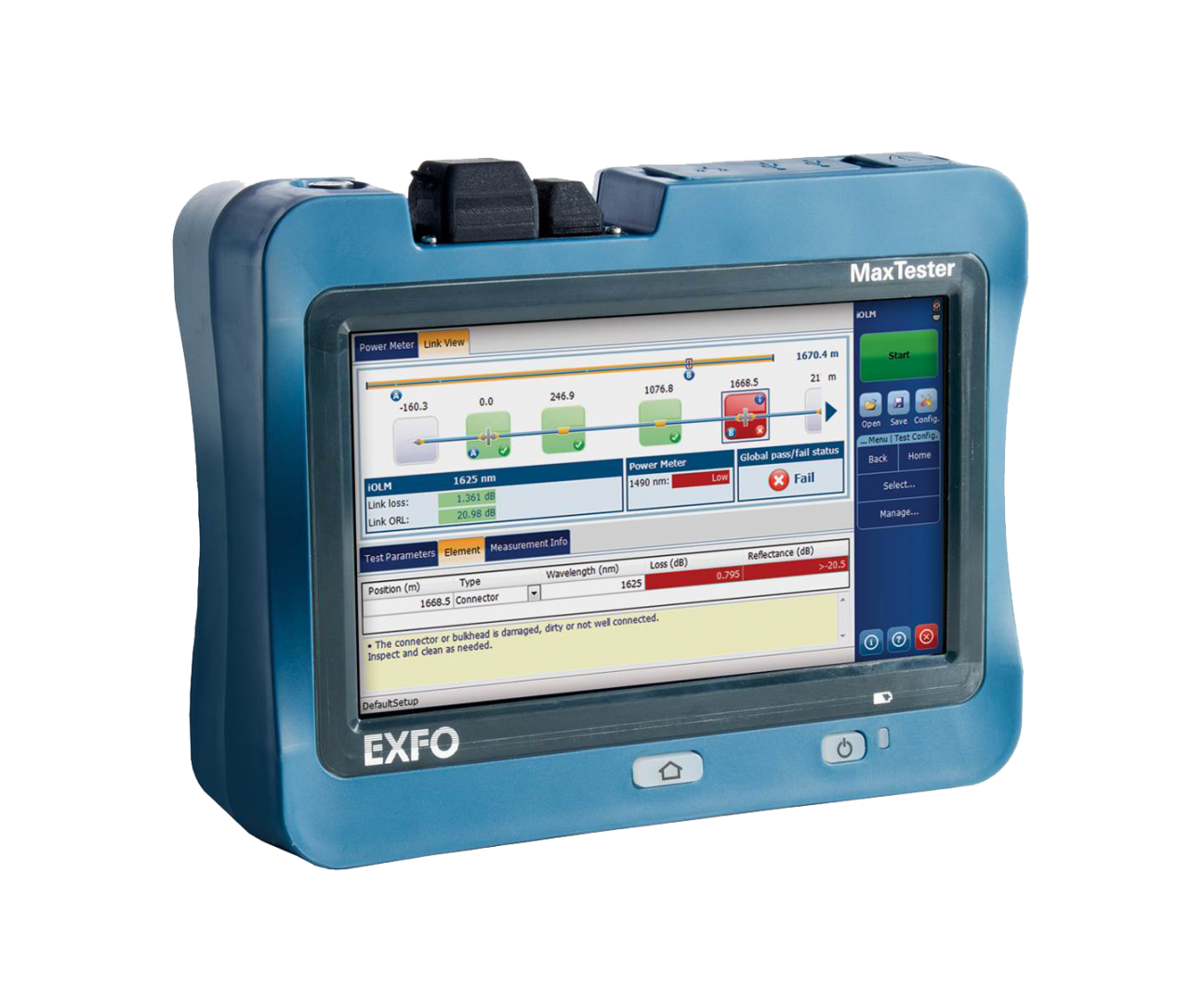

The MaxTester 730C Series is the first OTDR series inspired by the tablet, which is handy, lightweight and robust for any test environment. It offers an unprecedented user experience with a 7-inch enhanced touchscreen.

  • For EXFO MAX-730C, Single Mode (SM) and Live (Live) fiber optic cables,
  • Approximately 120 km measuring distance with 39 dB dynamic range,
  • With touch screen width suitable for 7 inch outdoor working
  • In private / corporate networks, data centers and FTTx / PON (splitter up to 1x128) networks, it provides accurate fiber characterization in the first test with its effective dynamic range.

For Single Mode and FTTx / PON (up to 1x128 splitter) Fiber Optic Cables,

  • Approximately 120 km measuring distance with 39 dB dynamic range,
  • 1310/1550/1625 wavelength (nm),
  • 39/38/39 Dynamic Range (dB),
  • 0.1 - 400 measuring distance (km),
  • Pulse width from 3 to 20,000 (ns),
  • 2GB internal storage,
  • Touch screen width suitable for 7 inch outdoor environment,
  • Turkish and English language support,
  • FTTx / PON test splitter (up to 1x128),
  • Optional Power meter and Visual Fault Finder can be installed,
  • 1.5 kg weight,
  • 1 x EXFO MAX-730C
  • 1 x Original Carry Bag
  • 1 x Original Kit
Document Name Date İndirme Boyut View
Exfo - Max Tester Series 25/03/2019 17:23:55 4219 1,86 MB View
