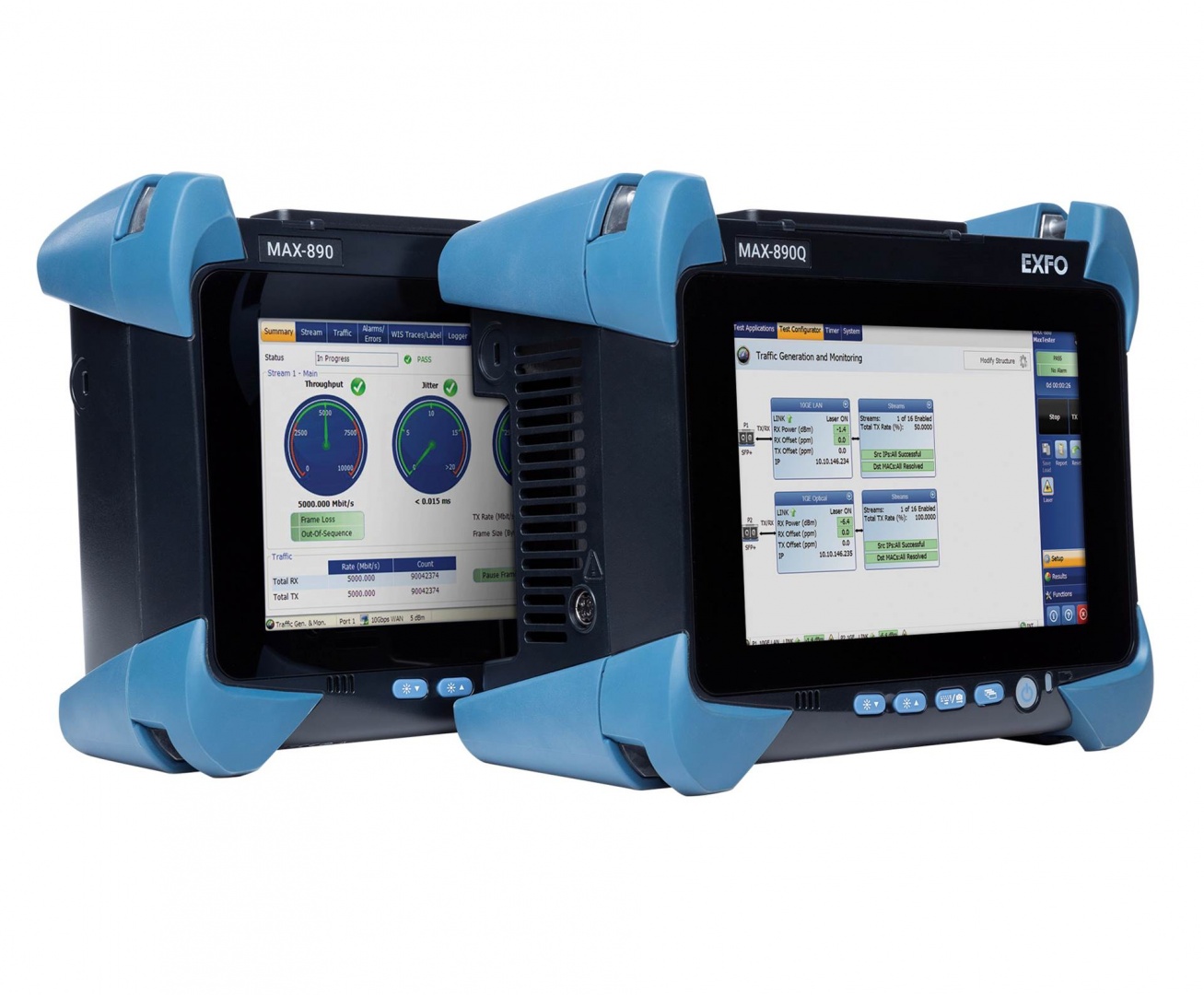

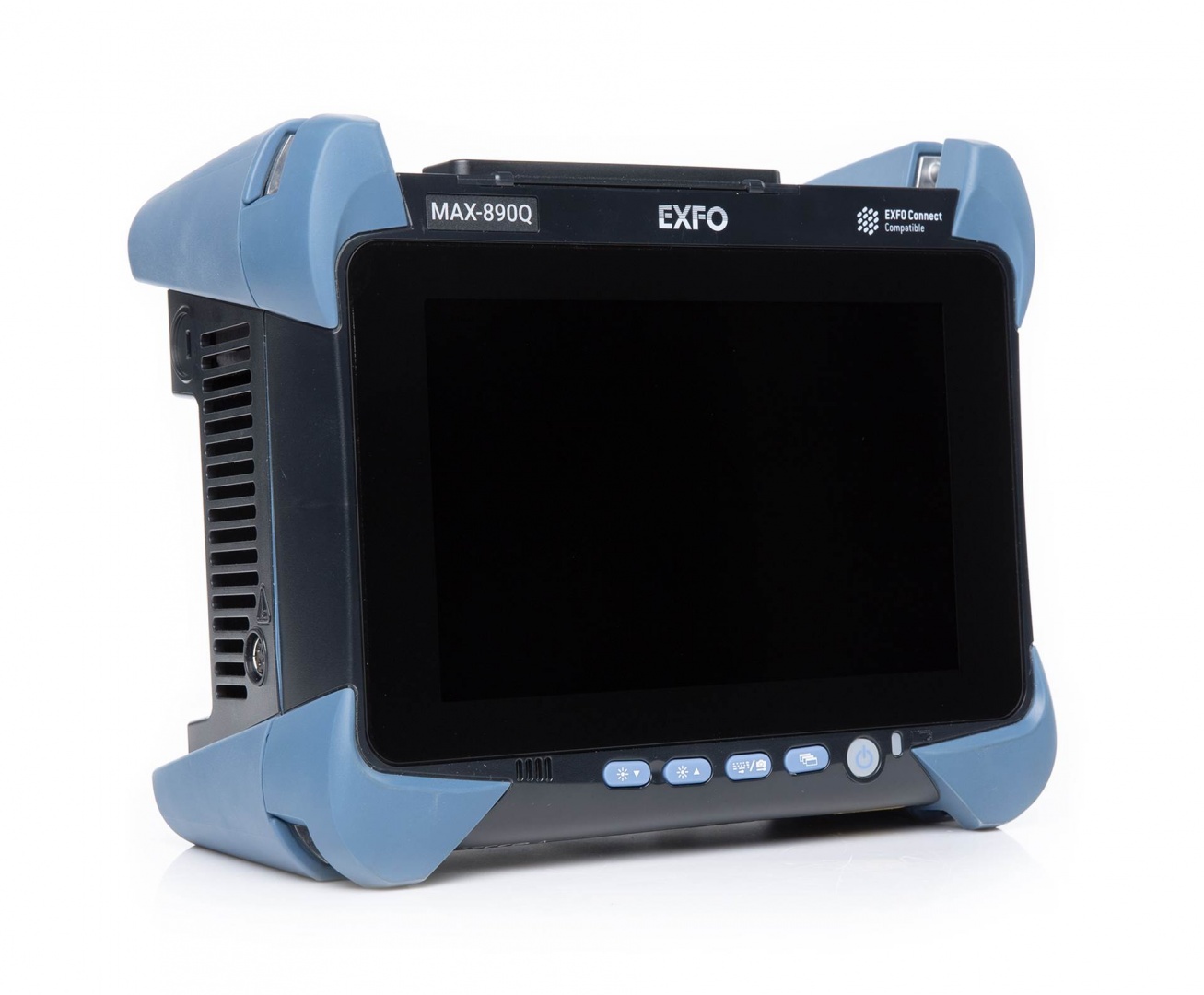

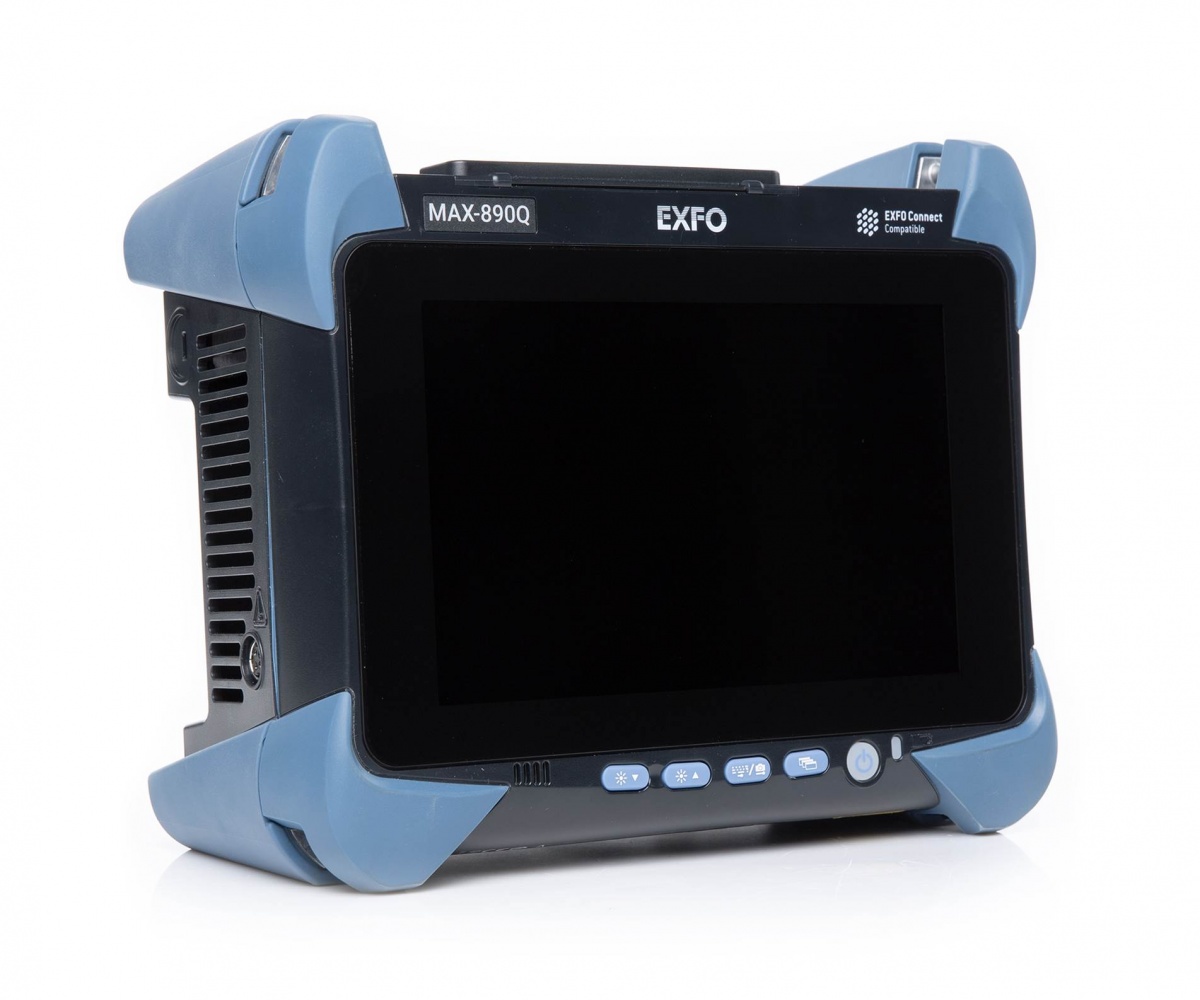

Product Name MAX-800 Series - Ethernet and transport testing up to 100G
Product Code Max-800
+ -
Pcs

The MAX-800 Series is an easy-to-use, portable test solution designed to meet the most stringent test requirements when installing activating and troubleshooting Ethernet connections and transport links from 10M to 100G.

Dedicated quick-action buttons

• Remote discovery to find all the other EXFO and third-party units (allowing a single user to perform end-to-end testing by looping up and looping down remote devices up to layer 4)

• Laser on/off

• Test reset to clear the results and statistics while running a test

• Report generation

• Save and load test configurations

• Quick error injection

Assorted notifications

• Clear indication of link status for single or dual ports

• Negotiated speed display

• Power status available at all times for single or dual ports

• Pass/fail indication at all times

• Pattern and clock synchronization

• Frequency offset with valid-range color indicator

• Overhead overwrite indicator

• Error/alarm injection

• Alarm hierarchy pinpointing the root-cause (when possible)

Streamlined navigation

• Remote discovery button available at all times; no reason to leave your current location to scan for a remote unit

• Testing status can be maximized to fill the entire screen by simply clicking on the alarm status button; whether the unit is in your hand or across the room, test verdicts can be easily determined with a simple glance at the display screen

• RFC 2544 results and graphs are available in a single page, eliminating the need to navigate through multiple screens to view individual RFC subtest results

• Simplified test structure definition using task-based testapplication selection, signal configuration

• Centralized functions: error/alarm management, performance monitoring and overhead manipulation/monitoring

• Remote access: test set can be easily accessed remotely via VNC, remote desktop or third-party applications





  • Comprehensive testing for DSn/PDH, ISDN, SONET/SDH, OTN and Ethernet interfaces up to 100 Gbit/s
  • Faster Ethernet service activation with EtherSAM (ITU-T Y.1564) service configuration and performance tests with best-in-class accuracy, complemented by Remote Discovery, Smart Loopback and Dual Test Set capabilities
  • Quad-port testing up to 4 x 100GE links, enabling technicians to run up to four independent tests
  • OTN testing (as per ITU-T G.709), including forward error correction (FEC)
  • Layer-2 transparency testing with predefined configurations
  • Simplified BER testing with pass/fail indicators based on user-defined thresholds
  • Built-in connectivity via Gigabit interface, Wi-Fi, Bluetooth, 3G or 4G LTE
  • Multitouch, 8-in color screen with industry’s most intuitive GUI
  • Performance-driven solution allowing technicians to speed up test configuration and quickly generate test reports
Document Name Date İndirme Boyut View
MAX-800 Series handheld tester 25/01/2023 15:02:27 405 4,37 MB View
