Black Box MCX Gen 2 Controller

NEW
MCX Gen 2 Controller
MCX Gen 2 Controller
MCX Gen 2 Controller
MCX Gen 2 Controller

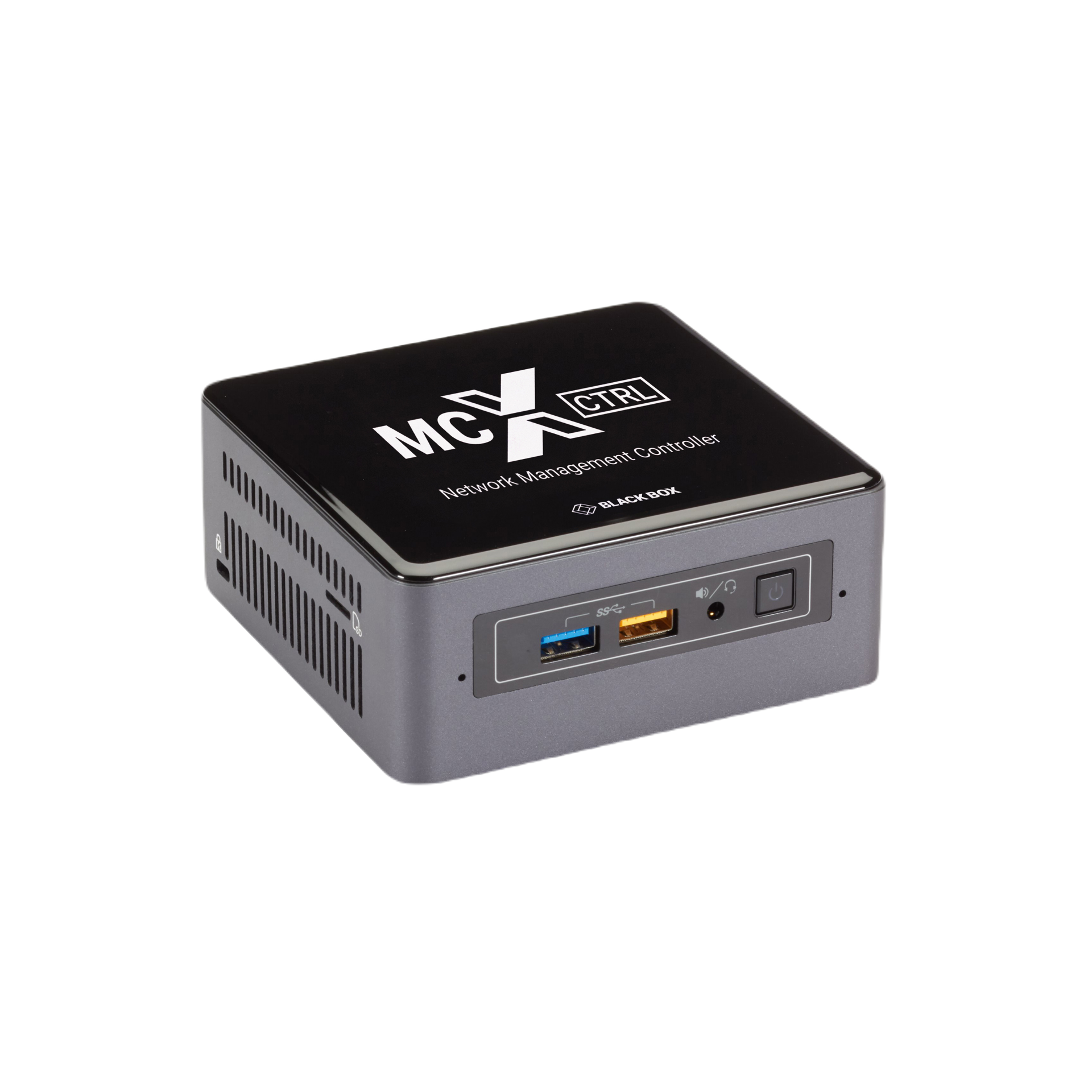

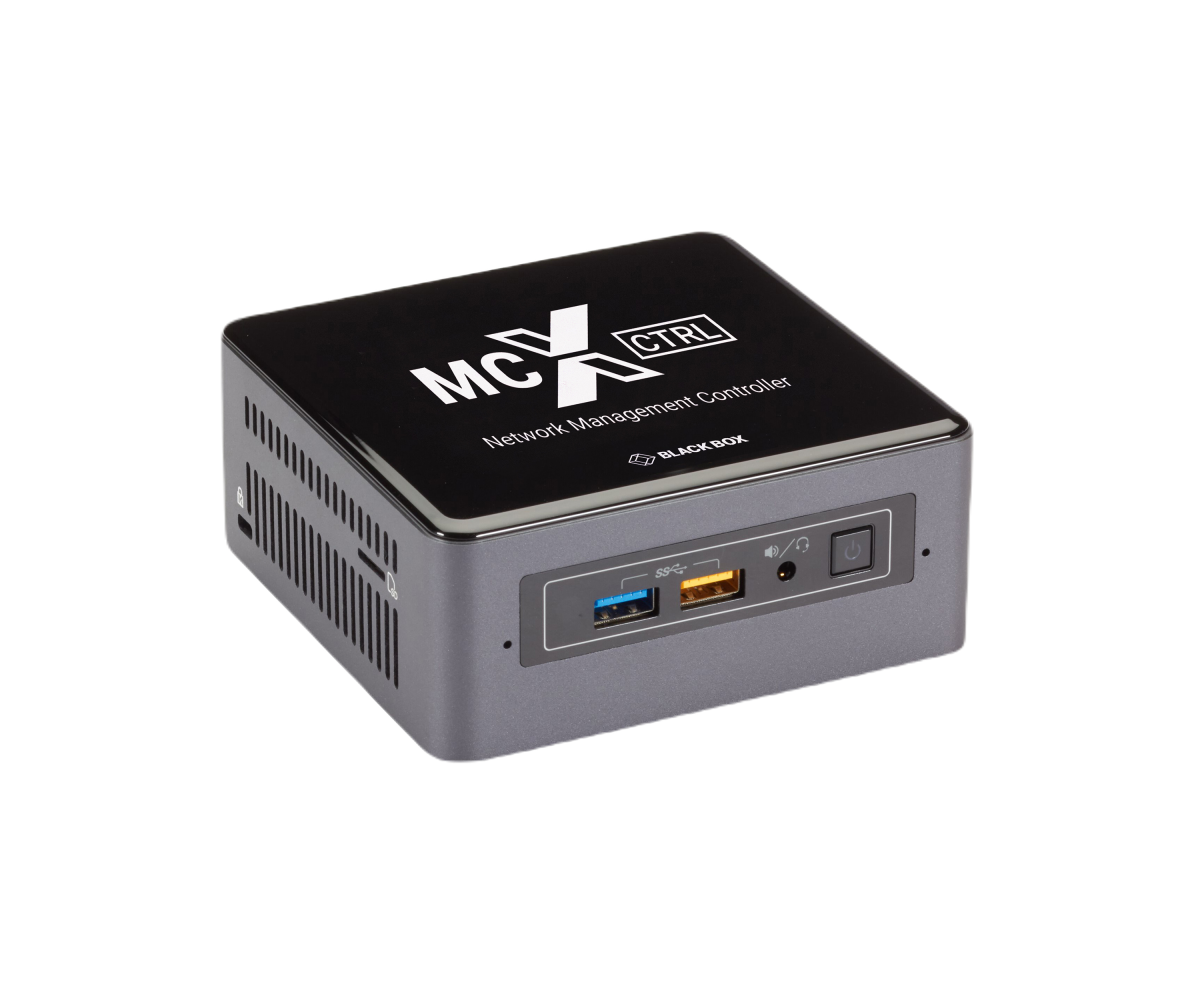

Product Name MCX Gen 2 Controller
Product Code MCX G2 CTRL

The MCX Gen 2 Controller is an all-in-one SDVoE/AVoIP network controller and manager for the MCX AVoIP system. The controller features an easy-to-use, intuitive user interface, and it makes setting up and managing your MCX AVoIP system a breeze. The Gen 2 Controller also offers strong security that ensures your data and content are always protected.

  • Get complate control of yout entire MCX AVoIP system
  • Security that protects against unauthorized content viewing
  • Real-time status monitoring
  • Full asset tracking of devices
  • Automate events and schedule preset commands with ease
  • Adheres to SLA standards

Approvals

  • Product Safety Regulations and Standarts:
  • IEC 60950-1
  • UL 60950-1
  • EN 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • EMC/RF Regulations and Standarts :
  • CISPR 52
  • FCC CFR Title 47, Chapter I, Part 15, Subparts B, C, E
  • ICES-005
  • EN 55052
  • EN 55024
  • ETSI EN 500 528
  • ETSI EN 501 489-1
  • ETSI EN 501 489-17
  • ETSI EN 501 895
  • EN 62511
  • AS/NZS 2772.2
  • AS/NZS 4268
  • VCCI V-2, V-5, V-4
  • KN-52
  • KN-24
  • CNS 15458
  • Environmental Regulations:
  • RoHS Directive 2011/65/EU
  • WEEE Directive 2012/19/EU
  • China RoHs

Enviroment

  • Operating Temperature: 0° C to +50° C, Non-condensing Humidity
  • Storage Temperature:-40° C to +60° C

General

  • Software:Maintenance is required annually
  • Mount Type: VESA Mount Kit
  • Graphics: Intel® Iris™ Plus Graphics- One HDMI 2.0a port- USB Type-C port with DisplayPort
  • Power: 19V DC Jack (12-19V operation)
  • Processor: Intel® Core™ i3-8109U processor (3.0 GHz with 3.6GHz)
  • Display Interface: HDMI 2.0a supporting 4K @ 60Hz
  • Storage: 128GB M.2 SSD (2TB Max)
  • Operating System: Windows 10 64-bit (Pro & Home) -Various Linux including: Ubuntu, Mint, openSUSE
  • Indicators: Front Panel Header: Reset, HDD LED, Power LEDs, power on/off
  • Peripheral Connectity: (4) USB 3.1 Gen2 Type-A ports (two back; two front) -USB 3.1 Gen2 Type-C port (back panel) -additional Hi-Speed USB 2.0 ports via internal header
  • Baseboard Power Requirements: 19V, 90W AC-DC power adapter with detachable power cord. -12-19V DC input range- International cords available
  • Memory: 4GB DDR4-2400 pre-installed-Two DDR4 SO-DIMM Sockets

Item Specifications

  • Dimensions: 4.6”W x 4.4”D x 2"H (117 x 112 x 51 mm)
  • Weight: 2.44 lbs. (1.1kg)
  • Simplified setup
  • Complete control uı
  • System design testing
  • Status monitoring
  • Extensive firmware management
  • Stromg security
  • EDID management
  • Automate Events
  • Schulede preset  commands
  • Track your AV devices
  • SLA Adherence
  • Advanced analytics
Document Name Date İndirme Boyut View
02/12/2022 10:24:13 284 675,83 KB View
