Black Box MCX S7

NEW

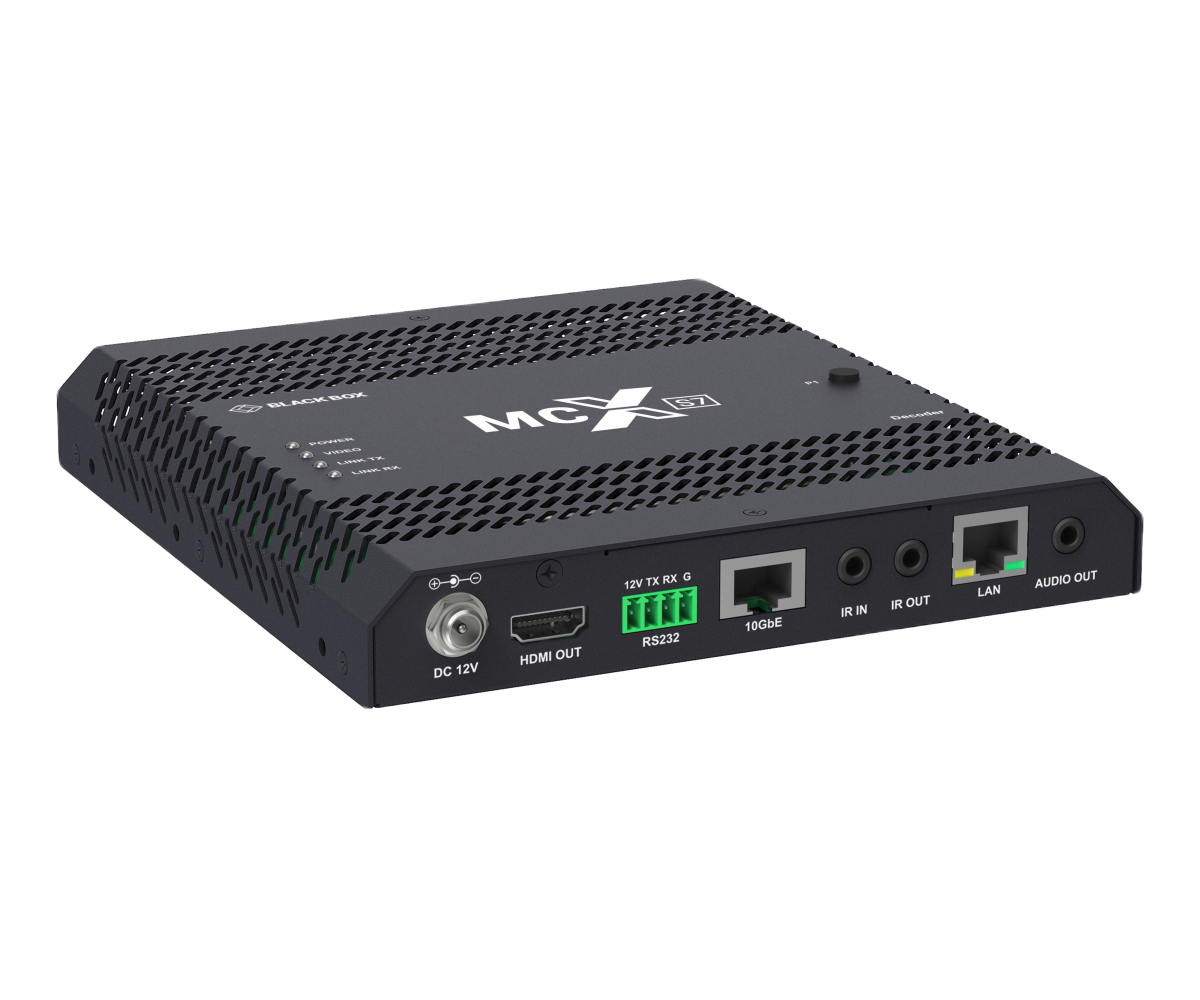

Product Name MCX S7 4K60 Network AV Decoder
Product Code MCX S7

MCX is a next-generation AV-over-IP solution from Black Box. MCX distributes and extends 4K 60 Hz video and audio over IP and is made for 10-Gbps network infrastructures.

  • True 4K 60 Hz 4:4:4 video and uncompressed 10-bit HDR
  • Supports HDMI 2.0 over IP
  • Zero source to display latency
  • Seamless switching with no artifacts or screen blink
  • Intutive control through MCX Web UI
  • Seamless matrix switch capability

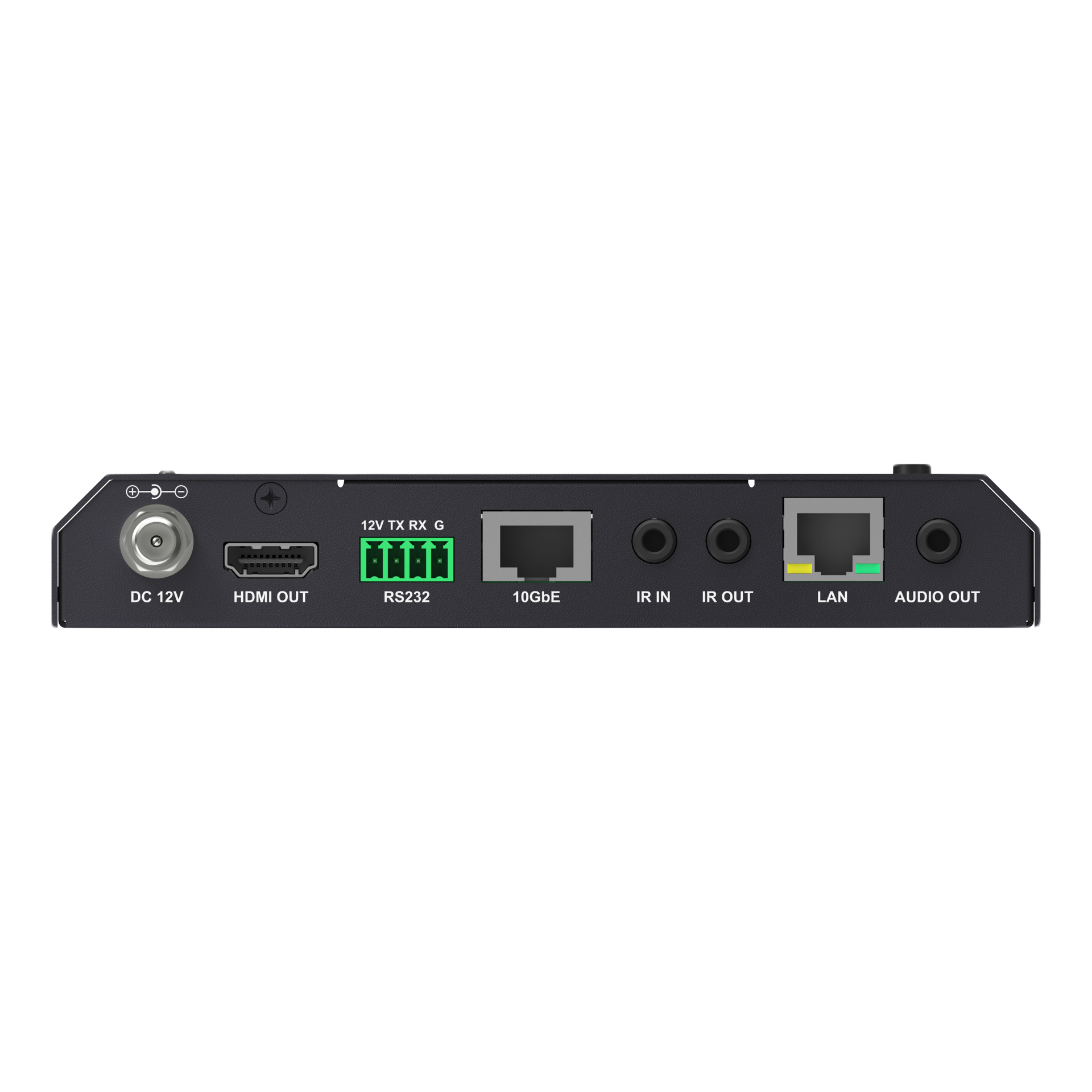

Control

  • RS232: 1x RS232 connects devices for upgrading hardware and for bi-directional communication with an RS-232 connnected device
  • Input Connectivity: HDMI 2.0
  • IR Input:  3.5mm Jack Connector
  • Compression: Uncompressed
  • LAN: 1x LAN connects to a switch, router or PC for upgrading and for matrix switching via MCX Control

General

  • HDMI Cleck Rate: up 594 MHz
  • Video Matrix Switching:  Yes
  • Network Bandwidth: 10-GbE Copper
  • Resolutions: up to 2560x1440 @ 60 Hz, 3840x2160 @ 60 Hz (4:4:4), and 3840x2160 @ 60 Hz (4:2:0 10-bit HDR), details in Support Input
  • Source to Screen Latency: 0.3 ms 1080p / 0.6 ms 4K @ 60 Hz
  • Video Matrix Switch Time: <100 ms
  • Audio Channals Out: 2-Ch PCM, LPCM, 2.0/5.1/7.1 @ 44.1/48/96/192 kHz, Dolby TrueHD up to 7.1 192 kHz, DTS-HD Master up to 7.1 192 kHz, DolbyDigital AC-3, DTS v1, unbalanced stereo audio
  • Audio Channels In: LPCM, 2.0/5.1/7.1 @ 44.1/48/96/192 kHz, Dolby TrueHD up to 7.1 192 kHz, DTS-HD Master up to 7.1 192 kHz, DolbyDigital AC-3, DTS v1, unbalanced stereo audio
  • Multii View Support: None
  • Video Wall Support: None

Item Specifications

  • 3.5mm Audio Input Count (UnitA): 1
  • 3.5mm Audio Output Count (UnitA):  1
  • Dimensions: 0.98" H x 6.3" D x 6.99" W
  • Weight: 3.35 lbs. (1.52kg)

Physical

  • Analog Audio:   True



  • Uncompressed 4K 60 Hz 4:4.4 video
  • Easy, Fllexible Deployment
  • Zero Latency
  • Seamless Switching
  • Complate Control
  • Comprehensive Connectivity
Document Name Date İndirme Boyut View
02/12/2022 10:24:13 295 675,83 KB View
