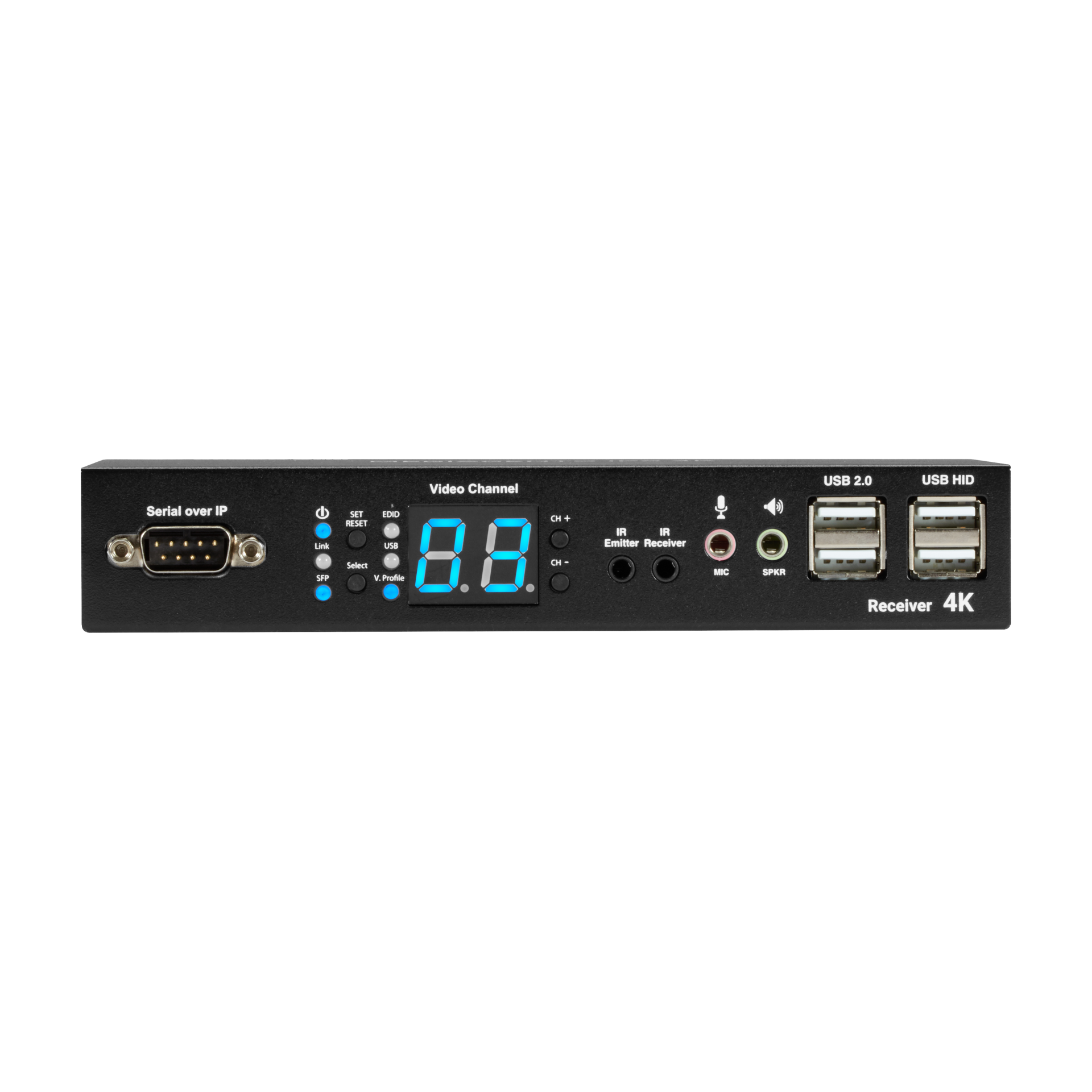

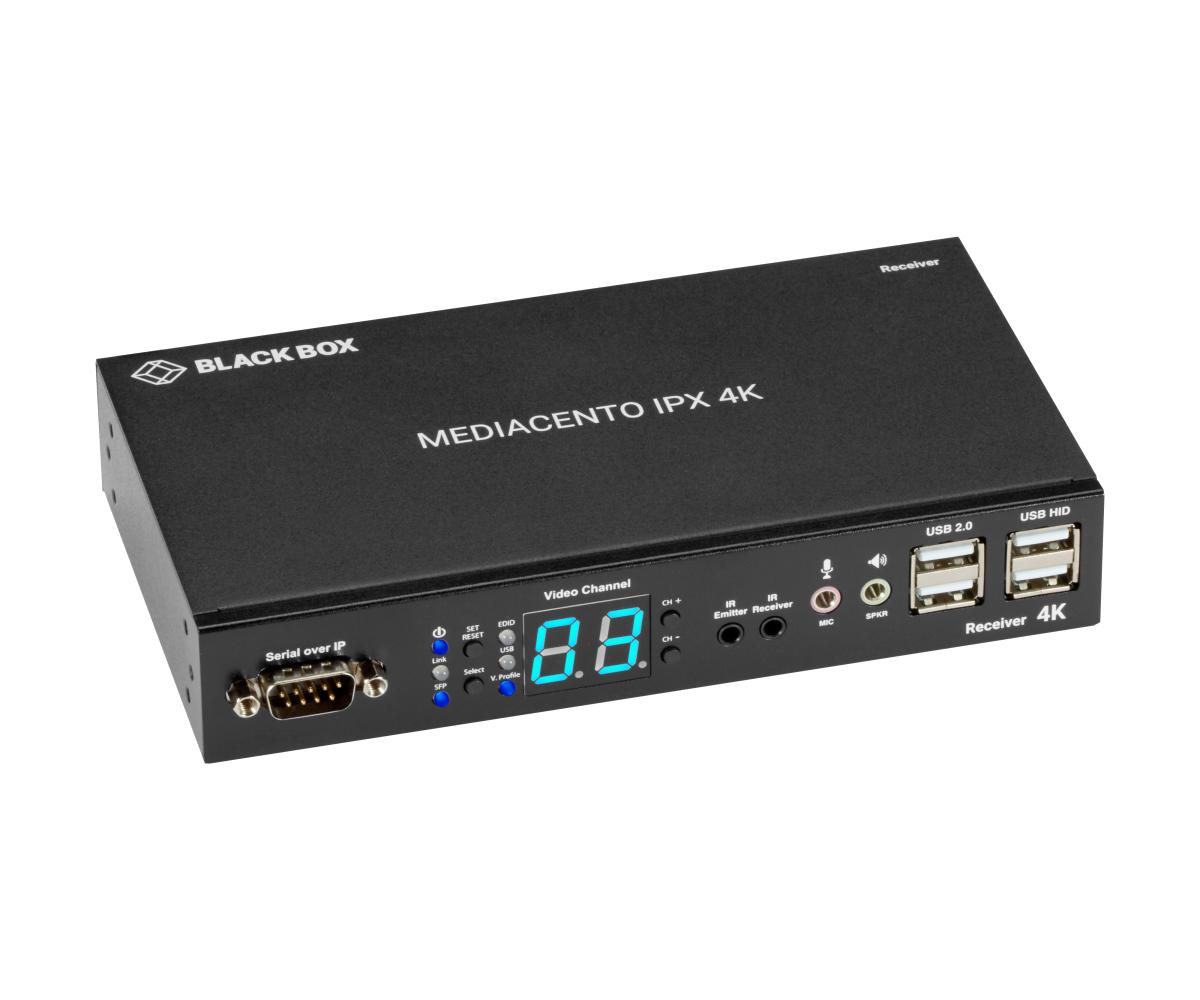

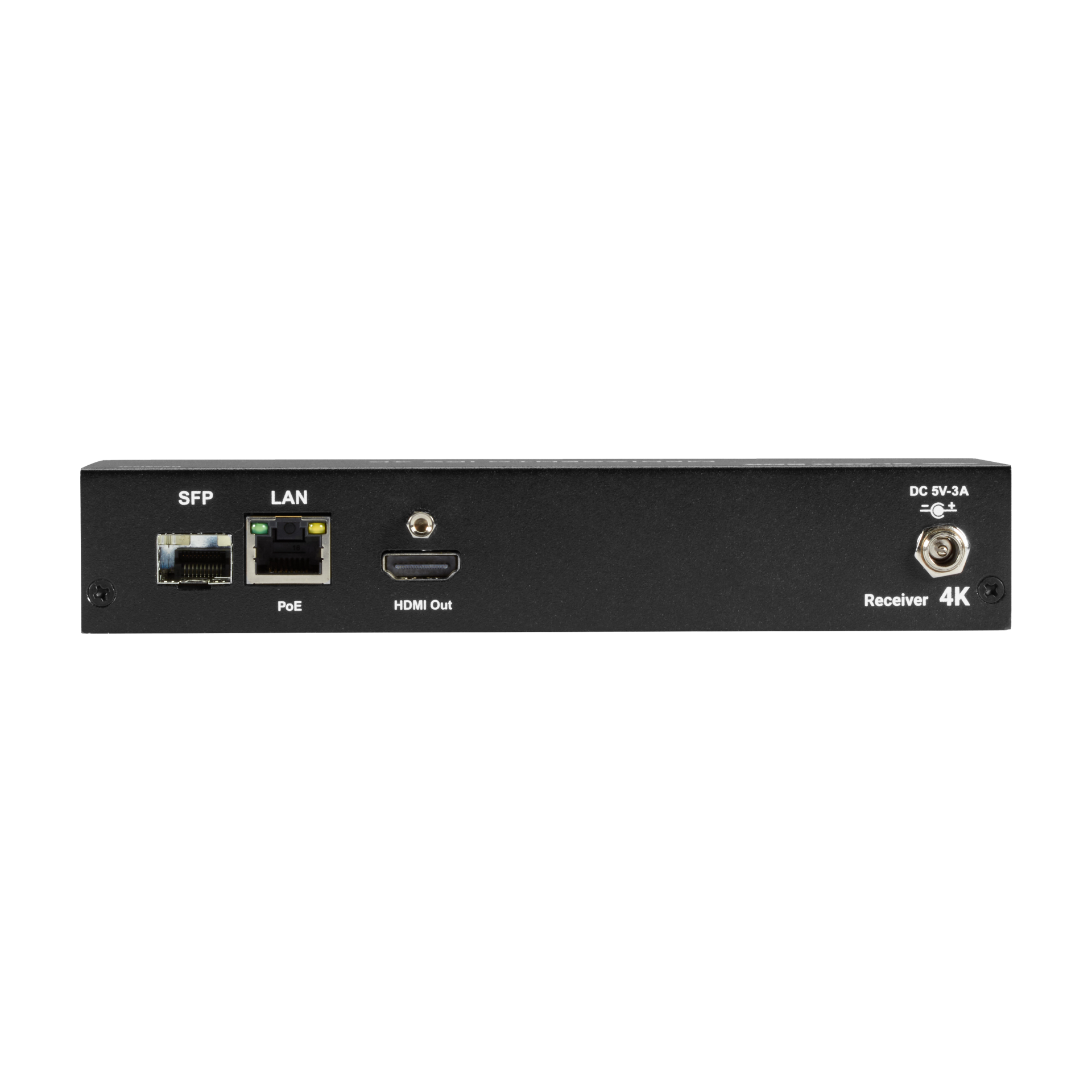

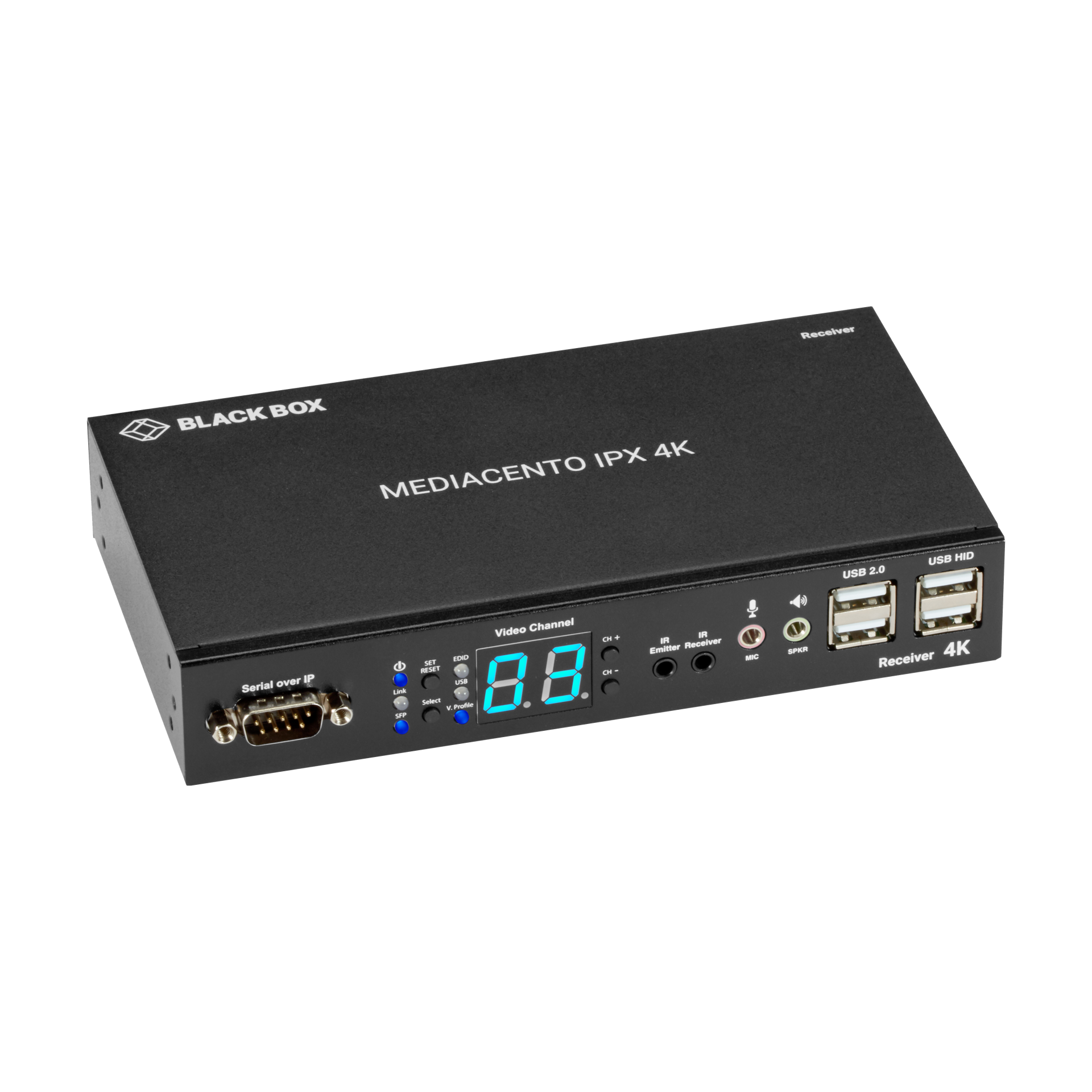

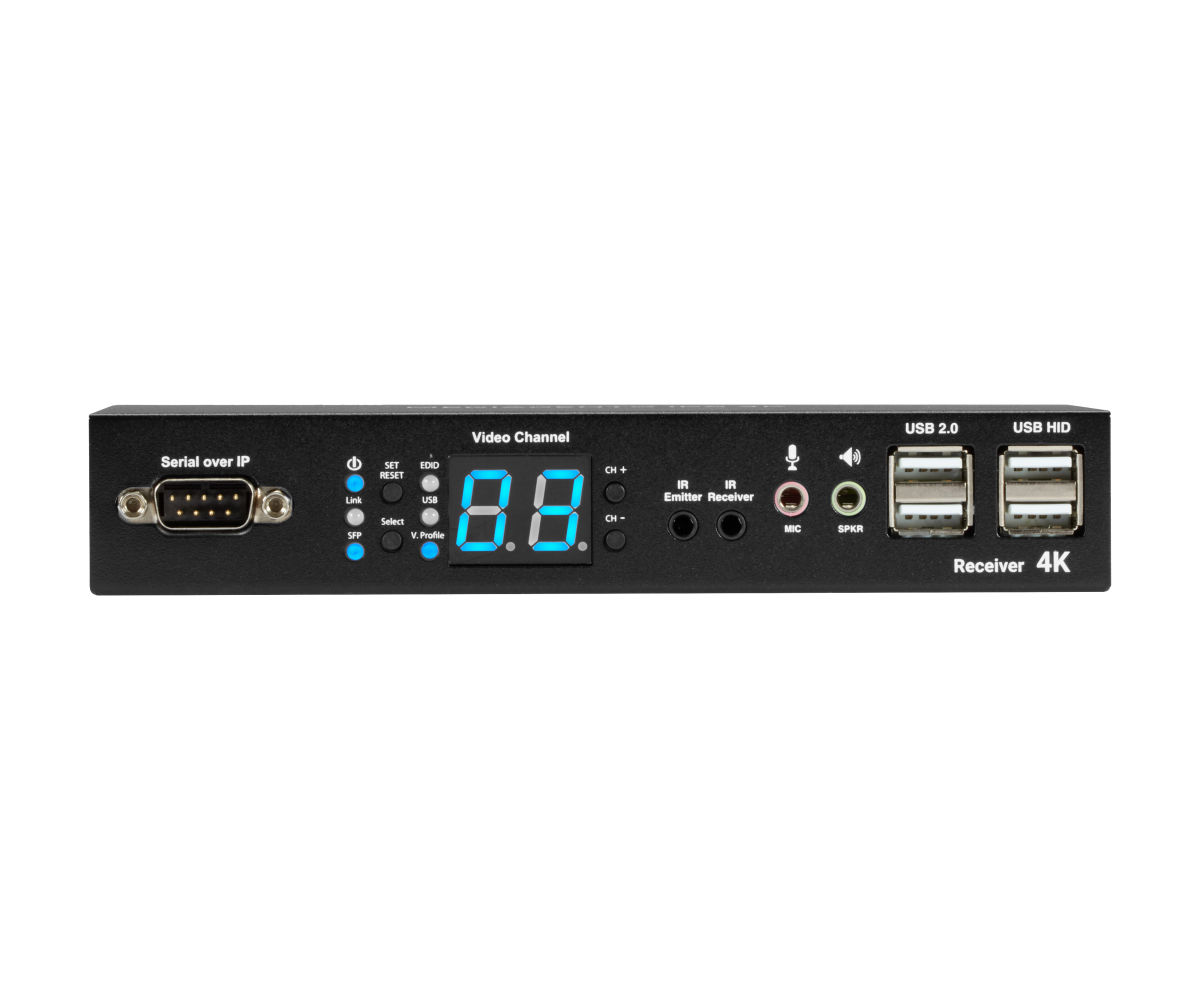

MediaCento IPX 4K Receiver

Product Name MediaCento IPX 4K Receiver
Product Code VX-HDMI-4KIP-RX
+ -

Devices for extending and switching 4K signals over IP.

  • 4K Resolution
  • 1080p Downscale
  • IEEE 802.3at supported PoE, 10,5W Consumption
  • 5 VDC, 3A Power Input
  • W:98mm x D:180mm x H:32mm
  • 2x HDMI F Input
  • 1x HDMI F Output
  • 1x DB9 F Serial Port
  • 2x 3.5mm jacks
  • 1x SFP
  • 1x USB Type B F
  • Better video: supports up to 4K UHD 4096 x 2160 @ 30Hz and 1920 x 1200 @ 60 Hz and all 3D formats.
  • Better audio: supports digital and analog audio embedding and extraction.
  • Better compatibility: 4K to 1080p downscaling.
  • Better control: USB 2.0, bi-directional IR and serial.
  • Extend HDMI video and audio signals over a Gigabit Ethernet network.
  • Create eye-catching video walls up to 8x8 displays.
  • USB 2.0 and USB HID support supports touchscreens and KVM capabilities.
  • PoE power eliminates external power supplies.
  • 1x MediaCento IPX 4K Receiver
  • 1x DB9 to RJ-11 adapter
  • 1x RJ-11 to RJ-11 cable
  • 1x U.S. power supply
  • 1x U.S. power cord
  • 4x foot pads
Document Name Date İndirme Boyut View
BlackBox - MediaCento IPX 4K 07/08/2019 08:58:52 1116 109,13 KB View
