PoE PD Media Converter

Product Name PoE PD Media Converter
Product Code LPD504A
+ -
Pcs

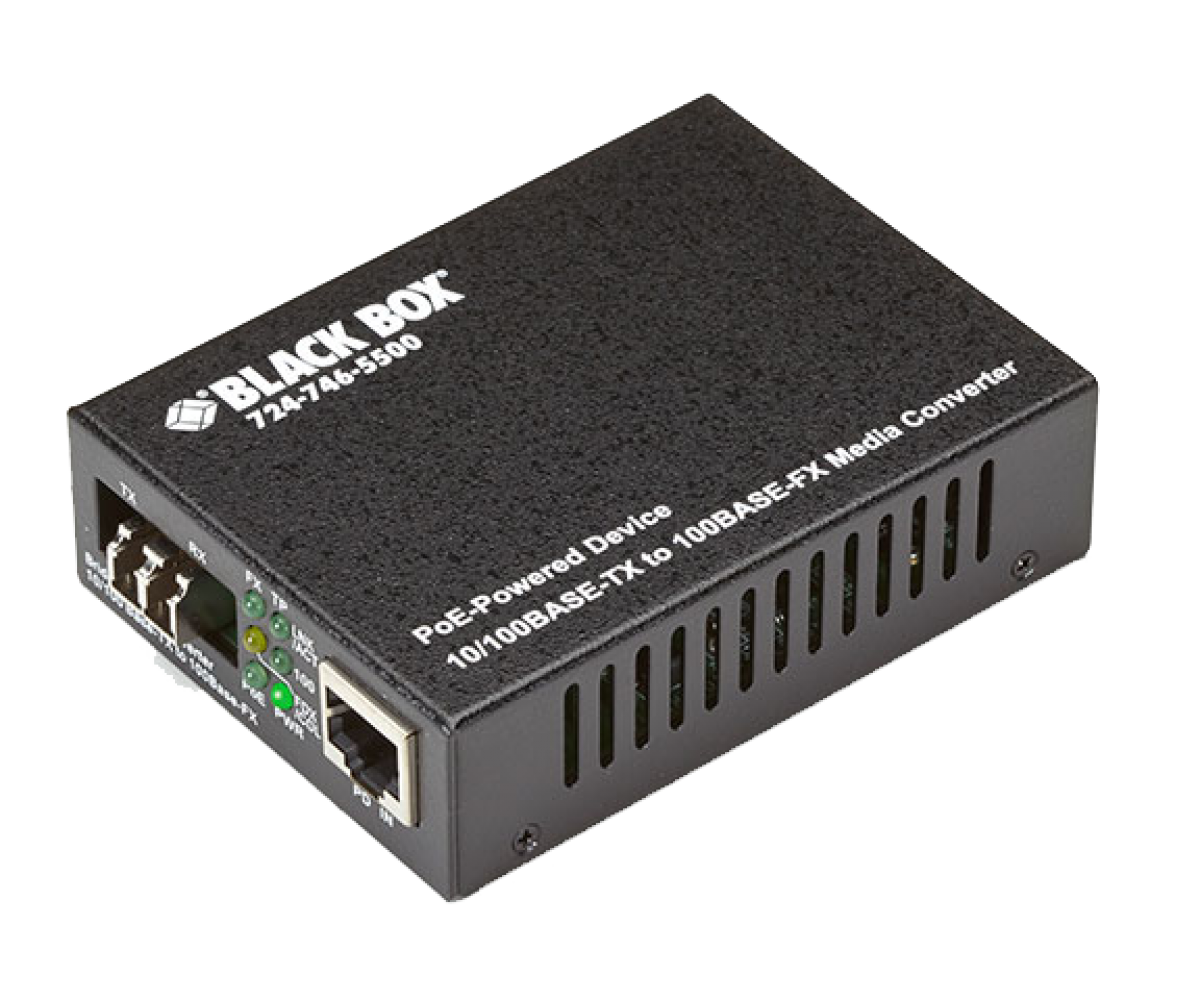

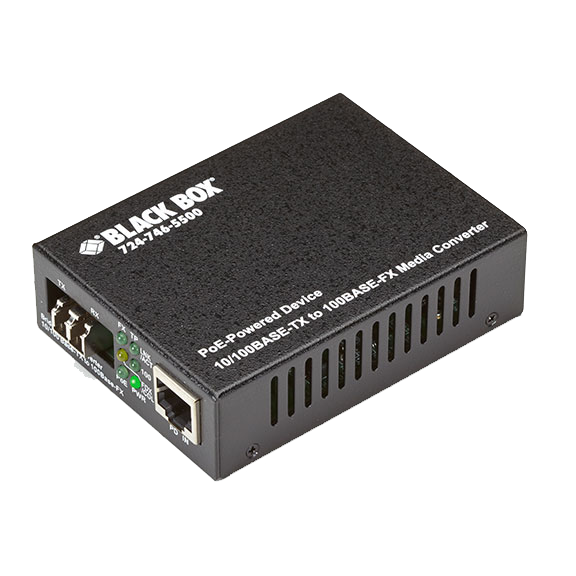

A compact copper-to-fibre converter that gets its power over Ethernet

Flow Control — 802.3x for full-duplex; backpressure for half-duplex
Forwarding Rate —
100 Mbps: 148.800 pps
10 Mbps: 14.880 pps
Connectors —
Copper side: (1) RJ45;
Fiber side: (1) pair of ST or LC
Distance —
Copper: up to100 m;
Multimode fibre: up to 2 km;

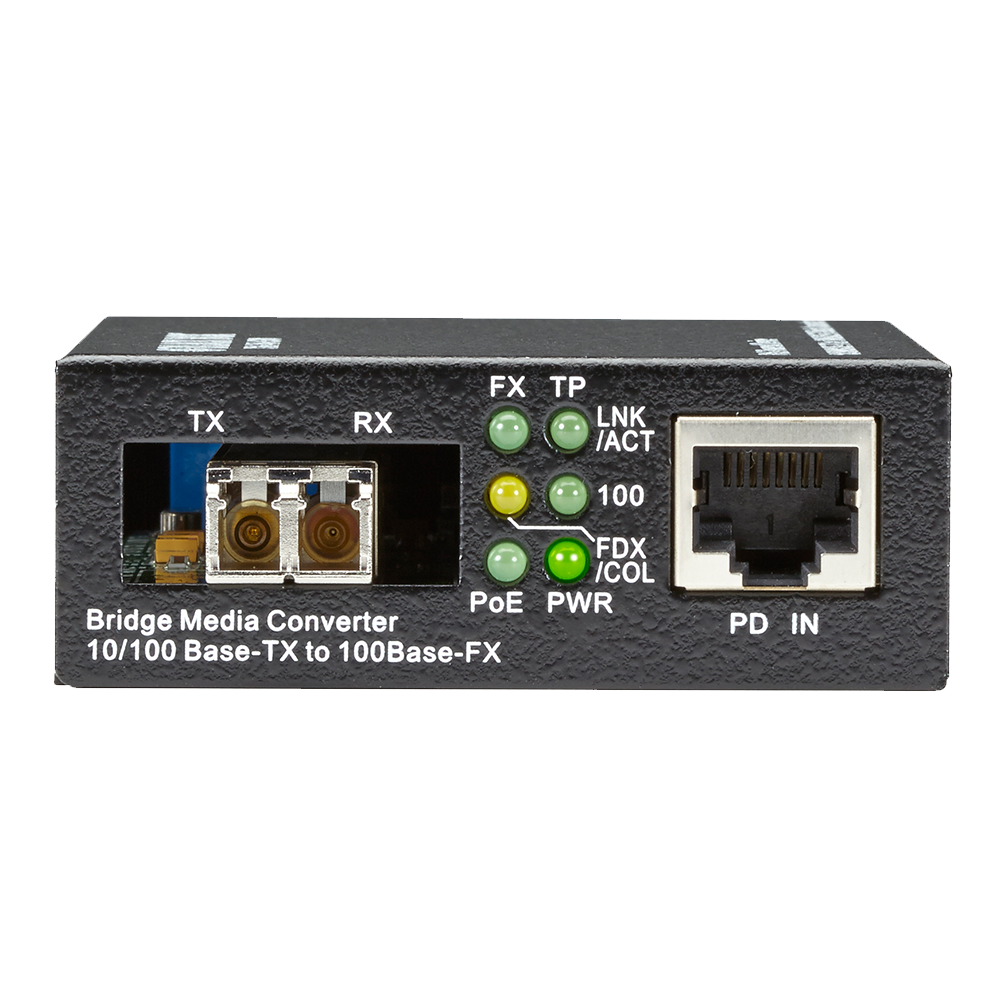

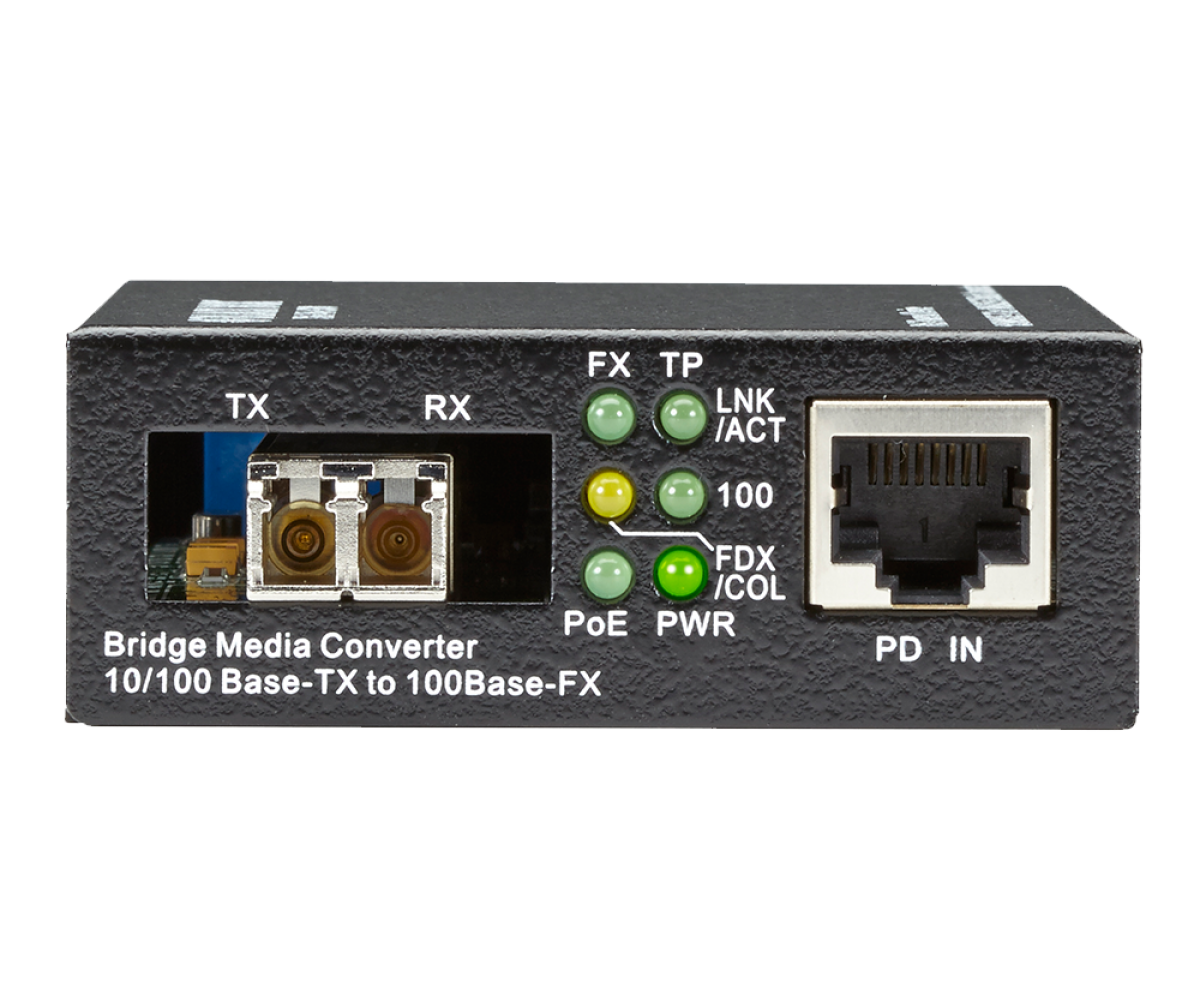

Indicators — LEDs: (1) Power, (1) PoE, (1) TP Link/Act, (1) FX Link/Act, (1) FDX/COL
Power — Requires 1 A at +5 VDC AC/DC adapter or 60 mA at -48 VDC from 802.3af PSE or PoE
Size — each: 2.5H x 6.9W x 9.4D cm
Operating temperature — 0 to 50° C
Humidity — 5 to 90% non condensing

  • Translate 10-/100-Mbps copper media to 100-Mbps fibre optic connections.
  • Work as powered devices (PD) that receive their power from the spare pairs of copper data cable.
  • Connect to PoE switches, mid-span hubs or other 802.3af power source equipment (PSE).
  • Link fault passthrough enhances the integrity of the copper and fibre links.
  • Far-end fault detection keeps data from being sent over an invalid link.

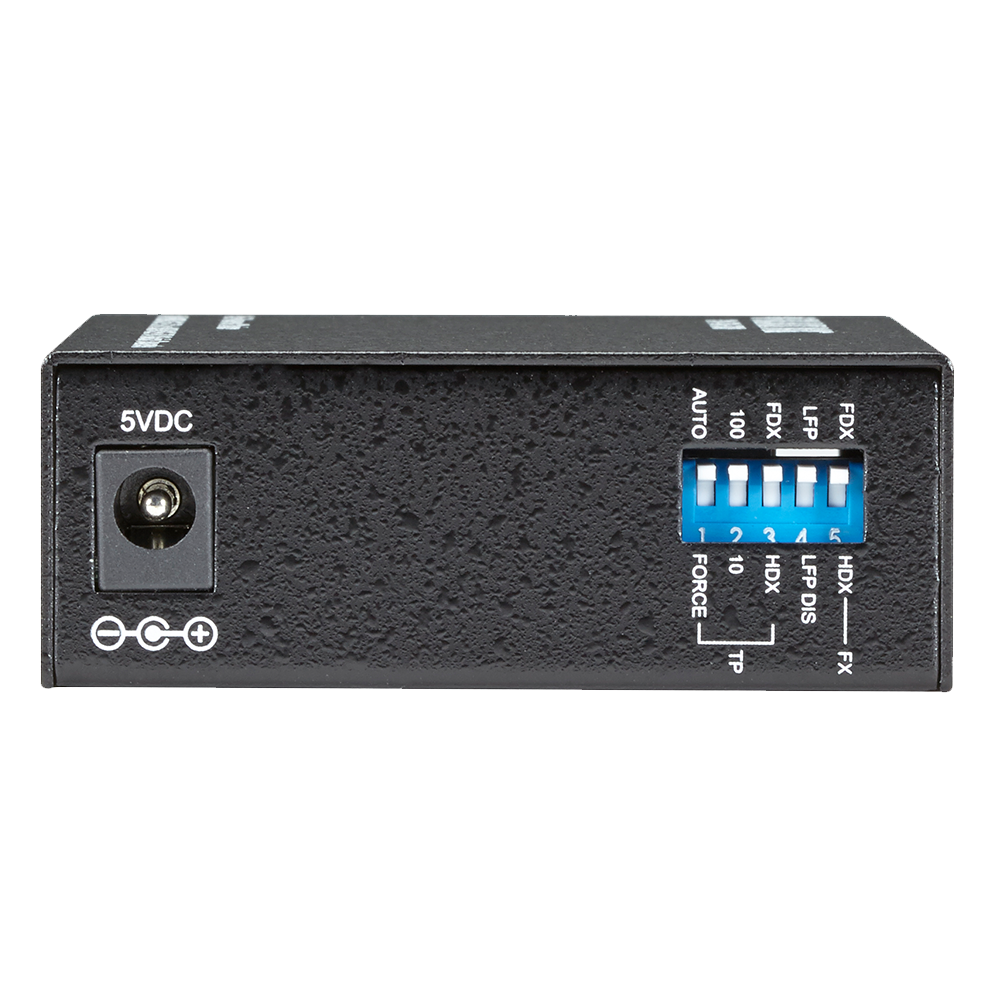

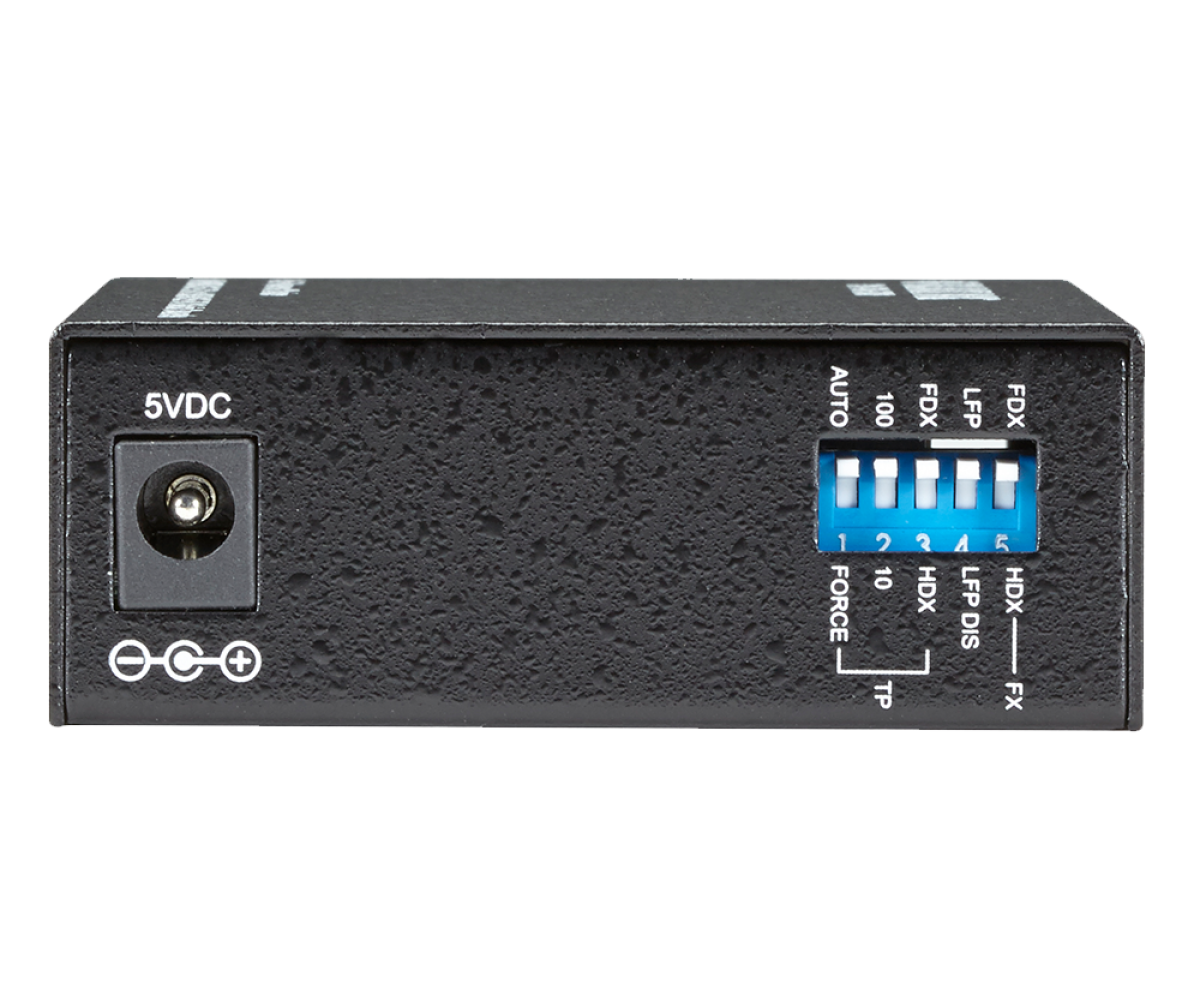

  • Easy to configure with DIP switches.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)
Document Name Date İndirme Boyut View
BlackBox - LPD500 Series PoE PD Media Converter 26/09/2019 10:03:07 124 294,9 KB View
