Secure KVM Switch - Displayport, NIAP 3.0

Product Name Secure KVM Switch - Displayport, NIAP 3.0
Product Code SS2P-DH-DP-U
+ -

Control for up to four dual-head computers through a single user console, while keeping full information assurance.

Certifications —
Common Criteria validated to NIAP Protection Profile Version 3.0;
RoHs compliant;
TAA compliant
Video formats — DisplayPort 1.2
Resolution max. — 4K UHD 3840 x2160 @ 30Hz
Pixel clock max. — 248MHz
DDC — 5 volts p-p (TTL)
Data rate — 1.65 Gbps
Input Equalisation — automatic
Max. input cable length — 6m
Max output cable length — 6m
USB Signal Type —USB 1.1 keyboard and mouse only with USB emulation

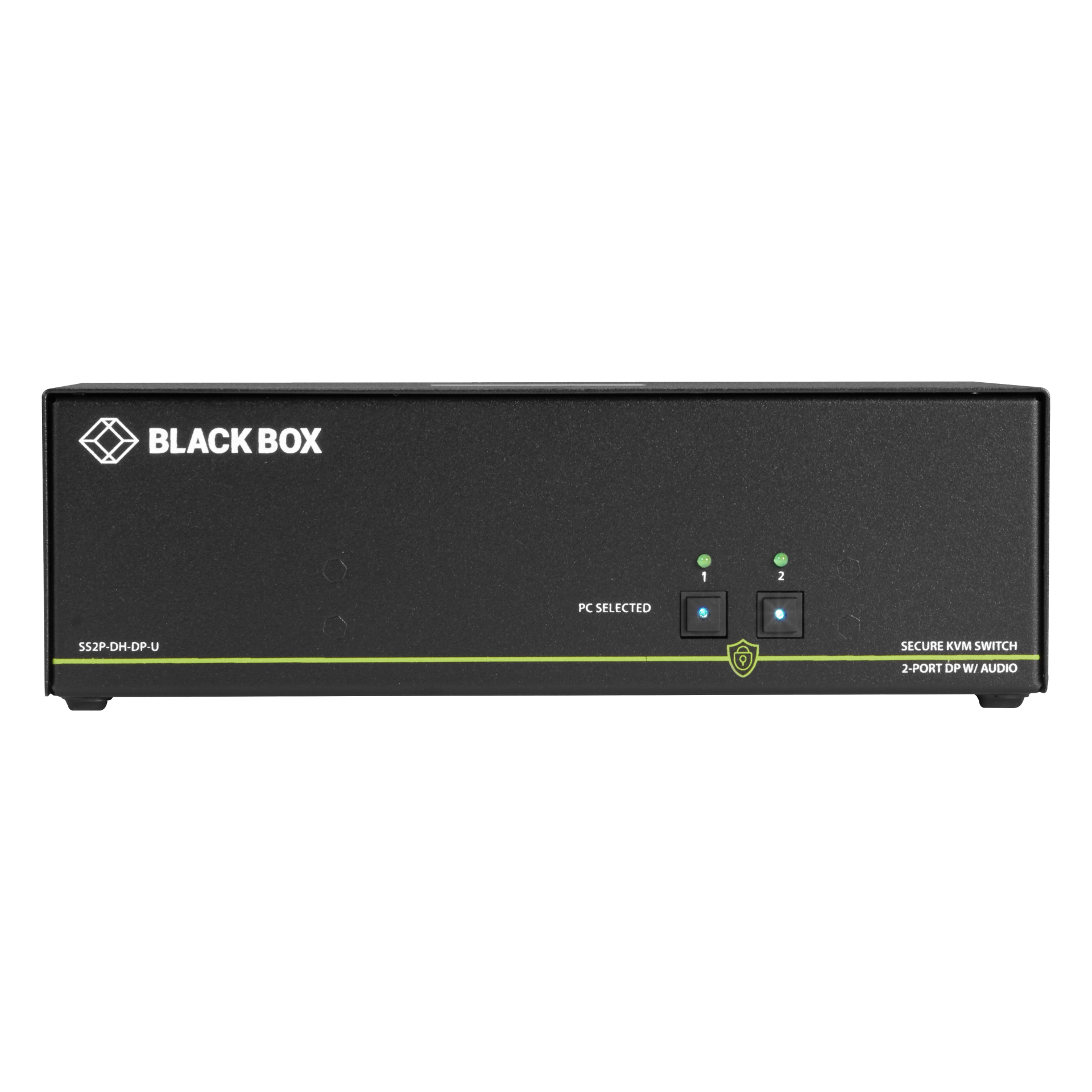

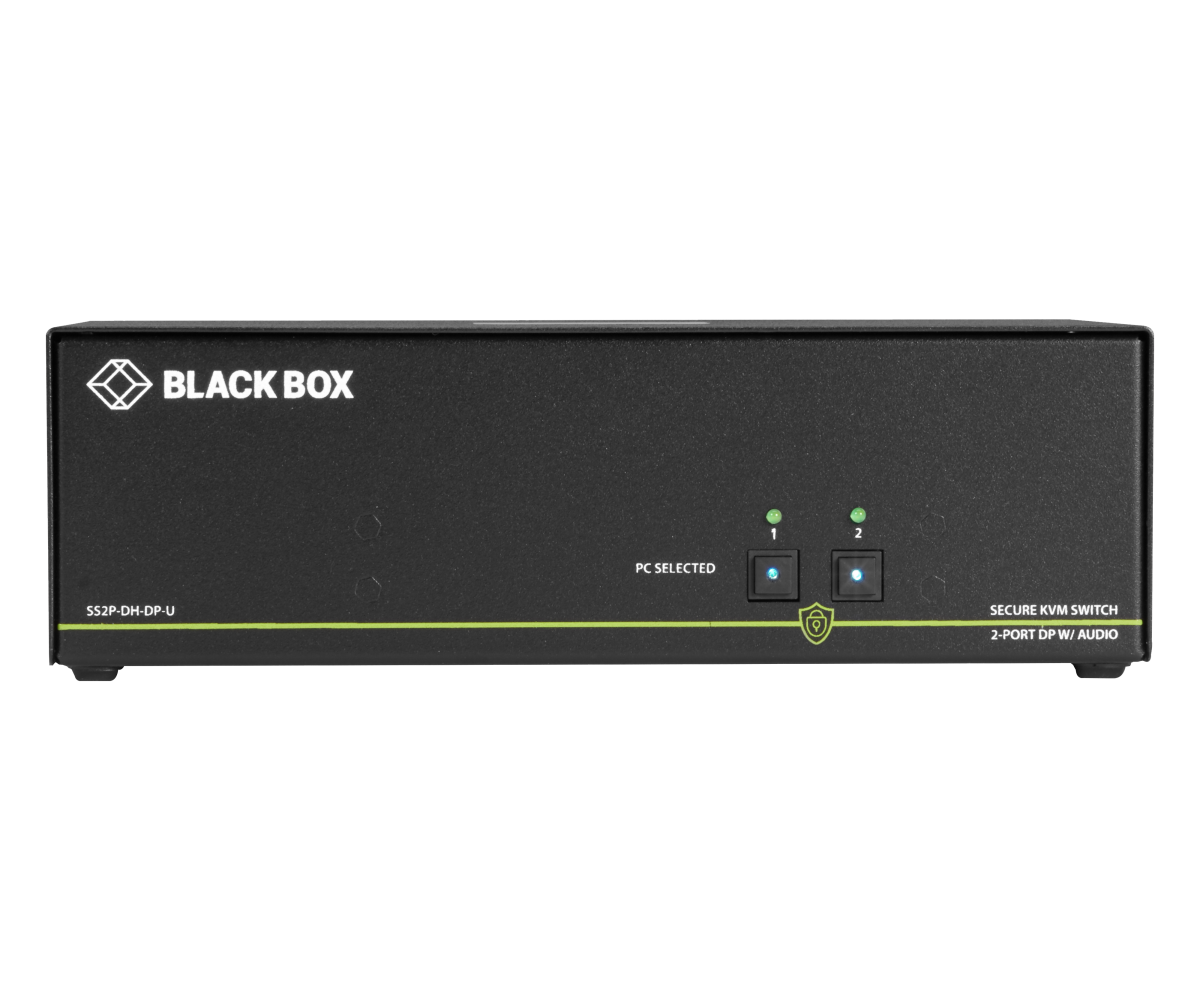

Control —front panel buttons

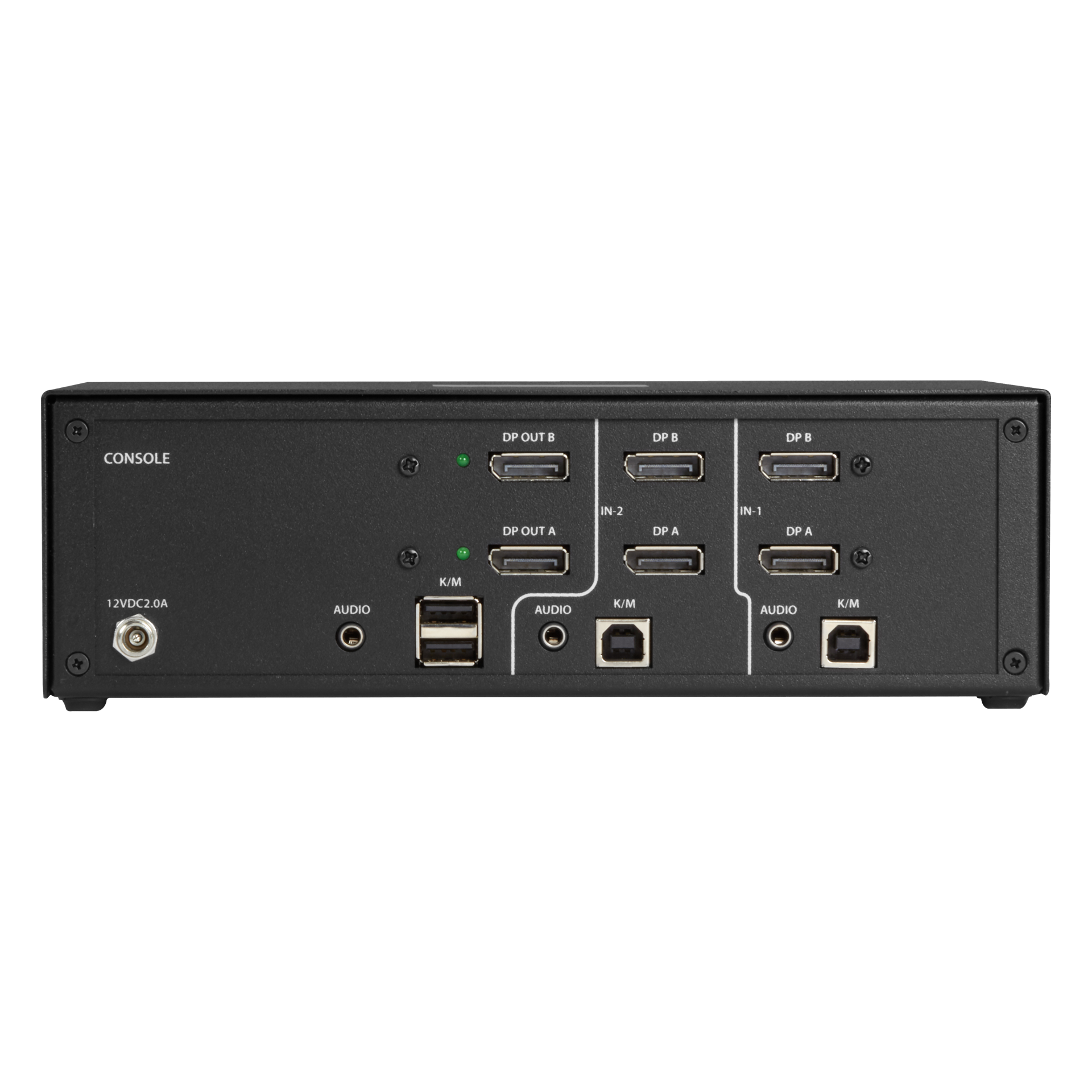

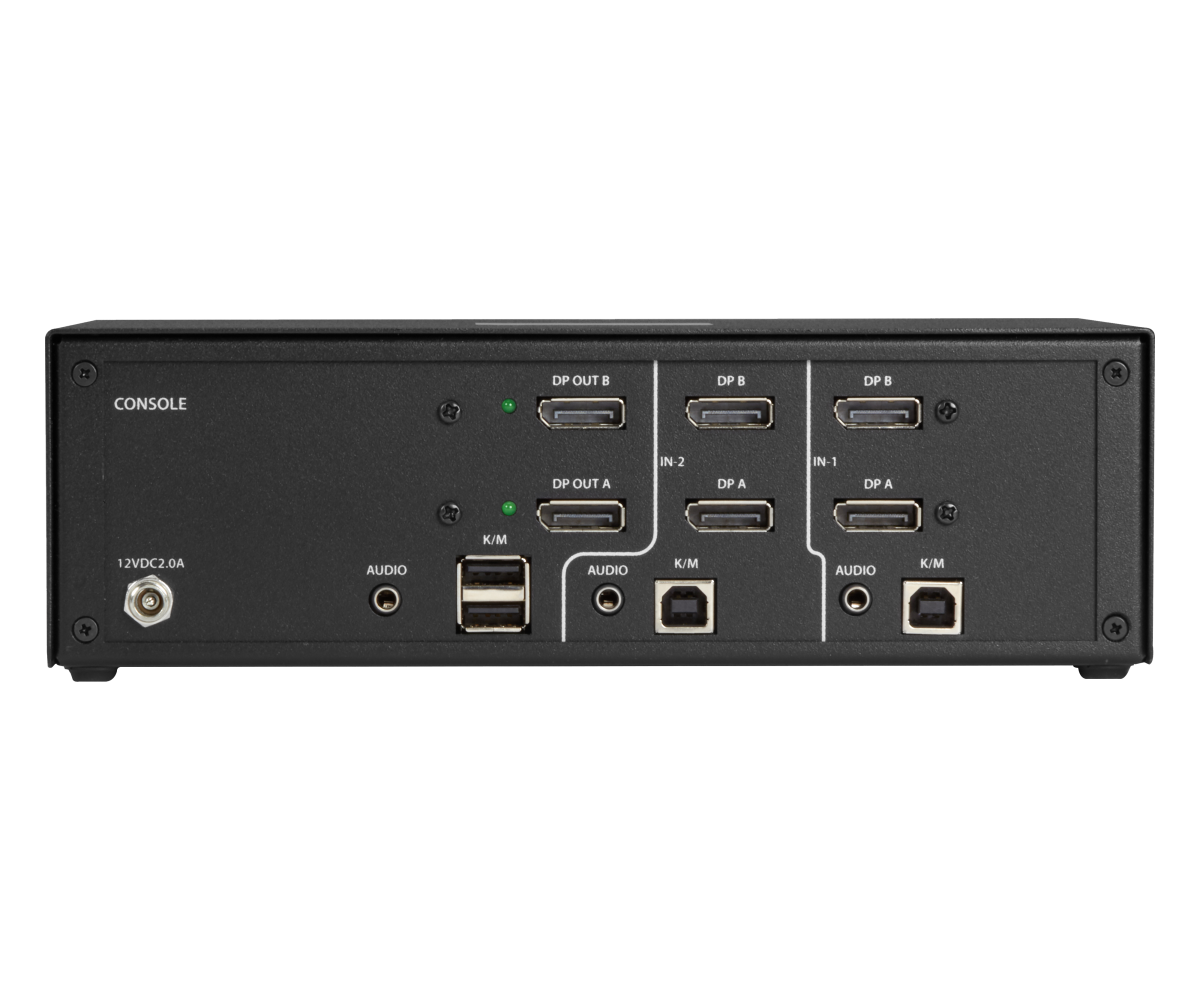

Connectors —
to computers:
(4) or (8) DisplayPort 20-pin female;
(2) or (4) USB Type B for keyboard/mouse;
to user console:
(2) DisplayPort 20-pin female;
(2) USB Type A keyboard and mouse,
Power — lockable external power supply, 100-240VAC, 12VDC, 3A lockable power adapter with center-pin positive polarity
Temperature — Operating: 0 to 40° C, Storage: -20 to +60°C
Relative Humidity — 0 to 80% non-condensing
Weight — 1,74kg
Dimensions — 224W x 67H x 170D mm

  • Reliable way to access multiple computers connected to different networks.
  • Safeguards critical data from accidental transfers, unauthorized access, or compromised data.
  • Perfect for any organization that handle sensitive or confidential data on separate networks with different levels of security.
  • Tested and certified to NIAP Protection Profile version 3.0.
  • Supports Windows, Mac, and Linux OS.
  • Two 4K ultra HD DisplayPort channels (each 3840x2160@30Hz)
  • Secure EDID learning and emulation allows connection to most monitors
  • Supports balanced speaker outputs and switching.
  • Locking AC power supply.
  • Options with fully advanced and configurable CAC port allow users to assign specific peripheral devices to the switch.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)
Document Name Date İndirme Boyut View
BlackBox - Secure KVM Switch 26/09/2019 10:39:48 906 194,7 KB View
