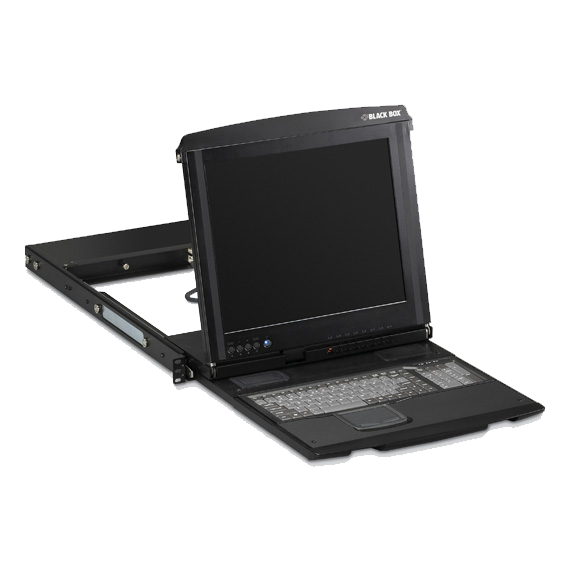

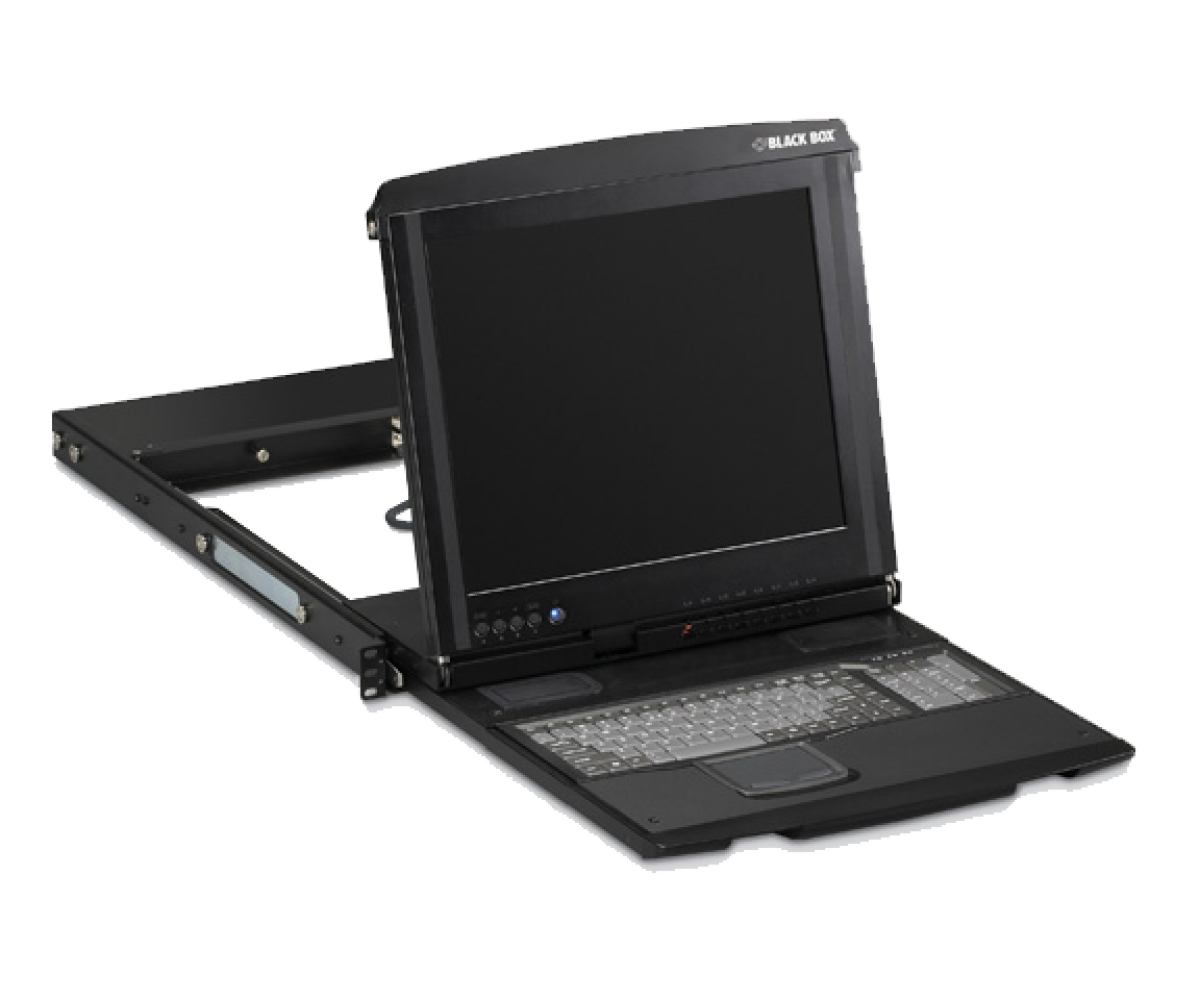

ServView V Console Drawer 17

Product Name ServView V Console Drawer 17
Product Code KVT517A-16CATX
+ -

Use this rackmountable 17", dual-rail, 1U console drawer for when space is at a premium.

Display — 17" TFT LCD
Input Signal — RGB analog, H/V separate
Pixel Pitch — 0.264 mm;
Resolution (Maximum) —1280 x 1024;
Viewing Angle — -80 to +80, -80 to +80 typical
Power — External Power Supply: 100–240-VAC, 50–60 Hz with 12-VDC, 4-A output,
37 watts maximum;
Size — 4.4 x 44 x 49.5 to 100.3 cm (17.3"W x 19.5 to 39.5"D)
Environmental —
Operating temperature: 0 to 50° C (32 to 122° F);
Storage temperature: -20 to +60°C (-4 to +140° F);
Operating humidity: 8 to 95% relative;
Storage humidity: <95% relative
Keyboard Design—US layout;
Optional keyboard layouts upon request: UK, DE, FR, CN, JP, ES, RU, DK, NL, IT, BE, NO, SE, CH, FI

Connectors —
Power: (1) Barrel connector for external power (12 VDC),
Connection to integrated KVM switch module: (1) Centronics® M 36
(16) HD15 F, server connection via 3-1 adapter cable (EHN9000U for USB or EHN70001 for PS/2 not included)

  • Dual-rail console drawer features US keyboard, touch pad, and LCD monitor in 1U.
  • Keyboard and LCD display slide in and out independently, enabling the monitor to remain visible while keyboard is stored.
  • Flip-open 17" LCD panel supports resolutions up to 1280 x 1024.
  • Front-panel USB HID port remains accessible to peripherals even with keyboard and mouse tray closed.
  • Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image.
  • Keyboard and LCD display slide in and out independently.
  • Features a hideaway USB port for USB HID-supported wireless keyboards and mice (RF or Bluetooth®).
  • Optional KVM switch function modules connects to VGA or DVI, and either PS/2 or USB servers.
  • Cascade the console with other KVM switches to increase server management capacity.
  • LED lighting bar indicates power status of console and KVM modules.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)
