Sumitomo | JR-6 Thermal Jacket Remover

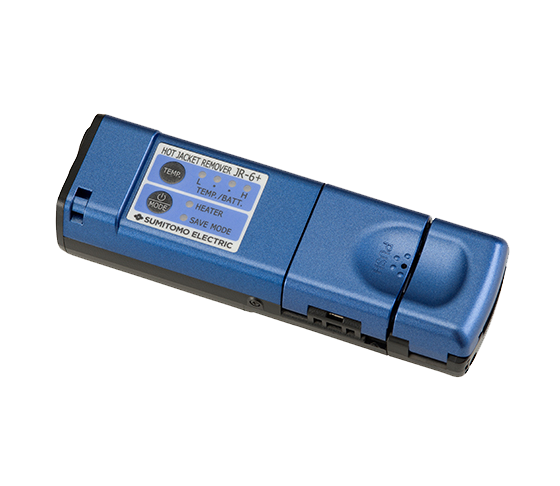

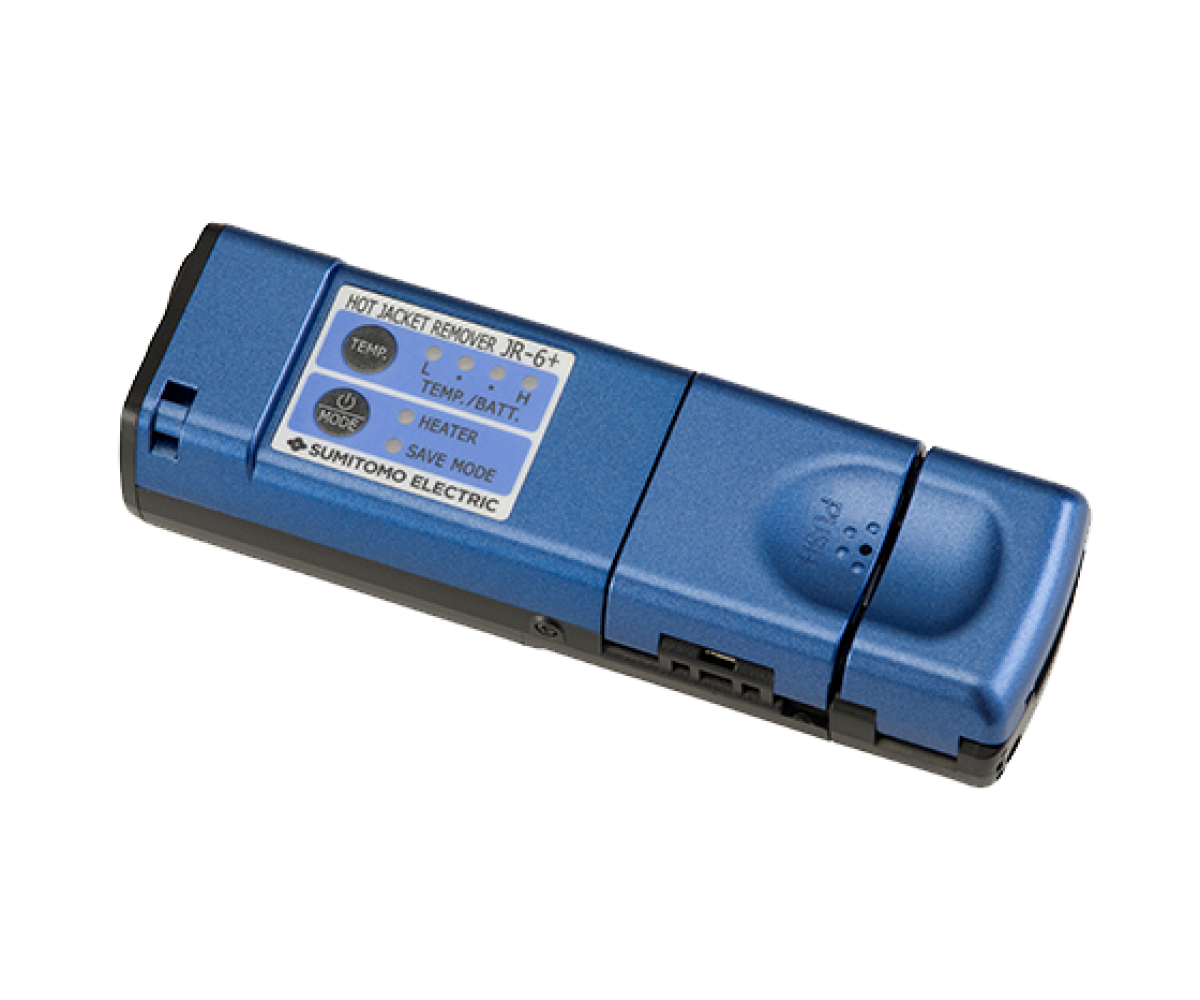

Product Name Sumitomo JR-6 Thermal Jacket Remover
Product Code JR-6+
+ -

Sumitomo Electric introduces the industry's first thermal remover with IPX1 waterproof protection. Both impact-resistant and waterproof, the JR-6 is designed for optimum performance for fiber jacket removal in harsh operating environments.

  • Cladding Diameter: 125 µm
  • Removal Length: 30mm Max.
  • Temperature Settings: 4 Levels
  • Power Saving Function: Normal Mode/Power Saving Mode

Coating Thickness

  • Single Fiber: 200 to 400 µm
  • 2 to 12 Ribbon Fiber: 200 to 400 µm

Power Supply

  • BU-6 Battery
  • 12 VDC from Sumitomo Fusion Splicer via DC Power Cord
  • 240 VAC Adapter
  • Adjustable temperature
  • Water protected to IPx1 and shock-resistant
  • Built-in battery charger
  • Easy maintenance and field replaceable blade
