Sumitomo T-72C+ Fusion Splicer

Product Name Sumitomo T-72C+ Plus Fiber Optic Cable Fusion Splicer
Product Code T-72C+
+ -
Pcs

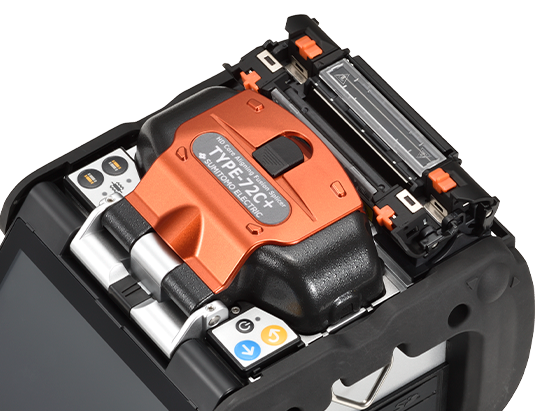

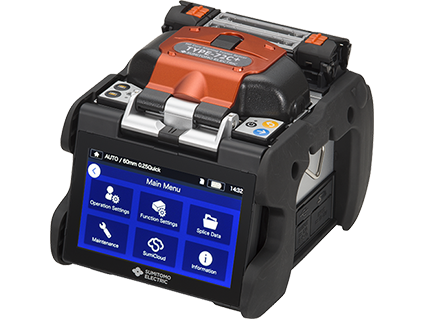

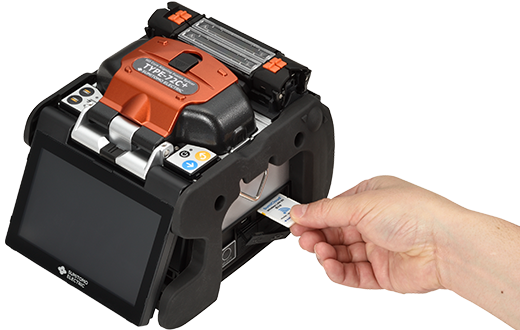

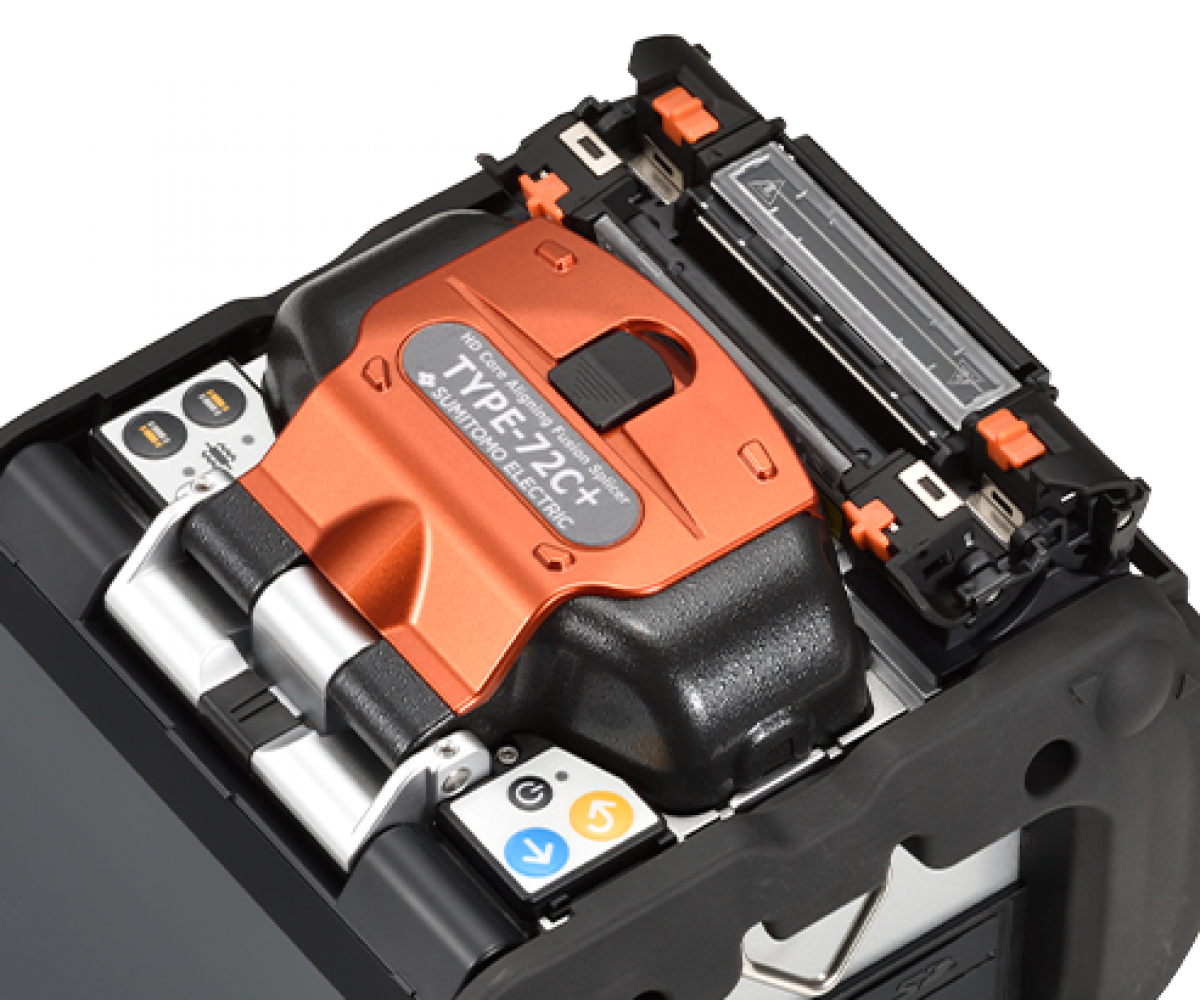

Sumitomo Electric launches the TYPE-72C+, the World’s First AI-Programmed High-Definition Core-Aligning Fusion Splicer.

The TYPE-72C+ is equipped with NanoTune™ technology, which greatly improves splicing efficiency and accuracy regardless of operational condition and user skill, with the use of AI algorithms.

The TYPE-72C+ drastically reduces the need of splice reworks caused by insufficient fiber preparation such as poor cleaving, thus reducing overall costs.

Its Preventive Maintenance feature enables users to be alerted of upcoming repairs or consumable replacement, thus reducing unexpected downtime.

  • For all known fiber cable types (SMF, MMF, DS / NZ, BIF, EDF, etc.),
  • 5 sec fast addition time,
  • 8 sec heating time, (faster addition with 2 integrated furnaces)
  • 320 splicing with 1 charge,
  • Splicing loss of less than 0.01 dB,
  • 2.2 kg weight,

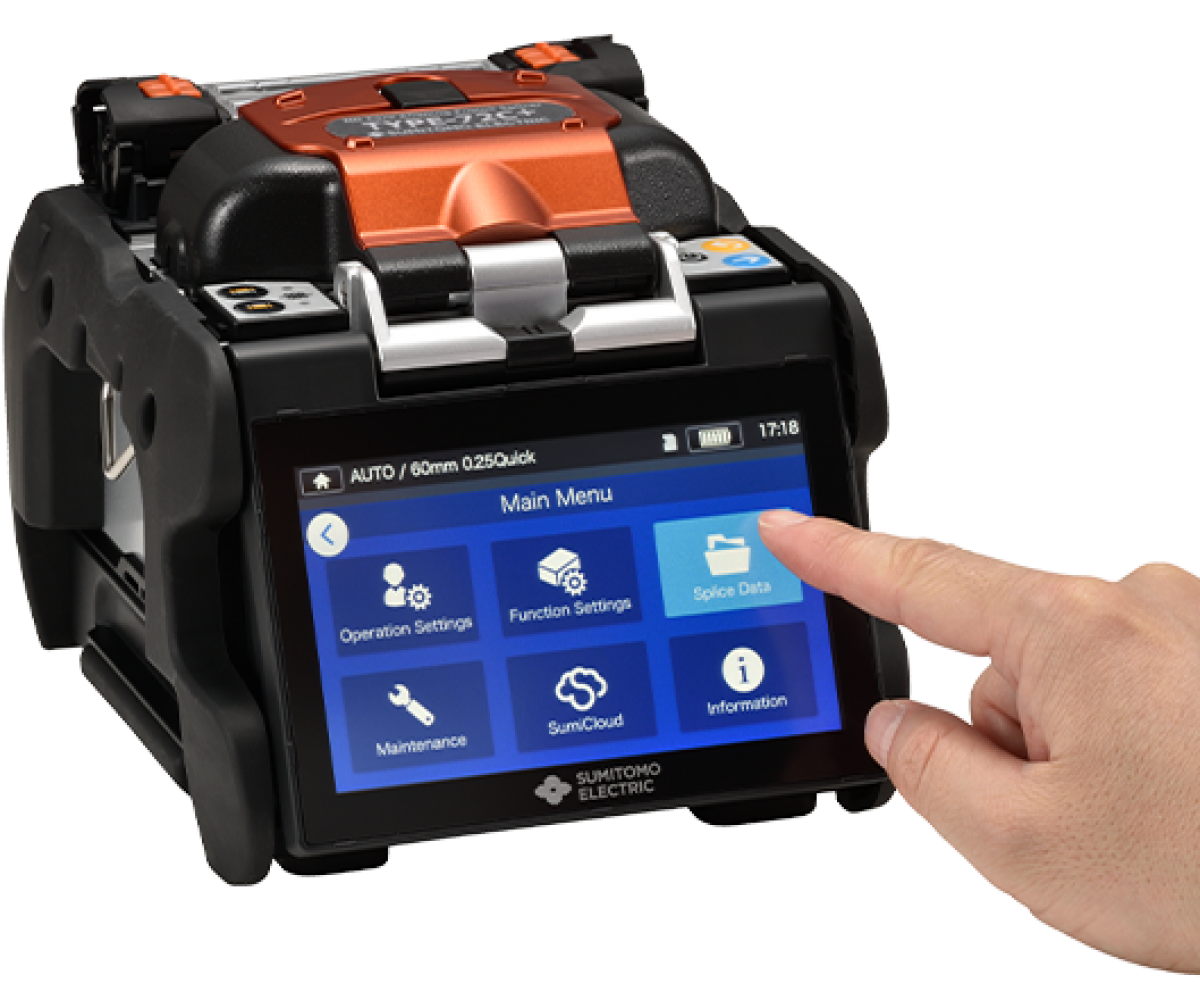

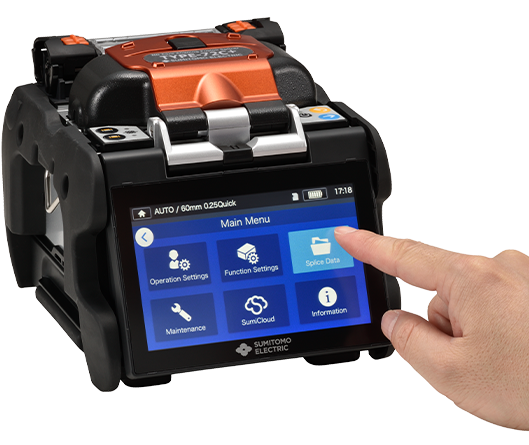

  • 5 inch WVGA new generation smart phone touch screen,
  • Access from smartphones via wireless,
  • IPx2 water protection,
  • IP5x dust protection,
  • Training videos,
  • Screen picture sharing
  • 1 x T 72C Fusion Splicer
  • 1 x Cleaver (Fiber Cutting Tool)
  • 1 x Battery
  • 1 x Spare electrode (min.6000 can do additional)
  • 1 x Bottle of Alcohol Bottle
  • 1 x Stripper
  • 1 x Carrying Case
  • 1 x Charger
Document Name Date İndirme Boyut View
Sumitomo T72C+ Fusion Splicer 09/12/2020 14:38:41 1430 698,75 KB View
Description Date Watch
Sumitomo T-72C Plus Fiber Ek Cihazı | Fotech 24/12/2020 12:08:49 Watch
