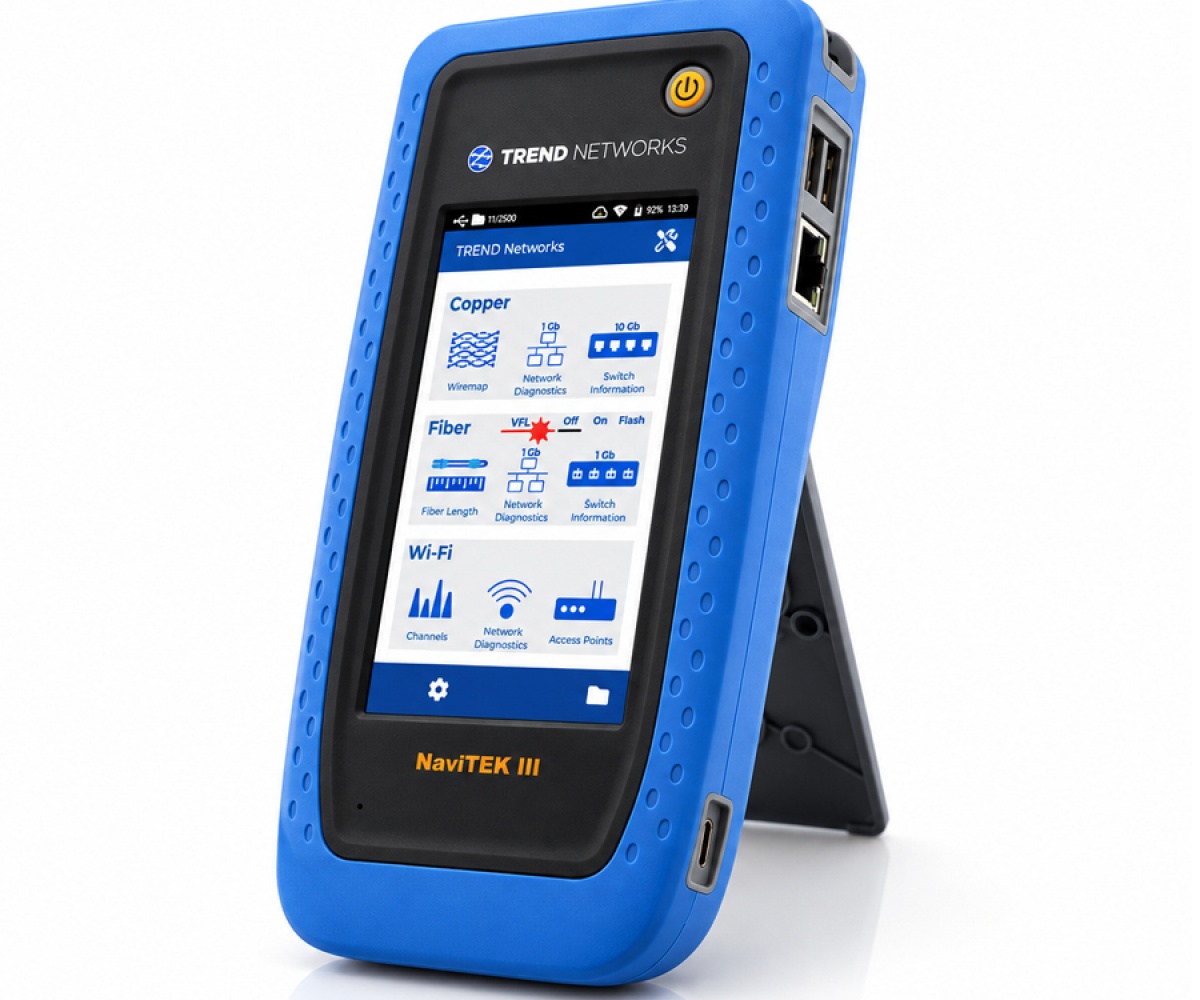

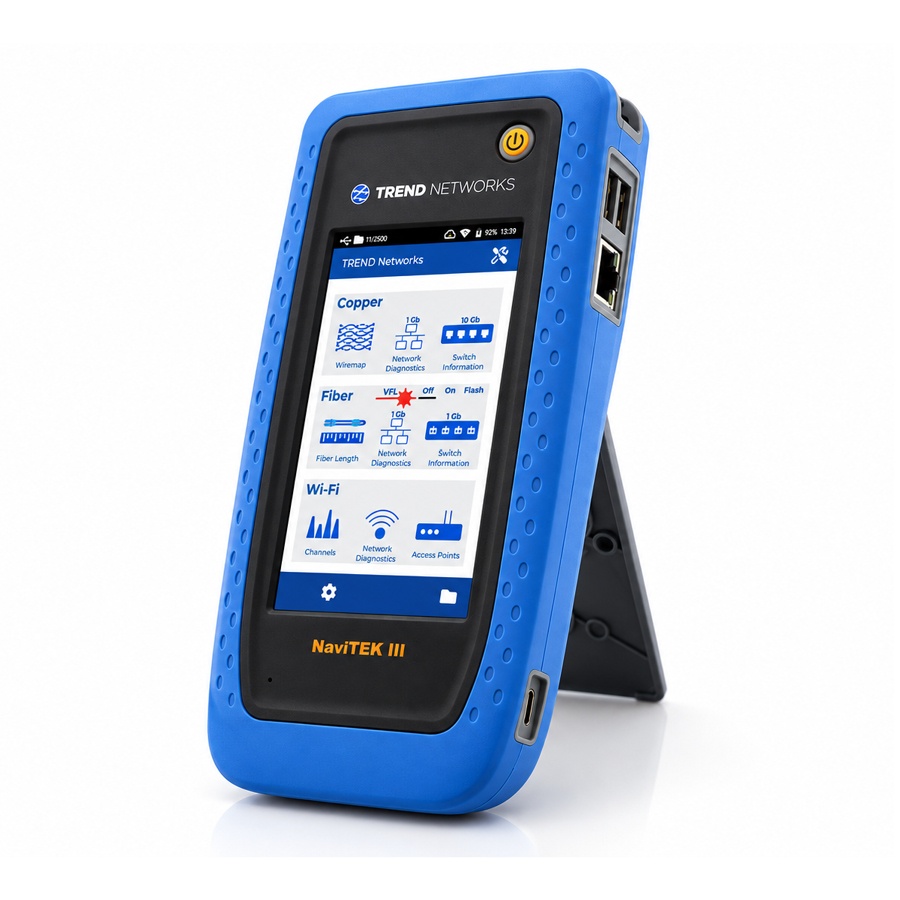

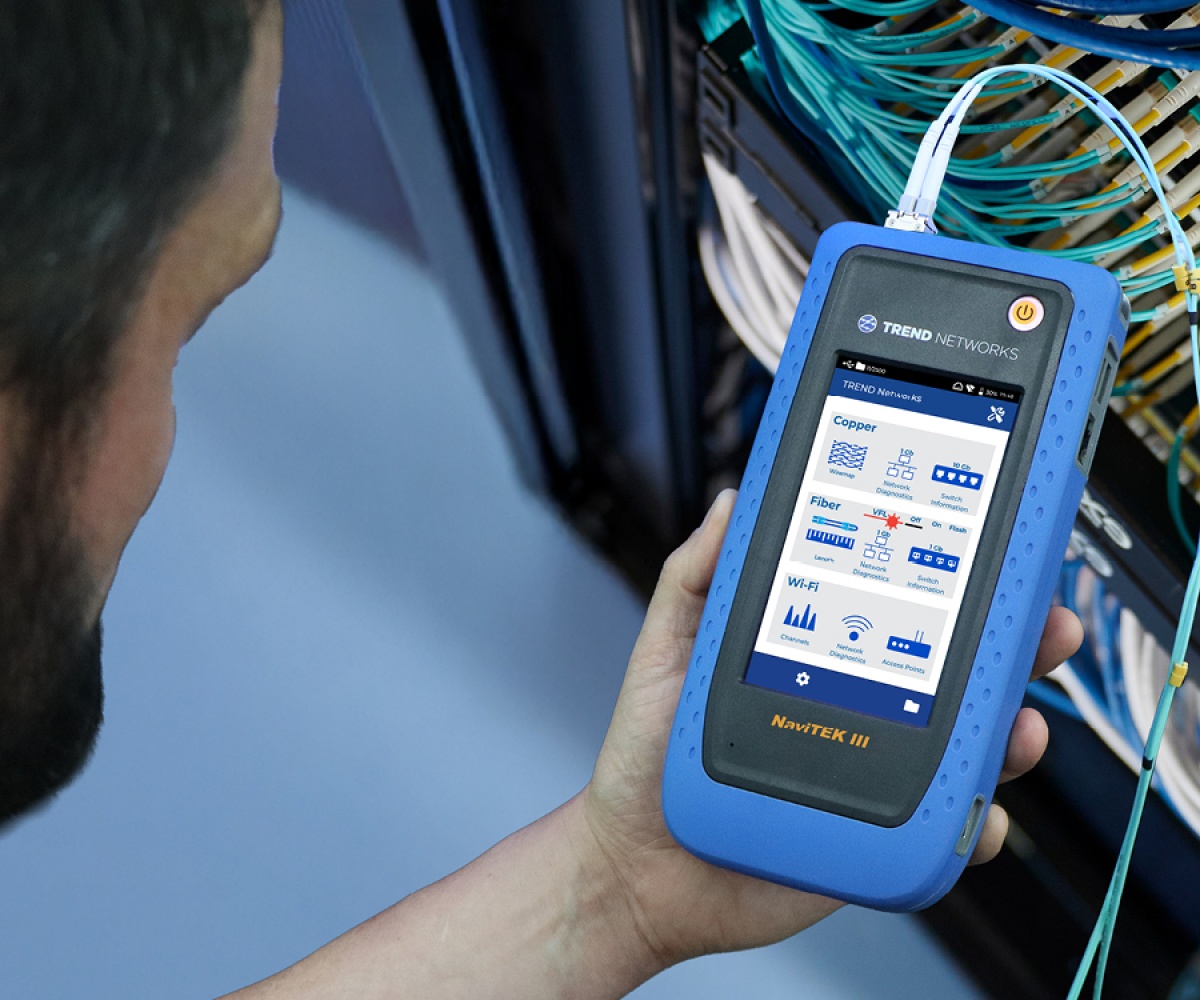

TREND Networks NaviTEK III Network Tester

• Copper Ethernet link speed: 10 Mb/s – 10 Gb/s
• PoE testing capacity: Up to 90 W
• PoE standards: IEEE 802.3af / 802.3at / 802.3bt
• Cable testing: Wiremap, TDR fault location and cable tracing
• Network discovery protocols: LLDP, CDP and EDP
• IP network tests: DHCP, DNS, Ping and TraceRoute
• Network connectivity checks: Default gateway and internet connectivity verification
• Fibre optic testing: Fibre link analysis using compatible SFP modules
• Visual fault locator: Integrated VFL (Visual Fault Locator)

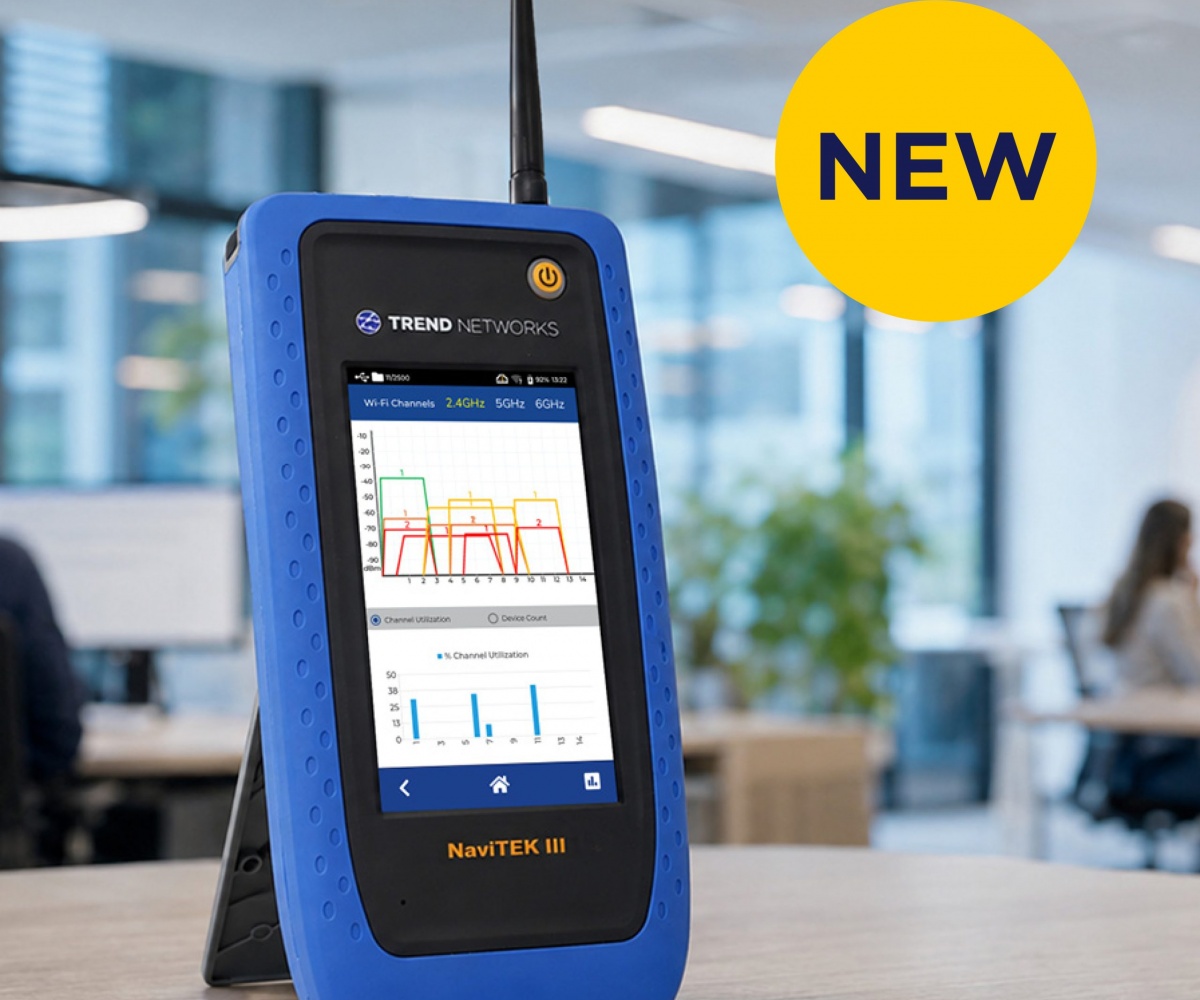

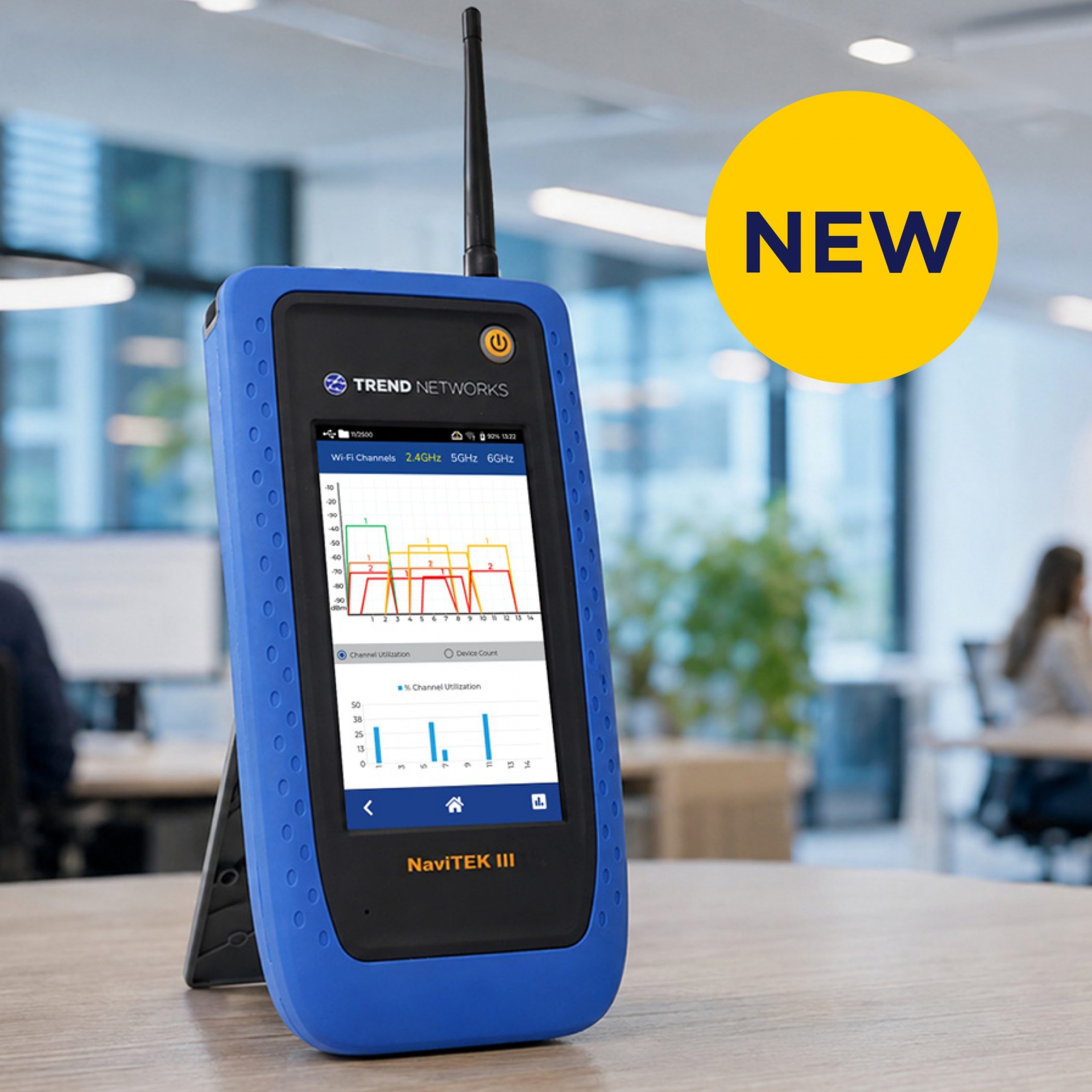

• Wi-Fi analysis: Signal strength, channel utilisation and access point information
• Cloud connectivity: TREND AnyWARE Cloud integration
• Reporting: Test result storage and PDF reporting support

• Testing of copper Ethernet, fibre optic, PoE and Wi-Fi networks
• Efficient identification of network connectivity issues
• Cable fault detection and connection troubleshooting
• Switch, port and VLAN information discovery
• Network device discovery and IP connectivity validation
• PoE connection and power delivery verification
• Wireless signal and channel utilisation analysis
• Cloud-based test result management and reporting
• Portable design for field use

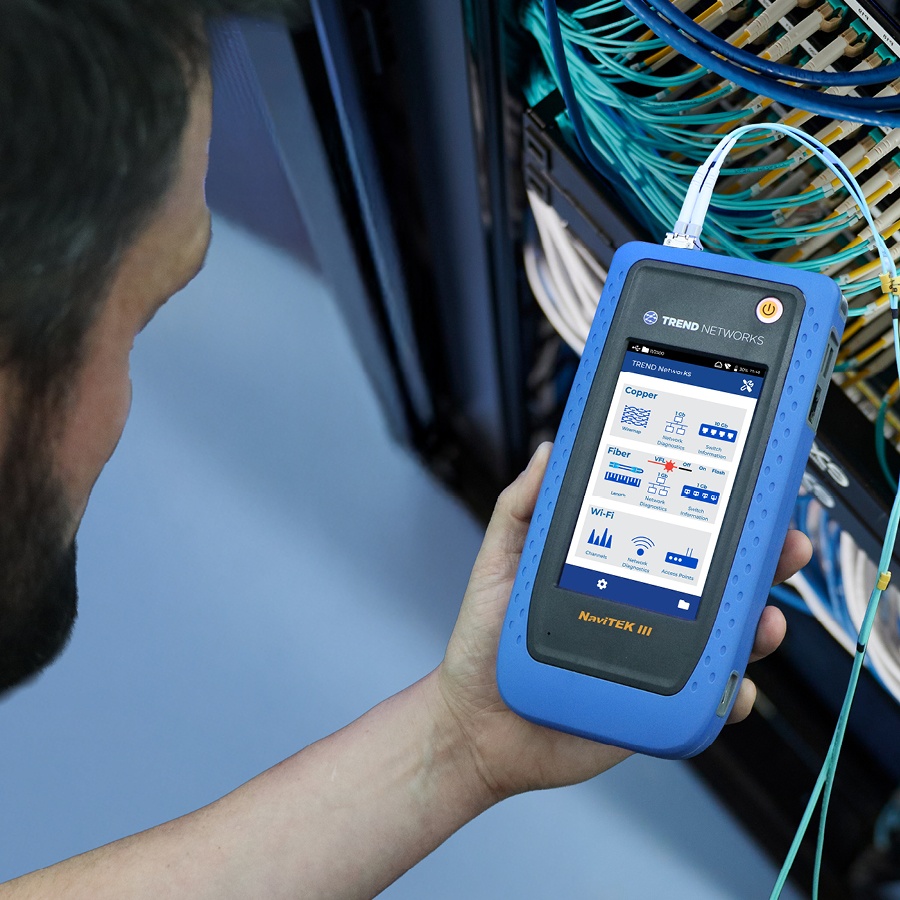

• Suitable for network installation, maintenance and technical service
• Professional solution for enterprise networks and structured cabling infrastructure

Part numbers and model options:

• R166004 – NaviTEK III Tester: Core tester for copper Ethernet and Wi-Fi troubleshooting, with fibre testing capability using compatible SFP modules.

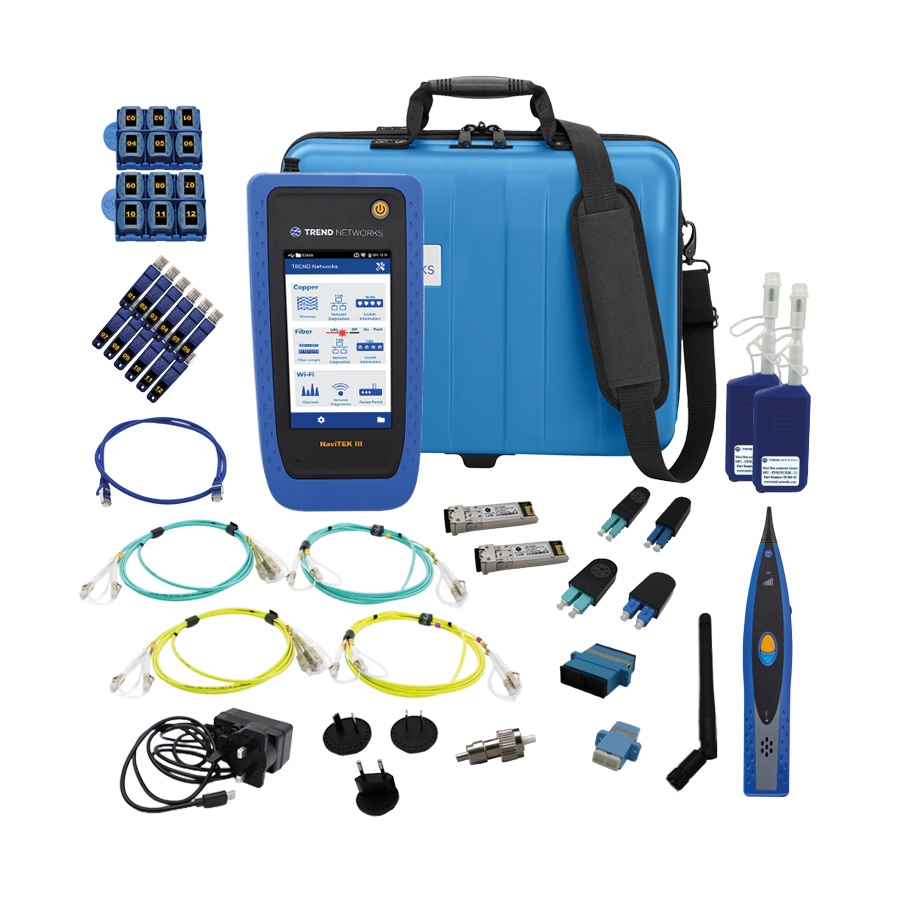

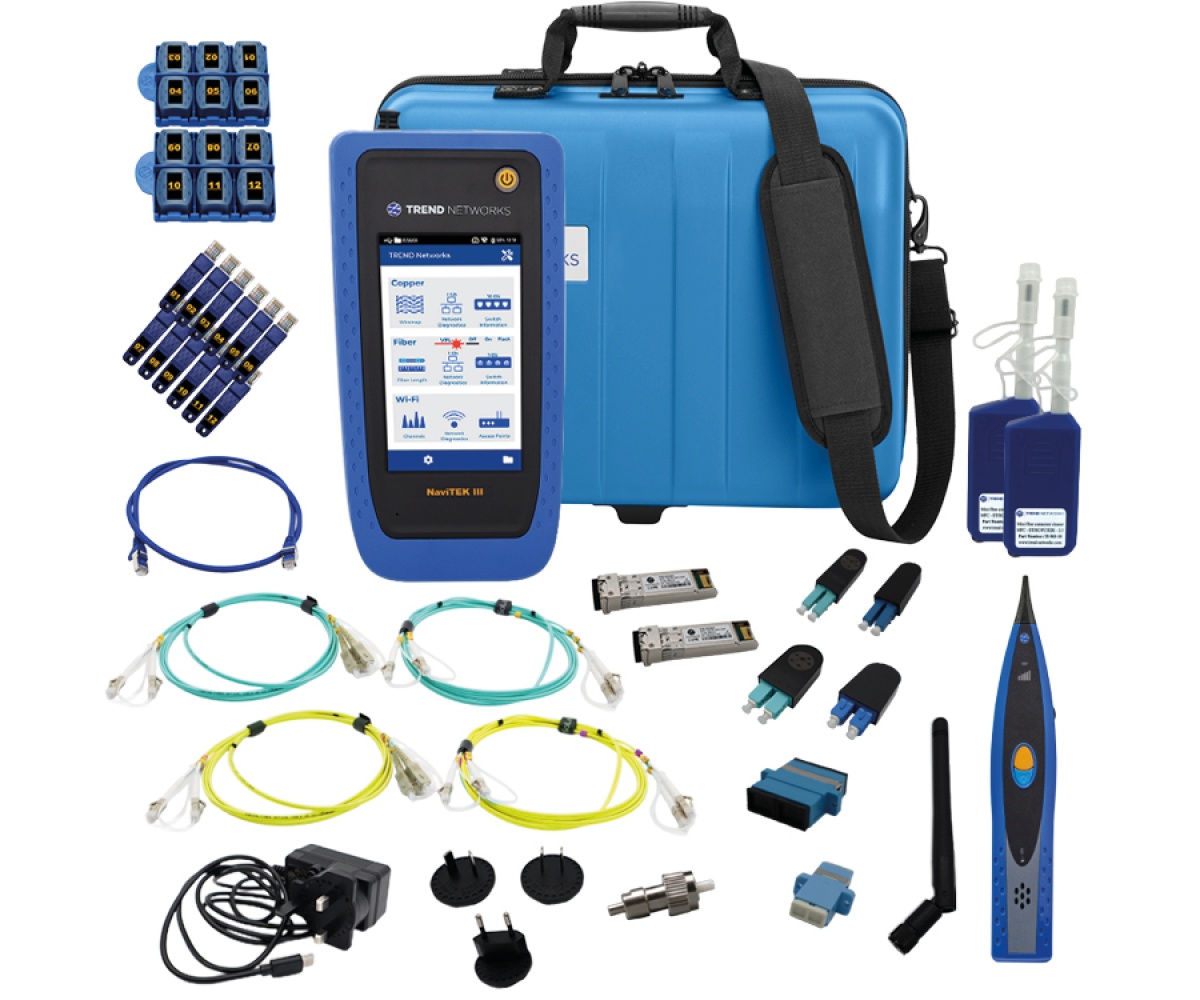

• R166006 – NaviTEK III Kit: Comprehensive troubleshooting kit for copper, fibre optic and Wi-Fi networks, including fibre testing accessories and wiremap remote units.

The NaviTEK III supports compatible accessories depending on the selected model and testing requirements.

• Fibre optic SFP modules: For testing compatible fibre connections.
• Multimode fibre accessories: For testing multimode fibre links.
• Singlemode fibre accessories: For testing singlemode fibre links.
• Wiremap remote units: For cable connectivity and wiremap verification.
• USB fibre inspection microscope: For inspecting fibre optic connectors and checking connector end-face quality.
• USB Wi-Fi adapter: For supported advanced wireless network testing functions.
