Trend Networks NaviTEK NT

Product Name Trend Networks NaviTEK NT
Product Code R153001
+ -
Pcs

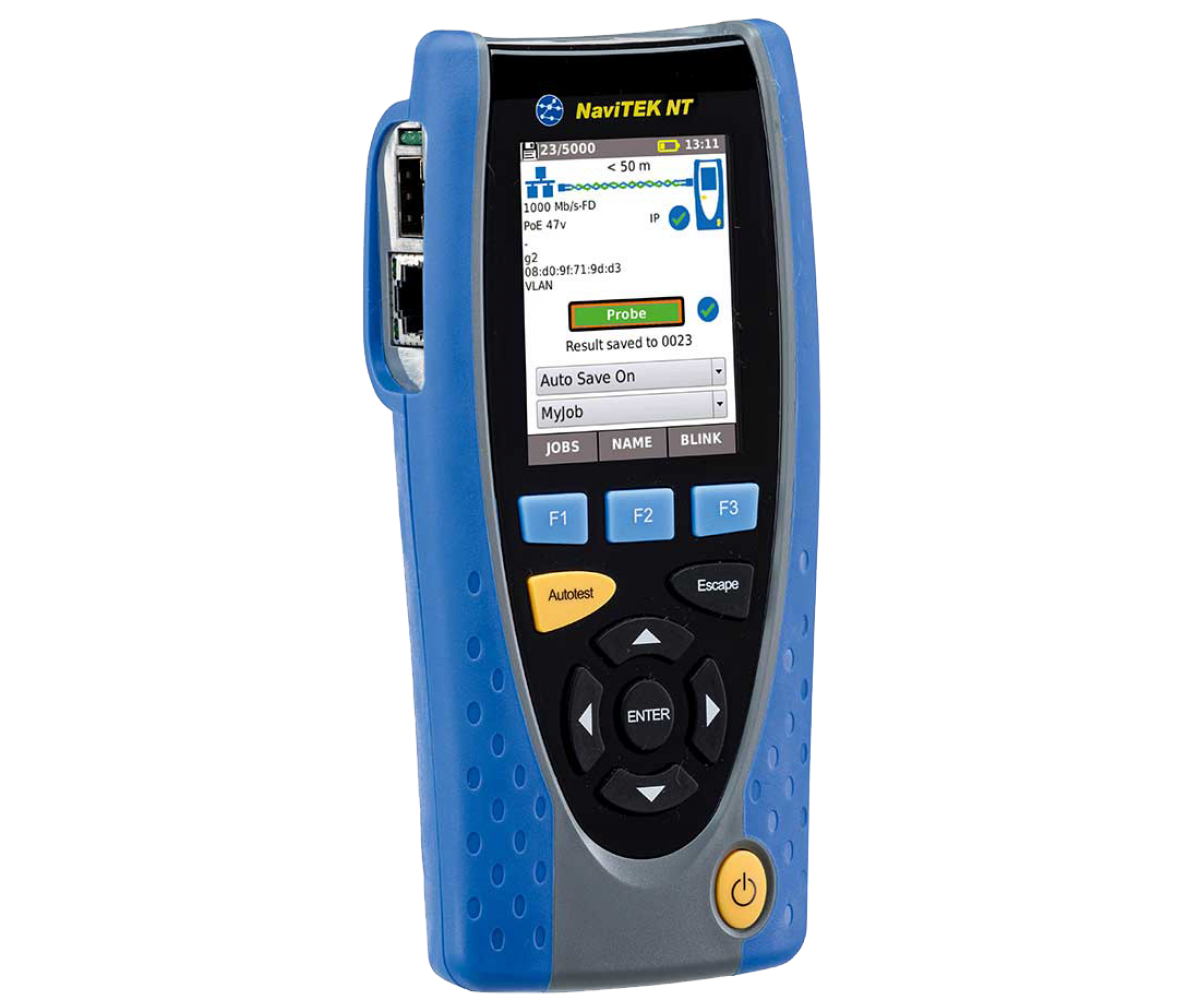

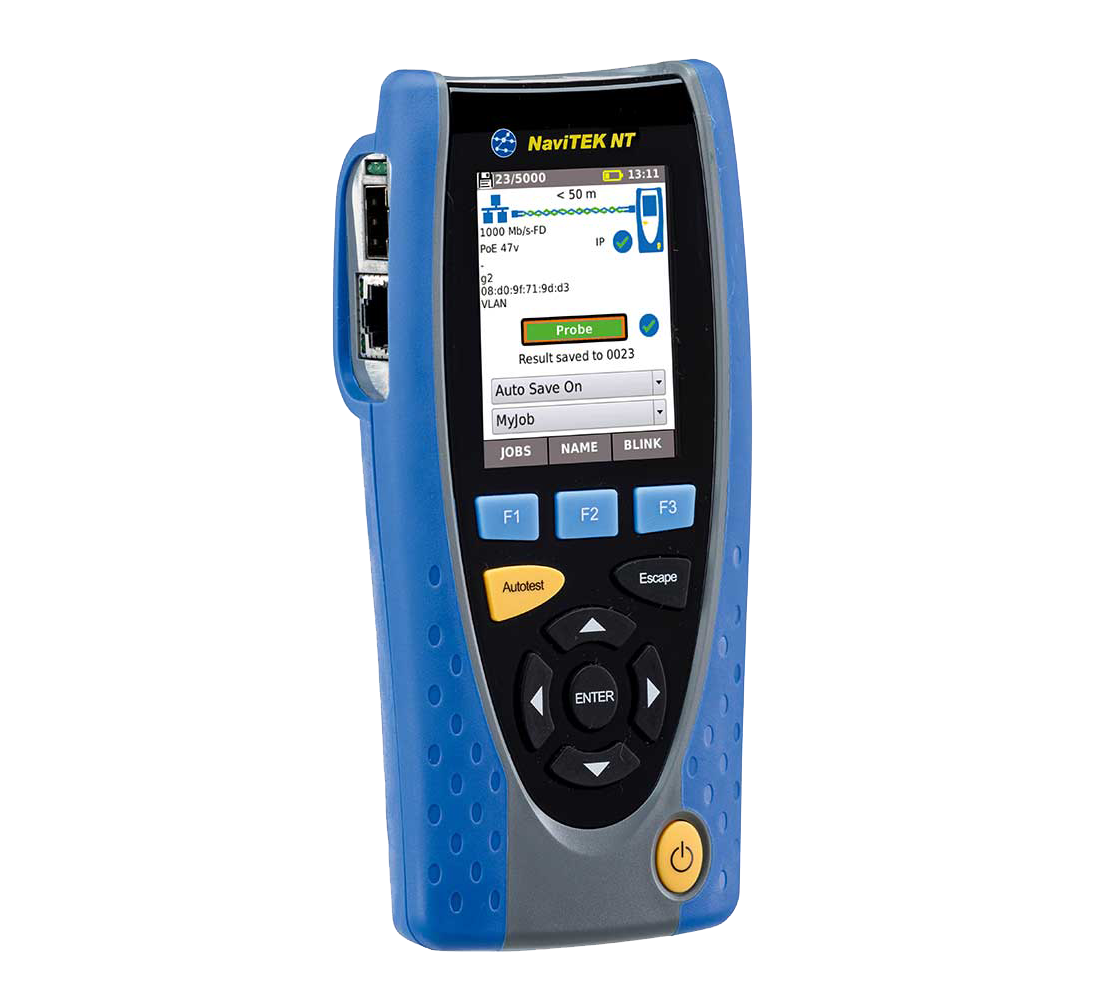

The new NaviTEK NT is a network cable tester for troubleshooting and maintenance in active and passive copper and fiber networks. Featuring an improved graphical interface, NaviTEK NT enables network technicians to find and resolve network connectivity problems faster than ever before.

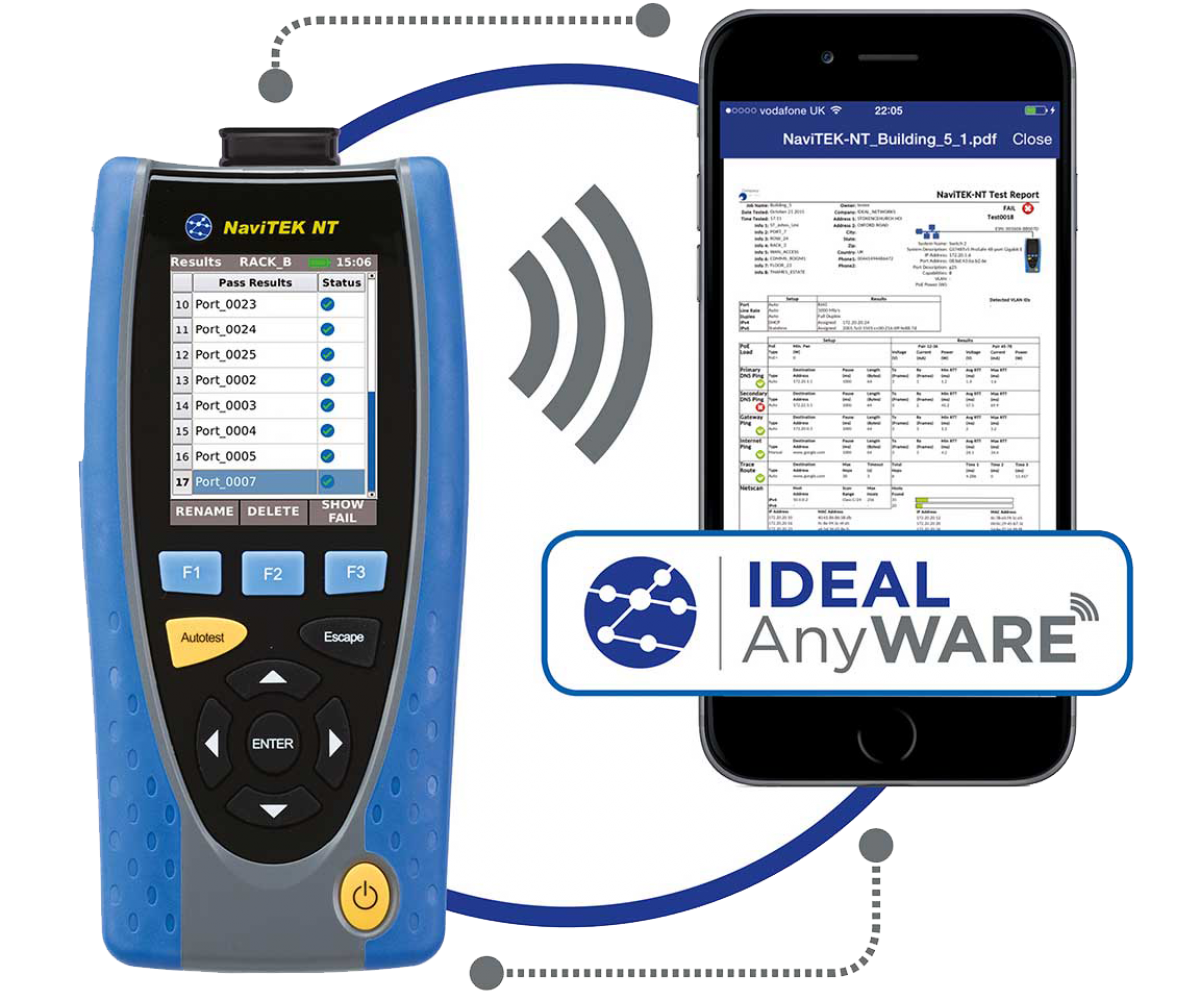

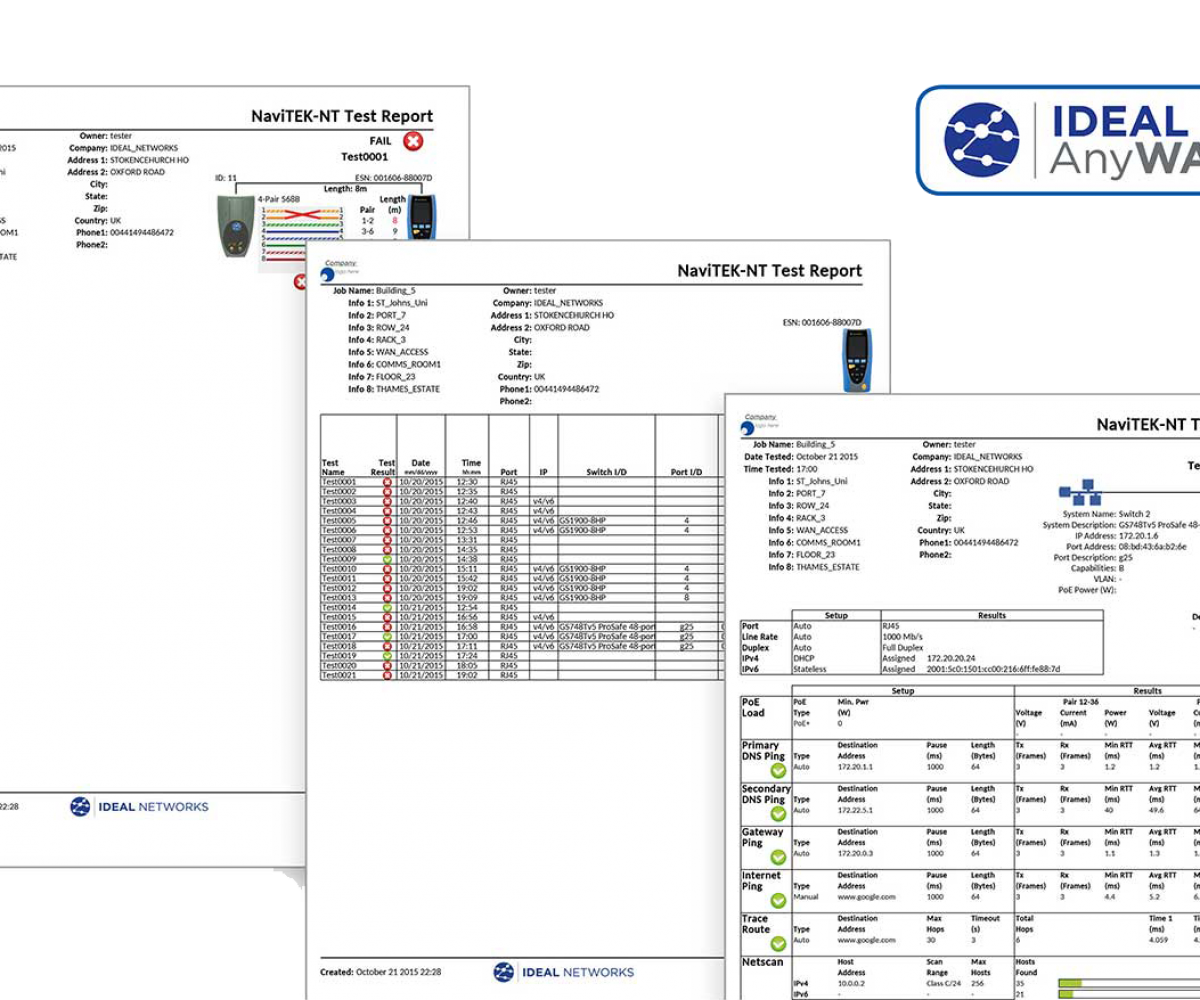

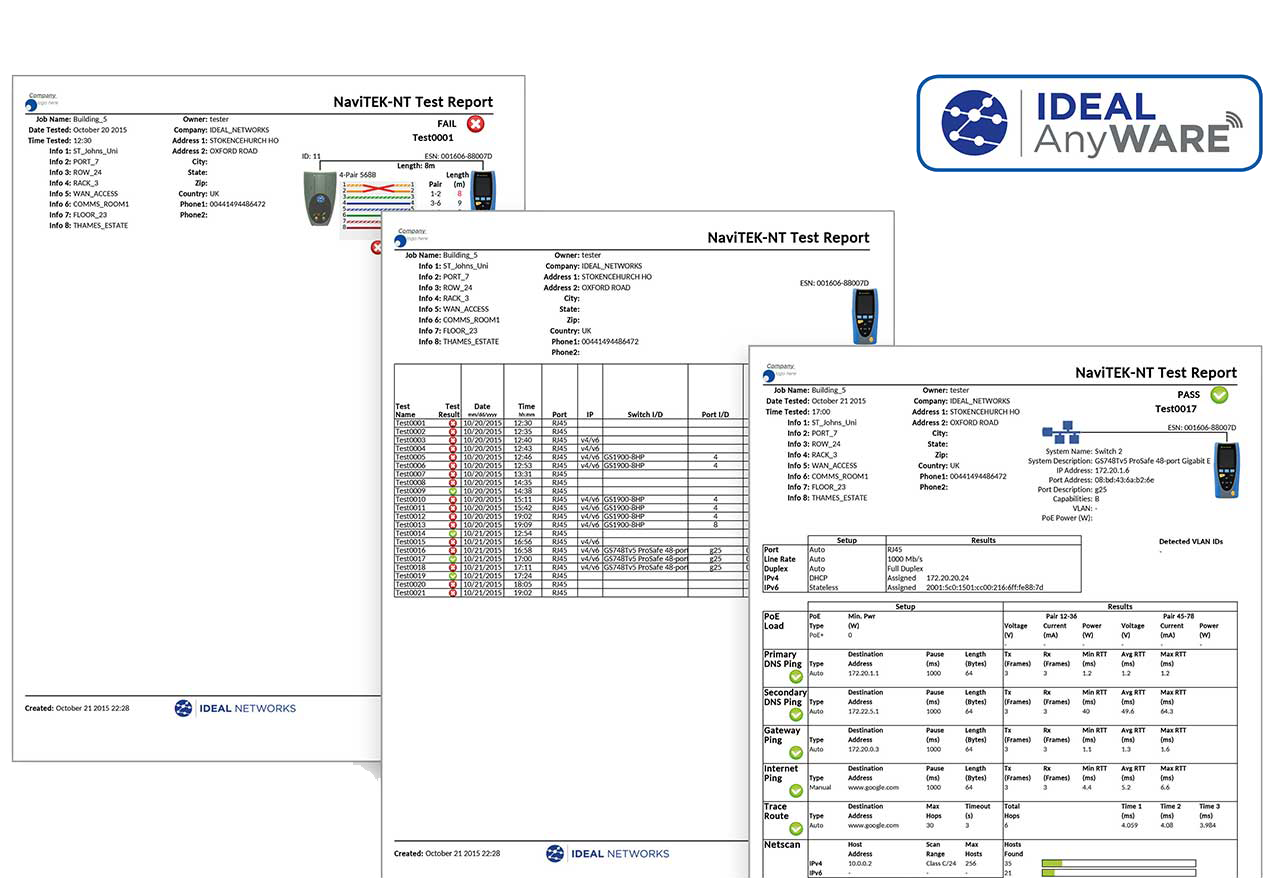

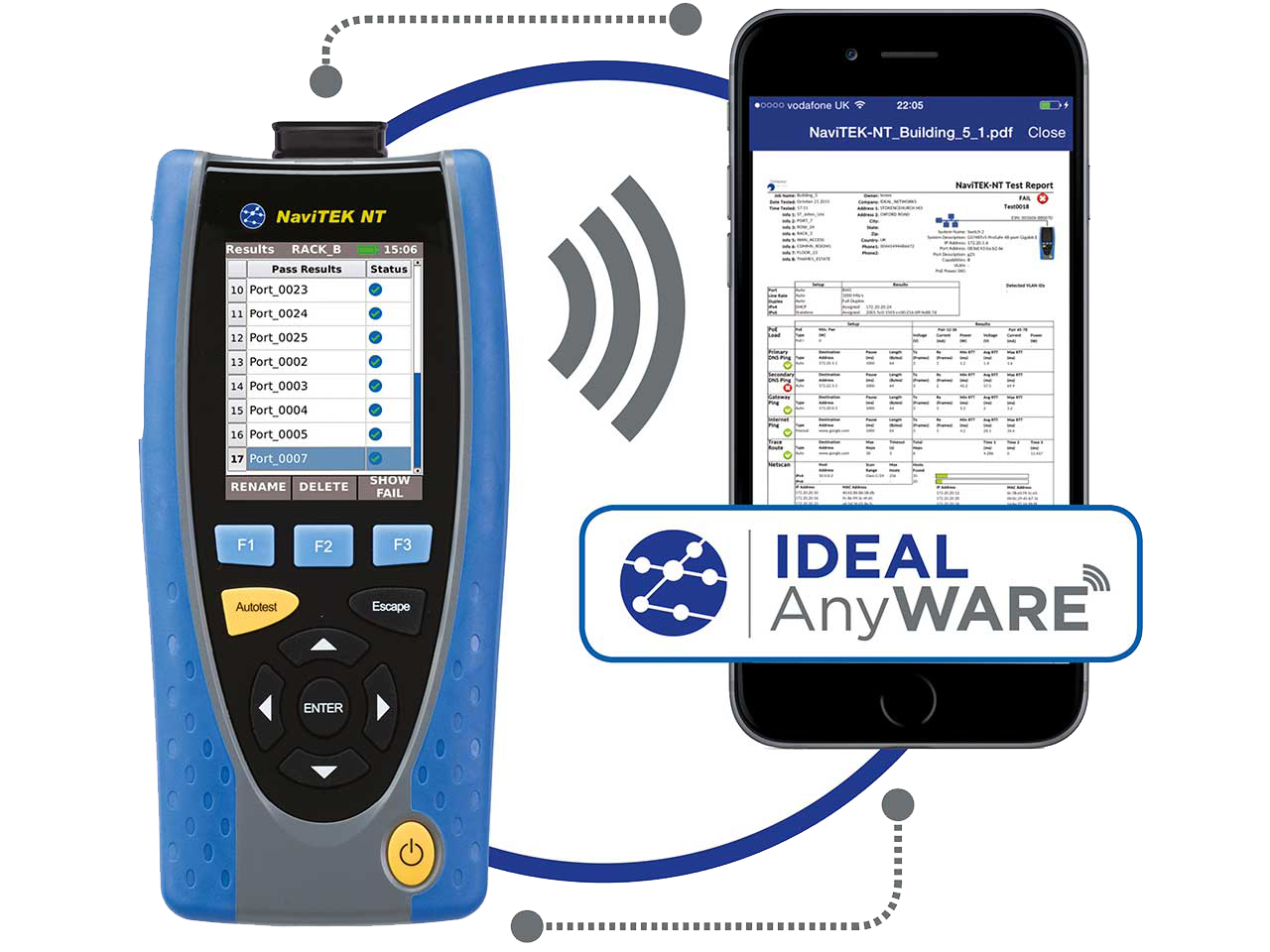

Tests can then be saved as pdf reports and allow you to share them with colleagues and customers using the free IDEAL AnyWare ™ app.

  • Display network configuration - IPv4 / IPv6 compatible
  • Advanced wiremap for miswires, split pairs, opens and shorts
  • Distance to opens and shorts (TDR)
  • PoE/PoE+ detection
  • Tone generator for cable tracing
  • Autotest button performs Ping and Traceroute test (network mode)
  • Hub blink for port identification
  • DHCP client
  • Switch detection - 10/100/1000 Mb/s
  • User-exchangeable RJ45 inserts
  • Support for up to 12 wiremap remotes
  • Backlit colour screen
  • Network troubleshooter (copper/fibre)
  • PoE, service detection and port information
  • Real time display of network traffic
  • Test storage and PDF reporting
  • Cable tracing/distance to fault (TDR)
  • Supports IDEAL AnyWARE App
Document Name Date İndirme Boyut View
Trend Networks - NaviTEK NT Manual 20/09/2019 11:46:21 327 6,49 MB View
