Product Name Trend Networks SecuriTEST IP CCTV Tester

Product Code R171000

Trend Networks

REQUEST OFFER MICRO SITE

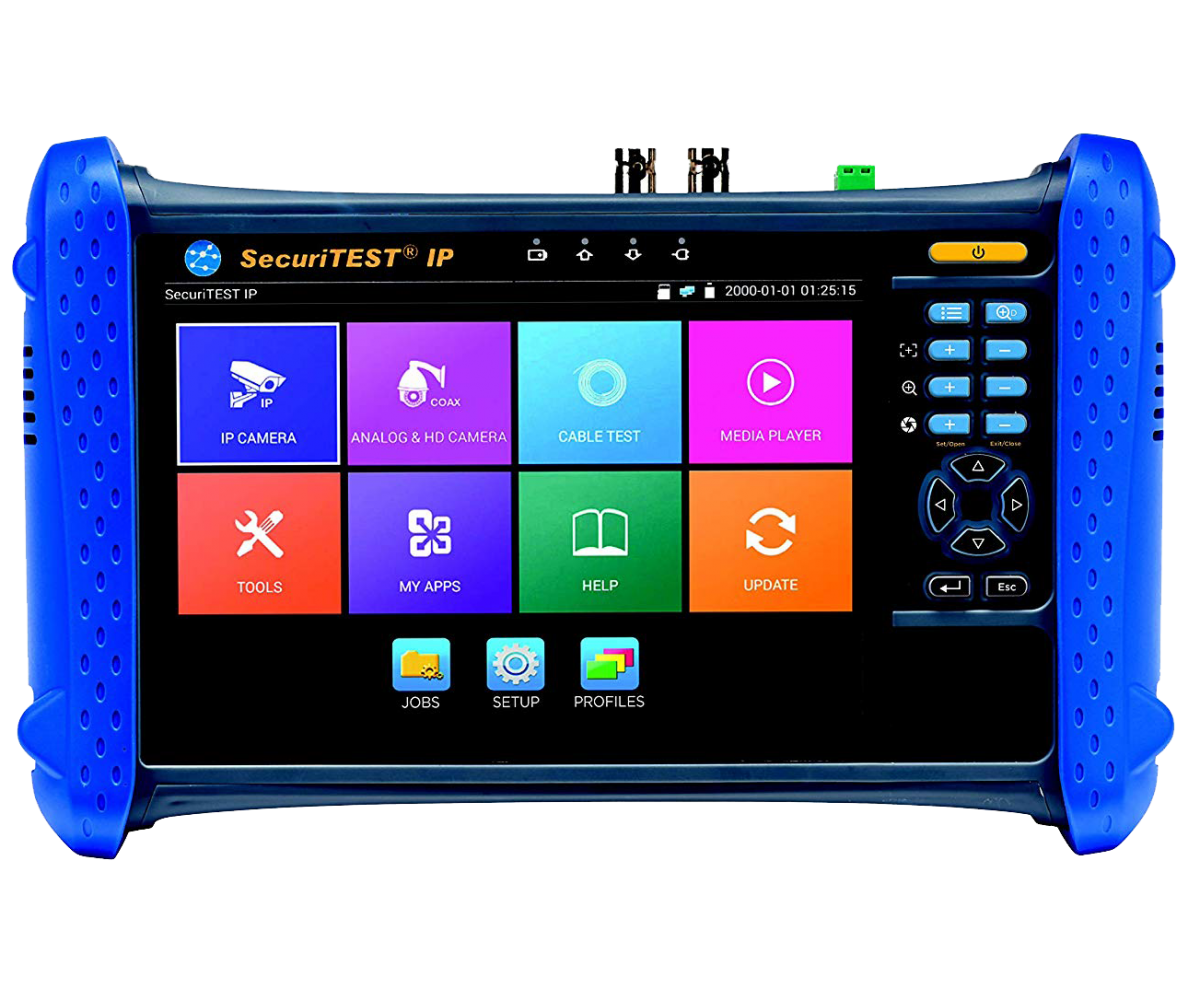

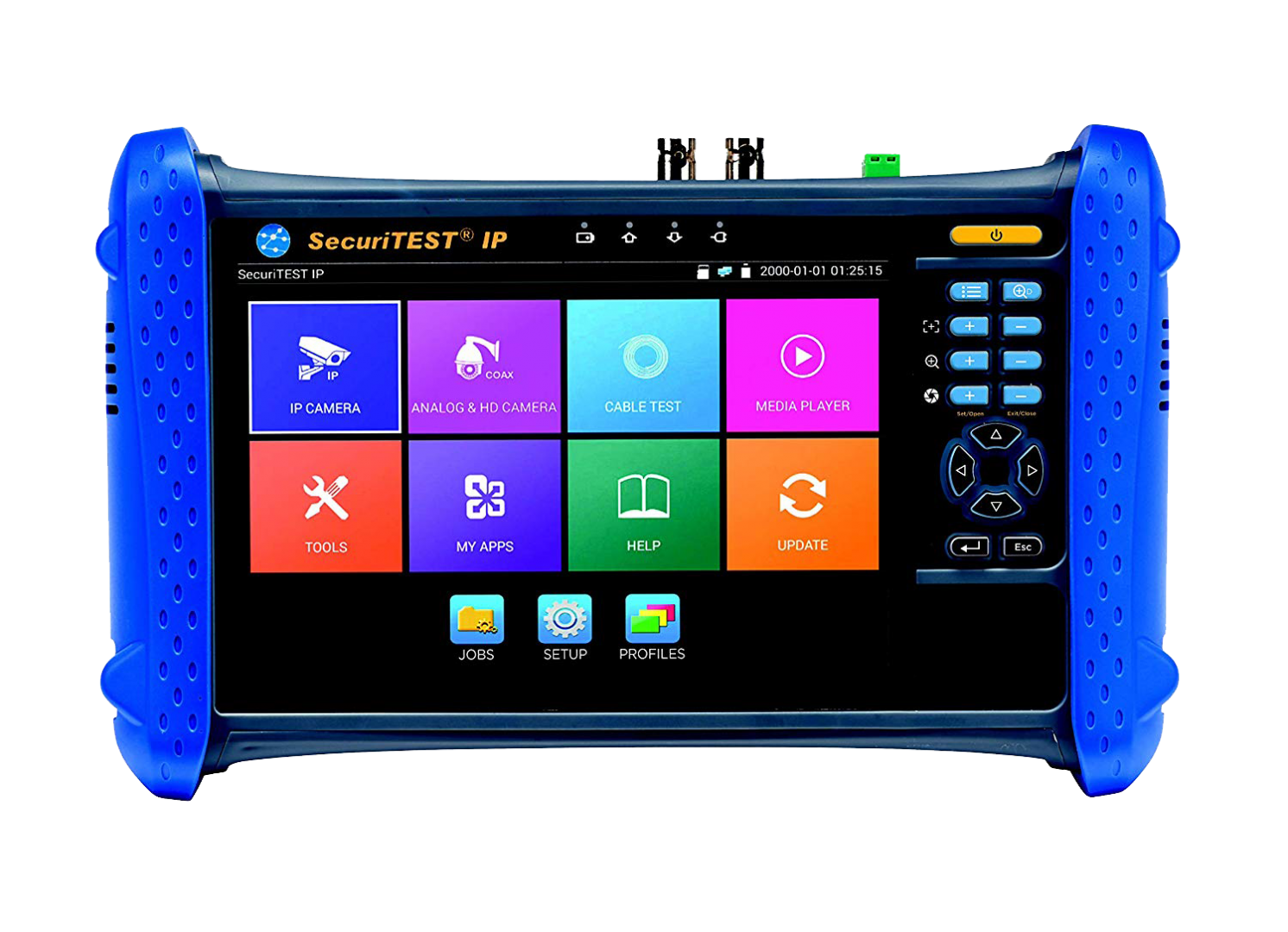

SecuriTEST IP is an installation and troubleshooting tester for digital/IP, HD coax and analog CCTV camera systems.

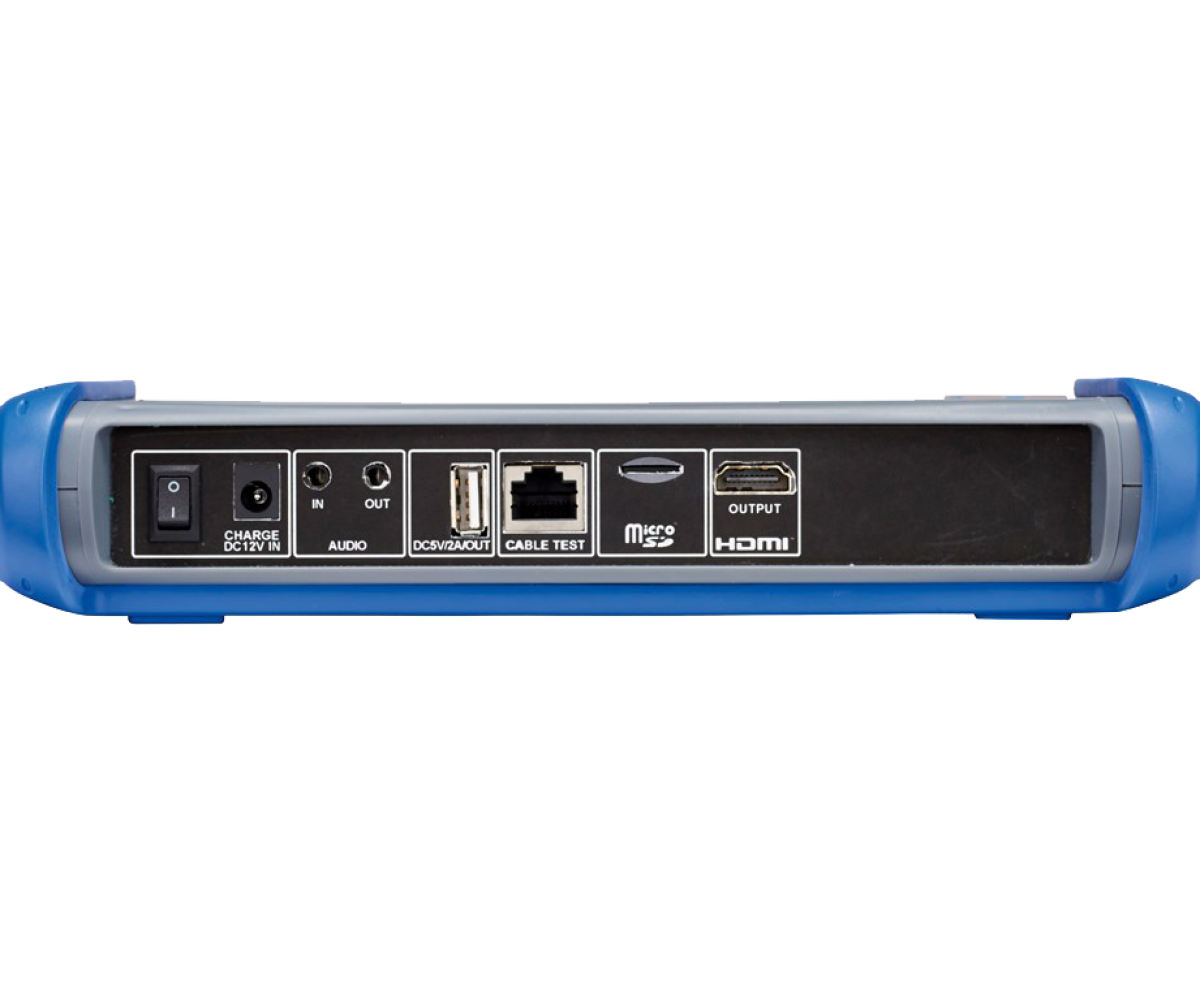

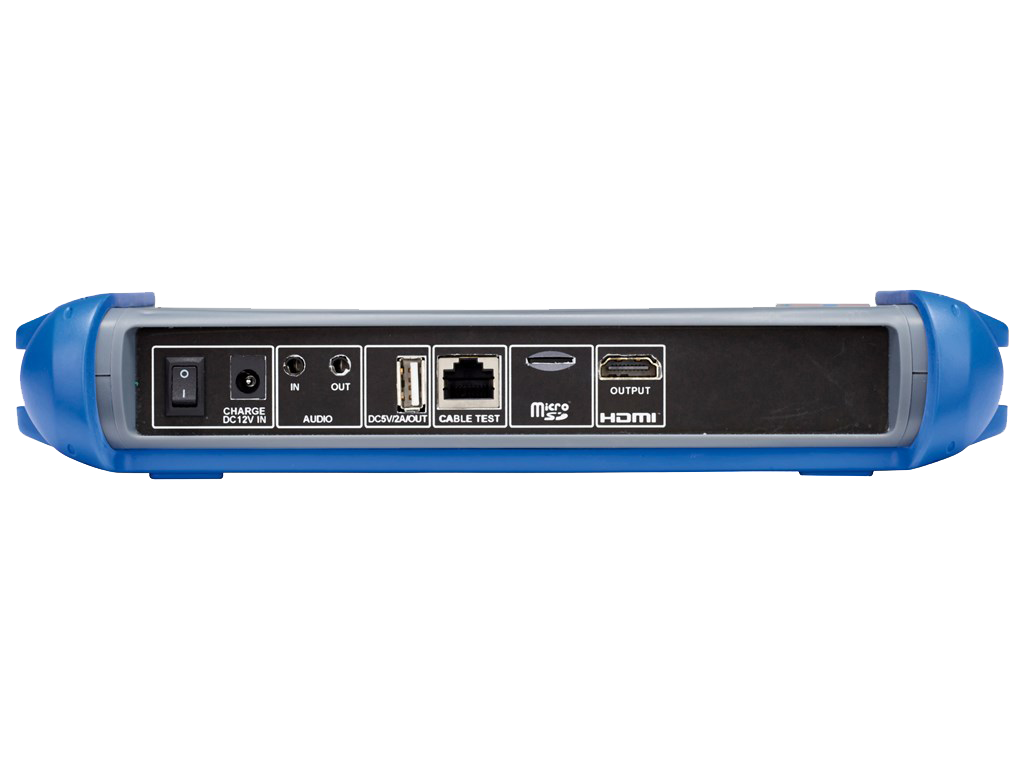

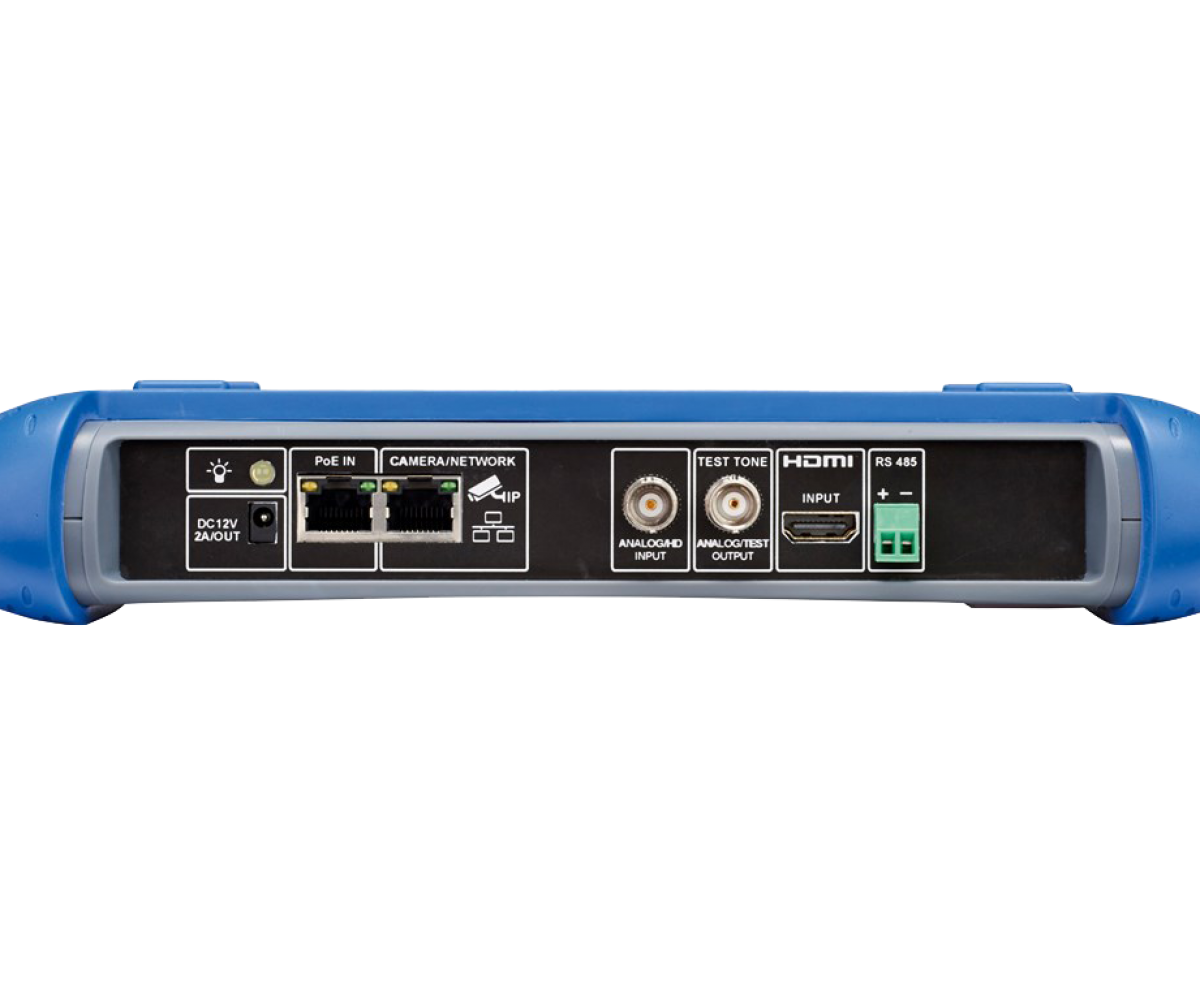

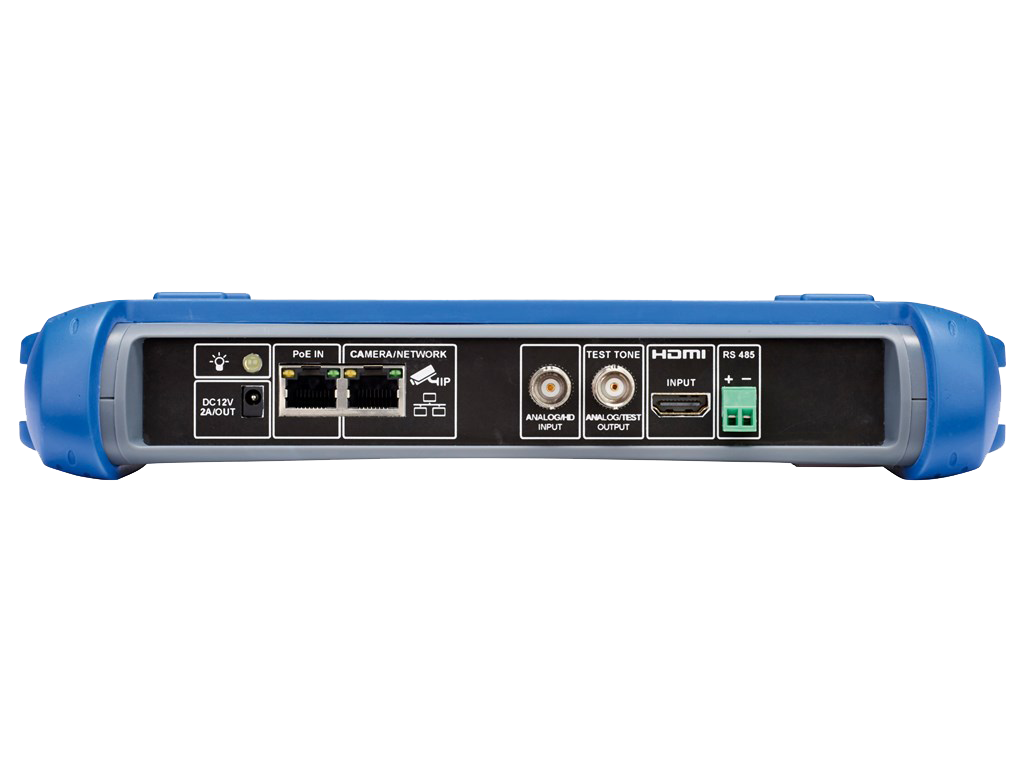

Physically Connect Camera using RJ-45, BNC connections or Wi-Fi via network
Power Camera PoE/PoE+
Camera Identification and Login
Analog and HD Camera Setup
Data Cable Test (UTP)
Cable Tracing
10GB Internal Storage

1 x SecuriTEST IP Camera Tester,
1 x carry case with strap,
2 x neck straps,
1 x PSU EU/UK/US/AU adapters,
1 x cable tracer/ remote,
1 x 9.84 ft Cat. 5e UTP patch cable,
1 x 9.84 ft coax cable with two end BNC (m) connectors,
1 x 9.84 ft DC12V 3.5(f) to 2.5(f) power cable,
2 x RS485 female green plugs,
1 x 1.64 ft RS485 cable with female green plug and two clips,
1 x 1.64 ft audio male jack with other end two clips,
1 x quick reference guide,
1 x 8GB microSD card and reader with USB adapter

Document Name	Date	İndirme	Boyut	View
Ideal Networks - SecuriTEST IP	25/03/2019 17:13:35	1588	578,7 KB	View
