TW150 Signal Splitter

TW150 Signal Splitte

TW150 Signal Splitte

Product Name TW150 Signal Splitte

Product Code TW150

Calian

MICRO SITE

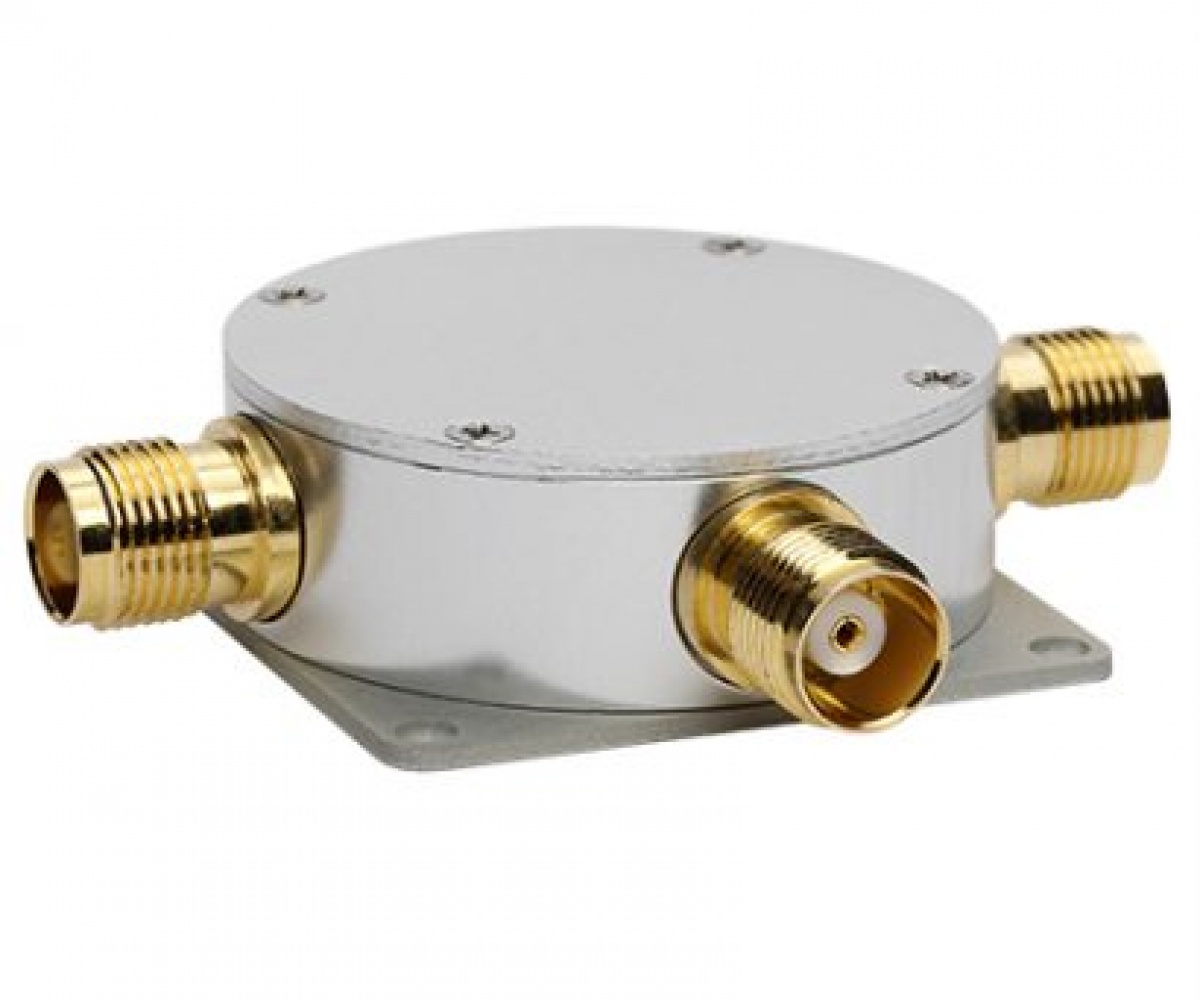

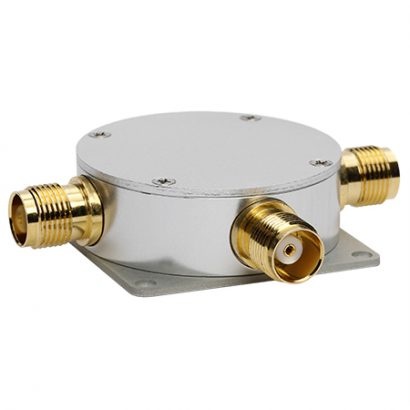

The TW150 is a professional grade 1 to 2 L-band signal splitter, suitable for supporting the full GNSS frequency bandwidth.

Features

1 to 2 GHz operating frequency
Low insertion loss 1.0 dB @ 2 GHz
VSWR <1.25 typ.
Max pass through current 200 mA
50 Ohm port impedance
Clear anodized IP67 aluminum housing
Gold-plated SMA or TNC Jack connectors
RoHS Compliant

Benefits

Compact form factor
Allows use of two GNSS receivers to share one antenna
Fits in-line with antenna cable
Robust design
Suitable for harsh environments

Document Name	Date	İndirme	Boyut	View
TW150 Signal Splitter	24/01/2023 17:17:19	408	348,2 KB	View
