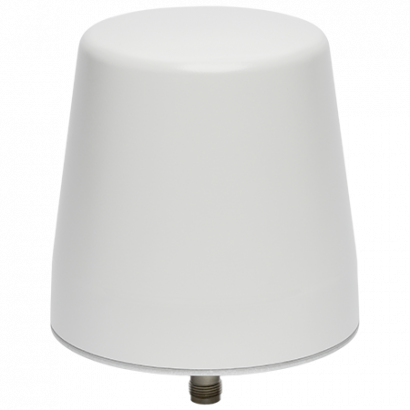

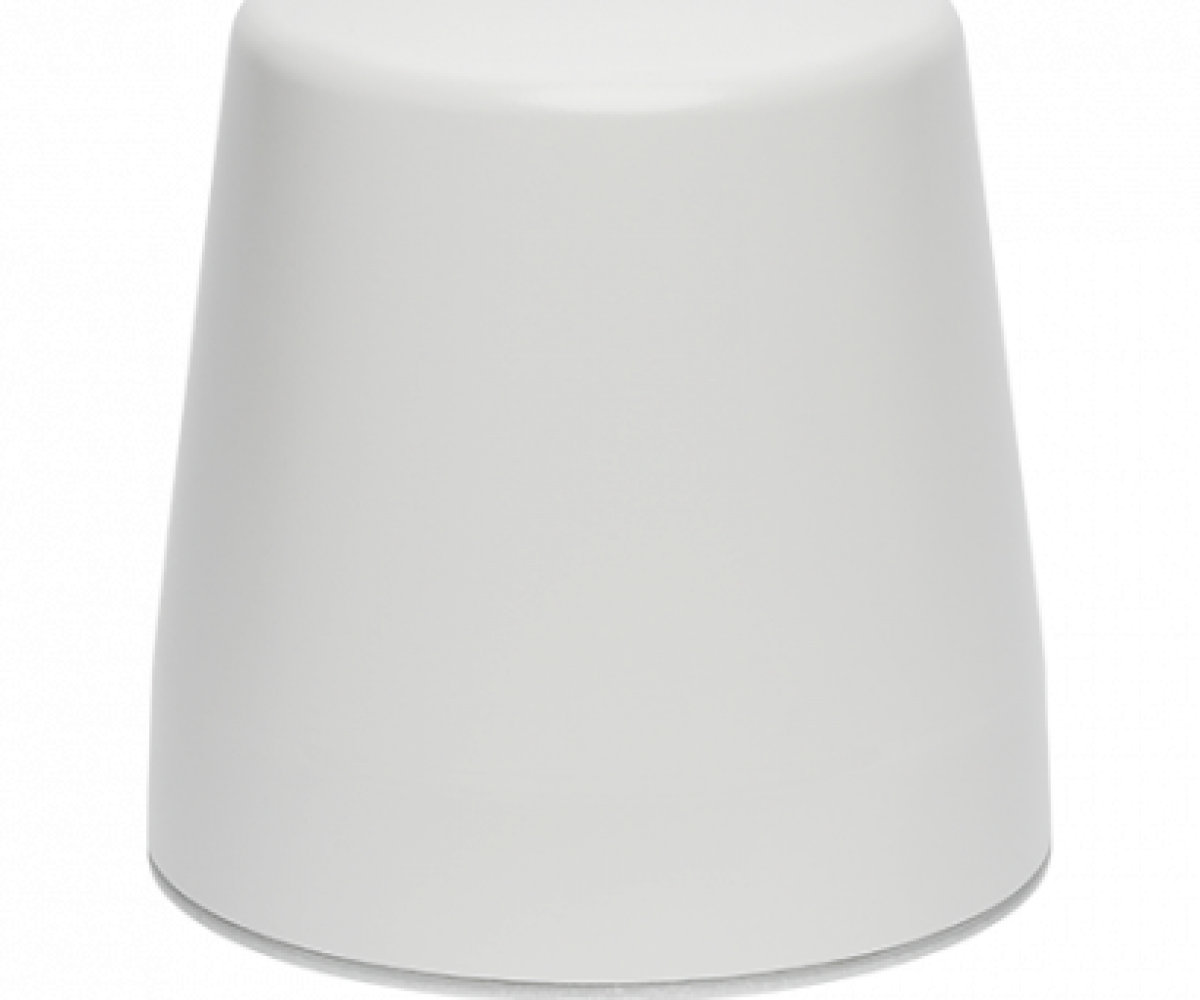

TW3742AJ Accutenna®Anti-Jam Single-Band GNSS Antenna

TW3742AJ Accutenna®Anti-Jam Single-Band GNSS Antenna
TW3742AJ Accutenna®Anti-Jam Single-Band GNSS Antenna
Product Name TW3742AJ Accutenna®Anti-Jam Single-Band GNSS Antenna
Product Code TW3742AJ

The TW3742AJ is a precision high-gain GNSS antenna built with Calian’s unique Accutenna® technology, providing single-band GPS/QZSS-L1, GLONASS-G1, Galileo-E1, and BeiDou-B1 coverage, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)].

Features

  • Accutenna® technology
  • Great axial ratio (2.0 dB typ.)
  • Low LNA noise (3.0 dB typ.)
  • High-rejection SAW filter
  • High-gain LNA (38 dB typ.)
  • Low current (19 mA typ.)
  • Wide voltage input range (2.5 to 12 VDC)
  • ESD circuit protection (15 kV)
  • IP67 weather-proof housing
  • RoHS and REACH compliant

Benefits

  • Operates under ground-based jamming
  • Circular polarization throughout the full bandwidth
  • Superior multipath signal rejection
  • Excellent signal-to-noise ratio
  • Great out-of-band signal rejection
  • Increased system accuracy
  • Ideal for harsh environments
Document Name Date İndirme Boyut View
TW3742AJ Accutenna®Anti-Jam Single-Band GNSS Antenna 25/01/2023 09:10:32 352 308,57 KB View
