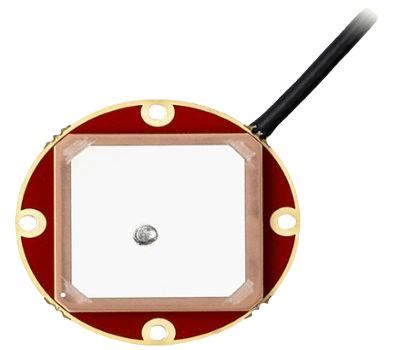

TW3872E Embedded Dual Band GNSS Antenna

Product Name TW3872E Embedded Dual Band GNSS Antenna
Product Code TW3872E

The TW3872E employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1, as well as SBAS (WAAS/EGNOS/MSAS).

Features

  • Very low Noise Preamp,
  • Axial ratio: <2dB typ.
  • Tight Phase Center Variation
  • High LNA Gain 35 dB typ.
  • Low current: 24 mA typ.
  • ESD circuit protection: 15 KV
  • Invariant performance from: +2.5 to 12VDC

Benefits

  • Ideal for L1/L2 RTK surveying systems
  • Great multi-path rejection
  • Increased system accuracy
  • Great signal to noise ratio
  • RoHS and REACH compliant
Document Name Date İndirme Boyut View
TW3872E Embedded Dual Band GNSS Antenna 24/01/2023 16:51:07 280 236,48 KB View
