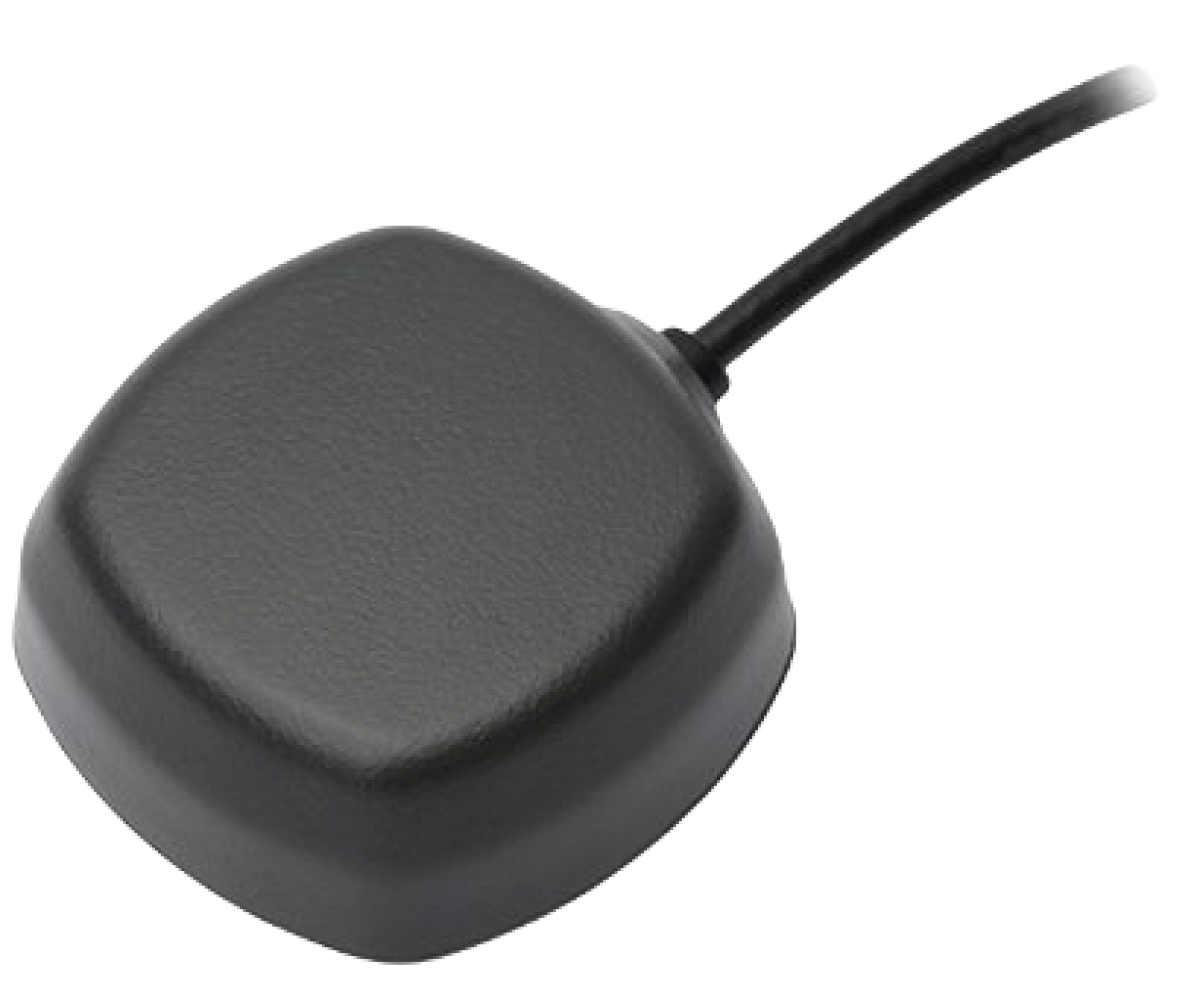

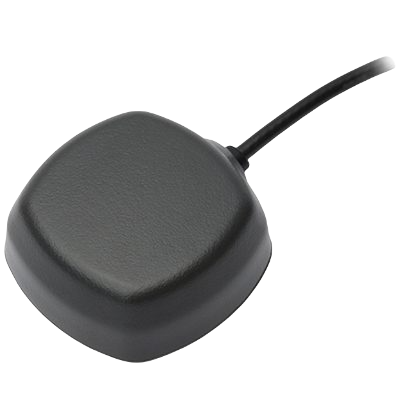

TW4722 Single Band GNSS Antenna (Pre-filtered)

TW4722 Single Band GNSS Antenna (Pre-filtered)
TW4722 Single Band GNSS Antenna (Pre-filtered)
Product Name TW4722 Single Band GNSS Antenna (Pre-filtered)
Product Code TW4722

The TW4722 employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1, GLONASS G1, Galileo E1, BeiDou B1, as well as SBAS (WAAS/EGNOS/MSAS).

Features

  • Dual feed patch element
  • Axial ratio: 2 dB typ.
  • Low noise LNA: 3 dB
  • High rejection mid-section SAW filter
  • High gain: 23 dB typ.
  • Wide voltage input range: 1.8 to 16 VDC
  • IP67 weather proof housing
  • Low Power: 10 mA

TW4xxx Muhafazalı Çizim

Benefits

  • Greatly enhanced multipath rejection
  • Improved GNSS reliability
  • Excellent signal to noise ratio
  • RoHS compliant
  • Ideal for harsh environments
  • Excellent out of band signal rejection
Document Name Date İndirme Boyut View
TW4722 Single Band GNSS Antenna (Pre-filtered) 24/01/2023 16:13:20 287 239,89 KB View
