ValkyrieBay | Modular Ethernet 2-3 Layer Traffic Generator and Analyzer

Product Name ValkyrieBay Modular Ethernet 2-3 Layer Traffic Generator and Analyzer
Product Code ValkyrieBay
Warranty Period 36 Month
+ -
Pcs

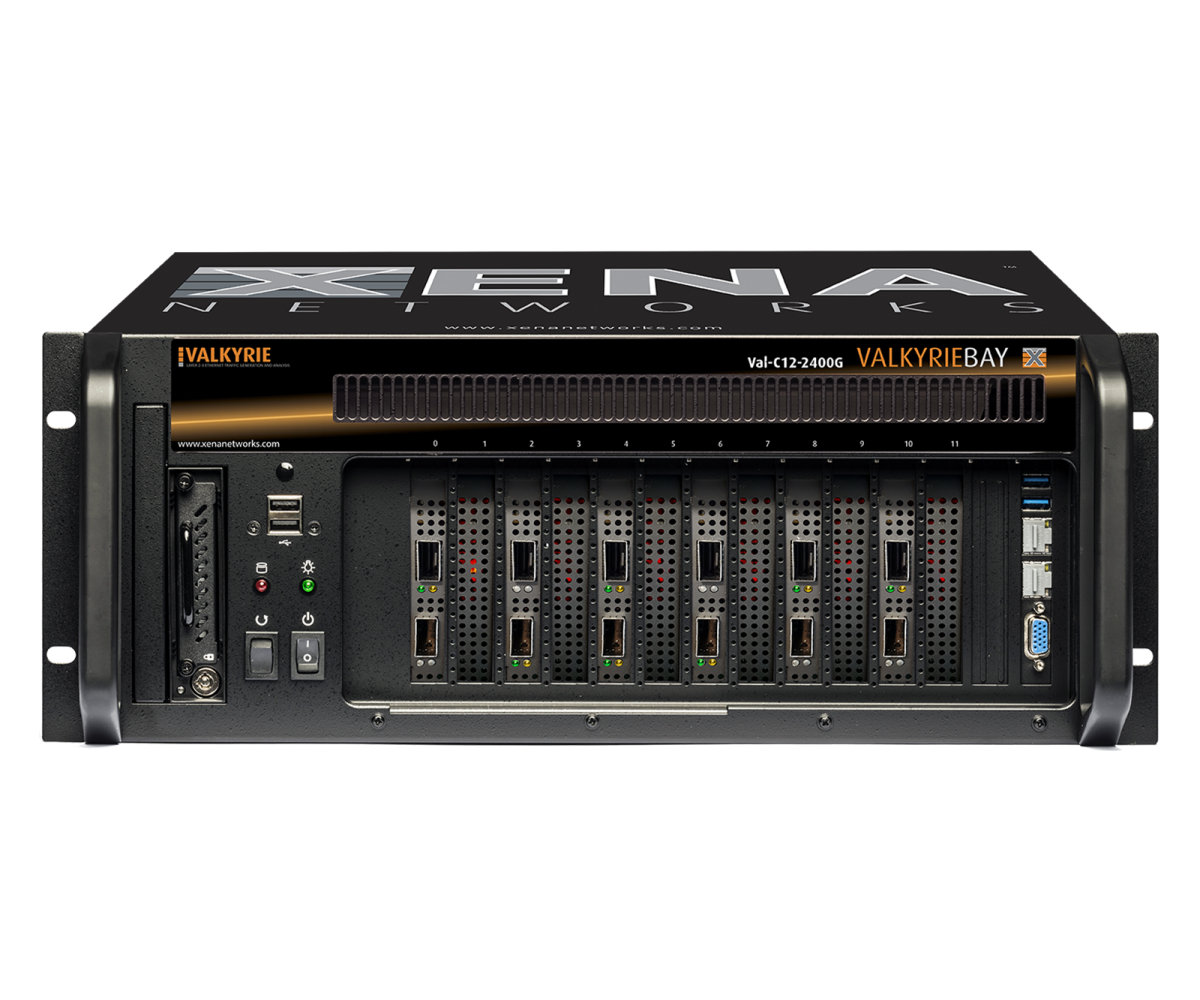

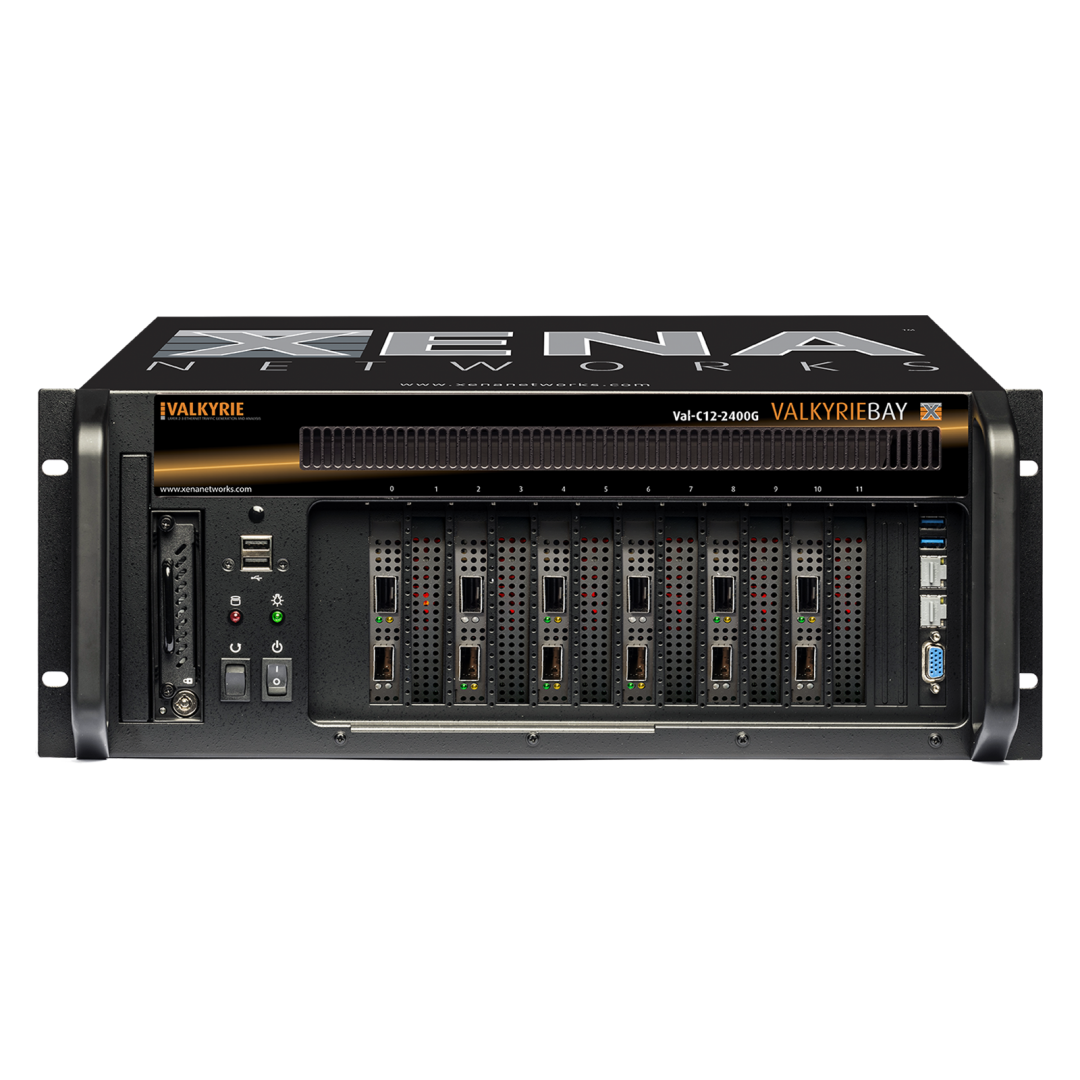

Xena's ValkyrieBay 2-3 layer test platform is used to configure and generate Ethernet traffic with a high level of accuracy and detail, and then analyze how network devices and services perform in response.

ValkyrieBay offers two chassis options that can be equipped with a wide variety of copper and optical Gigabit Ethernet test modules that support all Ethernet speeds up to 400GE, including new 2.5GE, 5GE, 25GE and 50GE speeds.

Chassis and test modules are controlled via ValkyrieManager, a Windows GUI client provided for ad-hoc test progress and remote management of test equipment located in multiple locations. Also included are independent applications for automated RFC 2544, Y.1564, RFC 2889 and RFC 3918 tests.

Finally, an open TCP / IP-based text API allows users to automate testing with Tcl, Python, Perl, VBA and Java connectors from any software environment by converting them from the general Xena Command Line Interface (CLI) format / format.

ValkyrieBay, worldwide; It is used by hundreds of customers who value their features, ease of use, cost efficiency, interoperability and scalability.

  • QoSTesti (RFC 2544 and Y.1564 compliant).
  • Comparison Test (RFC2889, RFC2544, RFC3918, VSperf, G.FAST, GPON etc.)
  • Functional Test (1588v2 Performance Test, 40 / 100G PCS and PMA layer etc.)
  • Convergence Test (xSTP and orientation, G.8031 / G.8032, MPLS)
  • Service Verification. (ITU-T Y.1564, Live monitoring, mass Ethernet, performance recording)
  • Security / Negative Test. (Firewall performance test, L2 / 3/4 errors, PCS layer errors, DDos, etc.)
  • Open Flow Test. (Table capacity, Flow-mode, Packet input / output)
  • Compliance Test. (xSTP and routing, G.8031 / G.8032, MPLS)

Xena's ValkyrieBay 2-3 Layer traffic generation and analysis testing platform offers a wide range of advanced hardware and easy-to-use software to test the capabilities of Ethernet equipment and networks at all Ethernet speeds up to 400 Gbps.

This robust platform makes it easy to quickly execute multiple test and measurement scenarios at an unbeatable price / point.

Document Name Date İndirme Boyut View
19/04/2020 15:09:24 32 184,05 KB View
