Fluke Networks | Fiber QuickMap™ | MM Fiber Range and Fault Locator

Product Name Fluke Networks | Fiber QuickMap™ | MM Fiber Range and Fault Locator
Product Code Fiber QuickMap™
+ -
Pcs

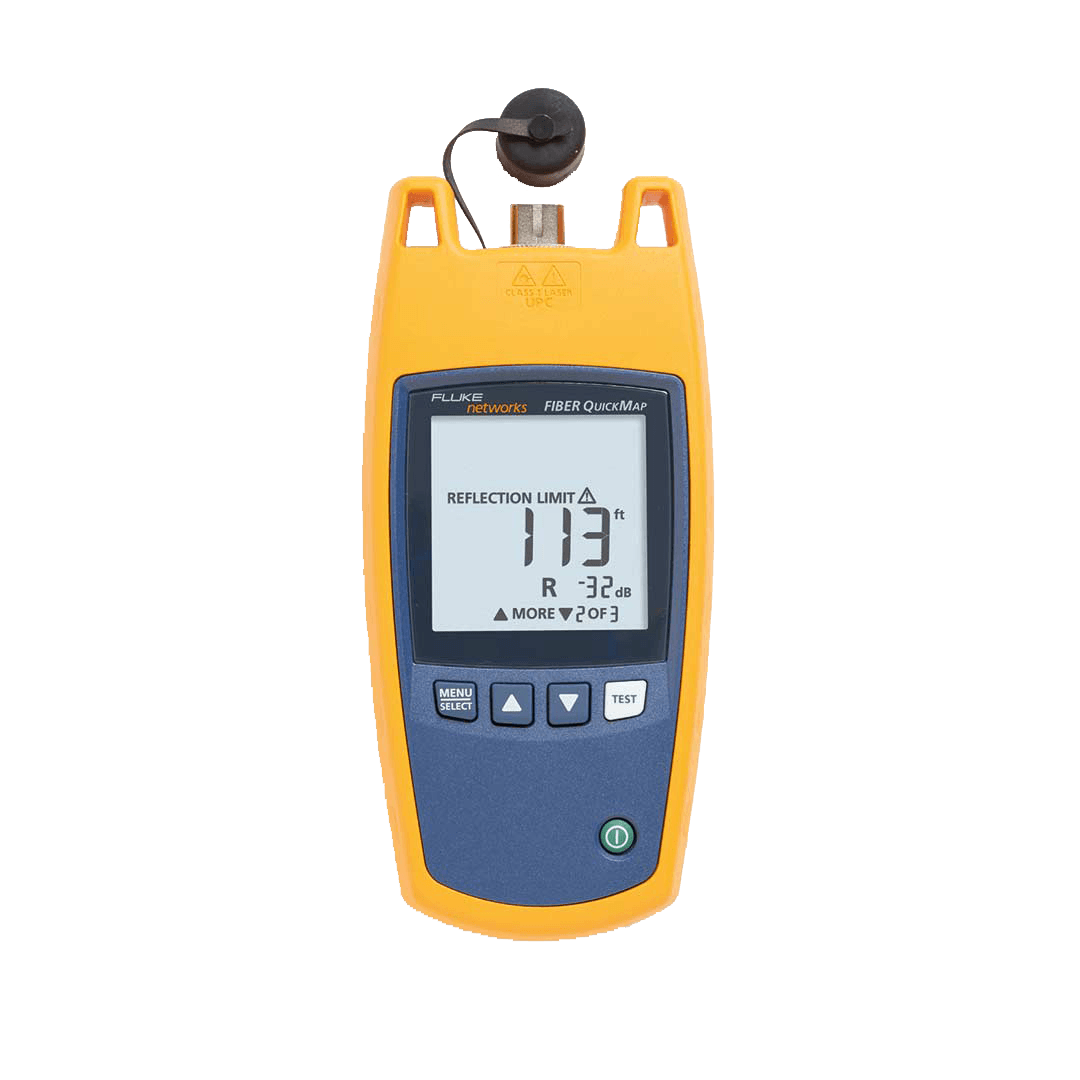

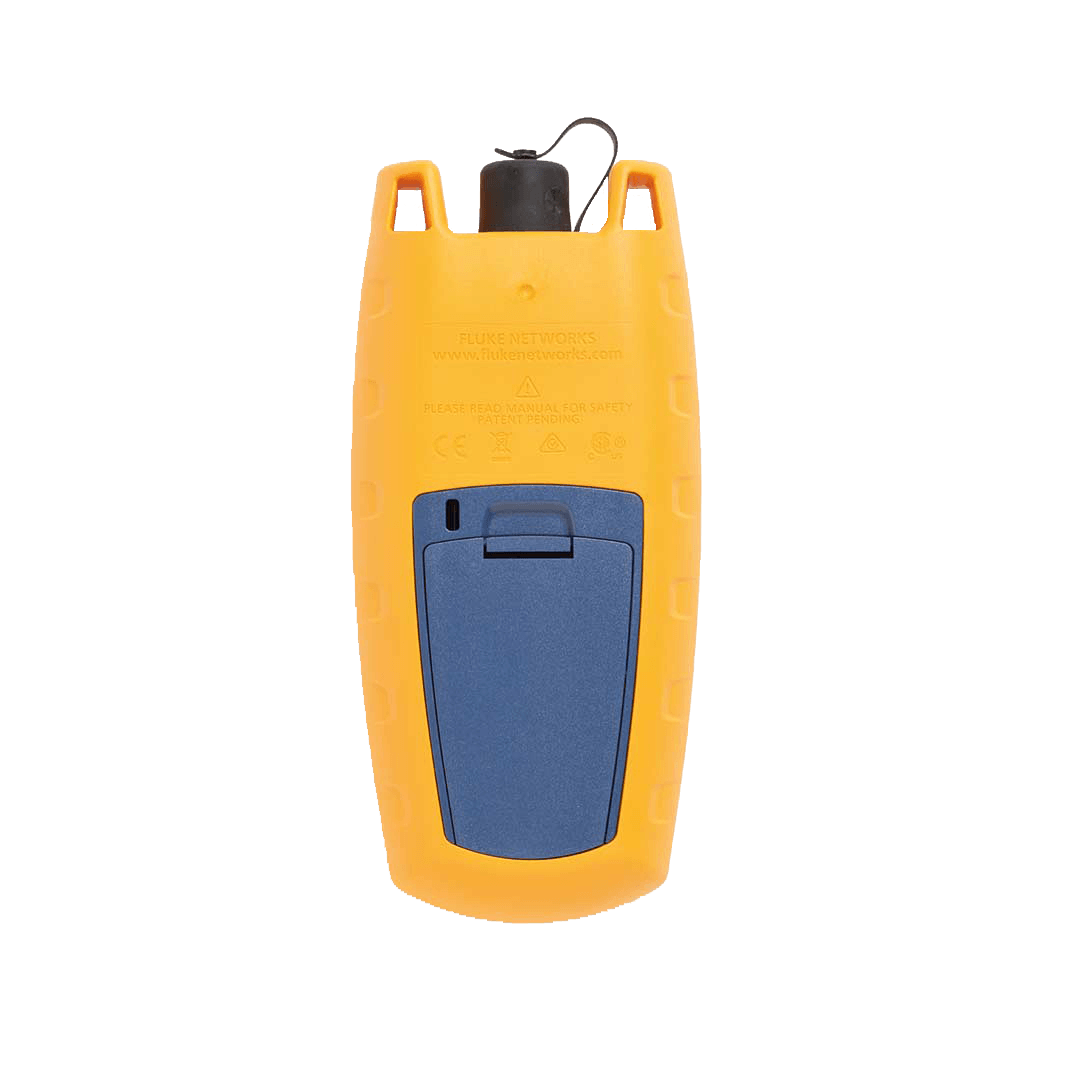

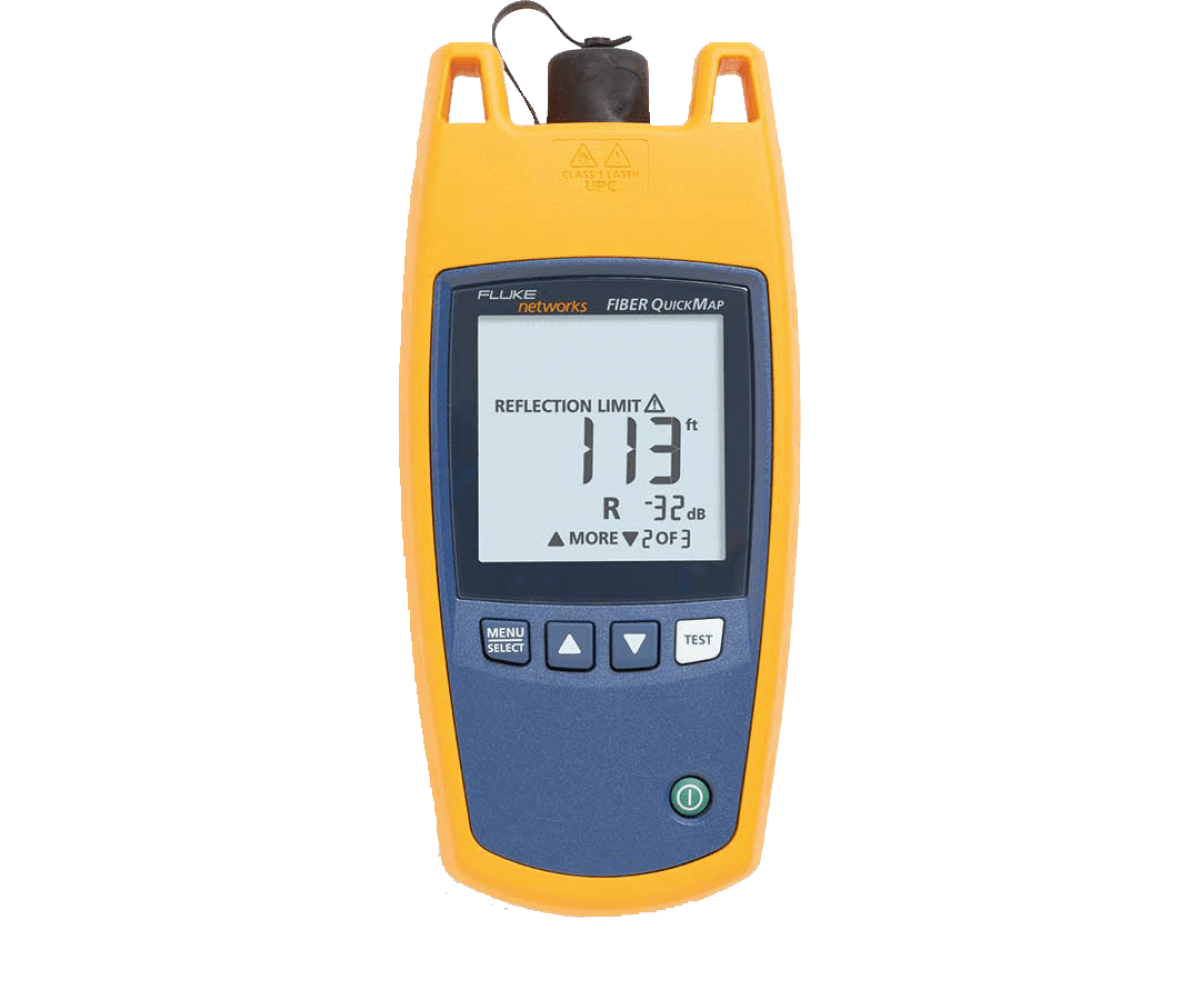

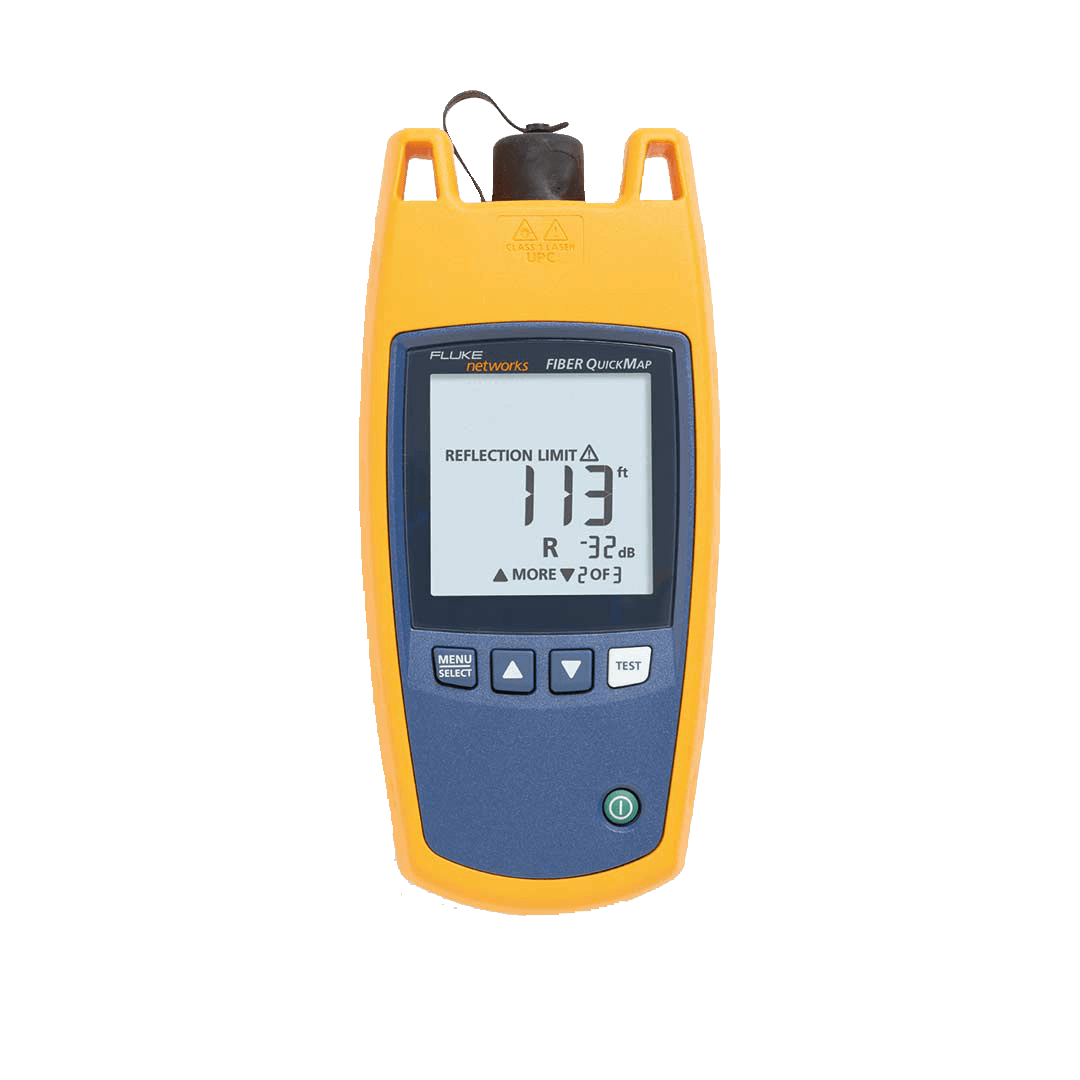

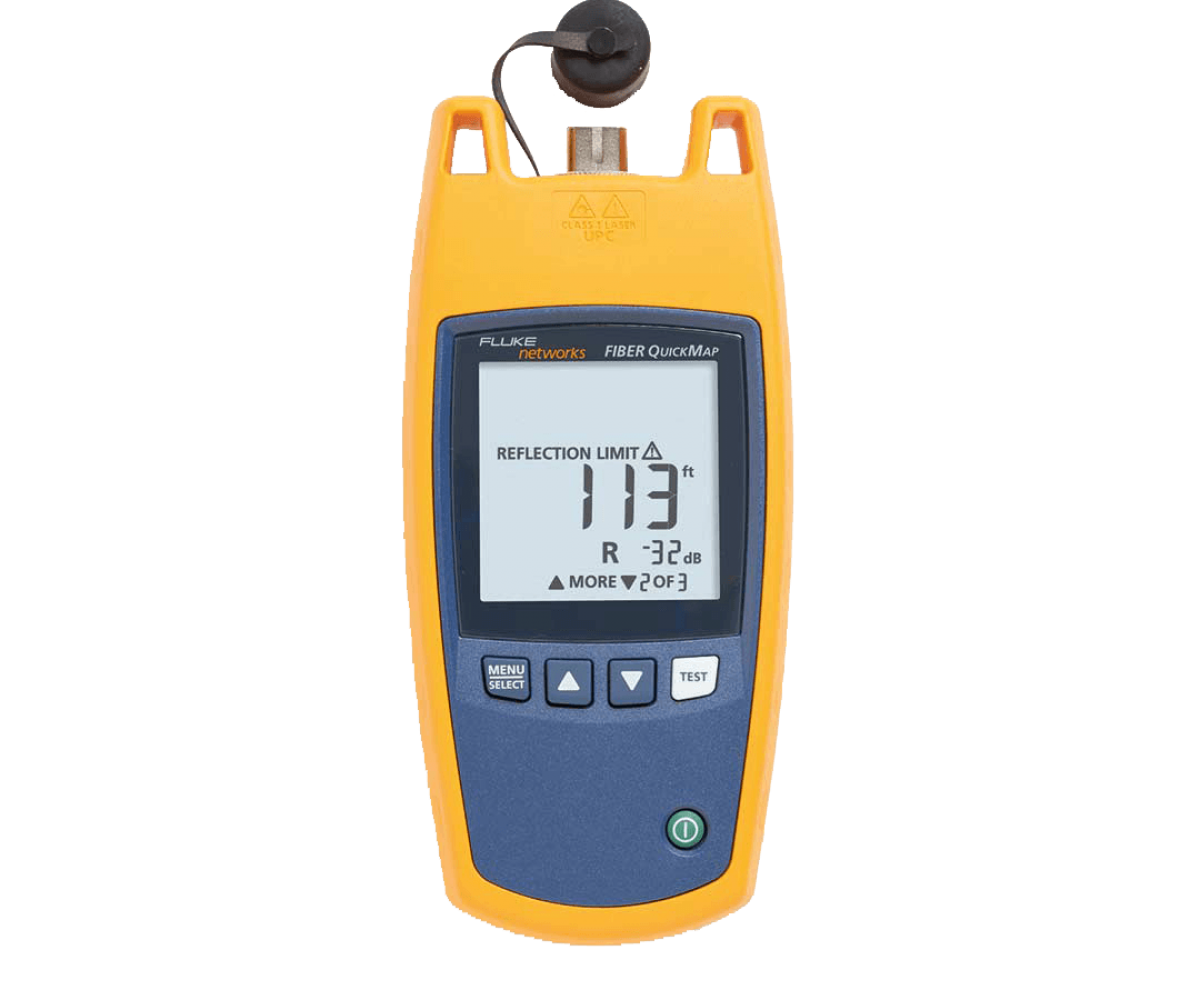

Fiber QuickMap™ | MM Fiber Range and Fault Locator


Visual Fault Locator (VFL): It is a fiber optic light pen that detects whether the cable is broken or broken with the visible light it provides in 2M (IEC 60825-1:2007 21 CFR 1040.10) standard in fiber optic cables.

OTDR (The optical time domain reflectometer): The reflector in the optical time domain finds the fiber insertion loss, connector loss in fiber optic cables, can measure the length of the line and, if any, detect the distance to the cable break and present the analysis results as a report.

Fiber QuickMap bridges the gap between VFL and OTDR. This model has the simplicity of a VFL and provides distance and power information about high losses, breaks, and the end of the fiber. It also detects the live line and protects it from possible risks.


Scope of application


Fiber Optic Access networks installation and troubleshooting

Central-office link certification

Data center and private fiber optic networks

Test on LAN/WAN networks.

Tier II Certification

  • Operating temperature: 0ºC to 50ºC
  • Operating relative humidity: 95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
  • Durability: drop from 1 meter
  • Working Height: 3000m
  • EMC: EN 61326-1: 2004

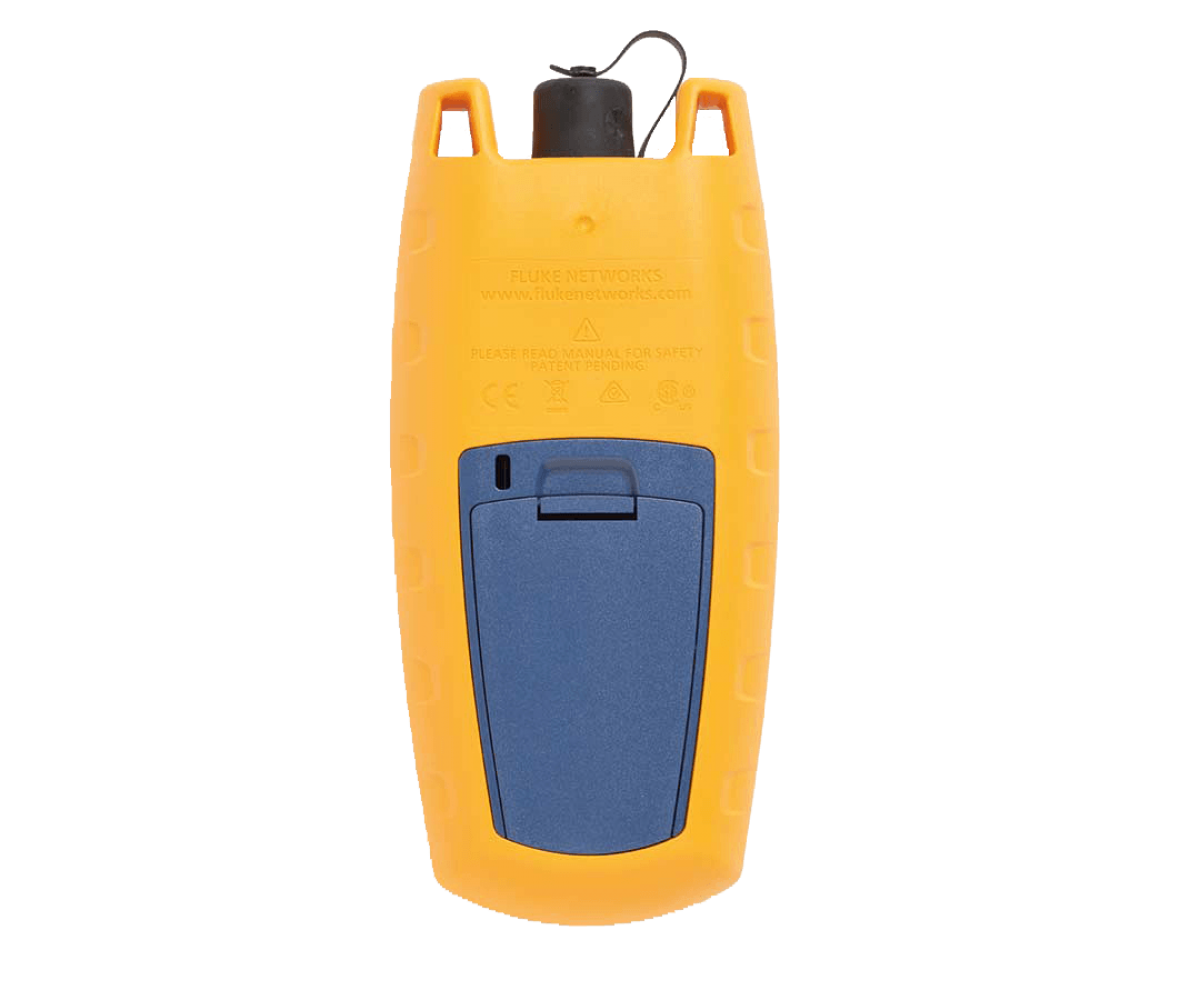

  • Battery: 2 AA alkaline
  • Battery Life: 1500 tests
  • Laser safety: Class 1 CDRH Complies to EN 60825-2
  • LCD type: Black and white split
  • IOR: 1.496
  • Calibration: Not required.
  • Output Wavelength: 850 nm ± 10 nm
  • Laser classification: Class 1 CDRH, EN 60825-2
  • Dynamic range: >11 dB
  • Maximum distance: 1500 meters
  • Test speed: < 6 seconds
  • Connector: Plug-in UPC / SC
  • Fiber types: 50/125 µm or 62.5/125 µm MM
  • Live fiber detection
  • Finding the causes of bit-error rates
  • Finding the most common causes of MM Fiber failures
  • Gain critical visibility within the MM Channel
  • One-touch test start
  • Troubleshooting in 6 seconds

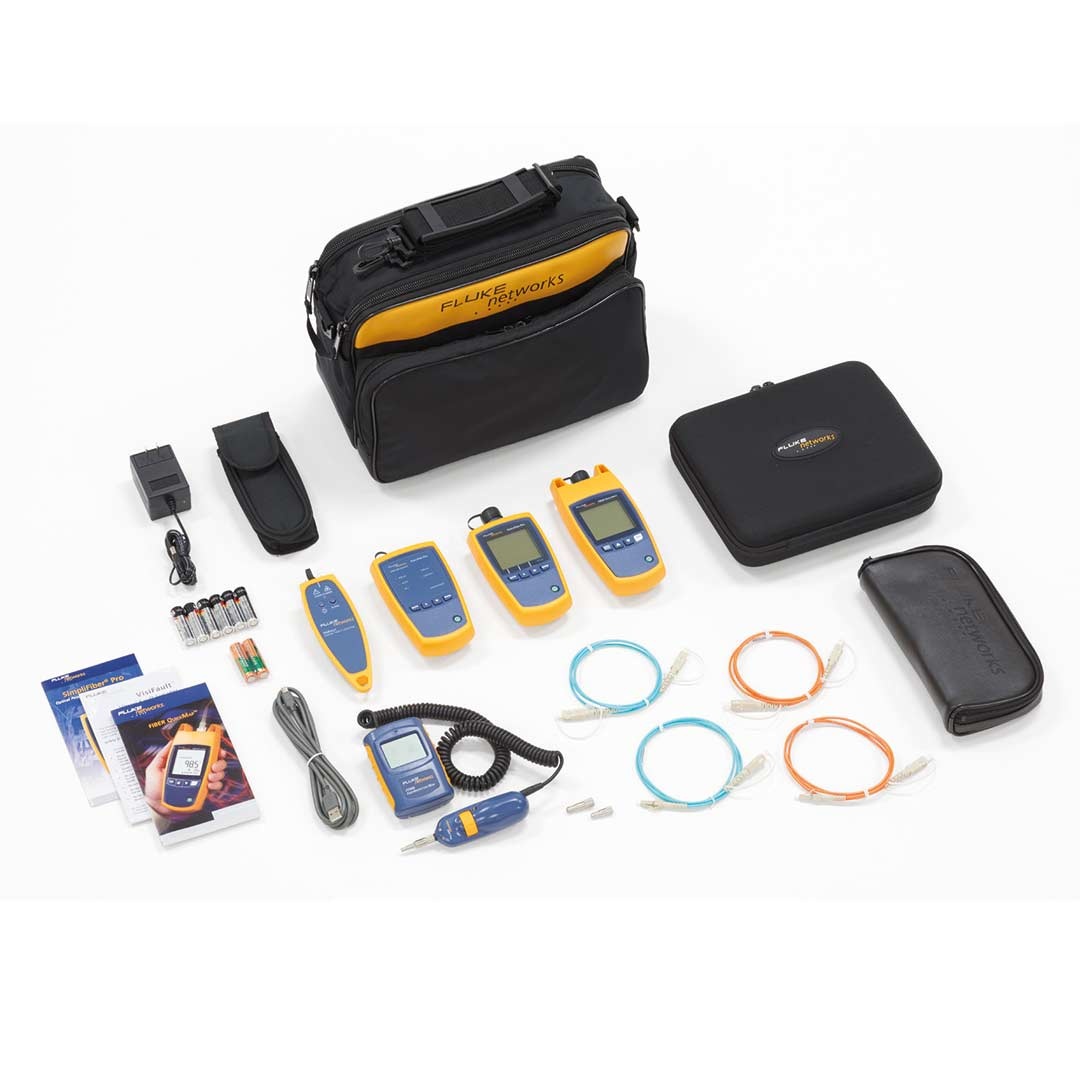

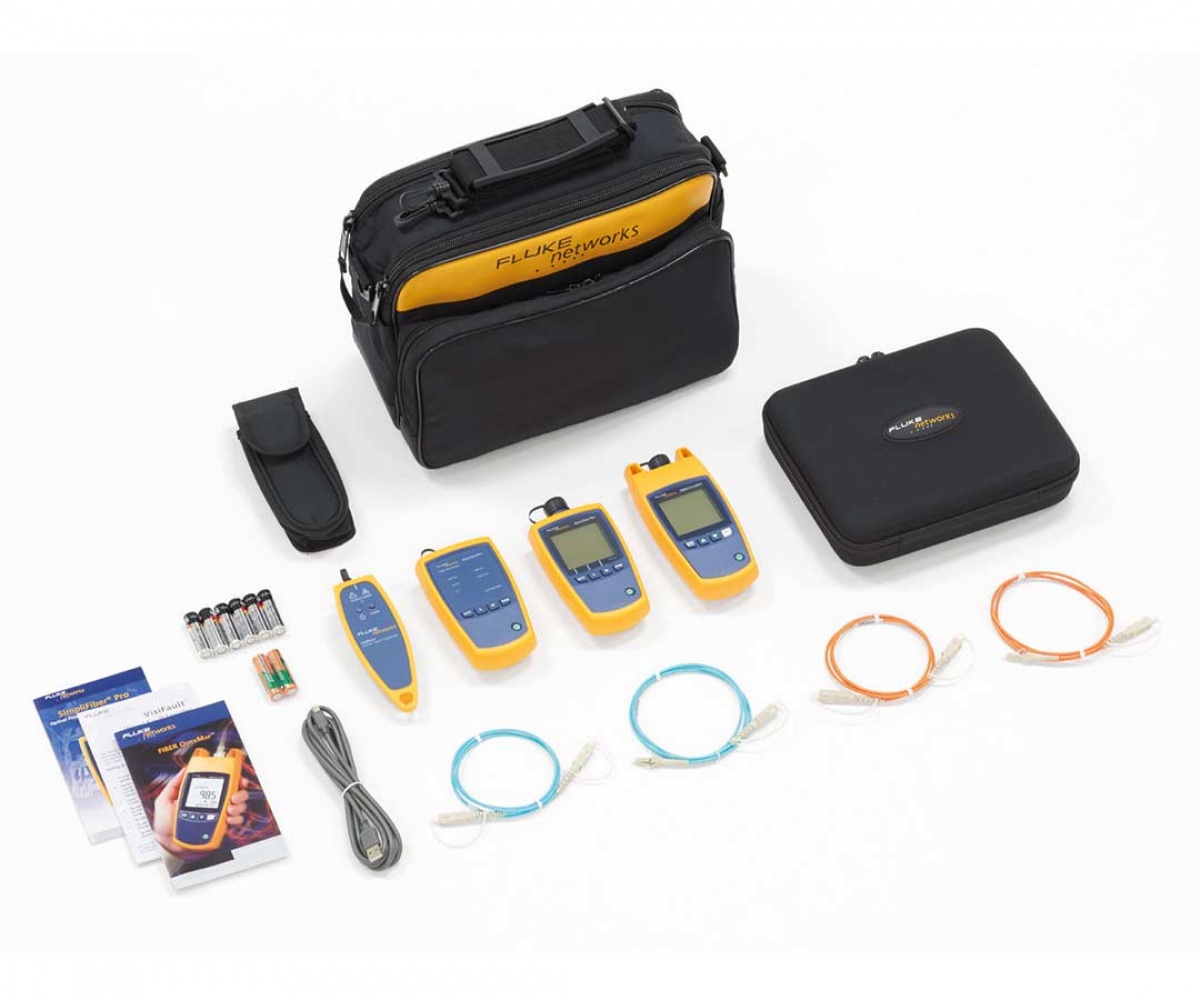

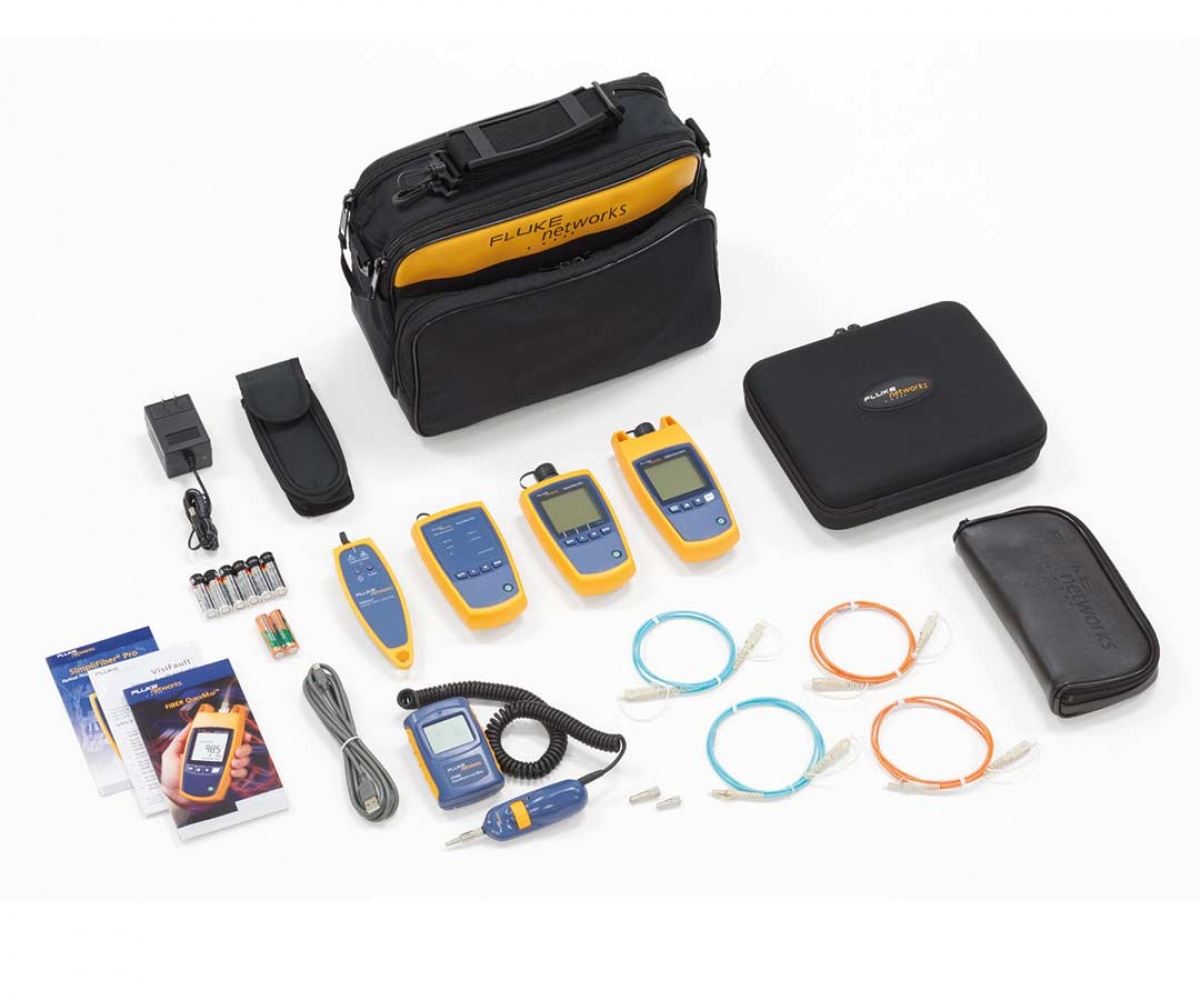

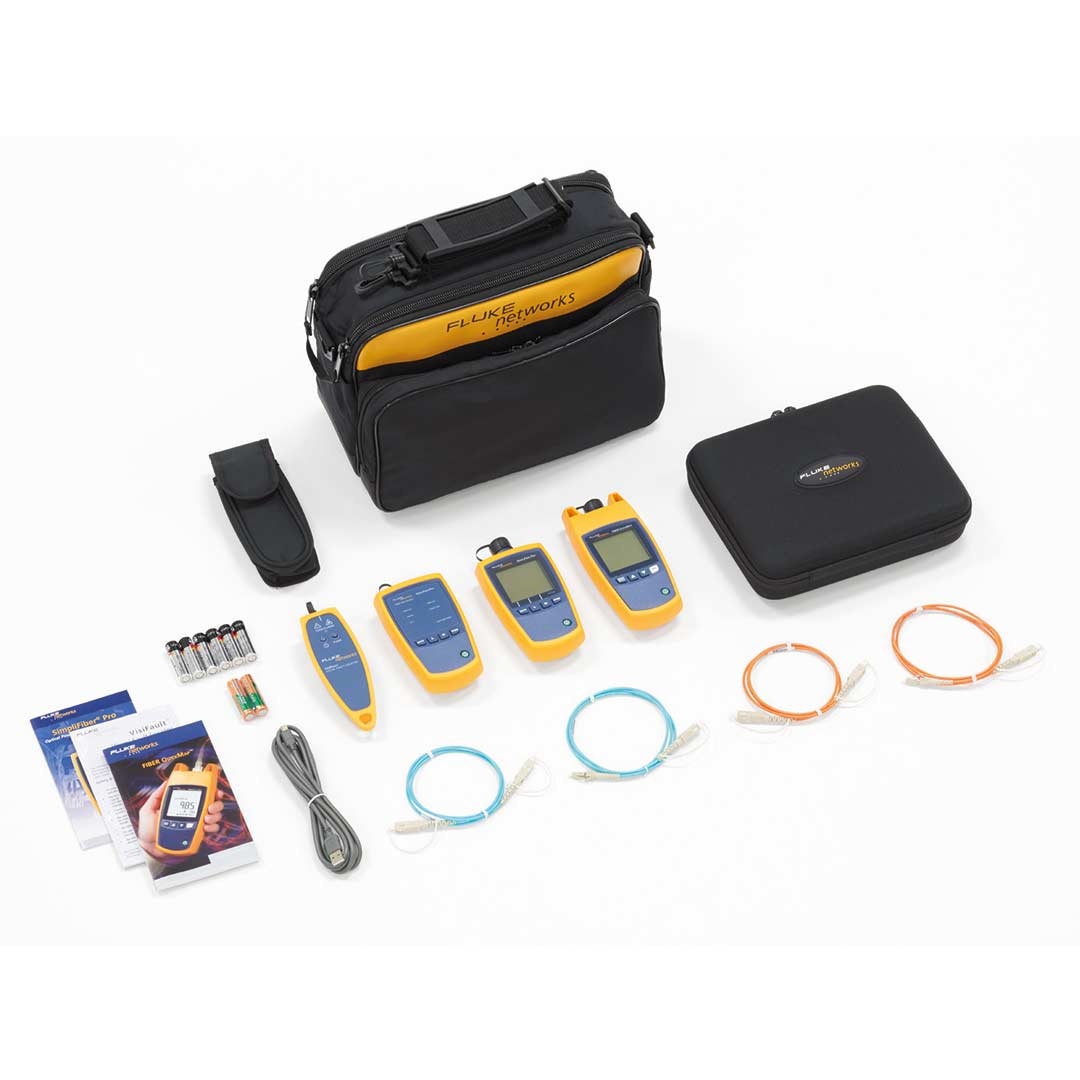

  • FQM-M
  • FQM-100-M
  • FQM-100-M-VFL
  • FQM-SFP-M
