Hands-On Fiber Testing Training

Product Name Hands-On Fiber Testing Training
+ -

Purpose of Education

And the importance of developing Internet technology fiber optic structure that increases with each passing day the importance of the telecoms sector in parallel with the growing demand for broadband applications and emerging fiber types in Turkey will be discussed in all aspects.

With the training to be carried out, participants will be given a wide range of theoretical and practical information, ranging from fiber optic network design criteria to fiber optic network structures and testing of fiber systems.

The training will be supported by practical studies and it is aimed to gain application, analysis and testing skills in fiber optic systems.

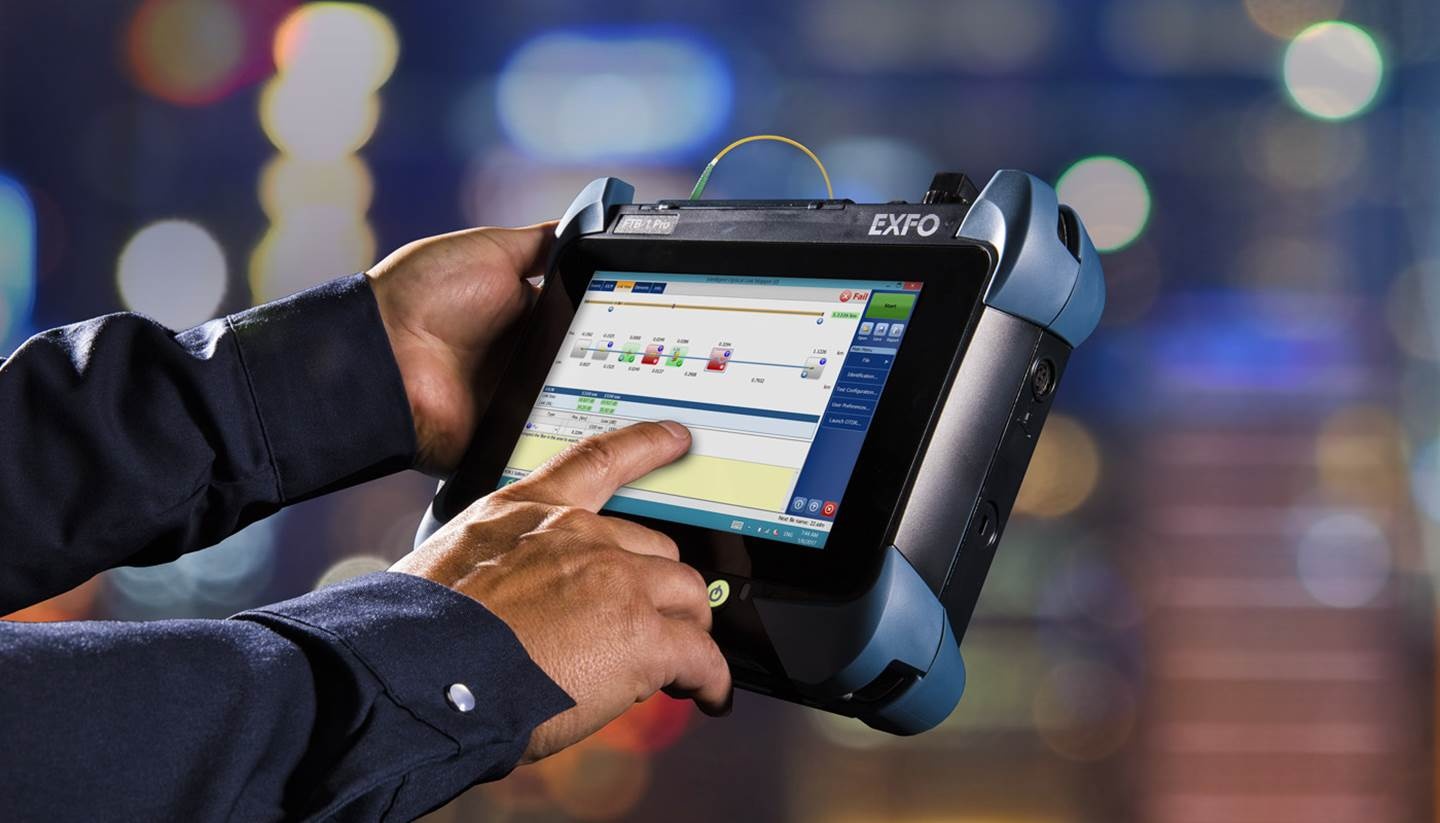

At the end of the training, the participants will have basic knowledge with fiber optic technology, fiber optic cabling information, measurement with test equipment (OTDR, ORL, Loss Test, OLTS) and reporting.

Educational content :

1. The Development of Fiber Optic Communication

  • Fiber Technology
  • Terminology
  • Advantages of Fiber Optic Communication

2.Industrial Standards

  • ISO 11801
  • ANSI / TIA 568
  • EN 50173
  • BSEN 50173

3.Fiber Optic Transmission Basics

  • Principle of Refraction of Light
  • Fiber Optic Cable Modes

4.Optical Fibers and Cable Structures

  • Fiber Optic Cable Components
  • Indoor Type F / O Cables
  • Outdoor Type F / O Cables

5. Behavior of Light in Optical Fiber Connections

  • Rayleigh Scattering
  • Fresnel Reflection
  • Macrobend
  • Microbend

6. Measurement Units

  • dB (relative power)
  • Optical Power Loss
  • Reflection (-dB)
  • Optical Return Loss (ORL) (dB)
  • dB / km
  • Electromagnetic Spectrum

7.Fiber Optic Fasteners

  • Fiber Optic Connector
  • Fiber Optic Pigtail
  • Fiber Optic Patch Cord - Jumper
  • Fiber Optic Adapter
  • Fiber Optic Splitter - Splitter
  • Fiber Optic Termination Box - Patch Panel

8.Fiber Adding

  • Fiber Joint Preparation
  • Fiber Splice Technology
  • Fiber Cleaning Products

9.Fiber Optical Transmission Parameters

  • Critical Angle
  • Refraction -Fracture
  • Reflection - Reflection
  • Velocity - Broadcast Speed

10.Fiber Optical Measurement Parameters

  • Optical Power
  • Attenuation (Slimming)
  • Optical Return Loss
  • OTDR

11. Line Measurements in Optical Transmission Systems

  • Optical Power
  • IL (Insertion Loss) - Slimming Measurement
  • Optical Return Loss - Return Loss
  • PMD, CD Measurements

12. Generation Fiber Network Structures

  • FTTx
  • GPO

13.Fiber Network Design Parameters

  • FTTx network design
  • Power Budget calculations
  • Link Loss Budget calculations

14. Application (Hands-on)

Optical Loss Measurement

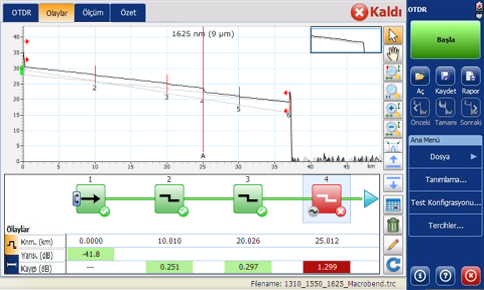

OTDR Test and Analysis

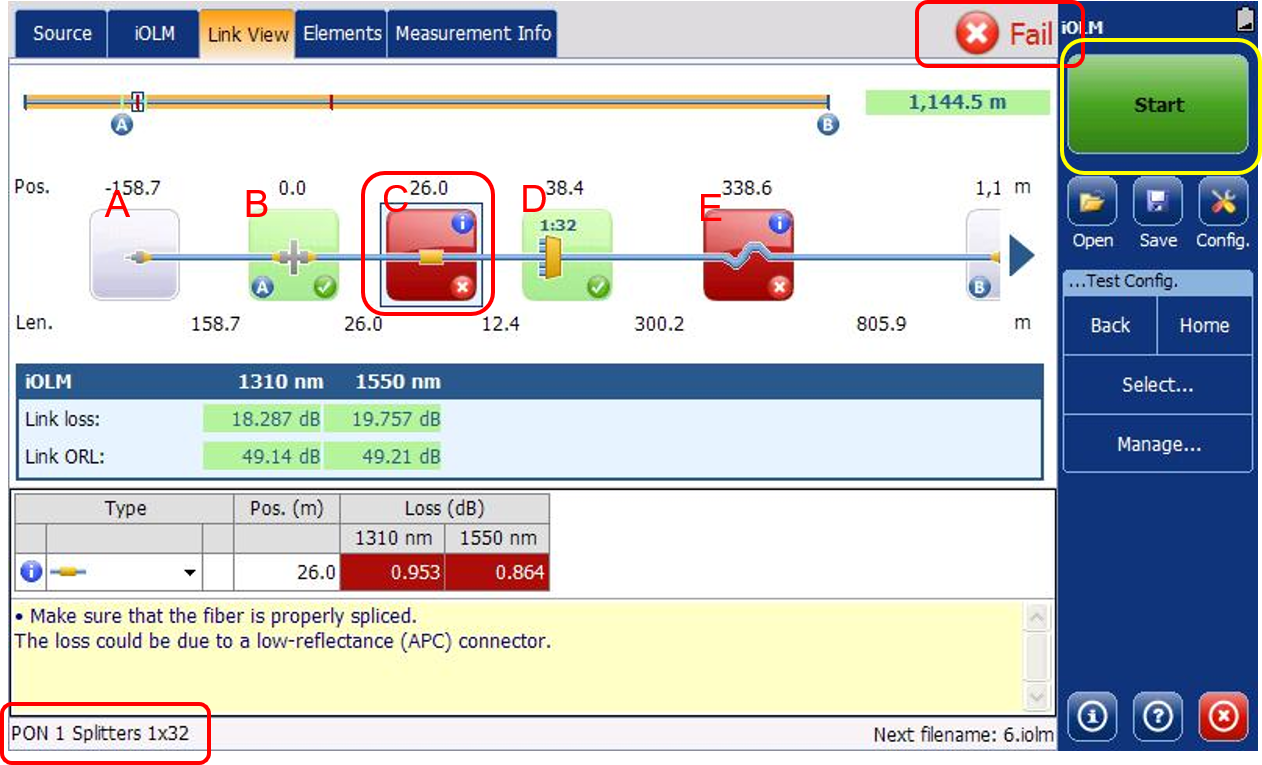

Quick Analysis with IOLM

PMD Measurement and Analysis

Fiber Splicing



The participants will be given "FOTECH Participant Certificate".
