Fotech | MPO - LC Fanout Cable

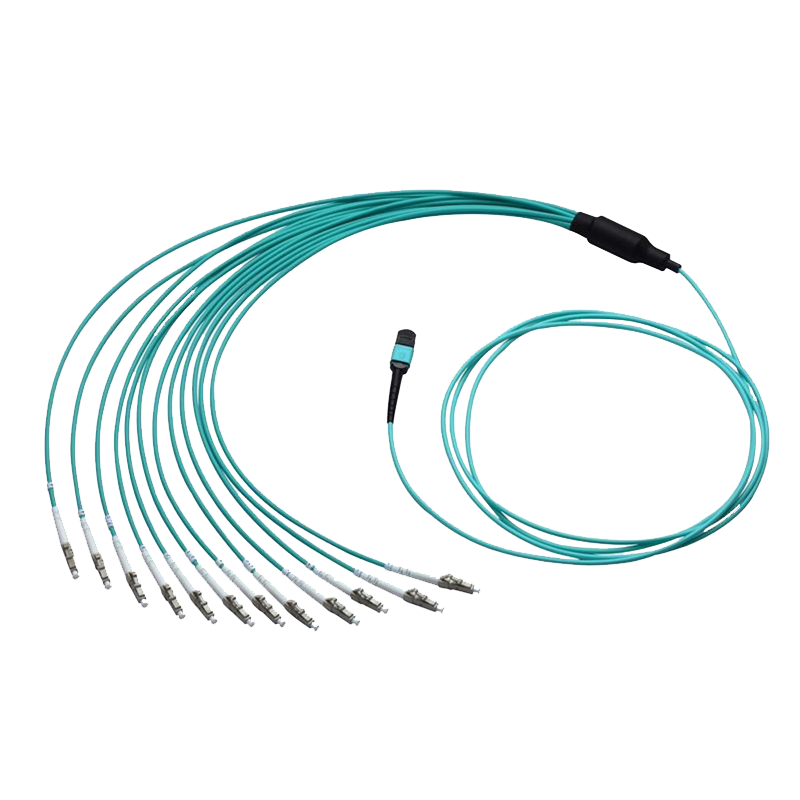

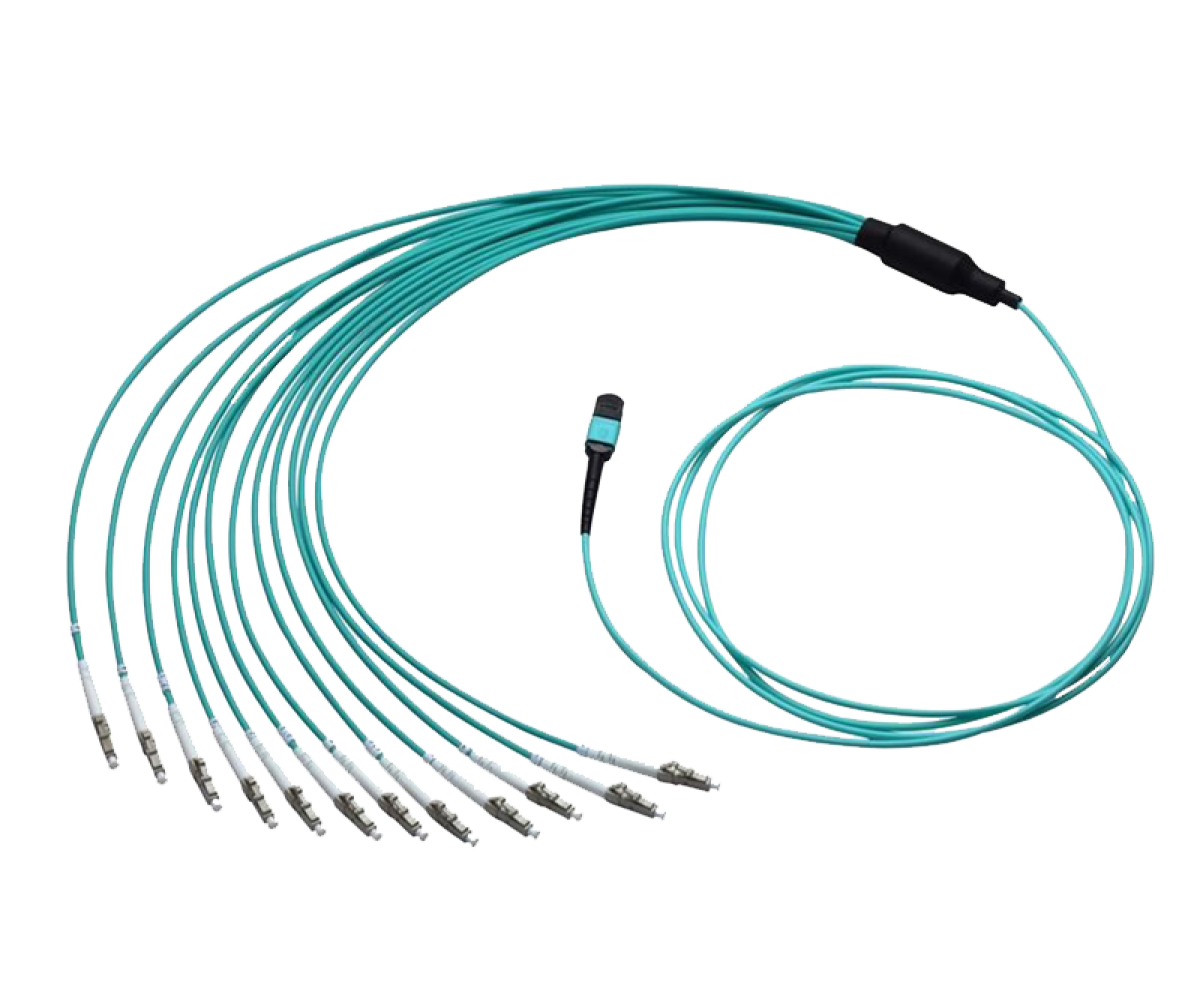

MPO - LC Fanout Cable
MPO - LC Fanout Cable
Product Name MPO - LC Fanout Cable
Product Code MM22149
+ -
Pcs

Fotech-produced MPO - LC fanout cables ensure that spine cabling can be installed both quickly and in a small space in Data Center and Telecommunication structures by keeping costs to a minimum.

  • Connector A - MPO-12 / UPC Female
  • Connector B - LC / UPC
  • Total Fibers - 12 Cores
  • Fiber Mode - Multimode
  • Fiber Type - OM4
  • Cable Type - Low Smoke Zero Halogen (LSZH)
  • Insertion Loss - 0.3 dB
  • Return Loss - 27 dB



Standards:



  • ANSI / TIA-568-C.3
  • ROHS, CE (EN 50575 CPR) and ISO9001 Compliant
  • EIA / TIA, Telcordia GR-326-CORE Standards
  • IEC61754-7
  • TIA 605-4 (FOCIS 5)
  • YD / T1272.5
  • OS2, OM3, OM4 available
  • 0.50 dB (IL) loss connector.
  • Factory terminated and tested
  • Allow easy migration from 10GbE to 40GbE or 100GbE
Document Name Date İndirme Boyut View
FCS - MPO Fiber Cable 06/07/2020 17:07:11 2061 4,12 MB View
