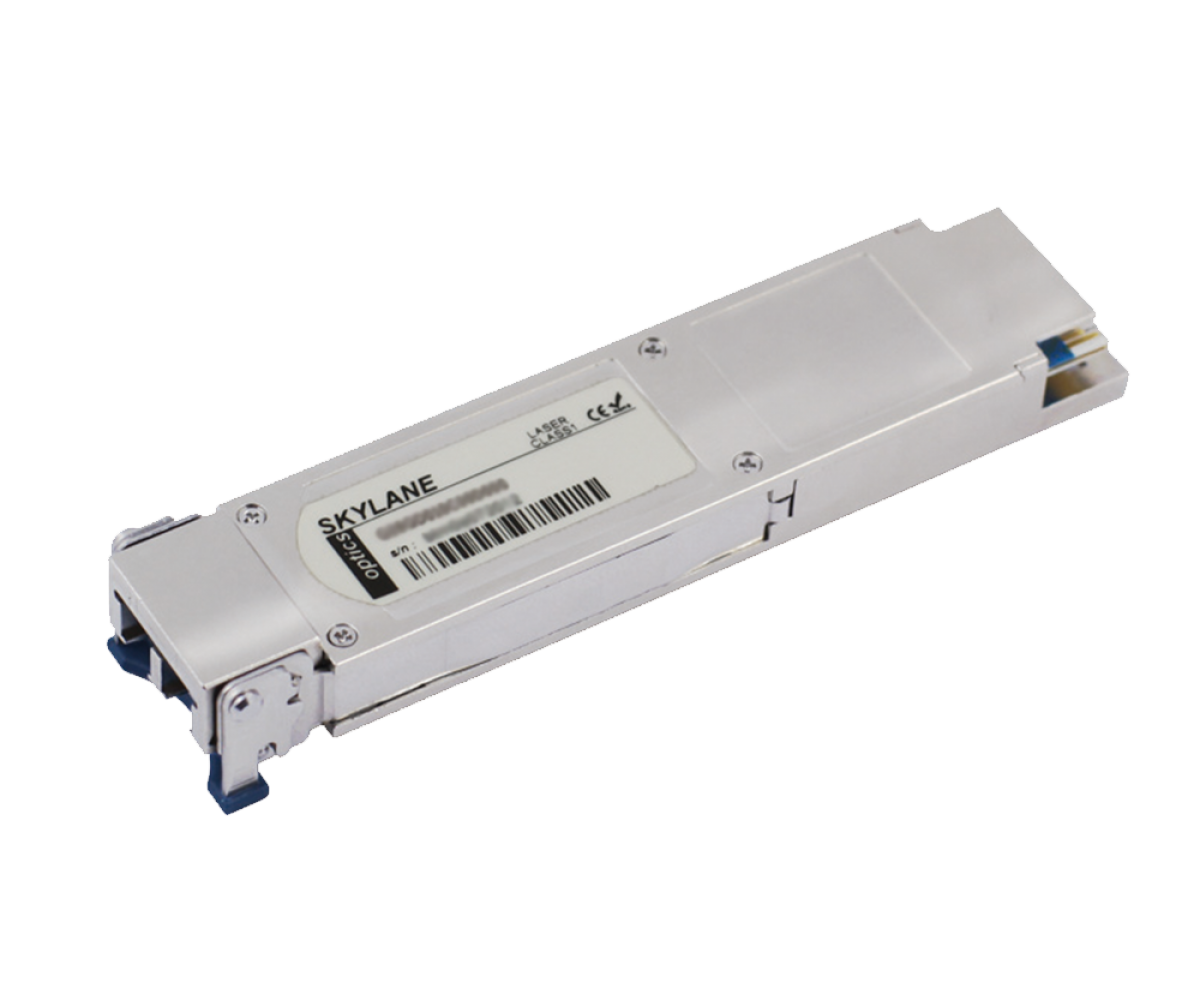

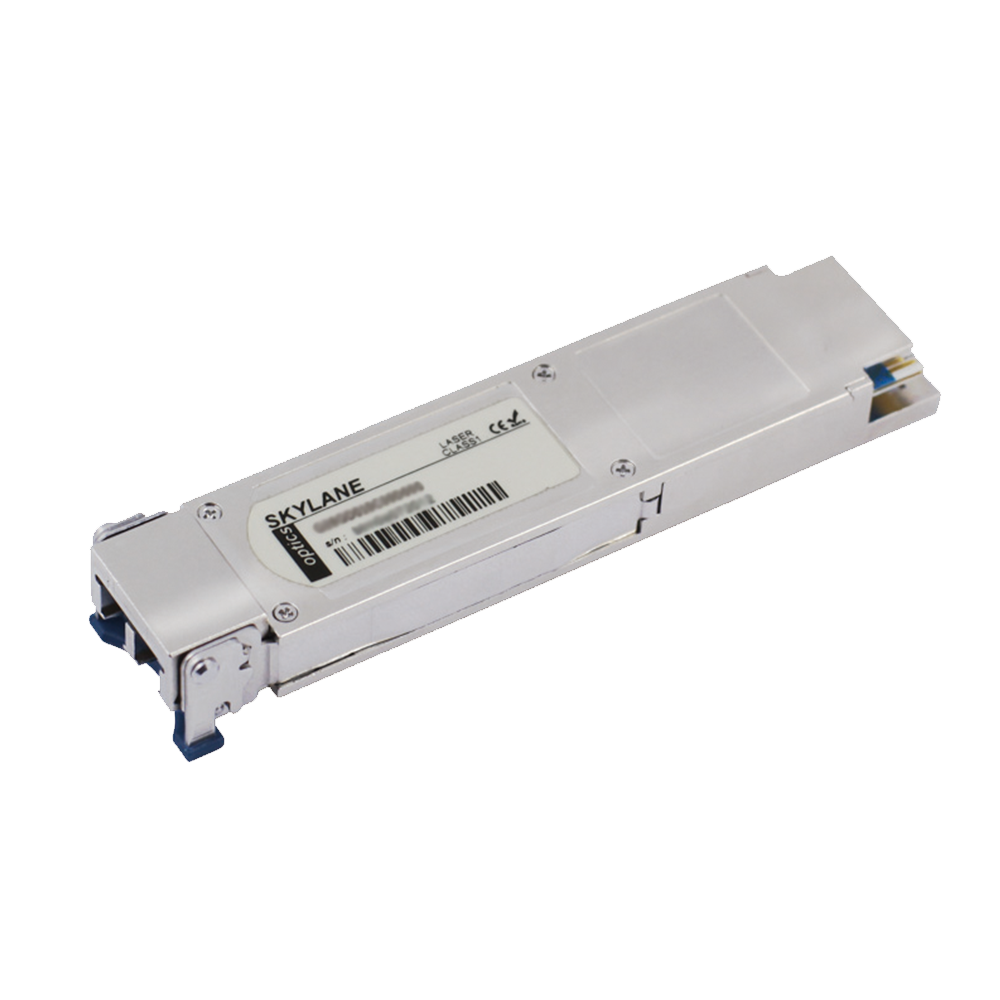

QSFP+ | Singlemode 40GBase-PSM4 LR4 Transceiver

Product Name QSFP+ Singlemode 40GBase-PSM4 LR4 Transceiver
Product Code QFP1301040PD
+ -
Pcs

Skylane Optics, QSFP + | Singlemode 40GBase-PSM4 LR4 Transceivers (transceivers) are optical transceiver modules used in long distance transmission lines up to 10 km. QSFP + | Singlemode 40GBase-PSM4 LR4 has MPO-12 interface and operates over single-mode fiber (SMF) patch cable with 1310 nm light wavelength.

Skylane Optics QSFP +s support data rates up to 40Gbps and are compatible with the QSFP + port of any brand of equipment.

Compatibility:

Adva, Arista Networks, Avaya - Nortel, Brocade, Cisco, Coriant, Extreme, F5 Networks, Generic, HP - H3C, Huawei, IBM-Blade Networks, Intel, Juniper, Mellanox, Nokia - Alcatel, Palo Alto Networks, Pica8 and custom other brands according to your demands.

As Fotech: Skylane Optics brand QSFP +, CSFP, SFP, XFP, SFP +, CFP4, CFP2, CFP, X2 and XENPAK; We offer complete transceiver solutions with a unique service concept such as sales, testing, coding, customization and after-sales technical support.

Certifications:
Skylane Optics® works directly with leading certification institutes (BST, CE, IEC, IEEE, RoHS, TÜVRheinland, TÜV SÜD, REACH, Telcordia GR468) to ensure transceivers are safe and have the smallest possible impact on the environment. performs module tests in its own facilities with the advantage of having Europe's only optical test laboratory.

  • SingleMode
  • 40GBase-PSM4 LR4 10GBE
  • Point-to-point transmission on 10 km singlemode ribbon fiber
  • Dual
  • 1310 nm DFB transmitter
  • MPO-12 connector MPO / MTP Optical Slot (8-degree angle)
  • DDM (Digital Diagnostic Monitoring function enables the monitoring of fiber optic modules such as SFP, SFP +, QSFP + and XFP.)
  • Compatibility with QSFP + multi-source agreement. [SFF-8436]
  • Speed up to 11.2Gbps per line
  • QSFP +: It is an easy-to-plug transceiver module used in communication and data communication applications and is widely used in data centers.
  • QSFP + are transceiver modules that combine CWDM or DWDM technology, allowing you to increase the capacity of your network without the need for physical fiber optic cables.
  • How QSFP + works: It acts as an interface between the main board of a network device such as a router or switch and a fiber optic or copper cable.
  • QSFP + technology; It is designed to support SONET, Gigabit Ethernet, Fiber Channel and other communication standards, and generally supports data connections up to 40 Gigabit.

Scope of application

  • 40GBASE-LR4
  • Infiniband QDR and DDR interconnections
  • Customer-side 40G Telecom connections
  • Data Centers
  • Point-to-point networks
  • Metro Access Rings
  • Switches / bridges / routers / servers
  • LAN, SAN (local, storage area networks)
  • High-speed computer networks
  • Switching systems
  • QFP1301040PD
  • QSFP + LR-4 40G 1310nm, Tx (DFB), Rx (PIN), max. distance 10km, power 6.2dB, 40x Gigabit Ethernet & Infiniband QDR, MTP/MPO connector 0 ° C to 70 ° C, DDM
Document Name Date İndirme Boyut View
Skylane Optics - QSFP+ Parallel Fibre 18/03/2019 12:21:27 219 354,7 KB View
